IslandPath Analysis: Orientia tsutsugamushi str. Ikeda

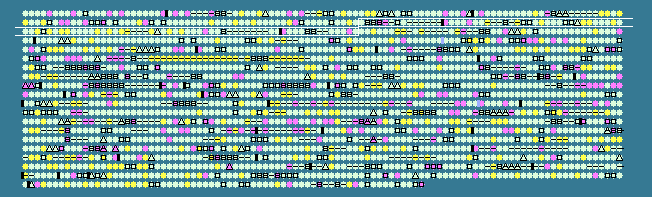

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 31.48   STD DEV: 3.15
Orientia tsutsugamushi str. Ikeda, complete genome - 1..2008987
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
157	 28.33	-1	147094..147852	-	252	189183064	-	OTT_0157	-	hypothetical protein
158	 29.75	0	147941..148498	+	185	189183065	-	OTT_0158	-	transposase
159	 29.52	0	149576..149680	+	34	189183066	-	OTT_0159	-	transposase
160	 27.98	-1	149692..149934	+	80	189183067	-	OTT_0160	-	transposase
161	 25.66	-1	150404..151798	+	464	189183068	-	OTT_0161	-	hypothetical protein
162	 28.53	0	152846..156073	+	1075	189183069	-	OTT_0162	-	sensor histidine kinase/response regulator/transporter hybrid protein
163	 29.24	0	156678..156848	+	56	189183070	-	OTT_0163	-	transposase
164	 29.86	0	158057..159064	+	335	189183071	trpS	OTT_0164	-	tryptophanyl-tRNA synthetase
165	 31.91	0	159629..159769	-	46	189183072	-	OTT_0165	-	RelA/SpoT-related protein
166	 32.02	0	160184..161632	-	482	189183073	-	OTT_0166	-	replicative DNA helicase
167	 30.15	0	161641..162174	-	177	189183074	-	OTT_0167	-	hypothetical protein
168	 29.44	0	163021..163200	+	59	189183075	-	OTT_0168	-	reverse transcriptase
169	 31.38	0	164258..164770	-	170	189183076	-	OTT_0169	-	hypothetical protein
170	 30.94	0	166062..166856	-	264	189183077	-	OTT_0170	-	ComL-like lipoprotein
171	 21.30	-2	167151..167657	+	168	189183078	lspA	OTT_0171	-	lipoprotein signal peptidase
172	 32.65	0	168769..170226	+	485	189183079	-	OTT_0172	-	putative conjugative transfer protein TraA
173	 32.83	0	170241..171038	+	265	189183080	-	OTT_0173	-	putative conjugative transfer protein TraA
174	 30.36	0	171302..171772	+	156	189183081	-	OTT_0174	-	putative conjugative transfer protein TraI
175	 26.79	-1	171801..172121	+	106	189183082	-	OTT_0175	-	putative conjugative transfer protein TraI
176	 30.65	0	172114..172485	+	123	189183083	-	OTT_0176	-	putative conjugative transfer protein TraI
177	 32.51	0	172509..173597	-	362	189183084	-	OTT_0177	-	putative conjugative transfer protein TraA
178	 35.75	+1	173876..174331	+	151	189183085	-	OTT_0178	-	putative conjugative transfer protein TraD
179	 31.30	0	174373..175158	-	261	189183086	-	OTT_0179	-	exodeoxyribonuclease III
180	 29.89	0	175772..177715	-	647	189183087	-	OTT_0180	-	hypothetical protein
181	 30.02	0	178715..179137	+	140	189183088	-	OTT_0181	-	transposase
182	 32.23	0	179469..181364	+	631	189183089	-	OTT_0182	-	repeat-containing protein A_01
183	 36.88	+1	181490..181771	-	93	189183090	-	OTT_0183	-	replicative DNA helicase, DnaB
184	 28.89	0	181908..182132	-	74	189183091	-	OTT_0184	-	transposase
185	 29.99	0	182339..183085	+	248	189183092	-	OTT_0185	-	transposase
186	 29.86	0	183428..184003	-	191	189183093	-	OTT_0186	-	hypothetical protein
187	 35.75	+1	184092..184547	-	151	189183094	-	OTT_0187	-	putative conjugative transfer protein TraD
188	 33.33	0	184843..184944	+	33	189183095	-	OTT_0188	-	putative conjugative transfer protein TraA
189	 33.33	0	185050..187659	+	869	189183096	-	OTT_0189	-	putative conjugative transfer protein TraA
190	 31.47	0	187990..189060	+	356	189183097	-	OTT_0190	-	putative conjugative transfer protein TraI
191	 31.37	0	189112..189672	+	186	189183098	-	OTT_0191	-	putative transposase
192	 32.30	0	189688..190656	-	322	189183099	-	OTT_0192	-	transposase
193	 32.56	0	190923..191309	+	128	189183100	-	OTT_0193	-	putative integrase
194	 36.73	+1	191374..191667	+	97	189183101	-	OTT_0194	-	hypothetical protein
195	 37.45	+1	192106..192372	+	88	189183102	-	OTT_0195	-	putative conjugative transfer protein TraU
196	 32.33	0	192419..192817	+	132	189183103	-	OTT_0196	-	putative conjugative transfer protein TraN
197	 32.80	0	192854..193039	+	61	189183104	-	OTT_0197	-	putative conjugative transfer protein TraN
198	 30.91	0	193050..193214	+	54	189183105	-	OTT_0198	-	putative conjugative transfer protein TraF
199	 36.80	+1	193211..194104	+	297	189183106	-	OTT_0199	-	putative conjugative transfer protein TraH
200	 29.57	0	194269..194613	+	114	189183107	-	OTT_0200	-	putative conjugative transfer protein TraD
201	 34.19	0	194602..195183	-	193	189183108	-	OTT_0201	-	putative conjugative transfer protein TraD
202	 31.15	0	195143..195601	-	152	189183109	-	OTT_0202	-	putative conjugative transfer protein TraD
203	 35.75	+1	195607..196806	-	399	189183110	-	OTT_0203	-	putative conjugative transfer protein TraG
204	 32.30	0	196889..197857	-	322	189183111	-	OTT_0204	-	transposase
205	 38.39	+2	198028..198363	-	111	189183112	-	OTT_0205	-	putative conjugative transfer protein TraG
206	 32.71	0	198363..198842	-	159	189183113	-	OTT_0206	-	putative conjugative transfer protein TraH
207	 36.94	+1	198772..199437	-	221	189183114	-	OTT_0207	-	putative conjugative transfer protein TraH
208	 35.37	+1	199519..199665	-	48	189183115	-	OTT_0208	-	putative conjugative transfer protein TraH
209	 34.16	0	199662..200384	-	240	189183116	-	OTT_0209	-	putative conjugative transfer protein TraF
210	 31.64	0	200588..201766	-	392	189183117	-	OTT_0210	-	ankyrin repeat-containing protein 04_01
211	 33.57	0	201923..203614	-	563	189183118	-	OTT_0211	-	putative conjugative transfer protein TraN
212	 31.15	0	203611..203931	-	106	189183119	-	OTT_0212	-	putative conjugative transfer protein TrbC
213	 38.45	+2	204016..204699	-	227	189183120	-	OTT_0213	-	putative conjugative transfer protein TraU
214	 32.08	0	205067..206104	+	345	189183121	-	OTT_0214	-	ankyrin repeat-containing protein 05_01
215	 35.97	+1	206018..207874	-	618	189183122	-	OTT_0215	-	putative conjugative transfer protein TraC
216	 30.91	0	207786..208115	-	109	189183123	-	OTT_0216	-	hypothetical protein
217	 35.56	+1	208115..208384	-	89	189183124	-	OTT_0217	-	putative conjugative transfer protein TraB
218	 36.75	+1	208347..209165	-	272	189183125	-	OTT_0218	-	putative conjugative transfer protein TraB
219	 33.33	0	209484..209813	-	109	189183126	-	OTT_0219	-	hypothetical protein
220	 28.30	-1	210178..210654	-	158	189183127	-	OTT_0220	-	hypothetical protein
221	 31.34	0	210651..211202	-	183	189183128	-	OTT_0221	-	putative conjugative transfer protein TraE
222	 36.61	+1	211202..211537	-	111	189183129	-	OTT_0222	-	hypothetical protein
223	 29.85	0	212022..212912	-	296	189183130	-	OTT_0223	-	putative integrase
224	 30.00	0	213349..213648	+	99	189183131	-	OTT_0224	-	hypothetical protein
225	 36.55	+1	213629..215431	+	600	189183132	-	OTT_0225	-	putative conjugative transfer protein TraC
226	 33.23	0	215330..216340	-	336	189183133	-	OTT_0226	-	ankyrin repeat-containing protein 06_01
227	 37.76	+1	216495..217082	+	195	189183134	-	OTT_0227	-	putative conjugative transfer protein TraU
228	 31.46	0	217167..217487	+	106	189183135	-	OTT_0228	-	putative conjugative transfer protein TrbC
229	 31.77	0	217484..218251	+	255	189183136	-	OTT_0229	-	putative conjugative transfer protein TraN
230	 34.60	0	218540..219172	+	210	189183137	-	OTT_0230	-	putative conjugative transfer protein TraN
231	 26.97	-1	219424..220932	+	502	189183138	-	OTT_0231	-	TPR repeat-containing protein 03
232	 33.78	0	221043..221489	+	148	189183139	-	OTT_0232	-	hypothetical protein
233	 34.74	+1	221766..222332	+	188	189183140	-	OTT_0233	-	putative conjugative transfer protein TraF
234	 30.81	0	222612..222809	-	65	189183141	-	OTT_0234	-	transposase
235	 29.22	0	223065..223721	-	218	189183142	-	OTT_0235	-	hypothetical protein
236	 29.44	0	223718..224077	-	119	189183143	-	OTT_0236	-	ankyrin repeat-containing protein 03_02
237	 29.39	0	224310..224588	-	92	189183144	-	OTT_0237	-	ankyrin repeat-containing protein 03_03
238	 29.89	0	224907..225371	-	154	189183145	-	OTT_0238	-	hypothetical protein
239	 34.19	0	225447..225680	-	77	189183146	-	OTT_0239	-	hypothetical protein
240	 32.52	0	226507..226629	-	40	189183147	-	OTT_0240	-	hypothetical protein
241	 33.33	0	226846..227082	-	78	189183148	-	OTT_0241	-	putative conjugative transfer protein TraB
242	 29.51	0	228229..229719	+	496	189183149	ctaQ	OTT_0242	-	thermostable carboxypeptidase
243	 30.77	0	229824..231191	-	455	189183150	mgtE	OTT_0243	-	magnesium transporter
244	 27.84	-1	231377..232396	-	339	189183151	-	OTT_0244	-	hypothetical protein
245	 31.35	0	232416..234935	-	839	189183152	leuS	OTT_0245	-	leucyl-tRNA synthetase
246	 29.37	0	235555..236286	-	243	189183153	-	OTT_0246	-	protocatechuate 3,4-dioxygenase beta subunit
247	 28.07	-1	237770..239233	-	487	189183154	gppA	OTT_0247	-	guanosine pentaphosphate phosphohydrolase
248	 29.77	0	240017..240409	-	130	189183155	-	OTT_0248	-	transposase
249	 29.23	0	240566..240931	-	121	189183156	-	OTT_0249	-	transposase
250	 28.57	0	241933..242373	-	146	189183157	-	OTT_0250	-	ankyrin repeat-containing protein 07_01
251	 33.68	0	243251..243535	-	94	189183158	-	OTT_0251	-	replicative DNA helicase
252	 31.11	0	243525..244694	-	389	189183159	-	OTT_0252	-	replicative DNA helicase
253	 30.32	0	244703..246262	-	519	189183160	-	OTT_0253	-	hypothetical protein
254	 30.20	0	247713..248063	-	116	189183161	-	OTT_0254	-	probable sigma(54) modulation protein
255	 27.38	-1	248398..249909	+	503	189183162	barA	OTT_0255	-	histidine kinase sensor protein
256	 32.78	0	250660..252114	+	484	189183163	-	OTT_0256	-	replicative DNA helicase, DnaB
31.48	MEAN

3.15	STD DEV
