IslandPathversion 1.0

IslandPath Analysis: Orientia tsutsugamushi str. Ikeda

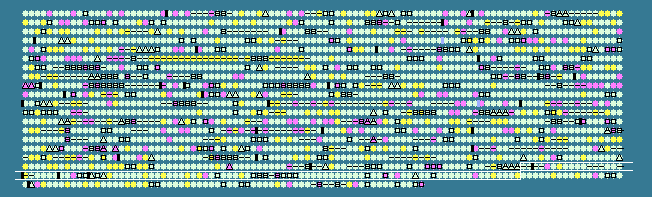

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.48 STD DEV: 3.15
Orientia tsutsugamushi str. Ikeda, complete genome - 1..2008987
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1784	 28.57	0	1810607..1810774	-	55	189184691	-	OTT_1784	-	hypothetical protein
1785	 34.68	+1	1810904..1811125	-	73	189184692	-	OTT_1785	-	hypothetical protein
1786	 31.56	0	1811401..1811625	-	74	189184693	rpmE	OTT_1786	-	50S ribosomal protein L31
1787	 28.82	0	1811635..1811922	-	95	189184694	rpmB	OTT_1787	-	50S ribosomal protein L28
1788	 27.72	-1	1812167..1813039	+	290	189184695	-	OTT_1788	-	hypothetical protein
1789	 30.63	0	1813057..1814313	+	418	189184696	proP1	OTT_1789	-	proline/betaine transporter
1790	 35.99	+1	1815042..1815794	+	250	189184697	-	OTT_1790	-	hypothetical protein
1791	 29.79	0	1816173..1817384	-	403	189184698	pbpE	OTT_1791	-	penicillin-binding protein 4
1792	 34.00	0	1817410..1819203	-	597	189184699	aspS	OTT_1792	-	asparaginyl-tRNA synthetase
1793	 34.50	0	1819467..1823657	-	1396	189184700	rpoC	OTT_1793	-	DNA-directed RNA polymerase beta prime chain
1794	 33.45	0	1823774..1827898	-	1374	189184701	rpoB	OTT_1794	-	DNA-directed RNA polymerase beta chain
1795	 33.08	0	1828214..1828603	-	129	189184702	rplL	OTT_1795	-	50S ribosomal protein L7/L12
1796	 30.98	0	1828625..1829134	-	169	189184703	rplJ	OTT_1796	-	50S ribosomal protein L10
1797	 32.67	0	1829138..1829887	-	249	189184704	rplA	OTT_1797	-	50S ribosomal protein L1
1798	 33.78	0	1829891..1830337	-	148	189184705	rplK	OTT_1798	-	50S ribosomal protein L11
1799	 31.47	0	1830377..1830913	-	178	189184706	nusG	OTT_1799	-	transcription antitermination protein NusG
1800	 31.34	0	1830956..1831156	-	66	189184707	secE	OTT_1800	-	preprotein translocase SecE subunit
1801	 37.55	+1	1831420..1832604	-	394	189184708	tuf	OTT_1801	-	elongation factor EF-Tu
1802	 31.50	0	1832777..1833541	-	254	189184709	plsC	OTT_1802	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
1803	 31.54	0	1833658..1834269	-	203	189184710	recR	OTT_1803	-	recombination protein RecR
1804	 29.80	0	1834357..1834893	-	178	189184711	-	OTT_1804	-	putative intracellular septation protein
1805	 30.48	0	1834897..1835736	-	279	189184712	-	OTT_1805	-	high-affinity Fe2+/Pb2+ permease
1806	 31.69	0	1835765..1836130	-	121	189184713	-	OTT_1806	-	hypothetical protein
1807	 29.20	0	1836596..1837828	-	410	189184714	-	OTT_1807	-	hypothetical protein
1808	 31.28	0	1838014..1838745	-	243	189184715	glnQ	OTT_1808	-	glutamine ABC transporter ATP-binding protein GlnQ
1809	 27.83	-1	1838738..1839355	-	205	189184716	glnP	OTT_1809	-	probable glutamine transport system permease protein GlnP
1810	 29.06	0	1840418..1840651	+	77	189184717	-	OTT_1810	-	transposase
1811	 29.26	0	1840780..1841172	+	130	189184718	-	OTT_1811	-	transposase
1812	 30.34	0	1843889..1844155	+	88	189184719	-	OTT_1812	-	putative integrase
1813	 29.08	0	1845397..1845678	+	93	189184720	-	OTT_1813	-	transposase
1814	 33.24	0	1846220..1847338	+	372	189184721	-	OTT_1814	-	putative integrase
1815	 36.61	+1	1847464..1847799	+	111	189184722	-	OTT_1815	-	hypothetical protein
1816	 31.34	0	1847799..1848350	+	183	189184723	-	OTT_1816	-	putative conjugative transfer protein TraE
1817	 28.30	-1	1848347..1848823	+	158	189184724	-	OTT_1817	-	hypothetical protein
1818	 33.04	0	1849188..1849523	+	111	189184725	-	OTT_1818	-	hypothetical protein
1819	 34.91	+1	1849577..1850911	+	444	189184726	-	OTT_1819	-	putative conjugative transfer protein TraB
1820	 30.61	0	1850911..1851204	+	97	189184727	-	OTT_1820	-	hypothetical protein
1821	 36.22	+1	1851185..1853674	+	829	189184728	-	OTT_1821	-	putative conjugative transfer protein TraC
1822	 34.09	0	1853671..1854330	+	219	189184729	-	OTT_1822	-	putative conjugative transfer protein TraW
1823	 30.88	0	1854416..1854619	+	67	189184730	-	OTT_1823	-	hypothetical protein
1824	 39.06	+2	1854623..1855600	+	325	189184731	-	OTT_1824	-	putative conjugative transfer protein TraU
1825	 30.47	0	1855623..1856006	+	127	189184732	-	OTT_1825	-	putative conjugative transfer protein TrbC
1826	 33.92	0	1856003..1857697	+	564	189184733	-	OTT_1826	-	putative conjugative transfer protein TraN
1827	 34.75	+1	1857694..1858398	+	234	189184734	-	OTT_1827	-	putative conjugative transfer protein TraF
1828	 37.47	+1	1858395..1859288	+	297	189184735	-	OTT_1828	-	putative conjugative transfer protein TraH
1829	 32.50	0	1859218..1859697	+	159	189184736	-	OTT_1829	-	putative conjugative transfer protein TraH
1830	 35.08	+1	1859697..1862324	+	875	189184737	-	OTT_1830	-	putative conjugative transfer protein TraG
1831	 27.72	-1	1862337..1863476	+	379	189184738	-	OTT_1831	-	TPR repeat-containing protein 01_10
1832	 32.88	0	1863476..1865230	+	584	189184739	-	OTT_1832	-	putative conjugative transfer protein TraD
1833	 32.75	0	1865232..1866251	-	339	189184740	-	OTT_1833	-	putative transposase
1834	 33.30	0	1866236..1868908	-	890	189184741	-	OTT_1834	-	putative conjugative transfer protein TraI
1835	 33.92	0	1869177..1871543	-	788	189184742	-	OTT_1835	-	putative conjugative transfer protein TraA
1836	 33.58	0	1871607..1872005	-	132	189184743	-	OTT_1836	-	putative conjugative transfer protein TraA
1837	 36.18	+1	1872300..1872755	+	151	189184744	-	OTT_1837	-	putative conjugative transfer protein TraD
1838	 29.62	0	1872823..1873737	-	304	189184745	-	OTT_1838	-	hypothetical protein
1839	 29.19	0	1873948..1874454	-	168	189184746	-	OTT_1839	-	transposase
1840	 31.22	0	1874596..1874784	-	62	189184747	-	OTT_1840	-	transposase
1841	 28.06	-1	1875085..1875672	+	195	189184748	-	OTT_1841	-	transposase
1842	 30.47	0	1876110..1877228	-	372	189184749	-	OTT_1842	-	hypothetical protein
1843	 27.20	-1	1877760..1878134	+	124	189184750	-	OTT_1843	-	transposase
1844	 31.11	0	1878121..1878255	+	44	189184751	-	OTT_1844	-	transposase
1845	 28.80	0	1878312..1878686	+	124	189184752	-	OTT_1845	-	transposase
1846	 29.59	0	1878673..1879179	+	168	189184753	-	OTT_1846	-	transposase
1847	 30.30	0	1879128..1879721	-	197	189184754	-	OTT_1847	-	RelA/SpoT-related protein
1848	 30.19	0	1879857..1880714	-	285	189184755	-	OTT_1848	-	hypothetical protein
1849	 28.52	0	1880698..1881465	-	255	189184756	-	OTT_1849	-	hypothetical protein
1850	 30.75	0	1881822..1882634	+	270	189184757	-	OTT_1850	-	N6 adenine-specific DNA-methyltransferase
1851	 31.18	0	1882638..1883147	-	169	189184758	-	OTT_1851	-	hypothetical protein
1852	 31.02	0	1883248..1883895	-	215	189184759	-	OTT_1852	-	ankyrin repeat-containing protein 03_15
1853	 31.94	0	1883933..1884508	-	191	189184760	-	OTT_1853	-	RelA/SpoT-related protein
1854	 32.08	0	1884742..1886178	-	478	189184761	-	OTT_1854	-	replicative DNA helicase
1855	 31.04	0	1886203..1887249	-	348	189184762	-	OTT_1855	-	hypothetical protein
1856	 28.65	0	1887436..1887969	-	177	189184763	-	OTT_1856	-	hypothetical protein
1857	 29.35	0	1888079..1888957	-	292	189184764	-	OTT_1857	-	hypothetical protein
1858	 30.20	0	1889359..1890219	+	286	189184765	-	OTT_1858	-	transposase
1859	 30.89	0	1893427..1894326	+	299	189184766	-	OTT_1859	-	hypothetical protein
1860	 32.09	0	1894494..1895375	+	293	189184767	-	OTT_1860	-	hypothetical protein
1861	 27.04	-1	1895800..1896117	-	105	189184768	-	OTT_1861	-	transposase
1862	 29.82	0	1896946..1897884	-	312	189184769	rluC	OTT_1862	-	ribosomal large subunit pseudouridine synthase C
1863	 26.80	-1	1897868..1898740	-	290	189184770	holB	OTT_1863	-	DNA polymerase III delta subunit
1864	 30.49	0	1898764..1899291	-	175	189184771	ppa	OTT_1864	-	inorganic pyrophosphatase
1865	 30.09	0	1899377..1899808	-	143	189184772	dksA	OTT_1865	-	dnaK suppressor protein homolog
1866	 28.97	0	1899843..1900781	-	312	189184773	xerC	OTT_1866	-	integrase/recombinase XerC
1867	 32.89	0	1900807..1902150	-	447	189184774	thdF	OTT_1867	-	tRNA modification GTP-binding protein ThdF (TrmE)
1868	 29.35	0	1902232..1907157	+	1641	189184775	-	OTT_1868	-	NAD-glutamate dehydrogenase
1869	 28.36	0	1908088..1908570	+	160	189184776	-	OTT_1869	-	transposase
1870	 28.51	0	1908574..1910355	-	593	189184777	abcT3	OTT_1870	-	ABC transporter ATP-binding protein
1871	 32.27	0	1910405..1911157	-	250	189184778	pyrH	OTT_1871	-	uridylate kinase
1872	 29.49	0	1911385..1912476	-	363	189184779	mraY	OTT_1872	-	phospho-N-acetylmuramoyl-pentapeptide- transferase
1873	 29.86	0	1912466..1913875	-	469	189184780	murF	OTT_1873	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6- diaminopimelate--D-alanyl-D-alanyl ligase
1874	 30.41	0	1913872..1915341	-	489	189184781	murE	OTT_1874	-	UDP-N-acetylmuramoylalanyl-D-glutamate-2,6- diaminopimelate ligase
1875	 29.05	0	1915328..1917079	-	583	189184782	ftsI	OTT_1875	-	penicillin-binding protein PbpA2
1876	 23.62	-2	1917383..1917691	-	102	189184783	-	OTT_1876	-	hypothetical protein
1877	 29.82	0	1917684..1918622	-	312	189184784	mraW	OTT_1877	-	S-adenosyl-methyltransferase MraW
1878	 33.95	0	1918691..1919824	-	377	189184785	dnaJ	OTT_1878	-	dnaJ protein
1879	 35.56	+1	1919913..1921841	-	642	189184786	dnaK	OTT_1879	-	dnaK protein
1880	 29.51	0	1922222..1922509	-	95	189184787	bolA	OTT_1880	-	BolA protein homolog
1881	 32.58	0	1922716..1923513	+	265	189184788	fabI	OTT_1881	-	enoyl-[acyl carrier protein] reductase
1882	 34.21	0	1924190..1925329	-	379	189184789	-	OTT_1882	-	reverse transcriptase
1883	 39.33	+2	1925313..1925612	+	99	189184790	-	OTT_1883	-	hypothetical protein
31.48	MEAN

3.15	STD DEV
