IslandPath Analysis: Orientia tsutsugamushi str. Ikeda

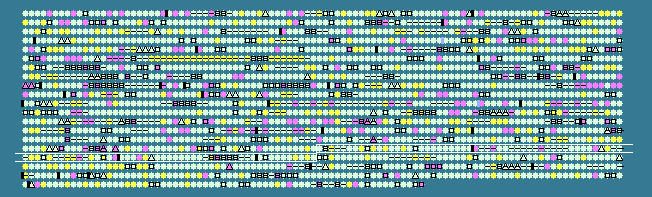

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.48 STD DEV: 3.15
Orientia tsutsugamushi str. Ikeda, complete genome - 1..2008987
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1550	 33.55	0	1580343..1580795	-	150	189184457	-	OTT_1550	-	putative conjugative transfer protein TraA
1551	 33.33	0	1580905..1581144	+	79	189184458	-	OTT_1551	-	transposase
1552	 39.18	+2	1581364..1581534	+	56	189184459	-	OTT_1552	-	putative conjugative transfer protein TraD
1553	 28.67	0	1581602..1582480	-	292	189184460	-	OTT_1553	-	hypothetical protein
1554	 30.86	0	1582650..1582811	-	53	189184461	-	OTT_1554	-	RelA/SpoT-related protein
1555	 29.85	0	1583064..1584155	+	363	189184462	-	OTT_1555	-	hypothetical protein
1556	 31.23	0	1584274..1585272	+	332	189184463	-	OTT_1556	-	hypothetical protein
1557	 36.84	+1	1585345..1585743	-	132	189184464	-	OTT_1557	-	putative conjugative transfer protein TraD
1558	 32.30	0	1586044..1587012	-	322	189184465	-	OTT_1558	-	transposase
1559	 37.20	+1	1587183..1587518	-	111	189184466	-	OTT_1559	-	putative conjugative transfer protein TraG
1560	 32.50	0	1587518..1587997	-	159	189184467	-	OTT_1560	-	putative conjugative transfer protein TraH
1561	 36.98	+1	1588192..1588821	-	209	189184468	-	OTT_1561	-	putative conjugative transfer protein TraH
1562	 32.58	0	1588818..1588949	-	43	189184469	-	OTT_1562	-	putative conjugative transfer protein TraF
1563	 33.60	0	1589234..1590373	-	379	189184470	-	OTT_1563	-	reverse transcriptase
1564	 39.33	+2	1590357..1590656	+	99	189184471	-	OTT_1564	-	hypothetical protein
1565	 29.56	0	1591183..1592982	-	599	189184472	-	OTT_1565	-	hypothetical protein
1566	 28.65	0	1593495..1593878	-	127	189184473	-	OTT_1566	-	transposase
1567	 30.80	0	1594095..1595867	-	590	189184474	virD4	OTT_1567	-	type IV secretion system protein VirD4
1568	 32.53	0	1595867..1596856	-	329	189184475	virB11	OTT_1568	-	type IV secretion system protein VirB11
1569	 32.03	0	1596856..1598385	-	509	189184476	virB10	OTT_1569	-	type IV secretion system protein VirB10
1570	 28.54	0	1598385..1598822	-	145	189184477	virB9	OTT_1570	-	type IV secretion system protein VirB9
1571	 28.49	0	1598806..1599486	-	226	189184478	virB8	OTT_1571	-	type IV secretion system protein VirB8
1572	 28.48	0	1599725..1601023	-	432	189184479	dnaN	OTT_1572	-	DNA polymerase III beta chain
1573	 33.47	0	1601042..1602454	-	470	189184480	dnaA	OTT_1573	-	chromosomal replication initiator protein DnaA
1574	 28.80	0	1602755..1603063	+	102	189184481	-	OTT_1574	-	hypothetical protein
1575	 31.24	0	1603487..1605013	+	508	189184482	-	OTT_1575	-	ankyrin repeat-containing protein 20
1576	 24.35	-2	1606140..1606562	-	140	189184483	-	OTT_1576	-	hypothetical protein
1577	 34.14	0	1606893..1608386	+	497	189184484	ubiD	OTT_1577	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
1578	 31.62	0	1608509..1610260	-	583	189184485	pbpA1	OTT_1578	-	penicillin-binding protein PbpA1
1579	 23.66	-2	1610250..1610735	-	161	189184486	-	OTT_1579	-	hypothetical protein
1580	 30.78	0	1610741..1611874	-	377	189184487	rodA	OTT_1580	-	rod shape-determining protein RodA
1581	 32.39	0	1612045..1612467	-	140	189184488	-	OTT_1581	-	hypothetical protein
1582	 29.61	0	1612483..1613019	-	178	189184489	mpg	OTT_1582	-	DNA-3-methyladenine glycosidase
1583	 33.97	0	1613054..1614937	-	627	189184490	ftsH	OTT_1583	-	FtsH protein
1584	 29.49	0	1614954..1616279	-	441	189184491	mesJ	OTT_1584	-	MesJ protein
1585	 28.33	0	1616605..1618044	-	479	189184492	nuoN1	OTT_1585	-	NADH dehydrogenase I chain N
1586	 29.13	0	1618089..1619588	-	499	189184493	nuoM	OTT_1586	-	NADH dehydrogenase I chain M
1587	 27.62	-1	1619589..1621496	-	635	189184494	nuoL1	OTT_1587	-	NADH dehydrogenase I chain L
1588	 28.40	0	1621500..1621823	-	107	189184495	nuoK	OTT_1588	-	NADH dehydrogenase I chain K
1589	 29.23	0	1621807..1622415	-	202	189184496	nuoJ	OTT_1589	-	NADH dehydrogenase I chain J
1590	 32.72	0	1622419..1622904	-	161	189184497	nuoI	OTT_1590	-	NADH dehydrogenase I chain I
1591	 31.70	0	1622958..1624001	-	347	189184498	nuoH	OTT_1591	-	NADH dehydrogenase I chain H
1592	 32.21	0	1624058..1626097	-	679	189184499	nuoG	OTT_1592	-	NADH dehydrogenase I chain G
1593	 29.26	0	1626377..1626940	+	187	189184500	rrf	OTT_1593	-	ribosome recycling factor
1594	 33.80	0	1627134..1628414	-	426	189184501	-	OTT_1594	-	hypothetical protein
1595	 33.86	0	1629009..1629575	+	188	189184502	dcd	OTT_1595	-	deoxycytidine triphosphate deaminase
1596	 27.68	-1	1629617..1630111	+	164	189184503	secB	OTT_1596	-	protein-export protein SecB
1597	 30.75	0	1631109..1632308	+	399	189184504	-	OTT_1597	-	putative integrase
1598	 36.01	+1	1632429..1632764	+	111	189184505	-	OTT_1598	-	hypothetical protein
1599	 31.52	0	1632764..1633315	+	183	189184506	-	OTT_1599	-	putative conjugative transfer protein TraE
1600	 29.04	0	1633312..1633614	+	100	189184507	-	OTT_1600	-	hypothetical protein
1601	 28.57	0	1633614..1633718	+	34	189184508	-	OTT_1601	-	hypothetical protein
1602	 35.50	+1	1633818..1634924	+	368	189184509	-	OTT_1602	-	putative conjugative transfer protein TraB
1603	 36.03	+1	1635195..1636010	+	271	189184510	-	OTT_1603	-	hypothetical protein
1604	 31.71	0	1636061..1636306	-	81	189184511	-	OTT_1604	-	transposase
1605	 38.89	+2	1636695..1637378	+	227	189184512	-	OTT_1605	-	putative conjugative transfer protein TraU
1606	 31.15	0	1637463..1637783	+	106	189184513	-	OTT_1606	-	putative conjugative transfer protein TrbC
1607	 33.81	0	1637780..1639471	+	563	189184514	-	OTT_1607	-	putative conjugative transfer protein TraN
1608	 35.41	+1	1639468..1640094	+	208	189184515	-	OTT_1608	-	putative conjugative transfer protein TraF
1609	 37.25	+1	1640170..1641063	+	297	189184516	-	OTT_1609	-	putative conjugative transfer protein TraH
1610	 25.15	-2	1641077..1641247	+	56	189184517	-	OTT_1610	-	putative conjugative transfer protein TraH
1611	 29.57	0	1641228..1641572	+	114	189184518	-	OTT_1611	-	putative conjugative transfer protein TraD
1612	 36.21	+1	1641574..1641747	+	57	189184519	-	OTT_1612	-	putative conjugative transfer protein TraD
1613	 33.83	0	1641810..1642820	+	336	189184520	-	OTT_1613	-	putative conjugative transfer protein TraD
1614	 35.37	+1	1642838..1643377	-	179	189184521	-	OTT_1614	-	putative transposase
1615	 34.12	0	1643433..1644320	-	295	189184522	dapD	OTT_1615	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
1616	 27.29	-1	1644385..1645029	+	214	189184523	-	OTT_1616	-	hypothetical protein
1617	 30.71	0	1646106..1646525	+	139	189184524	-	OTT_1617	-	hypothetical protein
1618	 29.88	0	1646548..1646952	+	134	189184525	-	OTT_1618	-	hypothetical protein
1619	 29.70	0	1646968..1647711	+	247	189184526	-	OTT_1619	-	RelA/SpoT-related protein
1620	 27.50	-1	1648164..1648523	-	119	189184527	-	OTT_1620	-	TPR repeat-containing protein 06_02
1621	 38.64	+2	1648894..1649025	-	43	189184528	-	OTT_1621	-	hypothetical protein
1622	 31.12	0	1649268..1649810	-	180	189184529	-	OTT_1622	-	putative integrase
1623	 28.05	-1	1650552..1650797	-	81	189184530	-	OTT_1623	-	hypothetical protein
1624	 33.17	0	1651363..1651980	-	205	189184531	rnhB	OTT_1624	-	ribonuclease HII
1625	 28.90	0	1652050..1653087	+	345	189184532	miaA	OTT_1625	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1626	 28.51	0	1653071..1653817	+	248	189184533	-	OTT_1626	-	hypothetical protein
1627	 29.80	0	1653947..1654597	+	216	189184534	hda	OTT_1627	-	DnaA homologue Had protein
1628	 31.65	0	1654661..1657033	-	790	189184535	lon	OTT_1628	-	ATP-dependent protease La
1629	 31.76	0	1657150..1658163	+	337	189184536	tdcB	OTT_1629	-	threonine dehydratase
1630	 29.00	0	1658728..1660596	-	622	189184537	-	OTT_1630	-	hypothetical protein
1631	 32.15	0	1661149..1662918	-	589	189184538	-	OTT_1631	-	repeat-containing protein A_05
1632	 35.01	+1	1663297..1663653	+	118	189184539	-	OTT_1632	-	transposase
1633	 27.20	-1	1663875..1664249	+	124	189184540	-	OTT_1633	-	transposase
1634	 31.11	0	1664236..1664370	+	44	189184541	-	OTT_1634	-	transposase
1635	 28.80	0	1664427..1664801	+	124	189184542	-	OTT_1635	-	transposase
1636	 29.98	0	1664788..1665294	+	168	189184543	-	OTT_1636	-	transposase
1637	 28.99	0	1666218..1667438	-	406	189184544	proP3	OTT_1637	-	proline/betaine transporter
1638	 32.66	0	1667750..1668646	-	298	189184545	hemC	OTT_1638	-	porphobilinogen deaminase
1639	 30.90	0	1668819..1670378	+	519	189184546	icd	OTT_1639	-	isocitrate dehydrogenase
1640	 31.99	0	1671520..1674954	+	1144	189184547	-	OTT_1640	-	sensor histidine kinase/response regulator/transporter hybrid protein
1641	 30.39	0	1675145..1675348	-	67	189184548	-	OTT_1641	-	putative transposase
1642	 31.28	0	1675400..1676518	-	372	189184549	-	OTT_1642	-	putative conjugative transfer protein TraI
1643	 33.58	0	1676802..1677626	-	274	189184550	-	OTT_1643	-	putative conjugative transfer protein TraA
1644	 34.09	0	1677641..1678564	-	307	189184551	-	OTT_1644	-	putative conjugative transfer protein TraA
1645	 33.63	0	1678606..1679622	-	338	189184552	-	OTT_1645	-	putative conjugative transfer protein TraA
1646	 35.31	+1	1679900..1680355	+	151	189184553	-	OTT_1646	-	putative conjugative transfer protein TraD
1647	 34.00	0	1680414..1680713	-	99	189184554	-	OTT_1647	-	hypothetical protein
1648	 36.64	+1	1680944..1681336	-	130	189184555	-	OTT_1648	-	hypothetical protein
1649	 29.59	0	1681748..1682362	-	204	189184556	-	OTT_1649	-	RelA/SpoT-related protein
31.48	MEAN

3.15	STD DEV
