IslandPath Analysis: Orientia tsutsugamushi str. Ikeda

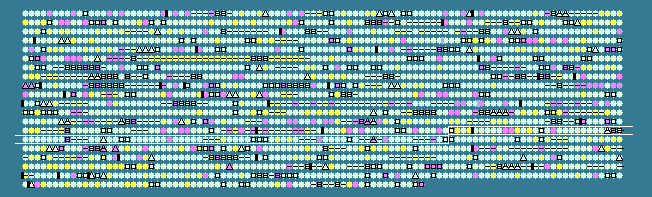

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.48 STD DEV: 3.15
Orientia tsutsugamushi str. Ikeda, complete genome - 1..2008987
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1372	 32.30	0	1398344..1399312	-	322	189184279	-	OTT_1372	-	transposase
1373	 37.50	+1	1399483..1399818	-	111	189184280	-	OTT_1373	-	putative conjugative transfer protein TraG
1374	 32.72	0	1399818..1400303	-	161	189184281	-	OTT_1374	-	putative conjugative transfer protein TraH
1375	 36.83	+1	1400492..1401121	-	209	189184282	-	OTT_1375	-	putative conjugative transfer protein TraH
1376	 33.33	0	1401887..1402111	+	74	189184283	infA	OTT_1376	-	translation initiation factor IF-1
1377	 31.66	0	1402154..1402750	+	198	189184284	maf	OTT_1377	-	septum formation associated protein Maf
1378	 32.13	0	1402877..1403626	+	249	189184285	-	OTT_1378	-	hypothetical protein
1379	 32.23	0	1403728..1406445	+	905	189184286	gyrA	OTT_1379	-	DNA gyrase subunit A
1380	 31.62	0	1406479..1407759	+	426	189184287	glyA	OTT_1380	-	serine hydroxymethyltransferase
1381	 27.04	-1	1408449..1410941	-	830	189184288	-	OTT_1381	-	hypothetical protein
1382	 26.67	-1	1411177..1411716	-	179	189184289	rnpA	OTT_1382	-	ribonuclease P
1383	 41.48	+2	1411717..1411851	-	44	189184290	rpmH	OTT_1383	-	50S ribosomal protein L34
1384	 33.21	0	1412734..1413528	+	264	189184291	fbcH	OTT_1384	-	cytochrome c1, heme protein precursor
1385	 35.05	+1	1414017..1414772	-	251	189184292	rph	OTT_1385	-	ribonuclease PH
1386	 29.65	0	1414902..1415498	+	198	189184293	grpE	OTT_1386	-	heat shock protein GrpE
1387	 28.79	0	1415868..1415999	-	43	189184294	-	OTT_1387	-	transposase
1388	 30.65	0	1416850..1417482	-	210	189184295	rnd	OTT_1388	-	ribonuclease D
1389	 26.67	-1	1417489..1417788	-	99	189184296	-	OTT_1389	-	hypothetical protein
1390	 30.41	0	1417796..1418446	-	216	189184297	cdsA	OTT_1390	-	phosphatidate cytidylyltransferase
1391	 30.46	0	1418449..1419144	-	231	189184298	uppS	OTT_1391	-	UPP synthetase
1392	 29.24	0	1419320..1421125	+	601	189184299	uup	OTT_1392	-	ABC transporter ATP-binding protein Uup
1393	 28.99	0	1421443..1425147	-	1234	189184300	dnaE	OTT_1393	-	DNA polymerase III alpha chain
1394	 31.97	0	1425137..1427701	-	854	189184301	valS	OTT_1394	-	valyl-tRNA synthetase
1395	 28.88	0	1427733..1428608	+	291	189184302	ubiA	OTT_1395	-	4-hydroxybenzoate octaprenyltransferase
1396	 31.27	0	1428876..1429652	-	258	189184303	-	OTT_1396	-	hypothetical protein
1397	 33.03	0	1430003..1431001	+	332	189184304	mccF	OTT_1397	-	microcin C7 self-immunity protein
1398	 29.43	0	1432349..1432630	-	93	189184305	-	OTT_1398	-	putative integrase
1399	 27.20	-1	1432694..1433068	-	124	189184306	-	OTT_1399	-	transposase
1400	 31.61	0	1433022..1433195	-	57	189184307	-	OTT_1400	-	transposase
1401	 30.65	0	1433788..1434048	-	86	189184308	-	OTT_1401	-	hypothetical protein
1402	 33.10	0	1434580..1435440	-	286	189184309	coxB	OTT_1402	-	cytochrome c oxidase polypeptide II
1403	 28.51	0	1435487..1435963	-	158	189184310	-	OTT_1403	-	hypothetical protein
1404	 31.30	0	1437129..1439345	+	738	189184311	virB6	OTT_1404	-	type IV secretion system protein VirB6
1405	 32.44	0	1440465..1440689	-	74	189184312	-	OTT_1405	-	hypothetical protein
1406	 28.32	-1	1440890..1441168	-	92	189184313	-	OTT_1406	-	TPR repeat-containing protein 07
1407	 32.32	0	1441638..1444511	-	957	189184314	uvrA	OTT_1407	-	excinuclease ABC subunit A
1408	 27.98	-1	1445029..1445271	+	80	189184315	-	OTT_1408	-	transposase
1409	 34.03	0	1445505..1446368	-	287	189184316	-	OTT_1409	-	putative conjugative transfer protein TraA
1410	 33.56	0	1446358..1446801	-	147	189184317	-	OTT_1410	-	putative conjugative transfer protein TraA
1411	 31.25	0	1447204..1447491	-	95	189184318	-	OTT_1411	-	RelA/SpoT-related protein
1412	 33.46	0	1448242..1449012	+	256	189184319	-	OTT_1412	-	putative conjugative transfer protein TraA
1413	 31.75	0	1449091..1449279	+	62	189184320	-	OTT_1413	-	putative conjugative transfer protein TraA
1414	 29.17	0	1449465..1449656	-	63	189184321	-	OTT_1414	-	putative integrase
1415	 28.66	0	1450512..1451774	+	420	189184322	ampG1	OTT_1415	-	AmpG protein
1416	 31.13	0	1451790..1453193	+	467	189184323	panF	OTT_1416	-	sodium/pantothenate symporter
1417	 28.02	-1	1453550..1453888	-	112	189184324	-	OTT_1417	-	transposase
1418	 28.12	-1	1453976..1454416	-	146	189184325	-	OTT_1418	-	transposase
1419	 28.27	-1	1454740..1454976	-	78	189184326	-	OTT_1419	-	hypothetical protein
1420	 31.43	0	1455104..1455418	-	104	189184327	-	OTT_1420	-	putative conjugative transfer protein TraE
1421	 29.33	0	1456748..1457047	+	99	189184328	-	OTT_1421	-	hypothetical protein
1422	 28.82	0	1457395..1457682	-	95	189184329	-	OTT_1422	-	quinone oxidoreductase
1423	 30.02	0	1457941..1459086	-	381	189184330	-	OTT_1423	-	quinone oxidoreductase
1424	 29.77	0	1459397..1459789	+	130	189184331	ccmE	OTT_1424	-	cytochrome c-type biogenesis protein CcmE
1425	 25.25	-1	1459823..1460737	+	304	189184332	-	OTT_1425	-	hypothetical protein
1426	 30.59	0	1460734..1461207	+	157	189184333	-	OTT_1426	-	putative Hollyday junction resolvase
1427	 32.31	0	1461221..1462984	+	587	189184334	recJ	OTT_1427	-	single-stranded-DNA-specific exonuclease
1428	 28.70	0	1463293..1464048	-	251	189184335	mkl	OTT_1428	-	ribonucleotide ABC transporter ATP-binding protein
1429	 30.57	0	1464077..1464943	-	288	189184336	-	OTT_1429	-	toluene export ABC transporter permease protein
1430	 30.05	0	1464982..1465773	-	263	189184337	-	OTT_1430	-	hypothetical protein
1431	 34.94	+1	1465900..1466523	+	207	189184338	rpsD	OTT_1431	-	30S ribosomal protein S4
1432	 28.25	-1	1466501..1466815	+	104	189184339	-	OTT_1432	-	hypothetical protein
1433	 36.78	+1	1466998..1467084	+	28	189184340	-	OTT_1433	-	putative conjugative transfer protein TraB
1434	 38.29	+2	1467309..1467752	+	147	189184341	-	OTT_1434	-	putative conjugative transfer protein TraU
1435	 31.69	0	1467819..1468001	+	60	189184342	-	OTT_1435	-	putative conjugative transfer protein TraN
1436	 33.90	0	1468005..1468358	+	117	189184343	-	OTT_1436	-	putative conjugative transfer protein TraH
1437	 33.82	0	1468288..1468695	+	135	189184344	-	OTT_1437	-	putative conjugative transfer protein TraG
1438	 33.27	0	1468849..1470384	+	511	189184345	-	OTT_1438	-	putative conjugative transfer protein TraD
1439	 34.85	+1	1470394..1470855	-	153	189184346	-	OTT_1439	-	putative transposase
1440	 32.29	0	1471072..1472034	+	320	189184347	-	OTT_1440	-	transposase
1441	 30.84	0	1472050..1472610	-	186	189184348	-	OTT_1441	-	putative transposase
1442	 32.05	0	1472662..1474224	-	520	189184349	-	OTT_1442	-	putative conjugative transfer protein TraI
1443	 34.97	+1	1474565..1475299	-	244	189184350	-	OTT_1443	-	repeat-containing protein E_02
1444	 33.40	0	1475436..1478240	-	934	189184351	-	OTT_1444	-	putative conjugative transfer protein TraA
1445	 35.31	+1	1478534..1478989	+	151	189184352	-	OTT_1445	-	putative conjugative transfer protein TraD
1446	 31.03	0	1479068..1480066	-	332	189184353	-	OTT_1446	-	hypothetical protein
1447	 30.03	0	1480188..1480763	-	191	189184354	-	OTT_1447	-	RelA/SpoT-related protein
1448	 30.30	0	1480864..1481721	-	285	189184355	-	OTT_1448	-	hypothetical protein
1449	 28.94	0	1481743..1482471	-	242	189184356	-	OTT_1449	-	hypothetical protein
1450	 27.75	-1	1482821..1483537	-	238	189184357	-	OTT_1450	-	hypothetical protein
1451	 32.66	0	1484740..1485036	+	98	189184358	-	OTT_1451	-	N6 adenine-specific DNA-methyltransferase
1452	 30.34	0	1485052..1485552	-	166	189184359	-	OTT_1452	-	hypothetical protein
1453	 31.01	0	1485654..1486298	-	214	189184360	-	OTT_1453	-	ankyrin repeat-containing protein 03_11
1454	 31.82	0	1486336..1486731	-	131	189184361	-	OTT_1454	-	RelA/SpoT-related protein
1455	 28.72	0	1487257..1487646	+	129	189184362	-	OTT_1455	-	transposase
1456	 33.33	0	1488476..1490290	+	604	189184363	nrdA	OTT_1456	-	ribonucleoside-diphosphate reductase alpha chain
1457	 31.57	0	1490268..1491347	+	359	189184364	nrdB	OTT_1457	-	ribonucleoside-diphosphate reductase beta chain
1458	 28.21	-1	1491796..1492146	+	116	189184365	-	OTT_1458	-	hypothetical protein
1459	 27.19	-1	1492516..1492743	+	75	189184366	-	OTT_1459	-	putative integrase
1460	 30.06	0	1492841..1494550	+	569	189184367	abcT2	OTT_1460	-	ABC transporter ATP-binding protein
1461	 25.86	-1	1494519..1494866	+	115	189184368	-	OTT_1461	-	hypothetical protein
1462	 33.33	0	1494983..1495195	+	70	189184369	-	OTT_1462	-	hypothetical protein
1463	 34.88	+1	1495824..1495952	+	42	189184370	-	OTT_1463	-	replicative DNA helicase
1464	 31.68	0	1495966..1497420	+	484	189184371	-	OTT_1464	-	replicative DNA helicase
1465	 31.54	0	1497782..1498282	+	166	189184372	-	OTT_1465	-	ankyrin repeat-containing protein 03_12
1466	 31.94	0	1498380..1498883	+	167	189184373	-	OTT_1466	-	hypothetical protein
1467	 29.75	0	1498887..1499696	-	269	189184374	-	OTT_1467	-	N6 adenine-specific DNA-methyltransferase
1468	 29.03	0	1500063..1500341	+	92	189184375	-	OTT_1468	-	hypothetical protein
1469	 27.88	-1	1500406..1500900	+	164	189184376	-	OTT_1469	-	hypothetical protein
1470	 31.64	0	1500931..1501107	+	58	189184377	-	OTT_1470	-	hypothetical protein
1471	 29.98	0	1501322..1501828	-	168	189184378	-	OTT_1471	-	transposase
31.48	MEAN

3.15	STD DEV
