IslandPath Analysis: Orientia tsutsugamushi str. Ikeda

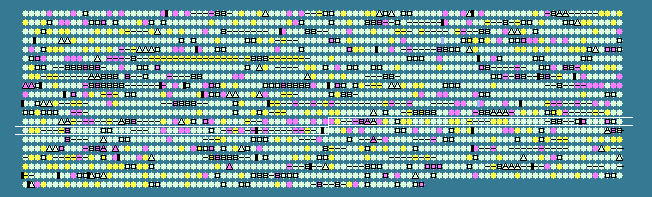

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.48 STD DEV: 3.15
Orientia tsutsugamushi str. Ikeda, complete genome - 1..2008987
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1252	 27.39	-1	1282691..1283515	-	274	189184159	dsbA	OTT_1252	-	thiol:disulfide interchange protein
1253	 35.51	+1	1283644..1283964	-	106	189184160	fdxA	OTT_1253	-	ferredoxin
1254	 30.24	0	1283970..1284680	-	236	189184161	ccmC	OTT_1254	-	heme exporter protein C
1255	 29.78	0	1284673..1285404	-	243	189184162	-	OTT_1255	-	hypothetical protein
1256	 27.80	-1	1285403..1286233	+	276	189184163	glnA	OTT_1256	-	glutamine synthetase
1257	 26.74	-1	1286631..1286903	-	90	189184164	-	OTT_1257	-	transposase
1258	 27.19	-1	1287877..1288104	+	75	189184165	-	OTT_1258	-	putative integrase
1259	 28.40	0	1288151..1288312	+	53	189184166	-	OTT_1259	-	putative integrase
1260	 27.18	-1	1288315..1288785	+	156	189184167	-	OTT_1260	-	peroxiredoxin, AhpC/TSA family protein
1261	 36.73	+1	1288865..1289188	+	107	189184168	-	OTT_1261	-	hypothetical protein
1262	 31.04	0	1289188..1289580	+	130	189184169	-	OTT_1262	-	putative conjugative transfer protein TraE
1263	 32.29	0	1289677..1290639	-	320	189184170	-	OTT_1263	-	transposase
1264	 36.08	+1	1291020..1291601	+	193	189184171	-	OTT_1264	-	putative conjugative transfer protein TraC
1265	 37.28	+1	1291800..1292078	+	92	189184172	-	OTT_1265	-	putative conjugative transfer protein TraC
1266	 33.94	0	1292075..1292734	+	219	189184173	-	OTT_1266	-	putative conjugative transfer protein TraW
1267	 29.41	0	1292821..1293024	+	67	189184174	-	OTT_1267	-	hypothetical protein
1268	 38.65	+2	1293025..1294002	+	325	189184175	-	OTT_1268	-	putative conjugative transfer protein TraU
1269	 29.69	0	1294025..1294408	+	127	189184176	-	OTT_1269	-	putative conjugative transfer protein TrbC
1270	 33.33	0	1294405..1296096	+	563	189184177	-	OTT_1270	-	putative conjugative transfer protein TraN
1271	 34.33	0	1296255..1297055	+	266	189184178	-	OTT_1271	-	ankyrin repeat-containing protein 16
1272	 35.43	+1	1297392..1297868	+	158	189184179	-	OTT_1272	-	putative conjugative transfer protein TraF
1273	 39.60	+2	1298053..1298355	-	100	189184180	-	OTT_1273	-	hypothetical protein
1274	 34.12	0	1298339..1299478	+	379	189184181	-	OTT_1274	-	reverse transcriptase
1275	 37.02	+1	1299891..1300784	+	297	189184182	-	OTT_1275	-	putative conjugative transfer protein TraH
1276	 28.74	0	1300708..1300968	+	86	189184183	-	OTT_1276	-	putative conjugative transfer protein TraH
1277	 31.84	0	1300949..1301482	+	177	189184184	-	OTT_1277	-	putative conjugative transfer protein TraD
1278	 32.15	0	1301221..1302066	-	281	189184185	-	OTT_1278	-	putative conjugative transfer protein TraI
1279	 35.34	+1	1302432..1302779	-	115	189184186	-	OTT_1279	-	putative conjugative transfer protein TraA
1280	 35.93	+1	1302764..1302994	-	76	189184187	-	OTT_1280	-	putative conjugative transfer protein TraA
1281	 38.60	+2	1303007..1303177	+	56	189184188	-	OTT_1281	-	putative conjugative transfer protein TraD
1282	 30.62	0	1303292..1304323	+	343	189184189	-	OTT_1282	-	hypothetical protein
1283	 28.04	-1	1304615..1304803	-	62	189184190	-	OTT_1283	-	RelA/SpoT-related protein
1284	 30.63	0	1304908..1305240	-	110	189184191	-	OTT_1284	-	RelA/SpoT-related protein
1285	 29.00	0	1305395..1305763	-	122	189184192	-	OTT_1285	-	hypothetical protein
1286	 29.45	0	1305786..1306454	-	222	189184193	-	OTT_1286	-	hypothetical protein
1287	 30.06	0	1306469..1307170	-	233	189184194	-	OTT_1287	-	hypothetical protein
1288	 30.47	0	1307235..1307513	-	92	189184195	-	OTT_1288	-	hypothetical protein
1289	 29.98	0	1307770..1308276	-	168	189184196	-	OTT_1289	-	transposase
1290	 28.80	0	1308263..1308637	-	124	189184197	-	OTT_1290	-	transposase
1291	 31.68	0	1309151..1309633	-	160	189184198	-	OTT_1291	-	hypothetical protein
1292	 29.35	0	1309685..1310563	-	292	189184199	-	OTT_1292	-	hypothetical protein
1293	 28.32	-1	1310760..1311038	+	92	189184200	-	OTT_1293	-	transposase
1294	 27.96	-1	1312145..1312684	+	179	189184201	-	OTT_1294	-	transposase
1295	 31.46	0	1313305..1313784	+	159	189184202	greA	OTT_1295	-	GreA protein
1296	 32.78	0	1313831..1314730	+	299	189184203	rpoH	OTT_1296	-	heat shock sigma factor RpoH
1297	 31.31	0	1315420..1315962	-	180	189184204	-	OTT_1297	-	hypothetical protein
1298	 24.75	-2	1317706..1318008	-	100	189184205	-	OTT_1298	-	transposase
1299	 33.56	0	1318020..1318457	-	145	189184206	-	OTT_1299	-	transposase
1300	 33.94	0	1318892..1320379	-	495	189184207	-	OTT_1300	-	ankyrin repeat-containing protein 12_02
1301	 34.17	0	1320707..1321063	+	118	189184208	-	OTT_1301	-	putative conjugative transfer protein TraC
1302	 36.42	+1	1321155..1321316	+	53	189184209	-	OTT_1302	-	putative conjugative transfer protein TraC
1303	 35.54	+1	1321388..1322383	+	331	189184210	-	OTT_1303	-	putative conjugative transfer protein TraC
1304	 32.50	0	1322449..1322928	+	159	189184211	-	OTT_1304	-	putative conjugative transfer protein TraN
1305	 34.18	0	1322915..1323619	+	234	189184212	-	OTT_1305	-	putative conjugative transfer protein TraN
1306	 33.77	0	1323892..1325031	-	379	189184213	-	OTT_1306	-	reverse transcriptase
1307	 41.35	+2	1325144..1325455	+	103	189184214	-	OTT_1307	-	hypothetical protein
1308	 27.71	-1	1325793..1326023	-	76	189184215	-	OTT_1308	-	transposase
1309	 29.84	0	1326884..1327312	+	142	189184216	-	OTT_1309	-	putative conjugative transfer protein TraA
1310	 32.52	0	1327385..1327630	+	81	189184217	-	OTT_1310	-	putative conjugative transfer protein TraA
1311	 29.14	0	1328136..1328612	-	158	189184218	-	OTT_1311	-	hypothetical protein
1312	 31.33	0	1329545..1330093	-	182	189184219	cycM	OTT_1312	-	cytochrome c
1313	 34.38	0	1330341..1331300	+	319	189184220	-	OTT_1313	-	hypothetical protein
1314	 29.66	0	1332255..1332608	+	117	189184221	-	OTT_1314	-	transposase
1315	 30.56	0	1332587..1333126	+	179	189184222	-	OTT_1315	-	transposase
1316	 28.02	-1	1333629..1334645	-	338	189184223	mrp	OTT_1316	-	Mrp protein
1317	 30.59	0	1334825..1335880	+	351	189184224	hflK	OTT_1317	-	HflK protein
1318	 31.14	0	1335904..1336770	+	288	189184225	hflC	OTT_1318	-	HflC protein
1319	 30.55	0	1336788..1338188	+	466	189184226	-	OTT_1319	-	47 kDa protein (periplasmic serine protease)
1320	 31.71	0	1338402..1339016	+	204	189184227	ompA	OTT_1320	-	peptidoglycan-associated lipoprotein
1321	 30.89	0	1339280..1342063	-	927	189184228	-	OTT_1321	-	hypothetical protein
1322	 34.02	0	1342262..1343278	+	338	189184229	trxB2	OTT_1322	-	thioredoxin reductase
1323	 30.91	0	1343275..1344180	+	301	189184230	folD	OTT_1323	-	methylenetetrahydrofolate dehydrogenase
1324	 25.32	-1	1344115..1345500	-	461	189184231	-	OTT_1324	-	hypothetical protein
1325	 30.80	0	1345500..1347866	-	788	189184232	topA	OTT_1325	-	DNA topoisomerase I
1326	 32.71	0	1347959..1348915	-	318	189184233	mdh	OTT_1326	-	malate dehydrogenase
1327	 27.27	-1	1349135..1349629	-	164	189184234	rimM	OTT_1327	-	16S rRNA processing protein RimM
1328	 27.17	-1	1349798..1352329	+	843	189184235	-	OTT_1328	-	hypothetical protein
1329	 32.89	0	1352544..1353452	-	302	189184236	fmt	OTT_1329	-	methionyl-tRNA formyltransferase
1330	 31.32	0	1353464..1354009	-	181	189184237	def	OTT_1330	-	methionyl-tRNA deformylase
1331	 33.90	0	1354192..1356669	+	825	189184238	-	OTT_1331	-	putative conjugative transfer protein TraI
1332	 33.33	0	1356721..1357740	+	339	189184239	-	OTT_1332	-	putative transposase
1333	 33.15	0	1357750..1358280	-	176	189184240	-	OTT_1333	-	putative conjugative transfer protein TraD
1334	 31.87	0	1358960..1359985	+	341	189184241	-	OTT_1334	-	hypothetical protein
1335	 27.24	-1	1360166..1360411	+	81	189184242	-	OTT_1335	-	hypothetical protein
1336	 38.63	+2	1360633..1361217	+	194	189184243	-	OTT_1336	-	hypothetical protein
1337	 27.28	-1	1361244..1362797	-	517	189184244	ppiD	OTT_1337	-	peptidyl-prolyl cis-trans isomerse D
1338	 29.07	0	1362877..1363626	+	249	189184245	tpiA	OTT_1338	-	triosephosphate isomerase
1339	 27.89	-1	1363632..1363925	+	97	189184246	secG	OTT_1339	-	protein-export membrane protein SecG
1340	 30.61	0	1364689..1366269	-	526	189184247	lysS	OTT_1340	-	lysyl-tRNA synthetase
1341	 26.96	-1	1366408..1366956	+	182	189184248	-	OTT_1341	-	hypothetical protein
1342	 31.14	0	1366919..1367464	+	181	189184249	coq7	OTT_1342	-	ubiquinone biosynthesis protein Coq7
1343	 33.62	0	1367565..1368257	+	230	189184250	psd	OTT_1343	-	phosphatidylserine decarboxylase
1344	 29.33	0	1368309..1369082	+	257	189184251	pssA	OTT_1344	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
1345	 29.63	0	1369132..1369617	+	161	189184252	-	OTT_1345	-	hypothetical protein
1346	 27.24	-1	1369897..1372737	+	946	189184253	-	OTT_1346	-	hypothetical protein
1347	 26.22	-1	1372929..1374602	-	557	189184254	nuoN3	OTT_1347	-	NADH dehydrogenase I chain N
1348	 36.29	+1	1374671..1375549	-	292	189184255	sucD	OTT_1348	-	succinyl-CoA synthetase alpha chain
1349	 32.39	0	1375564..1376724	-	386	189184256	sucC	OTT_1349	-	succinyl-CoA synthetase beta chain
1350	 28.98	0	1376781..1378043	-	420	189184257	ubiH	OTT_1350	-	UbiH protein
1351	 31.29	0	1378398..1378985	-	195	189184258	-	OTT_1351	-	hypothetical protein
31.48	MEAN

3.15	STD DEV
