IslandPath Analysis: Orientia tsutsugamushi str. Ikeda

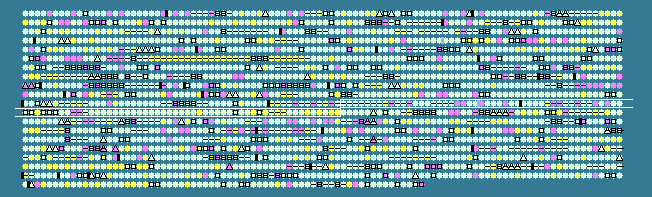

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.48 STD DEV: 3.15
Orientia tsutsugamushi str. Ikeda, complete genome - 1..2008987
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1054	 32.25	0	1088942..1089310	+	122	189183961	rplN	OTT_1054	-	50S ribosomal protein L14
1055	 30.19	0	1089312..1089629	+	105	189183962	rplX	OTT_1055	-	50S ribosomal protein L24
1056	 29.47	0	1089654..1090223	+	189	189183963	rplE	OTT_1056	-	50S ribosomal protein L5
1057	 32.35	0	1090242..1090547	+	101	189183964	rpsN	OTT_1057	-	30S ribosomal protein S14
1058	 30.85	0	1090570..1090971	+	133	189183965	rpsH	OTT_1058	-	30S ribosomal protein S8
1059	 29.96	0	1090999..1091532	+	177	189183966	rplF	OTT_1059	-	50S ribosomal protein L6
1060	 31.20	0	1091546..1091920	+	124	189183967	rplR	OTT_1060	-	50S ribosomal protein L18
1061	 35.44	+1	1091941..1092462	+	173	189183968	rpsE	OTT_1061	-	30S ribosomal protein S5
1062	 24.44	-2	1092462..1092596	+	44	189183969	-	OTT_1062	-	hypothetical protein
1063	 28.86	0	1092695..1093186	+	163	189183970	rplO	OTT_1063	-	50S ribosomal protein L15
1064	 30.20	0	1093188..1094495	+	435	189183971	secY	OTT_1064	-	preprotein translocase SecY subunit
1065	 27.60	-1	1094492..1095136	+	214	189183972	adk	OTT_1065	-	adenylate kinase
1066	 32.01	0	1095216..1095593	+	125	189183973	rpsM	OTT_1066	-	30S ribosomal protein S13
1067	 33.33	0	1095603..1095983	+	126	189183974	rpsK	OTT_1067	-	30S ribosomal protein S11
1068	 30.81	0	1096032..1097060	+	342	189183975	rpoA	OTT_1068	-	DNA-directed RNA polymerase alpha chain
1069	 32.19	0	1097079..1097516	+	145	189183976	rplQ	OTT_1069	-	50S ribosomal protein L17
1070	 28.21	-1	1097598..1097870	+	90	189183977	rpsT	OTT_1070	-	30S ribosomal protein S20
1071	 29.11	0	1097935..1099995	+	686	189183978	ptrB	OTT_1071	-	protease II
1072	 30.28	0	1100020..1101231	+	403	189183979	-	OTT_1072	-	5-aminolevulinic acid synthase
1073	 25.64	-1	1101241..1102293	-	350	189183980	perM	OTT_1073	-	permease protein PerM
1074	 27.30	-1	1102587..1103183	+	198	189183981	pgpA	OTT_1074	-	phosphatidylglycerophosphatase A
1075	 32.73	0	1103243..1103743	+	166	189183982	cinA	OTT_1075	-	competence-damaged protein CinA
1076	 32.56	0	1103791..1104693	+	300	189183983	thyA	OTT_1076	-	Thy1 protein
1077	 27.64	-1	1108251..1108952	+	233	189183984	virB8	OTT_1077	-	type IV secretion system protein VirB8
1078	 28.08	-1	1108942..1109703	+	253	189183985	trbG	OTT_1078	-	conjugal transfer protein TrbG precursor
1079	 31.54	0	1109959..1110348	-	129	189183986	-	OTT_1079	-	hypothetical protein
1080	 30.59	0	1110451..1111398	+	315	189183987	ftsY	OTT_1080	-	signal recognition particle receptor FtsY
1081	 27.58	-1	1114352..1114855	+	167	189183988	-	OTT_1081	-	hypothetical protein
1082	 29.51	0	1114868..1115782	+	304	189183989	tlyC	OTT_1082	-	hemolysin C
1083	 31.56	0	1115832..1116395	-	187	189183990	ubiX	OTT_1083	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
1084	 28.71	0	1116879..1118348	+	489	189183991	-	OTT_1084	-	putative response regulator protein
1085	 30.28	0	1118707..1119132	-	141	189183992	apaG	OTT_1085	-	ApaG protein
1086	 30.03	0	1120371..1120703	+	110	189183993	-	OTT_1086	-	putative conjugative transfer protein TraA
1087	 32.80	0	1120717..1121472	+	251	189183994	-	OTT_1087	-	putative conjugative transfer protein TraA
1088	 35.45	+1	1121691..1122068	+	125	189183995	-	OTT_1088	-	putative conjugative transfer protein TraA
1089	 27.91	-1	1122006..1122263	-	85	189183996	-	OTT_1089	-	ankyrin repeat-containing protein 10_03
1090	 25.87	-1	1122302..1122703	-	133	189183997	-	OTT_1090	-	ankyrin repeat-containing protein 10_04
1091	 33.90	0	1122738..1122914	+	58	189183998	-	OTT_1091	-	hypothetical protein
1092	 33.54	0	1122923..1123909	-	328	189183999	-	OTT_1092	-	putative conjugative transfer protein TraD
1093	 26.04	-1	1124212..1124595	-	127	189184000	-	OTT_1093	-	TPR repeat-containing protein 01_04
1094	 29.13	0	1124589..1124897	-	102	189184001	-	OTT_1094	-	TPR repeat-containing protein 01_05
1095	 30.63	0	1125046..1125156	-	36	189184002	-	OTT_1095	-	TPR repeat-containing protein 01_06
1096	 25.31	-1	1125575..1125898	-	107	189184003	-	OTT_1096	-	hypothetical protein
1097	 28.22	-1	1127057..1128073	-	338	189184004	ispB	OTT_1097	-	octaprenyl-diphosphate synthase
1098	 25.67	-1	1128093..1129907	-	604	189184005	-	OTT_1098	-	hypothetical protein
1099	 28.80	0	1129907..1131451	-	514	189184006	tlc3	OTT_1099	-	ADP,ATP carrier protein homolog
1100	 28.11	-1	1131604..1133136	-	510	189184007	tlc4	OTT_1100	-	ADP,ATP carrier protein homolog
1101	 28.89	0	1133652..1133966	-	104	189184008	-	OTT_1101	-	transposase
1102	 29.07	0	1133915..1134313	-	132	189184009	-	OTT_1102	-	transposase
1103	 35.19	+1	1134631..1134792	-	53	189184010	-	OTT_1103	-	putative conjugative transfer protein TraD
1104	 29.17	0	1134977..1135168	+	63	189184011	-	OTT_1104	-	transposase
1105	 31.84	0	1135310..1135576	+	88	189184012	-	OTT_1105	-	transposase
1106	 31.88	0	1135577..1135783	+	68	189184013	-	OTT_1106	-	transposase
1107	 32.23	0	1136871..1138409	-	512	189184014	aprE	OTT_1107	-	alkaline protease secretion protein AprE
1108	 32.82	0	1138447..1140201	-	584	189184015	aprD	OTT_1108	-	alkaline protease secretion ATP-binding protein AprD
1109	 27.85	-1	1141655..1143169	+	504	189184016	mviN	OTT_1109	-	virulence factor MviN
1110	 25.98	-1	1143206..1143586	-	126	189184017	-	OTT_1110	-	hypothetical protein
1111	 33.33	0	1144965..1146158	-	397	189184018	-	OTT_1111	-	hypothetical protein
1112	 31.50	0	1146364..1147071	-	235	189184019	-	OTT_1112	-	ankyrin repeat-containing protein 03_08
1113	 31.06	0	1147109..1147504	-	131	189184020	-	OTT_1113	-	RelA/SpoT-related protein
1114	 32.58	0	1147914..1148045	-	43	189184021	-	OTT_1114	-	replicative DNA helicase
1115	 30.33	0	1148553..1150082	+	509	189184022	-	OTT_1115	-	hypothetical protein
1116	 31.94	0	1150091..1151527	+	478	189184023	-	OTT_1116	-	replicative DNA helicase
1117	 31.57	0	1151941..1152336	+	131	189184024	-	OTT_1117	-	RelA/SpoT-related protein
1118	 30.78	0	1152471..1153019	+	182	189184025	-	OTT_1118	-	ankyrin repeat-containing protein 03_09
1119	 31.88	0	1153066..1153614	+	182	189184026	-	OTT_1119	-	hypothetical protein
1120	 30.00	0	1153618..1154427	-	269	189184027	-	OTT_1120	-	N6 adenine-specific DNA-methyltransferase
1121	 28.67	0	1154794..1155072	+	92	189184028	-	OTT_1121	-	hypothetical protein
1122	 28.77	0	1155137..1155838	+	233	189184029	-	OTT_1122	-	hypothetical protein
1123	 30.50	0	1155967..1156248	+	93	189184030	-	OTT_1123	-	hypothetical protein
1124	 31.43	0	1156290..1156763	+	157	189184031	-	OTT_1124	-	hypothetical protein
1125	 30.14	0	1156786..1157724	+	312	189184032	-	OTT_1125	-	hypothetical protein
1126	 29.29	0	1157743..1158237	+	164	189184033	-	OTT_1126	-	hypothetical protein
1127	 30.27	0	1158279..1158866	+	195	189184034	-	OTT_1127	-	RelA/SpoT-related protein
1128	 30.07	0	1159093..1159950	+	285	189184035	-	OTT_1128	-	hypothetical protein
1129	 33.33	0	1160117..1160293	-	58	189184036	-	OTT_1129	-	putative conjugative transfer protein TraD
1130	 36.64	+1	1160637..1161029	+	130	189184037	-	OTT_1130	-	hypothetical protein
1131	 34.00	0	1161260..1161559	+	99	189184038	-	OTT_1131	-	hypothetical protein
1132	 34.87	+1	1161618..1162073	-	151	189184039	-	OTT_1132	-	putative conjugative transfer protein TraD
1133	 33.58	0	1162368..1162766	+	132	189184040	-	OTT_1133	-	putative conjugative transfer protein TraA
1134	 33.92	0	1162791..1165196	+	801	189184041	-	OTT_1134	-	putative conjugative transfer protein TraA
1135	 33.30	0	1165465..1168137	+	890	189184042	-	OTT_1135	-	putative conjugative transfer protein TraI
1136	 33.23	0	1168122..1169114	+	330	189184043	-	OTT_1136	-	putative transposase
1137	 32.76	0	1169124..1170878	-	584	189184044	-	OTT_1137	-	putative conjugative transfer protein TraD
1138	 28.88	0	1170884..1172029	-	381	189184045	-	OTT_1138	-	TPR repeat-containing protein 01_07
1139	 35.33	+1	1172045..1174396	-	783	189184046	-	OTT_1139	-	putative conjugative transfer protein TraG
1140	 32.29	0	1174479..1175441	-	320	189184047	-	OTT_1140	-	transposase
1141	 37.50	+1	1175618..1175953	-	111	189184048	-	OTT_1141	-	putative conjugative transfer protein TraG
1142	 32.71	0	1175953..1176432	-	159	189184049	-	OTT_1142	-	putative conjugative transfer protein TraH
1143	 36.83	+1	1176627..1177256	-	209	189184050	-	OTT_1143	-	putative conjugative transfer protein TraH
1144	 35.34	+1	1177253..1177951	-	232	189184051	-	OTT_1144	-	putative conjugative transfer protein TraF
1145	 34.91	+1	1177948..1178583	-	211	189184052	-	OTT_1145	-	putative conjugative transfer protein TraN
1146	 31.77	0	1178872..1179639	-	255	189184053	-	OTT_1146	-	putative conjugative transfer protein TraN
1147	 31.46	0	1179636..1179956	-	106	189184054	-	OTT_1147	-	putative conjugative transfer protein TrbC
1148	 37.76	+1	1180041..1180628	-	195	189184055	-	OTT_1148	-	putative conjugative transfer protein TraU
1149	 33.23	0	1180783..1181793	+	336	189184056	-	OTT_1149	-	ankyrin repeat-containing protein 06_02
1150	 35.79	+1	1181692..1183563	-	623	189184057	-	OTT_1150	-	putative conjugative transfer protein TraC
1151	 30.91	0	1183475..1183804	-	109	189184058	-	OTT_1151	-	hypothetical protein
1152	 35.56	+1	1183804..1184073	-	89	189184059	-	OTT_1152	-	putative conjugative transfer protein TraB
1153	 41.67	+2	1184036..1184275	-	79	189184060	-	OTT_1153	-	putative conjugative transfer protein TraB
31.48	MEAN

3.15	STD DEV
