IslandPath Analysis: Nostoc sp. PCC 7120

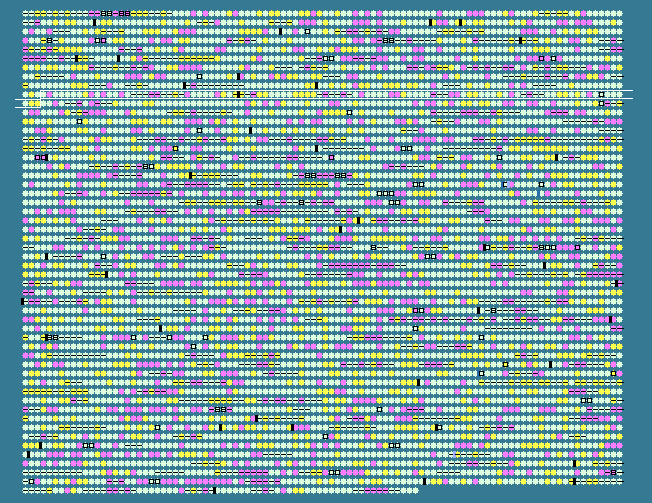

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 42.00 STD DEV: 4.11
Nostoc sp. PCC 7120, complete genome - 1..6413771
5366 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
904	 44.03	0	1048368..1049096	-	242	17228401	-	all0906	-	hypothetical protein
905	 37.02	-1	1049279..1050064	-	261	17228402	-	all0907	-	ABC phosphate transport system ATP-binding protein
906	 40.49	0	1050820..1051602	-	260	17228403	-	all0908	-	ABC phosphate transport system ATP-binding protein
907	 40.84	0	1051773..1052651	-	292	17228404	-	all0909	-	ABC phosphate transport system permease protein
908	 39.83	0	1052681..1053712	-	343	17228405	-	all0910	-	ABC phosphate transport system permease protein
909	 43.77	0	1053742..1054785	-	347	17228406	-	all0911	-	ABC phosphate transport system phosphate-binding periplasmic protein
910	 44.87	0	1055744..1056757	+	337	17228407	era	alr0912	-	GTP-binding protein Era
911	 46.31	+1	1056904..1057581	+	225	17228408	-	alr0913	-	two-component response regulator
912	 36.00	-1	1057871..1058884	-	337	17228409	-	all0914	-	hypothetical protein
913	 43.82	0	1058947..1059852	-	301	17228410	-	all0915	-	hypothetical protein
914	 37.00	-1	1059868..1061148	-	426	17228411	-	all0916	-	ABC transporter ATP binding subunit
915	 41.37	0	1061148..1061993	-	281	17228412	-	all0917	-	ABC transporter permease protein
916	 43.71	0	1062149..1062871	-	240	17228413	-	all0918	-	hypothetical protein
917	 36.28	-1	1063224..1064513	-	429	17228414	-	all0919	-	hypothetical protein
918	 41.37	0	1064918..1066459	+	513	17228415	-	alr0920	-	hypothetical protein
919	 44.44	0	1066560..1066910	-	116	17228416	-	all0921	-	hypothetical protein
920	 38.66	0	1067406..1068212	+	268	17228417	-	alr0922	-	hypothetical protein
921	 42.16	0	1068680..1068883	+	67	17228418	-	asr0923	-	hypothetical protein
922	 31.74	-2	1069138..1069575	-	145	17228419	-	all0924	-	hypothetical protein
923	 37.85	-1	1070028..1070315	+	95	17228420	-	asr0925	-	hypothetical protein
924	 40.86	0	1070498..1076449	-	1983	17228421	-	all0926	-	two-component hybrid sensor and regulator
925	 43.26	0	1076561..1079503	-	980	17228422	-	all0927	-	methyl-accepting chemotaxis protein
926	 46.14	+1	1079500..1080030	-	176	17228423	cheW	all0928	-	chemotaxis protein
927	 43.99	0	1080044..1080409	-	121	17228424	-	all0929	-	two-component system, regulatory protein
928	 38.26	0	1080682..1081920	-	412	17228425	-	all0930	-	two-component system, regulatory protein
929	 41.61	0	1082335..1084086	+	583	17228426	-	alr0931	-	hypothetical protein
930	 43.44	0	1084312..1085340	-	342	17228427	-	all0932	-	hypothetical protein
931	 40.84	0	1085500..1086192	+	230	17228428	-	alr0933	-	type II site-specific deoxyribonuclease
932	 43.93	0	1086196..1087629	-	477	17228429	-	all0934	-	site-specific DNA-methyltransferase
933	 31.73	-2	1087754..1088065	-	103	17228430	-	all0935	-	hypothetical protein
934	 45.64	0	1088239..1089294	-	351	17228431	-	all0936	-	c-type cytochrome synthesis protein
935	 42.44	0	1089458..1091203	-	581	17228432	-	all0937	-	hypothetical protein
936	 46.86	+1	1091455..1091868	-	137	17228433	-	all0938	-	hypothetical protein
937	 47.47	+1	1092759..1094102	+	447	17228434	accC	alr0939	-	acetyl-CoA carboxylase biotin carboxylase subunit
938	 45.24	0	1094158..1094451	-	97	17228435	-	asl0940	-	hypothetical protein
939	 37.50	-1	1094762..1094881	+	39	17228436	psbX	asr0941	-	photosystem II protein
940	 46.07	0	1095133..1096035	+	300	17228437	-	alr0942	-	hypothetical protein
941	 46.52	+1	1096090..1096650	+	186	17228438	-	alr0943	-	hypothetical protein
942	 44.64	0	1096696..1097217	+	173	17228439	-	alr0944	-	hypothetical protein
943	 44.01	0	1097272..1098273	-	333	17228440	-	all0945	-	succinate dehydrogenase iron-sulfur subunit
944	 40.92	0	1100088..1100522	+	144	17228441	-	alr0946	-	hypothetical protein
945	 39.49	0	1100772..1101599	+	275	17228442	-	alr0947	-	hypothetical protein
946	 46.39	+1	1101732..1102688	-	318	17228443	-	all0948	-	protoheme IX farnesyltransferase
947	 47.11	+1	1102854..1103855	-	333	17228444	-	all0949	-	hypothetical protein
948	 46.35	+1	1104204..1105271	+	355	17228445	coxB	alr0950	-	cytochrome c oxidase subunit II
949	 47.16	+1	1105412..1107139	+	575	17228446	coxA	alr0951	-	cytochrome c oxidase subunit I
950	 44.23	0	1107308..1107931	+	207	17228447	coxC	alr0952	-	cytochrome c oxidase subunit III
951	 34.05	-1	1108230..1108649	+	139	17228448	-	alr0953	-	hypothetical protein
952	 38.93	0	1108682..1109593	-	303	17228449	-	all0954	-	hypothetical protein
953	 42.24	0	1109946..1110686	-	246	17228450	-	all0955	-	hypothetical protein
954	 38.14	0	1110656..1110988	-	110	17228451	-	all0956	-	hypothetical protein
955	 40.67	0	1111860..1112309	+	149	17228452	-	alr0957	-	ferric uptake regulator
956	 40.13	0	1112393..1113820	-	475	17228453	-	all0958	-	hypothetical protein
957	 37.38	-1	1113864..1115273	-	469	17228454	-	all0959	-	hypothetical protein
958	 40.18	0	1115407..1117173	+	588	17228455	ycf55	alr0960	-	two-component response regulator
959	 44.71	0	1117295..1117918	-	207	17228456	-	all0961	-	molybdopterin-guanine dinucleotide biosynthesis protein A
960	 41.51	0	1118093..1118410	-	105	17228457	-	all0962	-	hypothetical protein
961	 41.59	0	1118527..1121649	+	1040	17228458	-	alr0963	-	hypothetical protein
962	 37.97	0	1121819..1122163	+	114	17228459	-	alr0964	-	hypothetical protein
963	 36.38	-1	1122160..1123605	+	481	17228460	-	alr0965	-	hypothetical protein
964	 45.80	0	1123882..1125951	-	689	17228461	-	all0966	-	hypothetical protein
965	 41.80	0	1126140..1127627	-	495	17228462	-	all0967	-	hypothetical protein
966	 45.12	0	1127791..1128672	-	293	17228463	fabG	all0968	-	3-ketoacyl-acyl carrier protein reductase
967	 41.18	0	1129408..1131039	-	543	17228464	-	all0969	-	hypothetical protein
968	 40.27	0	1131535..1132485	+	316	17228465	-	alr0970	-	ABC transporter ATP-binding protein
969	 36.66	-1	1132502..1134214	+	570	17228466	-	alr0971	-	hypothetical protein
970	 42.59	0	1134563..1135318	+	251	17228467	-	alr0972	-	ABC transporter ATP-binding protein
971	 39.18	0	1135394..1136026	+	210	17228468	-	alr0973	-	permease protein of ABC transporter
972	 36.85	-1	1136071..1136979	+	302	17228469	-	alr0974	-	binding protein of ABC transporter component
973	 36.35	-1	1137001..1137729	+	242	17228470	-	alr0975	-	hypothetical protein
974	 42.13	0	1137870..1138619	-	249	17228471	-	all0976	-	hypothetical protein
975	 45.89	0	1138792..1139022	-	76	17228472	-	asl0977	-	hypothetical protein
976	 45.49	0	1139019..1142579	-	1186	17228473	-	all0978	-	two-component hybrid sensor and regulator
977	 42.08	0	1144093..1144755	-	220	17228474	-	all0979	-	hypothetical protein
978	 45.02	0	1144905..1145999	-	364	17228475	ddl	all0980	-	D-alanyl-alanine synthetase A
979	 44.99	0	1146326..1147174	+	282	17228476	-	alr0981	-	hypothetical protein
980	 47.89	+1	1147365..1148738	-	457	17228477	thiC	all0982	-	thiamine biosynthesis protein ThiC
981	 41.09	0	1148974..1150056	-	360	17228478	-	all0983	-	hypothetical protein
982	 37.94	0	1150471..1150926	-	151	17228479	-	all0984	-	hypothetical protein
983	 40.20	0	1151301..1152509	-	402	17228480	-	all0985	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
984	 43.55	0	1152761..1153729	+	322	17228481	-	alr0986	-	hypothetical protein
985	 38.14	0	1153734..1154045	+	103	17228482	-	alr0987	-	hypothetical protein
986	 45.17	0	1154076..1155275	-	399	17228483	-	all0988	-	N-acetyl-glucosamine-6-phosphate deacetylase
987	 45.27	0	1155388..1155915	+	175	17228484	purK	alr0989	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
988	 44.49	0	1156507..1158003	+	498	17228485	-	alr0990	-	ammonium transporter
989	 45.47	0	1158426..1159982	+	518	17228486	-	alr0991	-	ammonium transporter
990	 48.34	+1	1160381..1161793	+	470	17228487	-	alr0992	-	ammonium transporter
991	 47.23	+1	1162000..1165209	-	1069	17228488	-	all0993	-	hypothetical protein
992	 45.08	0	1165509..1165772	-	87	17228489	-	asl0994	-	hypothetical protein
993	 45.70	0	1165953..1166429	-	158	17228490	-	all0995	-	hypothetical protein
994	 41.92	0	1166972..1168438	+	488	17228491	-	alr0996	-	protease
995	 34.79	-1	1168549..1168959	-	136	17228492	-	all0997	-	hypothetical protein
996	 45.03	0	1169392..1170306	+	304	17228493	-	alr0998	-	hypothetical protein
997	 40.38	0	1170482..1171375	+	297	17228494	-	alr0999	-	transposase
998	 41.74	0	1171949..1173031	+	360	17228495	-	alr1000	-	hypothetical protein
999	 42.31	0	1173376..1173921	+	181	17228496	-	alr1001	-	hypothetical protein
1000	 42.32	0	1174084..1174584	+	166	17228497	-	alr1002	-	hypothetical protein
1001	 40.60	0	1174706..1175104	-	132	17228498	-	all1003	-	hypothetical protein
1002	 46.77	+1	1175265..1176410	+	381	17228499	-	alr1004	-	alanine--glyoxylate aminotransferase
1003	 48.15	+1	1176606..1176848	+	80	17228500	-	asr1005	-	hypothetical protein
42.00	MEAN

4.11	STD DEV
