IslandPath Analysis: Nostoc sp. PCC 7120

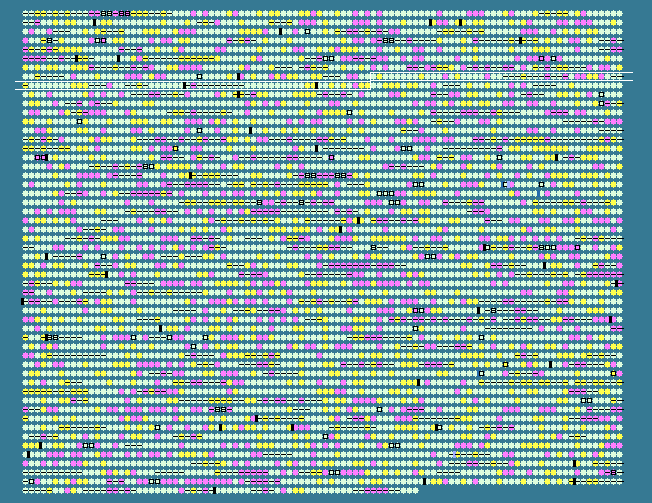

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 42.00 STD DEV: 4.11
Nostoc sp. PCC 7120, complete genome - 1..6413771
5366 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
759	 40.56	0	883149..883646	+	165	17228256	-	alr0761	-	hypothetical protein
760	 46.30	+1	883817..884533	+	238	17228257	hoxU	alr0762	-	bidirectional hydrogenase complex protein HoxU
761	 43.65	0	884648..885238	+	196	17228258	-	alr0763	-	hypothetical protein
762	 44.32	0	885335..885880	+	181	17228259	hoxY	alr0764	-	hydrogenase small subunit
763	 44.23	0	885959..886573	+	204	17228260	-	alr0765	-	hypothetical protein
764	 44.90	0	886799..888250	+	483	17228261	hoxH	alr0766	-	hydrogenase large subunit
765	 41.94	0	888330..888887	-	185	17228262	-	all0767	-	hypothetical protein
766	 38.96	0	889009..889896	-	295	17228263	-	all0768	-	hypothetical protein
767	 47.18	+1	889975..892725	-	916	17228264	-	all0769	-	acetyl-CoA synthetase
768	 42.56	0	893012..893488	-	158	17228265	-	all0770	-	hypothetical protein
769	 42.80	0	893746..894780	-	344	17228266	-	all0771	-	4-hydroxyphenylpyruvate dioxygenase
770	 42.07	0	895659..896276	-	205	17228267	-	all0772	-	hypothetical protein
771	 37.85	-1	896671..896958	+	95	17228268	-	asr0773	-	hypothetical protein
772	 40.83	0	897280..897666	+	128	17228269	-	alr0774	-	two-component response regulator
773	 47.23	+1	897675..899588	-	637	17228270	-	all0775	-	squalene-hopene-cyclase
774	 43.91	0	899704..900894	+	396	17228271	-	alr0776	-	hypothetical protein
775	 41.16	0	901197..901694	-	165	17228272	-	all0777	-	hypothetical protein
776	 40.36	0	901827..902951	-	374	17228273	-	all0778	-	hypothetical protein
777	 43.63	0	902951..903154	-	67	17228274	-	asl0779	-	hypothetical protein
778	 33.96	-1	903362..903520	+	52	17228275	-	asr0780	-	hypothetical protein
779	 43.93	0	903538..904962	-	474	17228276	-	all0781	-	hypothetical protein
780	 45.06	0	905282..905989	+	235	17228277	-	alr0782	-	ribulose-phosphate 3-epimerase
781	 44.52	0	906269..907198	-	309	17228278	-	all0783	-	hypothetical protein
782	 39.37	0	907716..908030	+	104	17228279	-	alr0784	-	ferredoxin
783	 44.26	0	908214..908396	+	60	17228280	-	asr0785	-	hypothetical protein
784	 45.70	0	908486..909520	+	344	17228281	-	alr0786	-	hypothetical protein
785	 43.64	0	909647..910228	+	193	17228282	-	alr0787	-	hypothetical protein
786	 44.54	0	910383..911105	-	240	17228283	purN	all0788	-	phosphoribosylglycinamide formyltransferase
787	 43.28	0	911188..912072	+	294	17228284	-	alr0789	-	ABC transporter sugar permease
788	 38.26	0	912250..913305	+	351	17228285	-	alr0790	-	hypothetical protein
789	 44.30	0	913844..916825	+	993	17228286	-	alr0791	-	outer membrane secretion protein
790	 44.14	0	916961..917404	-	147	17228287	-	all0792	-	hypothetical protein
791	 37.57	-1	917424..917612	-	62	17228288	-	asl0793	-	hypothetical protein
792	 44.53	0	917733..919367	-	544	17228289	-	all0794	-	hypothetical protein
793	 29.02	-2	919389..919643	-	84	17228290	-	asl0795	-	hypothetical protein
794	 33.22	-2	919942..921741	-	599	17228291	-	all0796	-	hypothetical protein
795	 46.46	+1	921867..922955	-	362	17228292	-	all0797	-	chorismate synthase
796	 48.97	+1	923268..923510	+	80	17228293	-	asr0798	-	hypothetical protein
797	 36.11	-1	923618..923941	+	107	17228294	-	alr0799	-	hypothetical protein
798	 39.48	0	924135..924638	-	167	17228295	-	all0800	-	molybdopterin precursor biosynthesis protein
799	 39.88	0	924715..925050	-	111	17228296	psbW	all0801	-	photosystem II reaction center protein Psb28
800	 43.33	0	925214..928345	-	1043	17228297	-	all0802	-	hypothetical protein
801	 50.23	+2	928924..930207	+	427	17228298	-	alr0803	-	hypothetical protein
802	 45.02	0	930304..930765	+	153	17228299	-	alr0804	-	hypothetical protein
803	 42.30	0	931003..931437	+	144	17228300	-	alr0805	-	hypothetical protein
804	 42.83	0	931596..932069	+	157	17228301	-	alr0806	-	hypothetical protein
805	 42.39	0	932507..933202	-	231	17228302	-	all0807	-	hypothetical protein
806	 44.30	0	933431..934597	-	388	17228303	-	all0808	-	hypothetical protein
807	 45.13	0	934676..935896	-	406	17228304	-	all0809	-	hypothetical protein
808	 42.23	0	936227..936844	+	205	17228305	-	alr0810	-	transcriptional regulator
809	 46.00	0	936980..937279	+	99	17228306	-	alr0811	-	hypothetical protein
810	 49.93	+1	937279..937977	+	232	17228307	-	alr0812	-	hypothetical protein
811	 46.11	+1	938079..940262	-	727	17228308	hglK	all0813	-	heterocyst-specific glycolipids-directing protein
812	 40.53	0	940329..940592	-	87	17228309	-	asl0814	-	hypothetical protein
813	 41.80	0	940627..940815	-	62	17228310	-	asl0815	-	hypothetical protein
814	 42.86	0	941010..941471	+	153	17228311	-	alr0816	-	hypothetical protein
815	 37.31	-1	941561..941761	-	66	17228312	-	asl0817	-	hypothetical protein
816	 41.29	0	941779..941979	-	66	17228313	-	asl0818	-	hypothetical protein
817	 39.05	0	943252..944703	+	483	17228314	-	alr0819	-	hypothetical protein
818	 44.37	0	944828..946177	+	449	17228315	-	alr0820	-	sun protein
819	 41.13	0	946235..946657	+	140	17228316	-	alr0821	-	hypothetical protein
820	 49.07	+1	946719..946934	-	71	17228317	-	asl0822	-	hypothetical protein
821	 39.68	0	947102..947479	-	125	17228318	-	all0823	-	two-component response regulator
822	 44.67	0	947549..950557	-	1002	17228319	-	all0824	-	two-component hybrid sensor and regulator
823	 42.79	0	950550..952601	-	683	17228320	-	all0825	-	two-component sensor histidine kinase
824	 38.89	0	952576..952809	-	77	17228321	-	asl0826	-	hypothetical protein
825	 45.13	0	952888..953955	-	355	17228322	-	all0827	-	hypothetical protein
826	 38.73	0	953982..954296	+	104	17228323	-	alr0828	-	hypothetical protein
827	 42.48	0	955081..955233	-	50	17228324	-	asl0829	-	hypothetical protein
828	 43.62	0	955685..956569	-	294	17228325	-	all0830	-	ABC transporter permease protein
829	 36.09	-1	956795..957157	+	120	17228326	-	alr0831	-	hypothetical protein
830	 42.25	0	957214..957987	-	257	17228327	-	all0832	-	ATP-binding protein of ABC transporter
831	 40.00	0	958147..959166	-	339	17228328	-	all0833	-	periplasmic solute binding protein for ABC transport system
832	 44.99	0	959601..961136	+	511	17228329	-	alr0834	-	porin; major outer membrane protein
833	 43.88	0	961287..961760	-	157	17228330	-	all0835	-	hypothetical protein
834	 43.94	0	962044..962241	-	65	17228331	-	asl0836	-	hypothetical protein
835	 40.96	0	962472..962720	+	82	17228332	-	asr0837	-	hypothetical protein
836	 38.80	0	962950..964083	+	377	17228333	-	alr0838	-	hypothetical protein
837	 42.67	0	964166..965086	-	306	17228334	-	all0839	-	hypothetical protein
838	 45.34	0	965435..966517	+	360	17228335	-	alr0840	-	hypothetical protein
839	 44.71	0	966520..968988	+	822	17228336	-	alr0841	-	hypothetical protein
840	 39.51	0	969047..969289	-	80	17228337	-	asl0842	-	hypothetical protein
841	 44.07	0	969697..969873	+	58	17228338	rps21	asr0843	-	30S ribosomal protein S21
842	 44.93	0	970118..970729	-	203	17228339	-	all0844	-	peptidyl-tRNA hydrolase
843	 43.22	0	970796..971068	-	90	17228340	-	asl0845	-	hypothetical protein
844	 43.92	0	971511..971699	-	62	17228341	psbH	asl0846	-	photosystem II reaction center protein H
845	 45.45	0	971785..971916	+	43	17228342	psbN	asr0847	-	photosystem II reaction center protein N
846	 43.67	0	972004..975147	-	1047	17228343	-	all0848	-	hypothetical protein
847	 39.97	0	975416..976951	+	511	17228344	-	alr0849	-	hypothetical protein
848	 47.83	+1	977078..978022	-	314	17228345	-	all0850	-	hypothetical protein
849	 45.86	0	978239..979084	+	281	17228346	-	alr0851	-	lysophospholipase
850	 42.20	0	979397..980005	-	202	17228347	-	all0852	-	hypothetical protein
851	 43.01	0	979974..981998	-	674	17228348	-	all0853	-	two-component sensor histidine kinase
852	 48.21	+1	982688..983023	-	111	17228349	-	all0854	-	hypothetical protein
853	 42.06	0	983093..983344	+	83	17228350	-	asr0855	-	hypothetical protein
854	 46.70	+1	983425..983970	+	181	17228351	-	alr0856	-	hypothetical protein
855	 44.10	0	983987..984376	+	129	17228352	-	alr0857	-	hypothetical protein
856	 36.31	-1	984428..984763	-	111	17228353	-	all0858	-	hypothetical protein
857	 45.75	0	984790..986376	-	528	161353748	lnt	all0859	-	apolipoprotein N-acyltransferase
858	 47.54	+1	986357..988975	-	872	17228355	-	all0860	-	DNA gyrase subunit A
42.00	MEAN

4.11	STD DEV
