IslandPath Analysis: Nostoc sp. PCC 7120

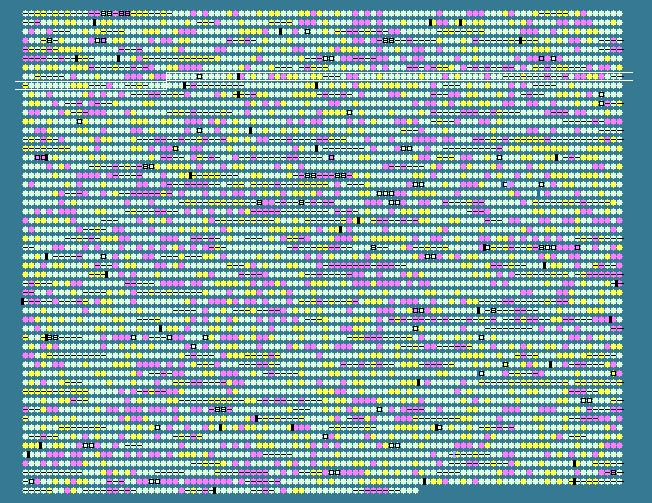

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 42.00 STD DEV: 4.11
Nostoc sp. PCC 7120, complete genome - 1..6413771
5366 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
725	 40.93	0	845403..846179	-	258	17228222	nagB	all0727	-	glucosamine-6-phosphate deaminase
726	 41.45	0	846315..846992	+	225	17228223	-	alr0728	-	hypothetical protein
727	 40.89	0	847059..851996	-	1645	17228224	-	all0729	-	two-component hybrid sensor and regulator
728	 42.56	0	852308..853120	+	270	17228225	-	alr0730	-	hypothetical protein
729	 41.51	0	853219..853842	+	207	17228226	-	alr0731	-	anaerobic ribonucleoside-triphosphate reductase activating protein
730	 40.08	0	854219..855181	-	320	17228227	-	all0732	-	transposase
731	 43.92	0	855482..855925	+	147	17228228	ureE	alr0733	-	urease accessory protein UreE
732	 42.67	0	855972..856592	+	206	17228229	-	alr0734	-	urease accessory protein F
733	 41.46	0	856652..857254	+	200	17228230	-	alr0735	-	urease accessory protein G
734	 43.27	0	857316..857969	-	217	17228231	-	all0736	-	hypothetical protein
735	 45.80	0	858039..859490	-	483	17228232	-	all0737	-	thioredoxin reductase
736	 41.86	0	859612..860538	+	308	17228233	-	alr0738	-	permease protein of sugar ABC transporter
737	 35.05	-1	861217..861798	+	193	17228234	-	alr0739	-	hypothetical protein
738	 41.52	0	861842..863368	+	508	17228235	-	alr0740	-	hypothetical protein
739	 49.84	+1	863575..863883	+	102	17228236	rbpA1	alr0741	-	RNA-binding protein
740	 44.44	0	864014..864202	+	62	17228237	rps21	asr0742	-	30S ribosomal protein S21
741	 41.99	0	864311..865951	-	546	17228238	cyaD	all0743	-	adenylate cyclase
742	 34.28	-1	866400..867884	+	494	17228239	-	alr0744	-	hypothetical protein
743	 46.03	0	868012..868893	-	293	17228240	rbgA	all0745	-	ribosomal biogenesis GTPase
744	 38.33	0	868981..869460	-	159	17228241	-	all0746	-	hypothetical protein
745	 46.27	+1	869618..870676	-	352	17228242	ccmA	all0747	-	3-deoxy-7-phosphoheptulonate synthase
746	 46.28	+1	870940..871410	-	156	17228243	-	all0748	-	hypothetical protein
747	 43.70	0	871423..871692	-	89	17228244	rpsO	asl0749	-	30S ribosomal protein S15
748	 43.28	0	871942..872484	+	180	17228245	-	alr0750	-	hypothetical protein
749	 45.86	0	872575..873069	+	164	17228246	-	alr0751	-	bidirectional hydrogenase complex protein HoxE
750	 47.09	+1	873380..875014	+	544	17228247	hoxF	alr0752	-	hydrogenase subunit
751	 43.69	0	875161..875556	-	131	17228248	-	all0753	-	hypothetical protein
752	 45.05	0	875553..875936	-	127	17228249	-	all0754	-	hypothetical protein
753	 43.12	0	875994..876269	+	91	17228250	-	asr0755	-	hypothetical protein
754	 42.32	0	876253..876519	+	88	17228251	-	asr0756	-	hypothetical protein
755	 37.14	-1	876673..876882	+	69	17228252	-	asr0757	-	hypothetical protein
756	 36.55	-1	876869..877210	+	113	17228253	-	alr0758	-	hypothetical protein
757	 39.42	0	877323..881312	-	1329	17228254	-	all0759	-	WD repeat-containing protein
758	 38.74	0	881707..883038	+	443	17228255	-	alr0760	-	hypothetical protein
759	 40.56	0	883149..883646	+	165	17228256	-	alr0761	-	hypothetical protein
760	 46.30	+1	883817..884533	+	238	17228257	hoxU	alr0762	-	bidirectional hydrogenase complex protein HoxU
761	 43.65	0	884648..885238	+	196	17228258	-	alr0763	-	hypothetical protein
762	 44.32	0	885335..885880	+	181	17228259	hoxY	alr0764	-	hydrogenase small subunit
763	 44.23	0	885959..886573	+	204	17228260	-	alr0765	-	hypothetical protein
764	 44.90	0	886799..888250	+	483	17228261	hoxH	alr0766	-	hydrogenase large subunit
765	 41.94	0	888330..888887	-	185	17228262	-	all0767	-	hypothetical protein
766	 38.96	0	889009..889896	-	295	17228263	-	all0768	-	hypothetical protein
767	 47.18	+1	889975..892725	-	916	17228264	-	all0769	-	acetyl-CoA synthetase
768	 42.56	0	893012..893488	-	158	17228265	-	all0770	-	hypothetical protein
769	 42.80	0	893746..894780	-	344	17228266	-	all0771	-	4-hydroxyphenylpyruvate dioxygenase
770	 42.07	0	895659..896276	-	205	17228267	-	all0772	-	hypothetical protein
771	 37.85	-1	896671..896958	+	95	17228268	-	asr0773	-	hypothetical protein
772	 40.83	0	897280..897666	+	128	17228269	-	alr0774	-	two-component response regulator
773	 47.23	+1	897675..899588	-	637	17228270	-	all0775	-	squalene-hopene-cyclase
774	 43.91	0	899704..900894	+	396	17228271	-	alr0776	-	hypothetical protein
775	 41.16	0	901197..901694	-	165	17228272	-	all0777	-	hypothetical protein
776	 40.36	0	901827..902951	-	374	17228273	-	all0778	-	hypothetical protein
777	 43.63	0	902951..903154	-	67	17228274	-	asl0779	-	hypothetical protein
778	 33.96	-1	903362..903520	+	52	17228275	-	asr0780	-	hypothetical protein
779	 43.93	0	903538..904962	-	474	17228276	-	all0781	-	hypothetical protein
780	 45.06	0	905282..905989	+	235	17228277	-	alr0782	-	ribulose-phosphate 3-epimerase
781	 44.52	0	906269..907198	-	309	17228278	-	all0783	-	hypothetical protein
782	 39.37	0	907716..908030	+	104	17228279	-	alr0784	-	ferredoxin
783	 44.26	0	908214..908396	+	60	17228280	-	asr0785	-	hypothetical protein
784	 45.70	0	908486..909520	+	344	17228281	-	alr0786	-	hypothetical protein
785	 43.64	0	909647..910228	+	193	17228282	-	alr0787	-	hypothetical protein
786	 44.54	0	910383..911105	-	240	17228283	purN	all0788	-	phosphoribosylglycinamide formyltransferase
787	 43.28	0	911188..912072	+	294	17228284	-	alr0789	-	ABC transporter sugar permease
788	 38.26	0	912250..913305	+	351	17228285	-	alr0790	-	hypothetical protein
789	 44.30	0	913844..916825	+	993	17228286	-	alr0791	-	outer membrane secretion protein
790	 44.14	0	916961..917404	-	147	17228287	-	all0792	-	hypothetical protein
791	 37.57	-1	917424..917612	-	62	17228288	-	asl0793	-	hypothetical protein
792	 44.53	0	917733..919367	-	544	17228289	-	all0794	-	hypothetical protein
793	 29.02	-2	919389..919643	-	84	17228290	-	asl0795	-	hypothetical protein
794	 33.22	-2	919942..921741	-	599	17228291	-	all0796	-	hypothetical protein
795	 46.46	+1	921867..922955	-	362	17228292	-	all0797	-	chorismate synthase
796	 48.97	+1	923268..923510	+	80	17228293	-	asr0798	-	hypothetical protein
797	 36.11	-1	923618..923941	+	107	17228294	-	alr0799	-	hypothetical protein
798	 39.48	0	924135..924638	-	167	17228295	-	all0800	-	molybdopterin precursor biosynthesis protein
799	 39.88	0	924715..925050	-	111	17228296	psbW	all0801	-	photosystem II reaction center protein Psb28
800	 43.33	0	925214..928345	-	1043	17228297	-	all0802	-	hypothetical protein
801	 50.23	+2	928924..930207	+	427	17228298	-	alr0803	-	hypothetical protein
802	 45.02	0	930304..930765	+	153	17228299	-	alr0804	-	hypothetical protein
803	 42.30	0	931003..931437	+	144	17228300	-	alr0805	-	hypothetical protein
804	 42.83	0	931596..932069	+	157	17228301	-	alr0806	-	hypothetical protein
805	 42.39	0	932507..933202	-	231	17228302	-	all0807	-	hypothetical protein
806	 44.30	0	933431..934597	-	388	17228303	-	all0808	-	hypothetical protein
807	 45.13	0	934676..935896	-	406	17228304	-	all0809	-	hypothetical protein
808	 42.23	0	936227..936844	+	205	17228305	-	alr0810	-	transcriptional regulator
809	 46.00	0	936980..937279	+	99	17228306	-	alr0811	-	hypothetical protein
810	 49.93	+1	937279..937977	+	232	17228307	-	alr0812	-	hypothetical protein
811	 46.11	+1	938079..940262	-	727	17228308	hglK	all0813	-	heterocyst-specific glycolipids-directing protein
812	 40.53	0	940329..940592	-	87	17228309	-	asl0814	-	hypothetical protein
813	 41.80	0	940627..940815	-	62	17228310	-	asl0815	-	hypothetical protein
814	 42.86	0	941010..941471	+	153	17228311	-	alr0816	-	hypothetical protein
815	 37.31	-1	941561..941761	-	66	17228312	-	asl0817	-	hypothetical protein
816	 41.29	0	941779..941979	-	66	17228313	-	asl0818	-	hypothetical protein
817	 39.05	0	943252..944703	+	483	17228314	-	alr0819	-	hypothetical protein
818	 44.37	0	944828..946177	+	449	17228315	-	alr0820	-	sun protein
819	 41.13	0	946235..946657	+	140	17228316	-	alr0821	-	hypothetical protein
820	 49.07	+1	946719..946934	-	71	17228317	-	asl0822	-	hypothetical protein
821	 39.68	0	947102..947479	-	125	17228318	-	all0823	-	two-component response regulator
822	 44.67	0	947549..950557	-	1002	17228319	-	all0824	-	two-component hybrid sensor and regulator
823	 42.79	0	950550..952601	-	683	17228320	-	all0825	-	two-component sensor histidine kinase
824	 38.89	0	952576..952809	-	77	17228321	-	asl0826	-	hypothetical protein
42.00	MEAN

4.11	STD DEV
