IslandPath Analysis: Nostoc sp. PCC 7120

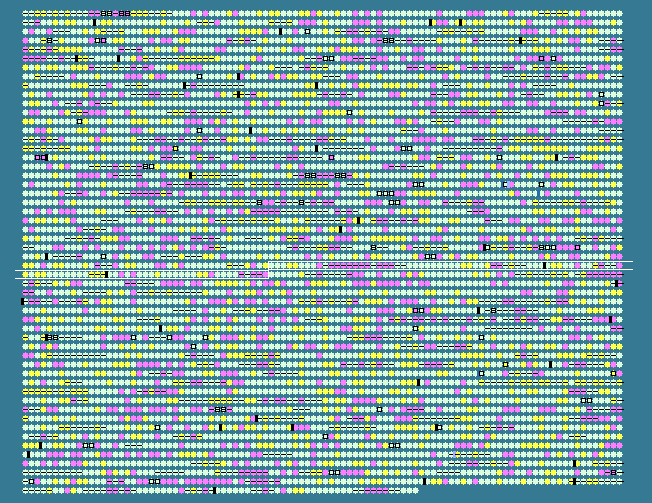

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 42.00 STD DEV: 4.11
Nostoc sp. PCC 7120, complete genome - 1..6413771
5366 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2842	 43.85	0	3468944..3470056	-	370	17230339	cbiD	all2847	-	cobalt-precorrin-6A synthase
2843	 43.43	0	3470093..3470389	-	98	17230340	-	asl2848	-	hypothetical protein
2844	 40.07	0	3470430..3471023	-	197	17230341	-	all2849	-	hypothetical protein
2845	 47.26	+1	3471344..3471580	-	78	17230342	-	asl2850	-	hypothetical protein
2846	 46.68	+1	3472110..3473330	+	406	17230343	-	alr2851	-	hypothetical protein
2847	 42.92	0	3473424..3474539	-	371	17230344	-	all2852	-	hypothetical protein
2848	 43.92	0	3474859..3475869	-	336	17230345	-	all2853	-	UDP-glucose 4-epimerase
2849	 42.13	0	3475866..3477275	-	469	17230346	-	all2854	-	hypothetical protein
2850	 31.08	-2	3477644..3477865	-	73	17230347	-	asl2855	-	hypothetical protein
2851	 41.84	0	3478542..3480752	+	736	17230348	-	alr2856	-	hypothetical protein
2852	 33.40	-2	3481174..3482637	+	487	17230349	-	alr2857	-	hypothetical protein
2853	 34.90	-1	3482663..3483427	+	254	17230350	-	alr2858	-	hypothetical protein
2854	 29.58	-2	3483557..3484435	+	292	17230351	-	alr2859	-	hypothetical protein
2855	 29.95	-2	3484551..3485792	+	413	17230352	-	alr2860	-	hypothetical protein
2856	 24.38	-2	3485859..3487265	+	468	17230353	-	alr2861	-	hypothetical protein
2857	 34.24	-1	3487308..3487856	+	182	17230354	-	alr2862	-	hypothetical protein
2858	 34.58	-1	3487961..3488362	+	133	17230355	-	alr2863	-	hypothetical protein
2859	 38.76	0	3488401..3489579	+	392	17230356	-	alr2864	-	hypothetical protein
2860	 32.08	-2	3489602..3490558	+	318	17230357	-	alr2865	-	hypothetical protein
2861	 35.71	-1	3490561..3491400	+	279	17230358	-	alr2866	-	glycosyltransferase
2862	 32.84	-2	3491419..3492636	+	405	17230359	-	alr2867	-	hypothetical protein
2863	 42.24	0	3492815..3493510	-	231	17230360	-	all2868	-	hypothetical protein
2864	 40.00	0	3493544..3494848	-	434	17230361	-	all2869	-	hypothetical protein
2865	 43.72	0	3495168..3497093	-	641	17230362	-	all2870	-	hypothetical protein
2866	 42.32	0	3497404..3498015	-	203	17230363	-	all2871	-	hypothetical protein
2867	 41.74	0	3498494..3498826	+	110	17230364	-	alr2872	-	hypothetical protein
2868	 41.57	0	3498850..3499857	+	335	17230365	-	alr2873	-	hypothetical protein
2869	 44.21	0	3499902..3500894	-	330	17230366	-	all2874	-	two-component response regulator
2870	 43.16	0	3500891..3506344	-	1817	17230367	-	all2875	-	two-component hybrid sensor and regulator
2871	 41.56	0	3507043..3508500	-	485	17230368	-	all2876	-	hypothetical protein
2872	 42.99	0	3509080..3510456	+	458	17230369	cmpA	alr2877	-	bicarbonate transport bicarbonate-binding protein
2873	 39.88	0	3510547..3511386	+	279	17230370	cmpB	alr2878	-	bicarbonate transport permease protein
2874	 48.00	+1	3511460..3513463	+	667	17230371	cmcC	alr2879	-	bicarbonate transport ATP-binding protein
2875	 45.86	0	3513586..3514455	+	289	17230372	cmpD	alr2880	-	bicarbonate transport ATP-binding protein
2876	 40.30	0	3515023..3515970	+	315	17230373	-	alr2881	-	putative lipid kinase
2877	 41.71	0	3516116..3516748	+	210	17230374	exoD	alr2882	-	exopolysaccharide synthesis protein
2878	 45.79	0	3518351..3521746	-	1131	17230375	-	all2883	-	two-component sensor histidine kinase
2879	 33.33	-2	3522618..3522926	+	102	17230376	kaiA	alr2884	-	circadian oscillation regulator
2880	 37.31	-1	3523032..3523358	+	108	17230377	kaiB	alr2885	-	circadian clock protein KaiB
2881	 42.12	0	3523433..3524992	+	519	17230378	kaiC	alr2886	-	circadian clock protein KaiC
2882	 46.12	+1	3525097..3527325	+	742	17230379	-	alr2887	-	hypothetical protein
2883	 44.71	0	3527414..3527791	+	125	17230380	-	alr2888	-	hypothetical protein
2884	 43.59	0	3527929..3528435	+	168	17230381	-	alr2889	-	hypothetical protein
2885	 45.38	0	3528549..3529328	+	259	17230382	-	alr2890	-	hypothetical protein
2886	 39.77	0	3529351..3530127	-	258	17230383	-	all2891	-	hypothetical protein
2887	 42.89	0	3530311..3531807	+	498	17230384	-	alr2892	-	hypothetical protein
2888	 43.49	0	3531948..3532754	-	268	17230385	-	all2893	-	hypothetical protein
2889	 48.77	+1	3532795..3533895	-	366	17230386	ruvB	all2894	-	Holliday junction DNA helicase B
2890	 45.51	0	3534050..3534829	+	259	17230387	hisF	alr2895	-	imidazole glycerol phosphate synthase subunit HisF
2891	 43.23	0	3534929..3535120	+	63	17230388	-	asr2896	-	hypothetical protein
2892	 41.83	0	3535277..3537217	-	646	17230389	-	all2897	-	two-component hybrid sensor and regulator
2893	 37.65	-1	3537220..3537729	-	169	17230390	-	all2898	-	two-component system response regulator
2894	 38.83	0	3537722..3539977	-	751	17230391	aphB	all2899	-	phytochrome-like protein, two-component sensor
2895	 44.85	0	3540525..3541427	-	300	17230392	-	all2900	-	cation efflux system protein
2896	 48.05	+1	3541673..3541903	+	76	17230393	-	asr2901	-	hypothetical protein
2897	 36.01	-1	3542511..3542921	+	136	17230394	hetP	alr2902	-	hypothetical protein
2898	 43.71	0	3543695..3544513	+	272	17230395	-	alr2903	-	hypothetical protein
2899	 43.99	0	3544523..3545695	-	390	17230396	-	all2904	-	hypothetical protein
2900	 36.84	-1	3545757..3546326	-	189	17230397	-	all2905	-	hypothetical protein
2901	 45.52	0	3546463..3547635	-	390	17230398	moeB	all2906	-	hypothetical protein
2902	 39.10	0	3547707..3548105	-	132	17230399	-	all2907	-	hypothetical protein
2903	 47.33	+1	3548200..3550407	-	735	17230400	-	all2908	-	cation transport ATPase
2904	 46.93	+1	3550757..3551374	-	205	17230401	-	all2909	-	hypothetical protein
2905	 42.08	0	3551520..3552251	-	243	17230402	-	all2910	-	carbonate dehydratase
2906	 41.97	0	3552496..3553653	-	385	17230403	-	all2911	-	ABC transport system glutamine-binding protein
2907	 42.88	0	3553788..3554531	-	247	17230404	-	all2912	-	ATP-binding protein of branched-chain amino acid ABC transporter
2908	 38.93	0	3554612..3555397	-	261	17230405	-	all2913	-	hypothetical protein
2909	 43.56	0	3555639..3555863	-	74	17230406	-	asl2914	-	hypothetical protein
2910	 45.35	0	3555925..3557139	-	404	17230407	hisZ	all2915	-	ATP phosphoribosyltransferase regulatory subunit
2911	 41.10	0	3557324..3558289	-	321	17230408	-	all2916	-	hypothetical protein
2912	 46.99	+1	3558515..3559327	-	270	17230409	-	all2917	-	inositol monophophatase family protein
2913	 49.86	+1	3559445..3560152	-	235	17230410	-	all2918	-	hypothetical protein
2914	 46.34	+1	3560142..3560510	-	122	17230411	-	all2919	-	ferredoxin
2915	 40.87	0	3560914..3561351	+	145	17230412	-	alr2920	-	hypothetical protein
2916	 45.00	0	3561840..3562439	+	199	17230413	-	alr2921	-	hypothetical protein
2917	 37.01	-1	3562457..3562864	+	135	17230414	-	alr2922	-	hypothetical protein
2918	 40.82	0	3562970..3563263	-	97	17230415	-	asl2923	-	virulence-associated protein
2919	 36.00	-1	3563275..3563574	-	99	17230416	-	all2924	-	hypothetical protein
2920	 43.69	0	3563809..3564291	+	160	17230417	-	alr2925	-	hypothetical protein
2921	 41.88	0	3564298..3564987	+	229	17230418	-	alr2926	-	hypothetical protein
2922	 42.36	0	3565116..3565514	+	132	17230419	-	alr2927	-	hypothetical protein
2923	 47.12	+1	3565811..3566122	-	103	17230420	rbpB	all2928	-	RNA-binding protein
2924	 43.27	0	3566296..3567090	-	264	17230421	ecaA	all2929	-	carbonic anhydrase
2925	 39.57	0	3567119..3567487	-	122	17230422	-	all2930	-	hypothetical protein
2926	 45.28	0	3567799..3568275	-	158	17230423	-	all2931	-	hypothetical protein
2927	 41.96	0	3568926..3569180	+	84	17230424	-	asr2932	-	hypothetical protein
2928	 44.85	0	3569181..3570413	+	410	17230425	-	alr2933	-	membrane-bound lytic transglycosylase A
2929	 44.68	0	3570447..3571451	-	334	17230426	-	all2934	-	hypothetical protein
2930	 46.24	+1	3572277..3573392	+	371	17230427	-	alr2935	-	hypothetical protein
2931	 46.29	+1	3573576..3575180	+	534	17230428	panC	alr2936	-	bifunctional pantoate ligase/cytidylate kinase
2932	 36.19	-1	3575570..3575779	+	69	17230429	-	asr2937	-	hypothetical protein
2933	 44.44	0	3576003..3576605	+	200	17230430	sodB	alr2938	-	iron superoxide dismutase
2934	 40.10	0	3577154..3577360	+	68	17230431	-	asr2939	-	hypothetical protein
2935	 41.92	0	3577944..3578630	+	228	17230432	-	alr2940	-	hypothetical protein
2936	 40.43	0	3578718..3580436	-	572	17230433	-	all2941	-	hypothetical protein
2937	 35.11	-1	3580468..3580692	-	74	17230434	-	asl2942	-	hypothetical protein
2938	 40.08	0	3580794..3581297	+	167	17230435	-	alr2943	-	hypothetical protein
2939	 38.31	0	3581323..3582045	+	240	17230436	-	alr2944	-	hypothetical protein
2940	 37.59	-1	3582106..3583608	+	500	17230437	-	alr2945	-	bifunctional orotidine 5'-phosphate decarboxylase/orotate phosphoribosyltransferase protein
2941	 35.78	-1	3583851..3584954	+	367	17230438	-	alr2946	-	hypothetical protein
42.00	MEAN

4.11	STD DEV
