IslandPath Analysis: Nostoc sp. PCC 7120

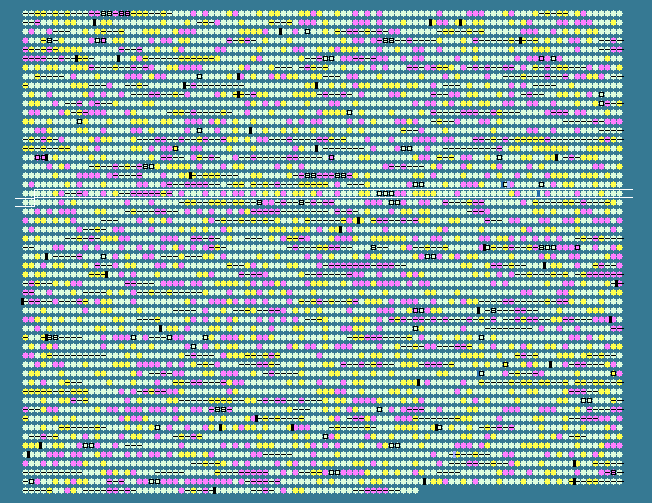

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 42.00 STD DEV: 4.11
Nostoc sp. PCC 7120, complete genome - 1..6413771
5366 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2003	 44.68	0	2401466..2402716	-	416	17229500	-	all2008	-	serine proteinase
2004	 41.59	0	2403018..2404397	+	459	17229501	dnaA	alr2009	-	chromosomal replication initiation protein
2005	 44.16	0	2404812..2405975	+	387	17229502	dnaN	alr2010	-	DNA polymerase III subunit beta
2006	 46.39	+1	2406078..2407019	-	313	17229503	-	all2011	-	permease protein of ABC transporter
2007	 35.52	-1	2407023..2408030	-	335	17229504	-	all2012	-	permease protein of ABC transporter
2008	 43.19	0	2408036..2408755	-	239	17229505	-	all2013	-	hypothetical protein
2009	 39.96	0	2409116..2409568	+	150	17229506	-	alr2014	-	hypothetical protein
2010	 36.57	-1	2409576..2410007	+	143	17229507	-	alr2015	-	hypothetical protein
2011	 35.71	-1	2410218..2410511	+	97	17229508	-	asr2016	-	hypothetical protein
2012	 40.09	0	2410859..2411287	-	142	17229509	-	all2017	-	hypothetical protein
2013	 38.86	0	2411491..2412141	+	216	17229510	-	alr2018	-	hypothetical protein
2014	 38.23	0	2412482..2412910	+	142	17229511	-	alr2019	-	hypothetical protein
2015	 43.93	0	2413761..2416619	-	952	17229512	-	all2020	-	ABC transporter ATP-binding protein
2016	 45.82	0	2416819..2418957	-	712	17229513	-	all2021	-	ABC transporter ATP-binding protein
2017	 45.25	0	2419028..2420395	-	455	17229514	-	all2022	-	hypothetical protein
2018	 39.54	0	2420472..2422502	-	676	17229515	-	all2023	-	hypothetical protein
2019	 37.07	-1	2422616..2422909	-	97	17229516	-	asl2024	-	hypothetical protein
2020	 37.10	-1	2423195..2426482	-	1095	17229517	-	all2025	-	hypothetical protein
2021	 34.19	-1	2426877..2427227	-	116	17229518	-	all2026	-	hypothetical protein
2022	 38.10	0	2427385..2427720	-	111	17229519	-	all2027	-	hypothetical protein
2023	 35.45	-1	2427854..2428042	-	62	17229520	-	asl2028	-	hypothetical protein
2024	 47.43	+1	2428039..2429301	-	420	17229521	-	all2029	-	heme biosynthesis protein
2025	 38.14	0	2429406..2429759	-	117	17229522	-	all2030	-	hypothetical protein
2026	 41.64	0	2429842..2430936	-	364	17229523	-	all2031	-	hypothetical protein
2027	 37.94	0	2430974..2432146	-	390	17229524	-	all2032	-	hypothetical protein
2028	 39.54	0	2432154..2432942	-	262	17229525	minD	all2033	-	cell division inhibitor
2029	 44.37	0	2432985..2434361	-	458	17229526	-	all2034	-	hypothetical protein
2030	 41.96	0	2434538..2435383	-	281	17229527	-	all2035	-	transcriptional regulator
2031	 32.03	-2	2435463..2435615	+	50	17229528	-	asr2036	-	hypothetical protein
2032	 43.32	0	2435914..2437014	-	366	17229529	-	all2037	-	hypothetical protein
2033	 42.43	0	2437128..2439359	-	743	17229530	-	all2038	-	hypothetical protein
2034	 35.56	-1	2439824..2440363	-	179	17229531	-	all2039	-	hypothetical protein
2035	 41.82	0	2440360..2441478	-	372	17229532	-	all2040	-	hypothetical protein
2036	 35.39	-1	2442437..2442679	+	80	17229533	-	asr2041	-	hypothetical protein
2037	 37.77	-1	2442745..2444571	+	608	17229534	-	alr2042	-	hypothetical protein
2038	 39.15	0	2444592..2447324	+	910	17229535	-	alr2043	-	hypothetical protein
2039	 38.35	0	2447411..2450458	+	1015	17229536	-	alr2044	-	hypothetical protein
2040	 43.18	0	2450627..2451388	+	253	17229537	-	alr2045	-	hypothetical protein
2041	 47.85	+1	2451588..2453909	+	773	17229538	-	alr2046	-	hypothetical protein
2042	 42.47	0	2454198..2454416	-	72	17229539	-	asl2047	-	hypothetical protein
2043	 46.69	+1	2454647..2455387	+	246	17229540	dapF	alr2048	-	diaminopimelate epimerase
2044	 37.63	-1	2455566..2456030	+	154	17229541	-	alr2049	-	two-component response regulator
2045	 43.47	0	2456091..2457728	-	545	17229542	-	all2050	-	hypothetical protein
2046	 45.79	0	2458069..2459898	+	609	17229543	-	alr2051	-	gamma-glutamyltranspeptidase
2047	 46.13	+1	2459902..2460198	-	98	17229544	-	asl2052	-	hypothetical protein
2048	 44.99	0	2460573..2461121	-	182	17229545	-	all2053	-	hypothetical protein
2049	 45.52	0	2461341..2462300	+	319	17229546	-	alr2054	-	aldo/keto reductase
2050	 32.35	-2	2463196..2463909	+	237	17229547	-	alr2055	-	hypothetical protein
2051	 42.28	0	2464159..2465097	-	312	17229548	-	all2056	-	hypothetical protein
2052	 43.10	0	2465228..2466097	+	289	17229549	aroE	alr2057	-	shikimate 5-dehydrogenase
2053	 38.05	0	2466107..2467102	-	331	17229550	-	all2058	-	hypothetical protein
2054	 44.28	0	2467173..2467766	-	197	17229551	-	all2059	-	hypothetical protein
2055	 42.26	0	2467904..2468407	+	167	17229552	-	alr2060	-	hypothetical protein
2056	 39.07	0	2468476..2468754	-	92	17229553	-	asl2061	-	hypothetical protein
2057	 46.15	+1	2468935..2469285	-	116	17229554	-	all2062	-	hypothetical protein
2058	 47.47	+1	2469353..2470003	-	216	17229555	upp	all2063	-	uracil phosphoribosyltransferase
2059	 43.92	0	2470593..2472113	+	506	17229556	-	alr2064	-	hypothetical protein
2060	 40.08	0	2472477..2473439	-	320	17229557	-	all2065	-	transposase
2061	 39.18	0	2473748..2474260	-	170	17229558	-	all2066	-	transposase
2062	 40.18	0	2474290..2474859	-	189	17229559	-	all2067	-	transposase
2063	 38.14	0	2474972..2475907	-	311	17229560	-	all2068	-	hypothetical protein
2064	 37.04	-1	2476011..2476388	-	125	17229561	-	all2069	-	hypothetical protein
2065	 41.72	0	2476471..2477376	-	301	17229562	-	all2070	-	hypothetical protein
2066	 48.85	+1	2477674..2478150	+	158	17229563	-	alr2071	-	hypothetical protein
2067	 48.99	+1	2478215..2479306	-	363	17229564	thrC	all2072	-	threonine synthase
2068	 47.10	+1	2479892..2481133	+	413	17229565	argJ	alr2073	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
2069	 45.50	0	2481178..2481588	+	136	17229566	-	alr2074	-	hypothetical protein
2070	 41.69	0	2481632..2482924	+	430	17229567	-	alr2075	-	hypothetical protein
2071	 42.72	0	2483211..2484830	+	539	17229568	-	alr2076	-	hypothetical protein
2072	 40.16	0	2484948..2485313	-	121	17229569	-	all2077	-	hypothetical protein
2073	 33.33	-2	2485896..2486144	-	82	17229570	-	asl2078	-	hypothetical protein
2074	 44.69	0	2486176..2487936	+	586	17229571	-	alr2079	-	hypothetical protein
2075	 41.06	0	2487981..2488394	-	137	17229572	-	all2080	-	hypothetical protein
2076	 41.89	0	2488770..2489213	+	147	17229573	-	alr2081	-	hypothetical protein
2077	 43.30	0	2489250..2490212	+	320	17229574	cobD	alr2082	-	cobalamin biosynthesis protein
2078	 44.57	0	2490339..2490881	+	180	17229575	-	alr2083	-	pyrimidine regulatory protein PyrR
2079	 42.21	0	2491093..2492061	-	322	17229576	-	all2084	-	hypothetical protein
2080	 43.90	0	2492054..2492971	-	305	17229577	-	all2085	-	hypothetical protein
2081	 41.83	0	2493110..2494804	-	564	17229578	-	all2086	-	hypothetical protein
2082	 47.12	+1	2495318..2495629	+	103	17229579	rbpA2	alr2087	-	RNA-binding protein RbpA2
2083	 36.67	-1	2495812..2496681	-	289	17229580	-	all2088	-	hypothetical protein
2084	 41.61	0	2496754..2497236	-	160	17229581	-	all2089	-	hypothetical protein
2085	 44.33	0	2497473..2499281	+	602	17229582	-	alr2090	-	hypothetical protein
2086	 44.33	0	2499350..2500213	-	287	17229583	-	all2091	-	nicotinate-nucleotide pyrophosphorylase
2087	 41.15	0	2505711..2506772	+	353	17229584	hisC	alr2092	-	histidinol phosphate aminotransferase
2088	 35.19	-1	2506981..2507844	+	287	17229585	-	alr2093	-	hypothetical protein
2089	 38.64	0	2508306..2510021	-	571	17229586	-	all2094	-	two-component hybrid sensor and regulator
2090	 41.85	0	2510024..2514988	-	1654	17229587	-	all2095	-	two-component sensor histidine kinase
2091	 40.98	0	2515433..2516125	-	230	17229588	-	all2096	-	plastoquinol terminal oxidase
2092	 43.73	0	2516278..2517777	-	499	17229589	-	all2097	-	cell death suppressor protein
2093	 37.30	-1	2517982..2518359	-	125	17229590	-	all2098	-	hypothetical protein
2094	 42.80	0	2518619..2519389	-	256	17229591	-	all2099	-	hypothetical protein
2095	 41.67	0	2519474..2519749	-	91	17229592	-	asl2100	-	hypothetical protein
2096	 45.10	0	2519742..2519996	-	84	17229593	-	asl2101	-	hypothetical protein
2097	 48.19	+1	2520111..2521436	-	441	17229594	ama	all2102	-	N-acyl-L-amino acid amidohydrolase
2098	 43.94	0	2521463..2522056	-	197	17229595	-	all2103	-	hypothetical protein
2099	 44.91	0	2522289..2523878	+	529	17229596	-	alr2104	-	hypothetical protein
2100	 45.35	0	2524079..2524702	-	207	17229597	acpD	all2105	-	acyl carrier protein phosphodiesterase
2101	 41.74	0	2524933..2525265	+	110	17229598	-	alr2106	-	hypothetical protein
2102	 38.85	0	2525290..2525670	-	126	17229599	-	all2107	-	hypothetical protein
42.00	MEAN

4.11	STD DEV
