IslandPath Analysis: Nostoc sp. PCC 7120

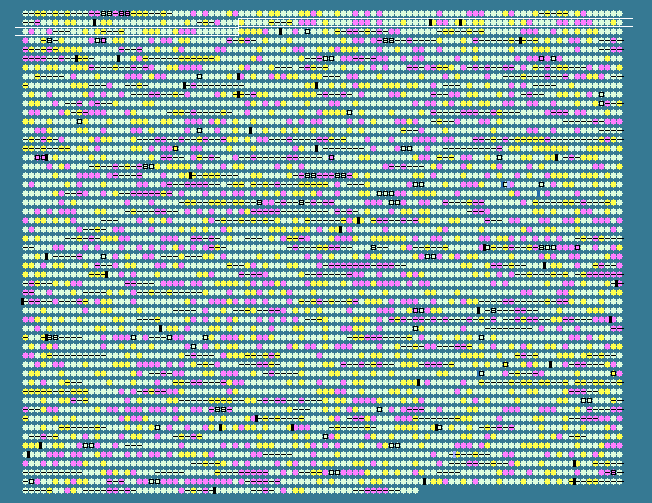

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 42.00 STD DEV: 4.11
Nostoc sp. PCC 7120, complete genome - 1..6413771
5366 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
137	 49.80	+1	141751..143280	-	509	17227634	psbB	all0138	-	photosystem II CP47 protein
138	 41.98	0	143704..144027	-	107	17227635	-	all0139	-	hypothetical protein
139	 41.77	0	144629..146287	+	552	17227636	-	alr0140	-	periplasmic oligopeptide-binding protein of oligopeptide ABC transporter
140	 43.08	0	146423..147448	+	341	17227637	-	alr0141	-	permease protein of oligopeptide ABC transporter
141	 44.99	0	147532..148440	+	302	17227638	-	alr0142	-	ribonuclease H
142	 46.48	+1	148503..149681	-	392	17227639	-	all0143	-	hypothetical protein
143	 44.26	0	149871..150776	-	301	17227640	-	all0144	-	hypothetical protein
144	 40.00	0	151210..151659	+	149	17227641	-	alr0145	-	hypothetical protein
145	 49.10	+1	151736..152014	-	92	17227642	rpmA	asl0146	-	50S ribosomal protein L27
146	 45.29	0	152042..152434	-	130	17227643	rplU	all0147	-	50S ribosomal protein L21
147	 37.40	-1	152869..153114	+	81	17227644	-	asr0148	-	hypothetical protein
148	 34.11	-1	153111..153497	+	128	17227645	-	alr0149	-	hypothetical protein
149	 37.01	-1	153551..154639	+	362	17227646	-	alr0150	-	hypothetical protein
150	 42.76	0	154744..155040	-	98	17227647	-	asl0151	-	hypothetical protein
151	 48.62	+1	155135..156259	-	374	17227648	chlI	all0152	-	protoporphyrin IX magnesium chelatase chain
152	 41.08	0	156575..158188	+	537	17227649	-	alr0153	-	penicillin-binding protein
153	 43.83	0	158589..159779	-	396	17227650	ftsW	all0154	-	cell division protein
154	 43.22	0	159979..160524	-	181	17227651	-	all0155	-	hypothetical protein
155	 42.72	0	161060..161581	-	173	17227652	-	all0156	-	hypothetical protein
156	 34.23	-1	161681..162349	-	222	17227653	-	all0157	-	hypothetical protein
157	 31.94	-2	162352..163140	-	262	17227654	-	all0158	-	hypothetical protein
158	 37.27	-1	163382..164575	+	397	17227655	-	alr0159	-	hypothetical protein
159	 45.11	0	164558..165712	-	384	17227656	-	all0160	-	hypothetical protein
160	 38.10	0	165871..166206	-	111	17227657	petJ	all0161	-	cytochrome c6
161	 39.33	0	166535..167335	+	266	17227658	-	alr0162	-	hypothetical protein
162	 40.11	0	167600..167776	-	58	17227659	-	asl0163	-	hypothetical protein
163	 41.06	0	167936..168349	-	137	17227660	-	all0164	-	hypothetical protein
164	 47.32	+1	168634..171099	+	821	17227661	-	alr0165	-	hypothetical protein
165	 44.69	0	171094..172581	-	495	17227662	-	all0166	-	alpha,alpha-trehalase
166	 41.68	0	172658..175426	-	922	17227663	-	all0167	-	maltooligosyltrehalose synthase
167	 42.94	0	175504..177366	-	620	17227664	-	all0168	-	alpha-amylase
168	 42.09	0	177701..179629	+	642	17227665	-	alr0169	-	cyclomaltodextrin glucanotransferase
169	 45.63	0	180025..181122	-	365	17227666	-	all0170	-	glycolate oxidase
170	 34.96	-1	181350..181595	-	81	17227667	-	asl0171	-	hypothetical protein
171	 37.75	-1	181582..181989	-	135	17227668	-	all0172	-	hypothetical protein
172	 44.75	0	182241..183116	-	291	17227669	-	all0173	-	hypothetical protein
173	 48.21	+1	183300..184643	-	447	17227670	-	all0174	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
174	 46.72	+1	185196..186017	+	273	17227671	-	alr0175	-	rRNA methylase
175	 40.53	0	186051..186314	-	87	17227672	-	asl0176	-	hypothetical protein
176	 46.47	+1	186584..188296	-	570	17227673	-	all0177	-	flavoprotein
177	 45.52	0	188577..190316	-	579	17227674	-	all0178	-	flavoprotein
178	 44.72	0	190785..191030	+	81	17227675	-	asr0179	-	hypothetical protein
179	 43.81	0	191109..191891	+	260	17227676	-	alr0180	-	ATP-binding protein of ABC transporter
180	 42.63	0	191965..193395	+	476	17227677	-	alr0181	-	hypothetical protein
181	 40.60	0	193375..195522	-	715	17227678	-	all0182	-	two-component hybrid sensor and regulator
182	 52.73	+2	195669..195833	+	54	17227679	-	asr0183	-	hypothetical protein
183	 43.38	0	196342..197625	-	427	17227680	-	all0184	-	hypothetical protein
184	 45.53	0	198619..200283	-	554	17227681	-	all0185	-	hypothetical protein
185	 38.46	0	200312..200818	-	168	17227682	-	all0186	-	hypothetical protein
186	 43.92	0	200895..202406	-	503	17227683	-	all0187	-	transcriptional regulator
187	 44.29	0	202511..203587	+	358	17227684	-	alr0188	-	GDP-mannose pyrophosphorylase
188	 43.07	0	203773..205416	+	547	17227685	-	alr0189	-	hypothetical protein
189	 43.65	0	205651..206619	+	322	17227686	-	alr0190	-	ATP-binding protein of ABC transporter
190	 38.40	0	206635..207423	+	262	17227687	-	alr0191	-	hypothetical protein
191	 37.18	-1	207550..209211	-	553	17227688	-	all0192	-	serine/threonine kinase
192	 44.94	0	209314..210192	-	292	17227689	-	all0193	-	haloalkane dehalogenase
193	 36.60	-1	210583..211164	+	193	17227690	-	alr0194	-	hypothetical protein
194	 38.14	0	211252..211605	-	117	17227691	-	all0195	-	hypothetical protein
195	 34.38	-1	211897..213228	+	443	17227692	-	alr0196	-	hypothetical protein
196	 42.69	0	213384..214217	-	277	17227693	-	all0197	-	hypothetical protein
197	 40.39	0	214817..215383	+	188	17227694	-	alr0198	-	hypothetical protein
198	 42.70	0	215440..215973	+	177	17227695	-	alr0199	-	hypothetical protein
199	 45.90	0	216123..217403	-	426	17227696	-	all0200	-	hypothetical protein
200	 42.88	0	217665..218324	+	219	17227697	-	alr0201	-	hypothetical protein
201	 43.70	0	218697..219911	+	404	17227698	-	alr0202	-	hypothetical protein
202	 36.40	-1	220171..220659	+	162	17227699	-	alr0203	-	hypothetical protein
203	 43.17	0	220781..220963	-	60	17227700	-	asl0204	-	hypothetical protein
204	 41.86	0	221033..223189	+	718	17227701	-	alr0205	-	ATP-dependent DNA helicase
205	 36.61	-1	223223..223405	-	60	17227702	-	asl0206	-	hypothetical protein
206	 43.84	0	223902..225500	-	532	17227703	-	all0207	-	hypothetical protein
207	 38.59	0	225850..226401	+	183	17227704	-	alr0208	-	hypothetical protein
208	 40.73	0	226463..227584	-	373	17227705	-	all0209	-	hypothetical protein
209	 41.04	0	227660..228100	-	146	17227706	mutT	all0210	-	mutator protein
210	 40.16	0	228132..228512	-	126	17227707	-	all0211	-	hypothetical protein
211	 45.78	0	228735..229634	+	299	17227708	-	alr0212	-	methylenetetrahydrofolate dehydrogenase
212	 43.66	0	229783..230712	+	309	17227709	-	alr0213	-	geranylgeranyl diphosphate synthase
213	 45.86	0	230843..231313	+	156	17227710	-	alr0214	-	hypothetical protein
214	 45.85	0	231332..231970	-	212	17227711	-	all0215	-	hypothetical protein
215	 40.77	0	232191..232526	-	111	17227712	-	all0216	-	hypothetical protein
216	 42.78	0	232629..233348	-	239	17227713	-	all0217	-	hypothetical protein
217	 49.44	+1	233461..234180	-	239	17227714	pdxJ	all0218	-	pyridoxal phosphate biosynthetic protein PdxJ
218	 42.72	0	234339..236096	-	585	17227715	-	all0219	-	hypothetical protein
219	 43.40	0	236408..237142	-	244	17227716	-	all0220	-	isopentenyl transferase
220	 41.62	0	237409..237903	+	164	17227717	-	alr0221	-	hypothetical protein
221	 46.97	+1	238171..239307	+	378	17227718	gltA	alr0222	-	methylcitrate synthase
222	 46.11	+1	239773..240891	+	372	17227719	ndhA	alr0223	-	NADH dehydrogenase subunit H
223	 46.32	+1	240980..241564	+	194	17227720	ndhI	alr0224	-	NADH dehydrogenase subunit I
224	 45.48	0	241665..242273	+	202	17227721	ndhG	alr0225	-	NADH dehydrogenase subunit J
225	 41.83	0	242311..242616	+	101	17227722	ndhE	alr0226	-	NADH dehydrogenase subunit K
226	 45.82	0	242623..243543	+	306	17227723	ppnK	alr0227	-	inorganic polyphosphate/ATP-NAD kinase
227	 32.71	-2	243866..244669	+	267	17227724	-	alr0228	-	hypothetical protein
228	 29.33	-2	244854..245078	+	74	17227725	-	asr0229	-	hypothetical protein
229	 33.96	-1	245146..246753	+	535	17227726	-	alr0230	-	hypothetical protein
230	 38.95	0	246770..247927	-	385	17227727	-	all0231	-	hypothetical protein
231	 41.90	0	248183..248812	-	209	17227728	-	all0232	-	hypothetical protein
232	 41.56	0	248988..250580	-	530	17227729	metG	all0233	-	methionyl-tRNA synthetase
233	 41.60	0	250960..251685	+	241	17227730	-	alr0234	-	hypothetical protein
234	 43.56	0	252003..252833	+	276	17227731	-	alr0235	-	hypothetical protein
235	 42.68	0	252979..254037	+	352	17227732	-	alr0236	-	hypothetical protein
236	 45.05	0	254248..255723	+	491	17227733	-	alr0237	-	leucyl aminopeptidase
42.00	MEAN

4.11	STD DEV
