IslandPath Analysis: Nostoc sp. PCC 7120

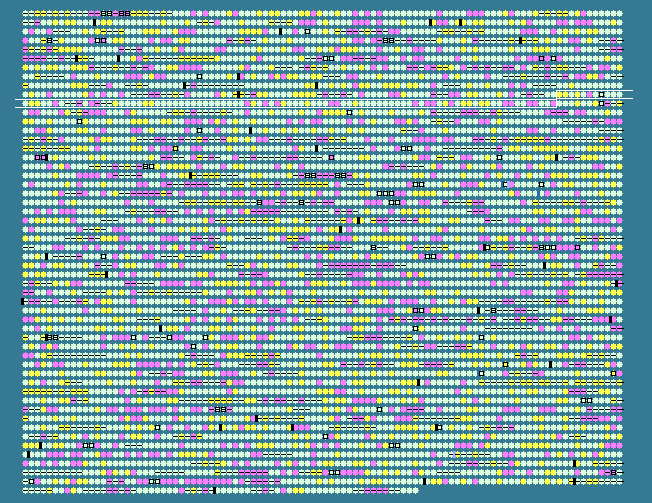

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 42.00 STD DEV: 4.11
Nostoc sp. PCC 7120, complete genome - 1..6413771
5366 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
990	 48.34	+1	1160381..1161793	+	470	17228487	-	alr0992	-	ammonium transporter
991	 47.23	+1	1162000..1165209	-	1069	17228488	-	all0993	-	hypothetical protein
992	 45.08	0	1165509..1165772	-	87	17228489	-	asl0994	-	hypothetical protein
993	 45.70	0	1165953..1166429	-	158	17228490	-	all0995	-	hypothetical protein
994	 41.92	0	1166972..1168438	+	488	17228491	-	alr0996	-	protease
995	 34.79	-1	1168549..1168959	-	136	17228492	-	all0997	-	hypothetical protein
996	 45.03	0	1169392..1170306	+	304	17228493	-	alr0998	-	hypothetical protein
997	 40.38	0	1170482..1171375	+	297	17228494	-	alr0999	-	transposase
998	 41.74	0	1171949..1173031	+	360	17228495	-	alr1000	-	hypothetical protein
999	 42.31	0	1173376..1173921	+	181	17228496	-	alr1001	-	hypothetical protein
1000	 42.32	0	1174084..1174584	+	166	17228497	-	alr1002	-	hypothetical protein
1001	 40.60	0	1174706..1175104	-	132	17228498	-	all1003	-	hypothetical protein
1002	 46.77	+1	1175265..1176410	+	381	17228499	-	alr1004	-	alanine--glyoxylate aminotransferase
1003	 48.15	+1	1176606..1176848	+	80	17228500	-	asr1005	-	hypothetical protein
1004	 43.75	0	1176845..1177564	-	239	17228501	-	all1006	-	hypothetical protein
1005	 44.63	0	1177717..1179159	-	480	17228502	-	all1007	-	hypothetical protein
1006	 36.69	-1	1179311..1180264	+	317	17228503	-	alr1008	-	hypothetical protein
1007	 40.74	0	1180363..1180740	-	125	17228504	-	all1009	-	hypothetical protein
1008	 42.78	0	1181159..1181539	+	126	17228505	-	alr1010	-	hypothetical protein
1009	 41.97	0	1181536..1182114	-	192	17228506	-	all1011	-	maltose transacetylase
1010	 37.64	-1	1182300..1183598	-	432	17228507	-	all1012	-	two-component response regulator
1011	 41.27	0	1184093..1185604	+	503	17228508	-	alr1013	-	hypothetical protein
1012	 28.95	-2	1185933..1186274	+	113	17228509	-	alr1014	-	hypothetical protein
1013	 34.55	-1	1186435..1187010	+	191	17228510	-	alr1015	-	hypothetical protein
1014	 38.72	0	1187046..1187435	+	129	17228511	-	alr1016	-	hypothetical protein
1015	 44.44	0	1187442..1187630	+	62	17228512	-	asr1017	-	hypothetical protein
1016	 47.81	+1	1187627..1189021	+	464	17228513	-	alr1018	-	amidase
1017	 41.91	0	1189169..1189996	-	275	17228514	-	all1019	-	methionine aminopeptidase
1018	 40.00	0	1190138..1190707	-	189	17228515	-	all1020	-	hypothetical protein
1019	 42.18	0	1190743..1193580	-	945	17228516	-	all1021	-	hypothetical protein
1020	 42.42	0	1193694..1194122	-	142	17228517	-	all1022	-	hypothetical protein
1021	 46.00	0	1194350..1194862	-	170	17228518	-	all1023	-	hypothetical protein
1022	 46.63	+1	1195024..1195632	+	202	17228519	-	alr1024	-	ferripyochelin binding protein
1023	 42.86	0	1195853..1195978	+	41	17228520	pbsY	asr1025	-	photosystem II protein Y
1024	 40.99	0	1196116..1197369	+	417	17228521	-	alr1026	-	folylpolyglutamate synthase
1025	 41.72	0	1197400..1198698	-	432	17228522	-	all1027	-	periplasmic sugar-binding protein of ABC transporter
1026	 42.55	0	1198932..1200038	+	368	17228523	-	alr1028	-	hypothetical protein
1027	 44.79	0	1200141..1200908	+	255	17228524	-	alr1029	-	hypothetical protein
1028	 42.91	0	1200905..1201666	+	253	17228525	-	alr1030	-	hypothetical protein
1029	 44.86	0	1201776..1204247	+	823	17228526	-	alr1031	-	general secretion pathway protein D
1030	 40.64	0	1204412..1204849	-	145	17228527	-	all1032	-	hypothetical protein
1031	 44.95	0	1205015..1205341	-	108	17228528	-	all1033	-	hypothetical protein
1032	 42.47	0	1205338..1205709	-	123	17228529	-	all1034	-	hypothetical protein
1033	 41.72	0	1205856..1206296	-	146	17228530	-	all1035	-	transcriptional regulator
1034	 42.90	0	1206496..1207446	+	316	17228531	-	alr1036	-	hypothetical protein
1035	 43.42	0	1207483..1209504	+	673	17228532	-	alr1037	-	hypothetical protein
1036	 42.80	0	1209658..1209900	+	80	17228533	-	asr1038	-	hypothetical protein
1037	 41.19	0	1209924..1211120	+	398	17228534	-	alr1039	-	aspartate aminotransferase
1038	 36.07	-1	1211302..1211739	+	145	17228535	-	alr1040	-	hypothetical protein
1039	 47.59	+1	1211965..1213002	+	345	17228536	glpX	alr1041	-	fructose 1,6-bisphosphatase II
1040	 44.29	0	1213221..1214507	+	428	17228537	hemA	alr1042	-	glutamyl-tRNA reductase
1041	 38.26	0	1214613..1215323	-	236	17228538	-	all1043	-	hypothetical protein
1042	 40.10	0	1215867..1216457	+	196	17228539	-	alr1044	-	transcriptional regulator
1043	 38.49	0	1216551..1217462	+	303	17228540	-	alr1045	-	hypothetical protein
1044	 45.72	0	1217552..1218334	-	260	17228541	natA	all1046	-	ATP-binding protein of ABC transporter
1045	 42.77	0	1218324..1219457	-	377	17228542	natC	all1047	-	permease protein of ABC transporter
1046	 38.89	0	1219657..1219854	+	65	17228543	-	asr1048	-	hypothetical protein
1047	 38.95	0	1219975..1220241	+	88	17228544	-	asr1049	-	hypothetical protein
1048	 45.94	0	1220346..1221932	+	528	17228545	pgi	alr1050	-	glucose-6-phosphate isomerase
1049	 41.20	0	1222204..1223373	-	389	17228546	-	all1051	-	glycerophosphoryl diester phosphodiesterase
1050	 41.52	0	1223855..1224733	+	292	17228547	-	alr1052	-	hypothetical protein
1051	 44.97	0	1224827..1226287	-	486	17228548	gatA	all1053	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
1052	 38.06	0	1226739..1228091	+	450	17228549	-	alr1054	-	DNA polymerase III subunit alpha
1053	 32.97	-2	1228376..1228921	+	181	17228550	-	alr1055	-	hypothetical protein
1054	 40.57	0	1229286..1229741	+	151	17228551	-	alr1056	-	hypothetical protein
1055	 44.44	0	1230130..1230471	+	113	17228552	-	alr1057	-	hypothetical protein
1056	 47.39	+1	1230574..1233639	-	1021	17228553	-	all1058	-	hypothetical protein
1057	 42.51	0	1233670..1236087	-	805	17228554	-	all1059	-	sucrose synthase
1058	 44.37	0	1236802..1237254	+	150	17228555	-	alr1060	-	hypothetical protein
1059	 38.54	0	1237674..1239920	-	748	17228556	-	all1061	-	hypothetical protein
1060	 44.72	0	1240251..1240742	-	163	17228557	-	all1062	-	methionine sulfoxide reductase A
1061	 44.87	0	1240822..1241757	+	311	17228558	-	alr1063	-	hypothetical protein
1062	 39.80	0	1242298..1242498	+	66	17228559	-	asr1064	-	hypothetical protein
1063	 42.24	0	1242516..1243301	-	261	17228560	-	all1065	-	hypothetical protein
1064	 44.44	0	1243551..1243766	-	71	17228561	-	asl1066	-	hypothetical protein
1065	 43.84	0	1243775..1244212	+	145	17228562	-	alr1067	-	hypothetical protein
1066	 36.27	-1	1244251..1247793	-	1180	17228563	-	all1068	-	two-component hybrid sensor and regulator
1067	 41.40	0	1247986..1251294	-	1102	17228564	-	all1069	-	methyl-accepting chemotaxis protein
1068	 36.13	-1	1251441..1251941	-	166	17228565	-	all1070	-	purine-binding chemotaxis protein
1069	 36.64	-1	1251962..1252324	-	120	17228566	-	all1071	-	two-component response regulator
1070	 39.92	0	1252601..1253785	-	394	17228567	-	all1072	-	two-component response regulator
1071	 46.55	+1	1254612..1257494	+	960	17228568	ileS	alr1073	-	isoleucyl-tRNA synthetase
1072	 37.42	-1	1257507..1258166	+	219	17228569	-	alr1074	-	hypothetical protein
1073	 39.21	0	1258347..1259231	-	294	17228570	-	all1075	-	parA family protein
1074	 45.80	0	1259588..1260574	-	328	17228571	-	all1076	-	hypothetical protein
1075	 46.18	+1	1260773..1261519	+	248	17228572	-	alr1077	-	hypothetical protein
1076	 42.81	0	1261663..1262580	+	305	17228573	rps1	alr1078	-	30S ribosomal protein S1
1077	 47.30	+1	1262650..1263666	-	338	17228574	-	all1079	-	hypothetical protein
1078	 47.74	+1	1263865..1265148	+	427	17228575	argD	alr1080	-	acetylornithine aminotransferase
1079	 41.06	0	1265503..1266525	+	340	17228576	-	alr1081	-	hypothetical protein
1080	 39.57	0	1266651..1267019	-	122	17228577	-	all1082	-	hypothetical protein
1081	 30.17	-2	1267563..1268288	+	241	17228578	-	alr1083	-	hypothetical protein
1082	 36.33	-1	1268305..1270140	-	611	17228579	-	all1084	-	hypothetical protein
1083	 43.75	0	1270718..1271485	+	255	17228580	-	alr1085	-	hypothetical protein
1084	 39.58	0	1271561..1272697	+	378	17228581	-	alr1086	-	two-component response regulator
1085	 32.82	-2	1272694..1273083	-	129	17228582	-	all1087	-	anti-sigma factor antagonist
1086	 37.46	-1	1273903..1275309	-	468	17228583	-	all1088	-	two-component sensor histidine kinase
1087	 38.75	0	1275569..1276915	-	448	17228584	-	all1089	-	hypothetical protein
1088	 44.82	0	1277055..1278491	-	478	17228585	-	all1090	-	hypothetical protein
1089	 37.98	0	1278528..1278893	-	121	17228586	-	all1091	-	hypothetical protein
42.00	MEAN

4.11	STD DEV
