IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

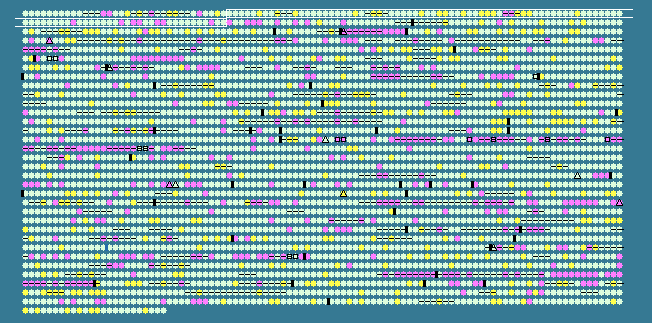

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
35	 64.84	0	35710..37353	+	547	87198061	groEL	Saro_0035	-	chaperonin GroEL
36	 67.21	0	37528..39198	+	556	87198062	-	Saro_0036	-	histidine kinase
37	 67.40	0	39195..39740	-	181	87198063	-	Saro_0037	-	GCN5-related N-acetyltransferase
38	 68.24	0	39737..40942	-	401	87198064	-	Saro_0038	-	hypothetical protein
39	 65.13	0	41050..44232	-	1060	87198065	-	Saro_0039	-	acriflavin resistance protein
40	 70.09	+1	44243..45412	-	389	87198066	-	Saro_0040	-	secretion protein HlyD
41	 65.00	0	45711..46010	-	99	87198067	-	Saro_0041	-	hypothetical protein
42	 63.66	0	46025..46357	-	110	87198068	-	Saro_0042	-	hypothetical protein
43	 69.78	+1	46499..47653	+	384	87198069	-	Saro_0043	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
44	 68.46	0	47669..48058	-	129	87198070	-	Saro_0044	-	hypothetical protein
45	 67.91	0	48084..49208	+	374	87198071	-	Saro_0045	-	beta-lactamase
46	 70.22	+1	49205..50020	-	271	87198072	-	Saro_0046	-	phenazine biosynthesis PhzC/PhzF protein
47	 66.67	0	50017..50994	-	325	87198073	-	Saro_0047	-	cation diffusion facilitator family transporter
48	 66.67	0	51006..51617	-	203	87198074	-	Saro_0048	-	pyridoxamine 5'-phosphate oxidase
49	 67.48	0	51839..52816	+	325	87198075	-	Saro_0049	-	heat shock protein DnaJ-like
50	 65.31	0	52820..53854	+	344	87198076	-	Saro_0050	-	ribonuclease BN
51	 63.43	0	53851..54654	+	267	87198077	-	Saro_0051	-	enoyl-[acyl-carrier-protein] reductase [NADH]
52	 67.01	0	54739..55320	-	193	87198078	-	Saro_0052	-	hypothetical protein
53	 68.23	0	55425..55937	-	170	87198079	-	Saro_0053	-	ubiquinone biosynthesis protein COQ7
54	 67.49	0	55939..56421	-	160	87198080	-	Saro_0054	-	disulphide bond formation protein DsbB
55	 66.59	0	56435..57826	-	463	87198081	-	Saro_0055	-	C-terminal processing peptidase-3
56	 73.01	+2	57928..59172	-	414	87198082	-	Saro_0056	-	peptidase M23B
57	 67.84	0	59181..59606	-	141	87198083	-	Saro_0057	-	hypothetical protein
58	 64.50	0	59701..60162	-	153	87198084	-	Saro_0058	-	Iojap-related protein
59	 69.58	+1	60203..60889	-	228	87198085	nadD	Saro_0059	-	nicotinic acid mononucleotide adenylyltransferase
60	 70.42	+1	60853..62130	-	425	87198086	-	Saro_0060	-	glutamate-5-semialdehyde dehydrogenase
61	 67.61	0	62365..63528	+	387	87198087	-	Saro_0061	-	peptidase M23B
62	 68.66	+1	63536..63886	+	116	87198088	-	Saro_0062	-	hypothetical protein
63	 67.38	0	64024..64728	+	234	87198089	-	Saro_0063	-	hypothetical protein
64	 67.27	0	64795..65796	-	333	87198090	-	Saro_0064	-	alcohol dehydrogenase
65	 65.89	0	65835..66218	-	127	87198091	-	Saro_0065	-	hypothetical protein
66	 65.24	0	66339..68717	+	792	87198092	-	Saro_0066	-	ATP dependent Clp protease
67	 69.46	+1	68777..69850	+	357	87198093	-	Saro_0067	-	putative mRNA 3-end processing factor
68	 67.17	0	69911..71506	+	531	87198094	-	Saro_0068	-	ATP-dependent DNA ligase
69	 67.93	0	71824..72219	+	131	87198095	-	Saro_0069	-	globin
70	 70.58	+1	72269..72907	+	212	87198096	-	Saro_0070	-	hypothetical protein
71	 70.14	+1	72885..73172	-	95	87198097	-	Saro_0071	-	hypothetical protein
72	 67.02	0	73153..73716	-	187	87198098	-	Saro_0072	-	transferase
73	 66.97	0	73731..74723	-	330	87198099	-	Saro_0073	-	delta-aminolevulinic acid dehydratase
74	 71.47	+1	74760..76301	-	513	87198100	-	Saro_0074	-	peptidase M23B
75	 64.92	0	76481..77512	+	343	87198101	-	Saro_0075	-	hypothetical protein
76	 65.43	0	77647..79581	-	644	87198102	-	Saro_0076	-	membrane protease FtsH catalytic subunit
77	 69.32	+1	79691..80671	-	326	87198103	-	Saro_0077	-	tRNA(Ile)-lysidine synthetase-like
78	 68.90	+1	80685..81668	-	327	87198104	-	Saro_0078	-	hypothetical protein
79	 69.76	+1	81777..82778	-	333	87198105	-	Saro_0079	-	hypothetical protein
80	 67.28	0	82906..85185	-	759	87198106	-	Saro_0080	-	phosphoenolpyruvate-protein phosphotransferase PtsP
81	 58.49	-2	85389..85547	-	52	87198107	-	Saro_0081	-	hypothetical protein
82	 58.59	-2	85777..85974	+	65	87198108	-	Saro_0082	-	hypothetical protein
83	 69.26	+1	86066..86605	+	179	87198109	-	Saro_0083	-	hypothetical protein
84	 68.91	+1	86610..88079	-	489	87198110	-	Saro_0084	-	glycerol kinase
85	 69.46	+1	88076..89545	-	489	87198111	-	Saro_0085	-	glycerol-3-phosphate dehydrogenase
86	 68.16	0	89584..90519	+	311	87198112	-	Saro_0086	-	beta-lactamase-like
87	 64.86	0	90501..91166	+	221	87198113	-	Saro_0087	-	hypothetical protein
88	 64.75	0	91248..91976	+	242	87198114	-	Saro_0088	-	hypothetical protein
89	 64.06	0	92038..93036	+	332	87198115	-	Saro_0089	-	quinolinate synthetase
90	 67.90	0	93172..94065	-	297	87198116	-	Saro_0090	-	hypothetical protein
91	 66.21	0	94149..95252	+	367	87198117	-	Saro_0091	-	NADH:flavin oxidoreductase/NADH oxidase
92	 67.12	0	95267..96148	+	293	87198118	-	Saro_0092	-	HpcH/HpaI aldolase
93	 70.23	+1	96131..96439	-	102	87198119	-	Saro_0093	-	hypothetical protein
94	 66.82	0	96436..97104	-	222	87198120	-	Saro_0094	-	lipoate-protein ligase B
95	 64.72	0	97182..98003	+	273	87198121	-	Saro_0095	-	hypothetical protein
96	 63.96	0	98012..98638	-	208	87198122	-	Saro_0096	-	generic methyltransferase
97	 67.95	0	98769..100091	+	440	87198123	-	Saro_0097	-	major facilitator transporter
98	 67.98	0	100138..101661	+	507	87198124	-	Saro_0098	-	O-antigen and teichoic acid-like export protein
99	 66.35	0	101654..102610	-	318	87198125	-	Saro_0099	-	CDP-alcohol phosphatidyltransferase
100	 67.40	0	102849..103934	+	361	87198126	-	Saro_0100	-	CDP-alcohol phosphatidyltransferase
101	 63.76	0	104030..105130	+	366	87198127	-	Saro_0101	-	myo-inositol-1-phosphate synthase
102	 66.53	0	105225..105974	+	249	87198128	-	Saro_0102	-	nucleotidyl transferase
103	 64.24	0	106017..106511	-	164	87198129	-	Saro_0103	-	hypothetical protein
104	 64.09	0	106888..107547	+	219	87198130	-	Saro_0104	-	ribulose-5-phosphate 3-epimerase
105	 67.73	0	107549..109435	+	628	87198131	-	Saro_0105	-	heparinase II/III-like
106	 65.79	0	109446..111035	+	529	87198132	purH	Saro_0106	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
107	 67.01	0	111131..112870	+	579	87198133	-	Saro_0107	-	CBS
108	 62.38	0	112945..113574	-	209	87198134	-	Saro_0108	-	cell wall hydrolase, SleB
109	 54.09	-2	113790..114131	-	113	87198135	-	Saro_0109	-	hypothetical protein
110	 66.25	0	114133..114615	-	160	87198136	-	Saro_0110	-	phenylacetic acid degradation-related protein
111	 65.37	0	114602..115063	-	153	87198137	-	Saro_0111	-	PTS IIA-like nitrogen-regulatory protein PtsN
112	 61.86	-1	115237..115818	-	193	87198138	-	Saro_0112	-	SSU ribosomal protein S30P / sigma 54 modulation protein
113	 64.07	0	115877..116569	-	230	87198139	-	Saro_0113	-	DNA polymerase III, epsilon subunit
114	 65.18	0	116615..117220	-	201	87198140	-	Saro_0114	-	dephospho-CoA kinase
115	 64.15	0	117217..118089	-	290	87198141	-	Saro_0115	-	shikimate dehydrogenase
116	 62.07	-1	118086..118673	-	195	87198142	-	Saro_0116	-	Maf-like protein
117	 60.85	-1	118670..119512	-	280	87198143	-	Saro_0117	-	hypothetical protein
118	 63.26	0	119850..120875	+	341	87198144	-	Saro_0118	-	uroporphyrinogen decarboxylase
119	 58.45	-2	120973..121398	+	141	87198145	-	Saro_0119	-	hypothetical protein
120	 60.78	-1	121800..123056	+	418	87198146	rho	Saro_0120	-	transcription termination factor Rho
121	 65.77	0	123162..125729	+	855	87198147	-	Saro_0121	-	helicase-like
122	 64.26	0	125747..126037	+	96	87198148	-	Saro_0122	-	RNA-binding S4
123	 60.47	-1	126051..126389	+	112	87198149	-	Saro_0123	-	4Fe-4S ferredoxin, iron-sulfur binding
124	 60.38	-1	126726..127250	+	174	87198150	-	Saro_0124	-	CarD family transcriptional regulator
125	 63.74	0	127423..128208	+	261	87198151	-	Saro_0125	-	hypothetical protein
126	 66.67	0	128212..129159	-	315	87198152	-	Saro_0126	-	translation factor SUA5
127	 64.81	0	129220..130938	+	572	87198153	-	Saro_0127	-	acyl-CoA dehydrogenase-like
128	 66.30	0	130935..131750	+	271	87198154	-	Saro_0128	-	hypothetical protein
129	 63.21	0	131784..133289	-	501	87198155	-	Saro_0129	-	L-sorbosone dehydrogenase
130	 64.18	0	133354..133836	+	160	87198156	-	Saro_0130	-	putative GAF sensor protein
131	 65.52	0	133981..134679	+	232	87198157	-	Saro_0131	-	17 kDa surface antigen
132	 61.30	-1	134788..135942	-	384	87198158	-	Saro_0132	-	long-chain acyl-CoA dehydrogenase
133	 66.67	0	136094..137041	-	315	87198159	-	Saro_0133	-	chromosome segregation DNA-binding protein
134	 61.90	-1	137038..137814	-	258	87198160	-	Saro_0134	-	chromosome segregation ATPase
65.30	MEAN

3.21	STD DEV
