IslandPathversion 1.0

IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

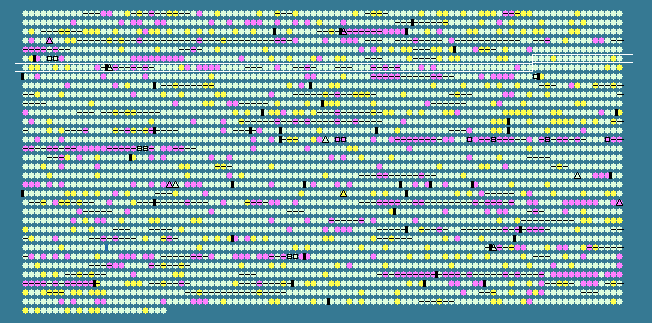

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
586	 65.78	0	633608..634627	+	339	87198612	-	Saro_0588	-	tryptophanyl-tRNA synthetase
587	 63.81	0	634798..635496	+	232	87198613	-	Saro_0589	-	hypothetical protein
588	 68.78	+1	635565..636038	-	157	87198614	-	Saro_0590	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
589	 69.19	+1	636019..637206	-	395	87198615	-	Saro_0591	-	phosphopantothenate-cysteine ligase / phosphopantothenoylcysteine decarboxylase
590	 67.92	0	637311..637709	+	132	87198616	-	Saro_0592	-	hypothetical protein
591	 65.39	0	637714..638733	-	339	87198617	-	Saro_0593	-	acyltransferase 3
592	 68.27	0	638968..640527	-	519	87198618	-	Saro_0594	-	2-octaprenylphenol hydroxylase
593	 65.18	0	640532..641269	-	245	87198619	-	Saro_0595	-	demethylmenaquinone methyltransferase / 2-octaprenyl-6-methoxy-1,4-benzoquinone methylase
594	 67.53	0	641330..642142	+	270	87198620	-	Saro_0596	-	formamidopyrimidine-DNA glycosylase / DNA-(apurinic or apyrimidinic site) lyase
595	 65.41	0	642174..643286	-	370	87198621	-	Saro_0597	-	4-hydroxyphenylpyruvate dioxygenase
596	 65.89	0	643385..643897	+	170	87198622	-	Saro_0598	-	AsnC family transcriptional regulator
597	 66.99	0	644032..644970	+	312	87198623	-	Saro_0599	-	LysR family transcriptional regulator
598	 62.21	0	645059..645979	+	306	87198624	-	Saro_0600	-	sterol desaturase-like
599	 68.95	+1	645976..647553	+	525	87198625	-	Saro_0601	-	sulfotransferase
600	 66.67	0	647570..647929	+	119	87198626	-	Saro_0602	-	hypothetical protein
601	 66.10	0	648031..648384	+	117	87198627	-	Saro_0603	-	hypothetical protein
602	 69.35	+1	648439..649371	-	310	87198628	-	Saro_0604	-	hypothetical protein
603	 69.77	+1	649374..651143	-	589	87198629	-	Saro_0605	-	amidase
604	 67.56	0	651140..654733	-	1197	87198630	-	Saro_0606	-	allophanate hydrolase subunit 2
605	 64.15	0	654730..655365	-	211	87198631	-	Saro_0607	-	hypothetical protein
606	 68.85	+1	655382..656206	-	274	87198632	-	Saro_0608	-	hypothetical protein
607	 67.30	0	656203..656679	-	158	87198633	-	Saro_0609	-	CopG family transcriptional regulator
608	 69.64	+1	656681..657487	-	268	87198634	-	Saro_0610	-	ABC transporter related
609	 66.91	0	657484..658299	-	271	87198635	-	Saro_0611	-	binding-protein-dependent transport systems inner membrane component
610	 64.08	0	658339..659421	-	360	87198636	-	Saro_0612	-	ABC transporter, periplasmic substrate-binding protein
611	 62.55	0	660041..662467	+	808	87198637	-	Saro_0613	-	TonB-dependent receptor
612	 66.88	0	662553..663497	+	314	87198638	-	Saro_0614	-	beta-lactamase-like
613	 61.14	-1	663645..664640	+	331	87198639	-	Saro_0615	-	sterol desaturase-like
614	 64.40	0	664669..665286	+	205	87198640	-	Saro_0616	-	hypothetical protein
615	 64.06	0	665462..666613	-	383	87198641	-	Saro_0617	-	phage integrase
616	 61.71	-1	666617..666838	-	73	87198642	-	Saro_0618	-	hypothetical protein
617	 66.36	0	666842..667162	-	106	87198643	-	Saro_0619	-	hypothetical protein
618	 63.93	0	667159..667779	-	206	87198644	-	Saro_0620	-	MT-A70
619	 59.20	-1	667779..668300	-	173	87198645	-	Saro_0621	-	hypothetical protein
620	 63.76	0	668297..668983	-	228	87198646	-	Saro_0622	-	hypothetical protein
621	 60.85	-1	668987..669502	-	171	87198647	-	Saro_0623	-	hypothetical protein
622	 62.26	0	669506..669823	-	105	87198648	-	Saro_0624	-	GP46
623	 63.92	0	669827..671284	-	485	87198649	-	Saro_0625	-	ParB-like nuclease
624	 67.23	0	671305..672378	-	357	87198650	-	Saro_0626	-	hypothetical protein
625	 66.11	0	672375..672731	-	118	87198651	-	Saro_0627	-	hypothetical protein
626	 65.04	0	672976..673221	-	81	87198652	-	Saro_0628	-	hypothetical protein
627	 69.54	+1	673218..673670	-	150	87198653	-	Saro_0629	-	hypothetical protein
628	 60.78	-1	673769..674125	+	118	87198654	-	Saro_0630	-	hypothetical protein
629	 65.81	0	674200..674433	-	77	87198655	-	Saro_0631	-	hypothetical protein
630	 54.95	-2	674523..675179	-	218	87198656	-	Saro_0632	-	hypothetical protein
631	 56.78	-2	675176..675802	-	208	87198657	-	Saro_0633	-	putative phage repressor
632	 60.63	-1	675882..676229	-	115	87198658	-	Saro_0634	-	hypothetical protein
633	 57.58	-2	676226..676456	-	76	87198659	-	Saro_0635	-	hypothetical protein
634	 65.38	0	676570..677037	+	155	87198660	-	Saro_0636	-	hypothetical protein
635	 68.08	0	677034..677600	+	188	87198661	-	Saro_0637	-	hypothetical protein
636	 65.28	0	677597..677956	+	119	87198662	-	Saro_0638	-	hypothetical protein
637	 65.14	0	677953..679200	+	415	87198663	-	Saro_0639	-	DNA polymerase III beta subunit family protein
638	 67.17	0	679217..679414	+	65	87198664	-	Saro_0640	-	hypothetical protein
639	 65.74	0	679419..681137	+	572	87198665	-	Saro_0641	-	DNA primase
640	 62.42	0	681134..682756	+	540	87198666	-	Saro_0642	-	Phage or plasmid primase P4-like
641	 65.40	0	683070..683543	+	157	87198667	-	Saro_0643	-	hypothetical protein
642	 66.67	0	683751..684059	+	102	87198668	-	Saro_0644	-	HNH endonuclease
643	 61.43	-1	684152..684628	+	158	87198669	-	Saro_0645	-	hypothetical protein
644	 62.18	0	684636..686372	+	578	87198670	-	Saro_0646	-	phage terminase
645	 61.92	-1	686369..687673	+	434	87198671	-	Saro_0647	-	Phage portal protein, HK97
646	 61.93	-1	687663..688358	+	231	87198672	-	Saro_0648	-	prohead peptidase
647	 62.37	0	688371..689768	+	465	87198673	-	Saro_0649	-	Phage major capsid protein, HK97
648	 59.67	-1	689768..690067	+	99	87198674	-	Saro_0650	-	hypothetical protein
649	 62.26	0	690125..690487	+	120	87198675	-	Saro_0651	-	hypothetical protein
650	 62.27	0	690557..691102	+	181	87198676	-	Saro_0652	-	phiE125 gp8 hypothetical protein
651	 62.39	0	691102..691452	+	116	87198677	-	Saro_0653	-	Phage head-tail adaptor, putative
652	 62.05	-1	691488..692093	+	201	87198678	-	Saro_0654	-	Phage protein, HK97, gp10
653	 62.01	-1	692086..692493	+	135	87198679	-	Saro_0655	-	hypothetical protein
654	 63.89	0	692508..692723	+	71	87198680	-	Saro_0656	-	hypothetical protein
655	 62.99	0	692812..693273	+	153	87198681	-	Saro_0657	-	hypothetical protein
656	 63.55	0	693380..693796	+	138	87198682	-	Saro_0658	-	hypothetical protein
657	 64.67	0	693814..694263	+	149	87198683	-	Saro_0659	-	hypothetical protein
658	 62.23	0	694266..697238	+	990	87198684	-	Saro_0660	-	hypothetical protein
659	 61.70	-1	697235..698281	+	348	87198685	-	Saro_0661	-	hypothetical protein
660	 63.68	0	698281..699117	+	278	87198686	-	Saro_0662	-	hypothetical protein
661	 60.76	-1	699121..700221	+	366	87198687	-	Saro_0663	-	hypothetical protein
662	 61.92	-1	700231..702399	+	722	87198688	-	Saro_0664	-	hypothetical protein
663	 61.74	-1	702396..702740	+	114	87198689	-	Saro_0665	-	hypothetical protein
664	 65.93	0	702737..703276	+	179	87198690	-	Saro_0666	-	hypothetical protein
665	 65.93	0	703273..703542	+	89	87198691	-	Saro_0667	-	hypothetical protein
666	 63.64	0	703539..703835	+	98	87198692	-	Saro_0668	-	hypothetical protein
667	 61.26	-1	704132..706129	+	665	87198693	-	Saro_0669	-	hypothetical protein
668	 63.27	0	706136..707605	-	489	87198694	-	Saro_0670	-	hypothetical protein
669	 60.90	-1	707697..708095	+	132	87198695	-	Saro_0671	-	hypothetical protein
670	 65.29	0	708399..708689	+	96	87198696	-	Saro_0672	-	hypothetical protein
671	 64.87	0	708788..709732	+	314	87198697	-	Saro_0673	-	fumarylacetoacetate (FAA) hydrolase
672	 66.19	0	709795..711912	+	705	87198698	-	Saro_0674	-	CoA-binding protein
673	 65.74	0	711968..712504	-	178	87198699	-	Saro_0675	-	adenine phosphoribosyltransferase
674	 64.95	0	712582..713397	-	271	87198700	-	Saro_0676	-	cytochrome c1
675	 62.64	0	713428..714717	-	429	87198701	-	Saro_0677	-	cytochrome b/b6-like
676	 64.25	0	714729..715307	-	192	87198702	-	Saro_0678	-	ubiquinol-cytochrome c reductase, iron-sulfur subunit
677	 68.47	0	715567..716622	-	351	87198703	-	Saro_0679	-	hypothetical protein
678	 66.89	0	716619..717518	-	299	87198704	-	Saro_0680	-	prolipoprotein diacylglyceryl transferase
679	 64.10	0	717676..719388	+	570	87198705	-	Saro_0681	-	AMP-dependent synthetase and ligase
680	 65.64	0	719453..722191	+	912	87198706	-	Saro_0682	-	PII uridylyl-transferase
681	 68.27	0	722249..722809	+	186	87198707	-	Saro_0683	-	hypothetical protein
682	 63.69	0	723040..723945	+	301	87198708	-	Saro_0684	-	homoserine O-succinyltransferase
683	 60.78	-1	724127..724330	+	67	87198709	rpmI	Saro_0685	-	50S ribosomal protein L35
684	 61.98	-1	724344..724706	+	120	87198710	rplT	Saro_0686	-	50S ribosomal protein L20
685	 64.97	0	724842..725723	+	293	87198711	-	Saro_0687	-	AraC family transcriptional regulator
65.30	MEAN

3.21	STD DEV
