IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

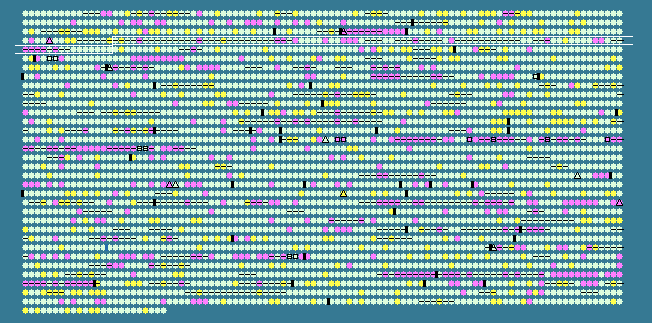

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
316	 66.07	0	342211..342543	-	110	87198342	-	Saro_0317	-	conjugal transfer protein TrbC
317	 70.02	+1	342540..343523	-	327	87198343	-	Saro_0318	-	type II secretion system protein E
318	 66.15	0	343777..344160	-	127	87198344	-	Saro_0319	-	hypothetical protein
319	 62.99	0	344157..346142	-	661	87198345	-	Saro_0320	-	TRAG protein
320	 55.56	-2	346387..346593	+	68	87198346	-	Saro_0321	-	hypothetical protein
321	 62.88	0	347120..347647	-	175	87198347	-	Saro_0322	-	adenosylcobinamide kinase
322	 64.91	0	347644..349119	-	491	87198348	-	Saro_0323	-	adenosylcobyric acid synthase (glutamine-hydrolysing)
323	 66.77	0	349119..350069	-	316	87198349	-	Saro_0324	-	adenosylcobinamide-phosphate synthase
324	 67.48	0	350062..351045	-	327	87198350	-	Saro_0325	-	aminotransferase
325	 65.86	0	351042..351782	-	246	87198351	-	Saro_0326	-	cobalamin-5'-phosphate synthase
326	 67.54	0	351779..352348	-	189	87198352	-	Saro_0327	-	phosphoglycerate/bisphosphoglycerate mutase
327	 68.63	+1	352345..353361	-	338	87198353	-	Saro_0328	-	nicotinate-nucleotide-dimethylbenzimidazole phosphoribosyltransferase
328	 67.40	0	353358..353765	-	135	87198354	-	Saro_0329	-	hypothetical protein
329	 65.00	0	353791..354390	-	199	87198355	-	Saro_0330	-	Cob(II)yrinic acid a,c-diamide reductase
330	 60.77	-1	354453..355079	-	208	87198356	-	Saro_0331	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
331	 65.49	0	355069..355833	-	254	87198357	-	Saro_0332	-	precorrin 6A synthase
332	 68.01	0	355830..357164	-	444	87198358	-	Saro_0333	-	cobyrinic acid a,c-diamide synthase
333	 68.58	+1	357161..357946	-	261	87198359	-	Saro_0334	-	precorrin-4 C11-methyltransferase
334	 70.60	+1	357943..358323	-	126	87198360	-	Saro_0335	-	precorrin methylase
335	 68.33	0	358320..359519	-	399	87198361	-	Saro_0336	-	precorrin-6Y C5,15-methyltransferase (decarboxylating)
336	 68.77	+1	359527..360288	+	253	87198362	-	Saro_0337	-	cobalt-precorrin-6x reductase
337	 66.54	0	360252..361040	-	262	87198363	-	Saro_0338	-	precorrin-3 methyltransferase
338	 64.77	0	361037..361774	-	245	87198364	-	Saro_0339	-	precorrin-2 C20-methyltransferase
339	 66.83	0	361771..362400	-	209	87198365	cobH	Saro_0340	-	precorrin-8X methylmutase
340	 68.24	0	362400..363545	-	381	87198366	-	Saro_0341	-	precorrin-3B synthase
341	 67.49	0	363542..366826	-	1094	87198367	cobN	Saro_0342	-	cobaltochelatase
342	 65.62	0	366837..367889	-	350	87198368	-	Saro_0343	-	cobalamin biosynthesis CobW
343	 58.78	-2	368386..369501	-	371	87198369	-	Saro_0344	-	high-affinity nickel-transporter
344	 58.91	-1	369514..371550	-	678	87198370	-	Saro_0345	-	TonB-dependent receptor
345	 61.92	-1	372308..373762	+	484	87198371	-	Saro_0346	-	hypothetical protein
346	 61.01	-1	373704..374039	-	111	87198372	-	Saro_0347	-	hypothetical protein
347	 63.40	0	374343..375047	+	234	87198373	-	Saro_0348	-	hypothetical protein
348	 66.13	0	375088..376569	+	493	87198374	-	Saro_0349	-	hypothetical protein
349	 64.73	0	376858..378921	+	687	87198375	-	Saro_0350	-	McrBC 5-methylcytosine restriction system component-like
350	 63.39	0	378931..379908	+	325	87198376	-	Saro_0351	-	hypothetical protein
351	 60.86	-1	379978..385092	+	1704	87198377	-	Saro_0352	-	DEAD/DEAH box helicase-like
352	 64.35	0	385089..387890	+	933	87198378	-	Saro_0353	-	helicase-like
353	 64.34	0	387890..391849	+	1319	87198379	-	Saro_0354	-	putative type II DNA modification enzyme
354	 61.16	-1	391849..392592	+	247	87198380	-	Saro_0355	-	hypothetical protein
355	 57.67	-2	392607..393173	+	188	87198381	-	Saro_0356	-	hypothetical protein
356	 58.88	-2	393322..394233	+	303	87198382	-	Saro_0357	-	Abi-like
357	 62.66	0	394230..395027	+	265	87198383	-	Saro_0358	-	putative restriction endonuclease
358	 66.49	0	395159..396898	-	579	87198384	-	Saro_0359	-	hypothetical protein
359	 66.52	0	397143..397844	-	233	87198385	-	Saro_0360	-	lytic transglycosylase, catalytic
360	 64.56	0	397848..398180	-	110	87198386	-	Saro_0361	-	hypothetical protein
361	 68.39	0	398177..398755	-	192	87198387	-	Saro_0362	-	conjugal transfer protein precursor
362	 67.96	0	398752..399291	-	179	87198388	-	Saro_0363	-	hypothetical protein
363	 65.87	0	399438..400316	-	292	87198389	-	Saro_0364	-	putative replication protein A
364	 66.67	0	400326..400598	-	90	87198390	-	Saro_0365	-	hypothetical protein
365	 67.90	0	400725..401129	-	134	87198391	-	Saro_0366	-	hypothetical protein
366	 60.98	-1	401654..401917	-	87	87198392	-	Saro_0367	-	hypothetical protein
367	 64.50	0	402133..402363	+	76	87198393	-	Saro_0368	-	XRE family transcriptional regulator
368	 62.65	0	402413..402736	-	107	87198394	-	Saro_0369	-	hypothetical protein
369	 63.58	0	402822..403274	-	150	87198395	-	Saro_0370	-	hypothetical protein
370	 63.70	0	403323..403727	-	134	87198396	-	Saro_0371	-	hypothetical protein
371	 63.52	0	403872..404030	-	52	87198397	-	Saro_0372	-	hypothetical protein
372	 61.29	-1	404582..405697	+	371	87198398	-	Saro_0373	-	filamentation induced by cAMP protein Fic
373	 63.39	0	406050..407546	+	498	87198399	-	Saro_0374	-	sulphate transporter
374	 65.59	0	407653..408582	-	309	87198400	-	Saro_0375	-	hypothetical protein
375	 66.28	0	408916..409953	-	345	87198401	-	Saro_0376	-	hypothetical protein
376	 67.56	0	410029..414408	-	1459	87198402	-	Saro_0377	-	putative methylase/helicase
377	 67.03	0	414602..415432	-	276	87198403	-	Saro_0378	-	hypothetical protein
378	 64.35	0	415429..415902	-	157	87198404	-	Saro_0379	-	hypothetical protein
379	 65.50	0	416008..418149	-	713	87198405	-	Saro_0380	-	ParB family protein
380	 68.26	0	418306..419244	-	312	87198406	-	Saro_0381	-	putative ArdC antirestriction protein
381	 64.13	0	419819..420133	-	104	87198407	-	Saro_0382	-	TraR/DksA family transcriptional regulator
382	 66.05	0	420278..421420	+	380	87198408	-	Saro_0383	-	hypothetical protein
383	 62.02	-1	421508..422518	+	336	87198409	-	Saro_0384	-	sodium/calcium exchanger membrane region
384	 67.38	0	422876..423853	+	325	87198410	-	Saro_0385	-	hypothetical protein
385	 63.04	0	423854..424543	-	229	87198411	-	Saro_0386	-	two component transcriptional regulator
386	 63.35	0	424543..426051	-	502	87198412	-	Saro_0387	-	periplasmic sensor signal transduction histidine kinase
387	 66.48	0	426165..426689	+	174	87198413	-	Saro_0388	-	OmpA/MotB
388	 59.72	-1	426706..426993	+	95	87198414	-	Saro_0389	-	hypothetical protein
389	 64.04	0	427167..427850	+	227	87198415	-	Saro_0390	-	MotA/TolQ/ExbB proton channel
390	 66.67	0	427850..428329	+	159	87198416	-	Saro_0391	-	biopolymer transport protein ExbD/TolR
391	 70.37	+1	428326..429432	+	368	87198417	-	Saro_0392	-	hypothetical protein
392	 63.94	0	429429..430784	+	451	87198418	tolB	Saro_0393	-	translocation protein TolB
393	 63.35	0	431251..431793	+	180	87198419	-	Saro_0394	-	hypothetical protein
394	 63.55	0	431793..433526	+	577	87198420	-	Saro_0395	-	potassium efflux system protein
395	 61.96	-1	433539..434387	+	282	87198421	-	Saro_0396	-	hypothetical protein
396	 57.28	-2	434462..435793	+	443	87198422	-	Saro_0397	-	cation transporter
397	 55.26	-2	435786..436460	+	224	87198423	-	Saro_0398	-	TrkA-N
398	 62.94	0	436525..439260	-	911	87198424	-	Saro_0399	-	ATPase, E1-E2 type
399	 63.59	0	439359..440204	-	281	87198425	-	Saro_0400	-	hypothetical protein
400	 64.35	0	440475..441857	+	460	87198426	-	Saro_0401	-	hypothetical protein
401	 59.56	-1	441880..442653	+	257	87198427	-	Saro_0402	-	SPFH domain-containing protein/band 7 family protein
402	 60.42	-1	442737..443264	+	175	87198428	-	Saro_0403	-	hypothetical protein
403	 55.38	-2	443284..443673	+	129	87198429	-	Saro_0404	-	hypothetical protein
404	 61.21	-1	443690..445009	-	439	87198430	-	Saro_0405	-	di- and tricarboxylate transporters-like
405	 62.41	0	445149..446018	+	289	87198431	-	Saro_0406	-	hypothetical protein
406	 61.35	-1	446037..447314	-	425	87198432	-	Saro_0407	-	Na+/H+ antiporter NhaA
407	 65.36	0	447796..448563	+	255	87198433	-	Saro_0408	-	hypothetical protein
408	 67.61	0	448658..449185	+	175	87198434	-	Saro_0409	-	hypothetical protein
409	 67.04	0	449193..450791	-	532	87198435	-	Saro_0410	-	L-aspartate oxidase
410	 64.09	0	451251..452258	-	335	87198436	-	Saro_0411	-	ABC transporter related
411	 64.68	0	452294..452494	+	66	87198437	-	Saro_0412	-	hypothetical protein
412	 67.15	0	452563..454002	+	479	87198438	-	Saro_0413	-	peptidase U62, modulator of DNA gyrase
413	 67.92	0	454077..454475	+	132	87198439	-	Saro_0414	-	glutathione-dependent formaldehyde-activating, GFA
414	 66.43	0	454543..454965	+	140	87198440	-	Saro_0415	-	hypothetical protein
415	 65.95	0	455007..455561	+	184	87198441	-	Saro_0416	-	GCN5-related N-acetyltransferase
65.30	MEAN

3.21	STD DEV
