IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

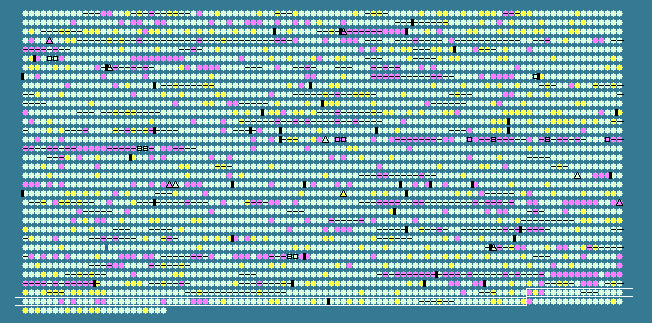

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3185	 60.61	-1	3415696..3416685	+	329	87201211	-	Saro_3199	-	integral membrane protein TerC
3186	 69.05	+1	3416729..3418531	-	600	87201212	-	Saro_3200	-	ATP-dependent DNA helicase RecQ
3187	 60.93	-1	3418559..3419029	-	156	87201213	-	Saro_3201	-	hypothetical protein
3188	 63.95	0	3419089..3419604	-	171	87201214	-	Saro_3202	-	hypothetical protein
3189	 63.79	0	3419630..3420844	-	404	87201215	-	Saro_3203	-	sodium/hydrogen exchanger
3190	 62.96	0	3420940..3421236	+	98	87201216	-	Saro_3204	-	hypothetical protein
3191	 68.50	0	3421366..3421638	+	90	87201217	-	Saro_3205	-	hypothetical protein
3192	 64.39	0	3421708..3424344	-	878	87201218	-	Saro_3206	-	methionine synthase (B12-dependent)
3193	 62.95	0	3424461..3425537	-	358	87201219	-	Saro_3207	-	methionine synthase (B12-dependent)
3194	 67.09	0	3425534..3426475	-	313	87201220	-	Saro_3208	-	5,10-methylenetetrahydrofolate reductase
3195	 66.18	0	3426482..3427507	-	341	87201221	-	Saro_3209	-	ArsR family transcriptional regulator
3196	 67.46	0	3427655..3428032	-	125	87201222	-	Saro_3210	-	hypothetical protein
3197	 63.18	0	3428245..3428502	-	85	87201223	-	Saro_3211	-	hypothetical protein
3198	 63.21	0	3428543..3429265	-	240	87201224	-	Saro_3212	-	3-oxoacyl-[acyl-carrier-protein] reductase
3199	 65.72	0	3429441..3430181	-	246	87201225	-	Saro_3213	-	hypothetical protein
3200	 66.24	0	3430597..3431061	+	154	87201226	-	Saro_3214	-	hypothetical protein
3201	 64.82	0	3431111..3433657	+	848	87201227	leuS	Saro_3215	-	leucyl-tRNA synthetase
3202	 66.90	0	3433719..3434150	+	143	87201228	-	Saro_3216	-	hypothetical protein
3203	 65.79	0	3434161..3435183	+	340	87201229	-	Saro_3217	-	DNA polymerase III, delta subunit
3204	 64.32	0	3435376..3436779	+	467	87201230	-	Saro_3218	-	sugar transferase
3205	 67.63	0	3436809..3437744	-	311	87201231	-	Saro_3219	-	peptidase M48, Ste24p
3206	 62.64	0	3437998..3439263	+	421	87201232	-	Saro_3220	-	GDP-mannose 6-dehydrogenase
3207	 61.16	-1	3439260..3440513	+	417	87201233	-	Saro_3221	-	glycosyl transferase, group 1
3208	 65.02	0	3440545..3441090	-	181	87201234	-	Saro_3222	-	hypothetical protein
3209	 61.06	-1	3441276..3441989	+	237	87201235	-	Saro_3223	-	polysaccharide export protein
3210	 64.85	0	3442033..3444234	+	733	87201236	-	Saro_3224	-	protein-tyrosine kinase
3211	 67.07	0	3444277..3445527	+	416	87201237	-	Saro_3225	-	glycosyl transferase, group 1
3212	 65.09	0	3445570..3446523	-	317	87201238	-	Saro_3226	-	glycosyl transferase family protein
3213	 55.37	-2	3446520..3447626	-	368	87201239	-	Saro_3227	-	acyltransferase 3
3214	 59.63	-1	3447652..3448959	-	435	87201240	-	Saro_3228	-	hypothetical protein
3215	 66.67	0	3449113..3449382	+	89	87201241	-	Saro_3229	-	hypothetical protein
3216	 66.52	0	3449382..3451442	+	686	87201242	-	Saro_3230	-	hypothetical protein
3217	 64.39	0	3451482..3452753	-	423	87201243	-	Saro_3231	-	hypothetical protein
3218	 65.95	0	3452750..3453721	-	323	87201244	-	Saro_3232	-	hypothetical protein
3219	 64.14	0	3453763..3455184	-	473	87201245	-	Saro_3233	-	polysaccharide biosynthesis protein
3220	 64.46	0	3455384..3456517	+	377	87201246	-	Saro_3234	-	polysaccharide biosynthesis protein
3221	 63.08	0	3456553..3457611	-	352	87201247	-	Saro_3235	-	dTDP-glucose 4,6-dehydratase
3222	 66.32	0	3457604..3458461	-	285	87201248	-	Saro_3236	-	dTDP-4-dehydrorhamnose reductase
3223	 63.74	0	3458458..3459003	-	181	87201249	-	Saro_3237	-	dTDP-4-dehydrorhamnose 3,5-epimerase
3224	 61.48	-1	3459000..3459905	-	301	87201250	-	Saro_3238	-	glucose-1-phosphate thymidylyltransferase
3225	 67.39	0	3460109..3461353	-	414	87201251	-	Saro_3239	-	hypothetical protein
3226	 67.49	0	3461337..3463040	-	567	87201252	-	Saro_3240	-	ABC transporter related
3227	 65.69	0	3463030..3464979	-	649	87201253	-	Saro_3241	-	asparagine synthase
3228	 62.77	0	3464976..3465488	-	170	87201254	-	Saro_3242	-	hypothetical protein
3229	 55.56	-2	3465481..3465750	-	89	87201255	-	Saro_3243	-	hypothetical protein
3230	 60.16	-1	3466034..3466894	-	286	87201256	-	Saro_3244	-	HPr kinase
3231	 56.10	-2	3466899..3467144	-	81	87201257	-	Saro_3245	-	hypothetical protein
3232	 63.18	0	3467290..3467547	+	85	87201258	-	Saro_3246	-	hypothetical protein
3233	 67.55	0	3467726..3469084	+	452	87201259	-	Saro_3247	-	O-antigen polymerase
3234	 70.46	+1	3469081..3469791	+	236	87201260	-	Saro_3248	-	hypothetical protein
3235	 66.67	0	3469832..3470386	-	184	87201261	-	Saro_3249	-	OstA-like protein
3236	 66.67	0	3470383..3471027	-	214	87201262	-	Saro_3250	-	hypothetical protein
3237	 65.05	0	3471052..3471669	-	205	87201263	-	Saro_3251	-	3'-5' exonuclease
3238	 64.92	0	3471830..3472744	+	304	87201264	-	Saro_3252	-	sulfate adenylyltransferase subunit 2
3239	 63.72	0	3472744..3474678	+	644	87201265	-	Saro_3253	-	bifunctional sulfate adenylyltransferase subunit 1/adenylylsulfate kinase protein
3240	 64.18	0	3474721..3475002	+	93	87201266	-	Saro_3254	-	hypothetical protein
3241	 65.59	0	3475038..3476342	-	434	87201267	-	Saro_3255	-	UDP-glucose 6-dehydrogenase
3242	 72.25	+2	3476471..3477151	+	226	87201268	-	Saro_3256	-	uracil-DNA glycosylase
3243	 72.66	+2	3477222..3477638	-	138	87201269	-	Saro_3257	-	hypothetical protein
3244	 63.57	0	3477635..3478150	-	171	87201270	-	Saro_3258	-	signal peptidase II
3245	 63.95	0	3478150..3481056	-	968	87201271	ileS	Saro_3259	-	isoleucyl-tRNA synthetase
3246	 67.86	0	3481250..3482173	-	307	87201272	-	Saro_3260	-	riboflavin kinase / FMN adenylyltransferase
3247	 66.41	0	3482170..3483354	-	394	87201273	-	Saro_3261	-	peptidase M19, renal dipeptidase
3248	 68.63	+1	3483378..3483887	-	169	87201274	-	Saro_3262	-	dihydrofolate reductase
3249	 68.93	+1	3483884..3484942	-	352	87201275	-	Saro_3263	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
3250	 63.99	0	3484957..3485442	-	161	87201276	-	Saro_3264	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
3251	 65.36	0	3485472..3486158	-	228	87201277	-	Saro_3265	-	phosphoglycerate mutase
3252	 68.73	+1	3486624..3486914	-	96	87201278	-	Saro_3266	-	hypothetical protein
3253	 67.35	0	3486981..3487997	+	338	87201279	-	Saro_3267	-	L-threonine aldolase
3254	 66.88	0	3487994..3488917	+	307	87201280	-	Saro_3268	-	hypothetical protein
3255	 70.32	+1	3488827..3489675	-	282	87201281	-	Saro_3269	-	NAD-dependent epimerase/dehydratase
3256	 66.44	0	3489731..3492346	+	871	87201282	-	Saro_3270	-	peptidase M1, alanyl aminopeptidase
3257	 71.81	+2	3492343..3493101	+	252	87201283	-	Saro_3271	-	hypothetical protein
3258	 66.83	0	3493098..3493721	-	207	87201284	-	Saro_3272	-	HAD family hydrolase
3259	 61.90	-1	3493829..3493954	-	41	87201285	-	Saro_3273	-	50S ribosomal protein L36P
3260	 65.53	0	3494018..3494899	+	293	87201286	-	Saro_3274	-	hypothetical protein
3261	 63.97	0	3494893..3495894	-	333	87201287	-	Saro_3275	-	UDP-galactose 4-epimerase
3262	 66.05	0	3495967..3496776	-	269	87201288	-	Saro_3276	-	hypothetical protein
3263	 70.88	+1	3496835..3497428	+	197	87201289	-	Saro_3277	-	hypothetical protein
3264	 66.40	0	3497425..3498555	+	376	87201290	-	Saro_3278	-	peptidase M14, carboxypeptidase A
3265	 66.96	0	3498762..3499103	-	113	87201291	-	Saro_3279	-	arsenate reductase
3266	 65.87	0	3499265..3501388	+	707	87201292	-	Saro_3280	-	TonB-dependent siderophore receptor
3267	 67.84	0	3501473..3501982	-	169	87201293	-	Saro_3281	-	(2Fe-2S)-binding protein
3268	 61.96	-1	3502015..3502779	-	254	87201294	-	Saro_3282	-	hypothetical protein
3269	 68.10	0	3502808..3503434	+	208	87201295	-	Saro_3283	-	hypothetical protein
3270	 70.98	+1	3503438..3504133	-	231	87201296	-	Saro_3284	-	HPP
3271	 68.69	+1	3504255..3504797	-	180	87201297	rpsI	Saro_3285	-	30S ribosomal protein S9
3272	 63.54	0	3504800..3505279	-	159	87201298	rplM	Saro_3286	-	50S ribosomal protein L13
3273	 68.20	0	3505418..3505744	-	108	87201299	-	Saro_3287	-	periplasmic divalent cation tolerance protein
3274	 67.52	0	3505741..3506793	-	350	87201300	-	Saro_3288	-	cytochrome oxidase assembly
3275	 68.55	+1	3506969..3507340	+	123	87201301	-	Saro_3289	-	hypothetical protein
3276	 66.47	0	3507383..3508378	+	331	87201302	-	Saro_3290	-	bifunctional sulfur carrier protein/thiazole synthase protein
3277	 65.17	0	3508428..3510692	-	754	87201303	-	Saro_3291	-	malic enzyme
3278	 66.55	0	3510824..3512479	-	551	87201304	-	Saro_3292	-	hypothetical protein
3279	 69.38	+1	3512607..3515183	+	858	87201305	-	Saro_3293	-	DNA mismatch repair protein
3280	 70.41	+1	3515176..3515790	+	204	87201306	-	Saro_3294	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
3281	 66.43	0	3515840..3517096	-	418	87201307	-	Saro_3295	-	Na+ dependent nucleoside transporter-like
3282	 63.36	0	3517186..3517851	+	221	87201308	-	Saro_3296	-	hypothetical protein
3283	 67.54	0	3517962..3518873	+	303	87201309	-	Saro_3297	-	acetylglutamate kinase
3284	 71.60	+1	3519032..3519457	+	141	87201310	-	Saro_3298	-	hypothetical protein
65.30	MEAN

3.21	STD DEV
