IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

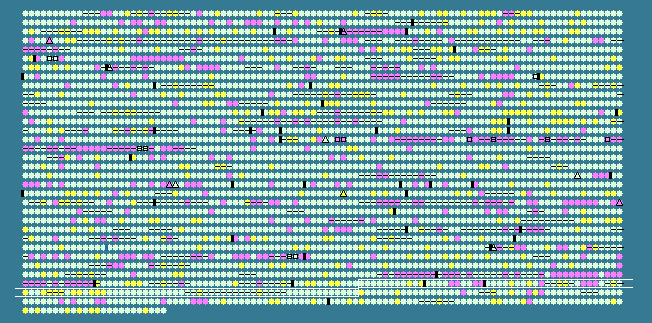

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3057	 66.16	0	3290531..3291325	-	264	87201083	-	Saro_3071	-	short chain dehydrogenase
3058	 67.18	0	3291337..3292119	-	260	87201084	-	Saro_3072	-	short-chain dehydrogenase/reductase SDR
3059	 65.45	0	3292116..3293099	-	327	87201085	-	Saro_3073	-	2-nitropropane dioxygenase, NPD
3060	 66.94	0	3293161..3293895	-	244	87201086	-	Saro_3074	-	sigma 28 (flagella/sporulation)
3061	 67.28	0	3294076..3296196	+	706	87201087	-	Saro_3075	-	TonB-dependent receptor
3062	 65.37	0	3296225..3296455	-	76	87201088	-	Saro_3076	-	hypothetical protein
3063	 63.02	0	3296634..3296825	-	63	87201089	-	Saro_3077	-	hypothetical protein
3064	 67.19	0	3296966..3297730	-	254	87201090	-	Saro_3078	-	hypothetical protein
3065	 72.06	+2	3297734..3298048	-	104	87201091	-	Saro_3079	-	hypothetical protein
3066	 64.58	0	3298573..3299244	+	223	87201092	-	Saro_3080	-	glutathione S-transferase-like
3067	 69.35	+1	3299458..3300390	-	310	87201093	-	Saro_3081	-	NAD-dependent epimerase/dehydratase
3068	 68.36	0	3301191..3302078	-	295	87201094	-	Saro_3082	-	protein tyrosine/serine phosphatase
3069	 68.59	+1	3302081..3302860	-	259	87201095	-	Saro_3083	-	short-chain dehydrogenase/reductase SDR
3070	 64.75	0	3302873..3305065	-	730	87201096	-	Saro_3084	-	TonB-dependent receptor
3071	 68.36	0	3305260..3305907	+	215	87201097	-	Saro_3085	-	TetR family transcriptional regulator
3072	 53.91	-2	3306108..3306593	-	161	87201098	-	Saro_3086	-	hypothetical protein
3073	 61.42	-1	3307181..3308095	+	304	87201099	-	Saro_3087	-	taurine catabolism dioxygenase TauD/TfdA
3074	 63.81	0	3308092..3309804	+	570	87201100	-	Saro_3088	-	dihydroorotase
3075	 63.15	0	3309817..3311067	-	416	87201101	-	Saro_3089	-	LuxR family transcriptional regulator
3076	 60.98	-1	3311225..3311611	+	128	87201102	-	Saro_3090	-	endoribonuclease L-PSP
3077	 53.77	-2	3311811..3312593	-	260	87201103	-	Saro_3091	-	hypothetical protein
3078	 68.65	+1	3312771..3313274	-	167	87201104	-	Saro_3092	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
3079	 65.72	0	3313271..3314119	-	282	87201105	-	Saro_3093	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
3080	 67.25	0	3314172..3315026	-	284	87201106	-	Saro_3094	-	hypothetical protein
3081	 64.25	0	3315106..3315642	+	178	87201107	-	Saro_3095	-	peptide methionine sulfoxide reductase
3082	 73.02	+2	3315639..3316898	-	419	87201108	-	Saro_3096	-	Fmu (Sun)
3083	 65.86	0	3316897..3317145	+	82	87201109	-	Saro_3097	-	hypothetical protein
3084	 67.91	0	3317166..3317648	-	160	87201110	-	Saro_3098	-	hypothetical protein
3085	 68.90	+1	3317633..3319111	-	492	87201111	-	Saro_3099	-	extracellular solute-binding protein
3086	 65.36	0	3319158..3319541	-	127	87201112	-	Saro_3100	-	hypothetical protein
3087	 61.00	-1	3319699..3320157	-	152	87201113	-	Saro_3101	-	TraR/DksA family transcriptional regulator
3088	 67.54	0	3320452..3320796	+	114	87201114	-	Saro_3102	-	Sel1 repeat-containing protein
3089	 66.49	0	3320807..3321937	-	376	87201115	-	Saro_3103	-	hypothetical protein
3090	 69.92	+1	3321945..3322712	-	255	87201116	-	Saro_3104	-	glycerophosphoryl diester phosphodiesterase
3091	 68.80	+1	3322693..3323160	-	155	87201117	-	Saro_3105	-	endoribonuclease L-PSP
3092	 63.33	0	3323157..3323786	-	209	87201118	-	Saro_3106	-	hypothetical protein
3093	 65.70	0	3323783..3323989	-	68	87201119	-	Saro_3107	-	hypothetical protein
3094	 60.43	-1	3324128..3324496	+	122	87201120	-	Saro_3108	-	response regulator receiver protein
3095	 59.66	-1	3324517..3325101	-	194	87201121	-	Saro_3109	-	hypothetical protein
3096	 60.42	-1	3325240..3325479	+	79	87201122	-	Saro_3110	-	hypothetical protein
3097	 64.17	0	3325484..3326683	+	399	87201123	-	Saro_3111	-	serine palmitoyltransferase
3098	 67.94	0	3326683..3327546	+	287	87201124	-	Saro_3112	-	lipolytic enzyme, G-D-S-L
3099	 69.03	+1	3327559..3328107	-	182	87201125	-	Saro_3113	-	ribosomal large subunit pseudouridine synthase E
3100	 65.30	0	3328116..3328772	-	218	87201126	-	Saro_3114	-	glutathione S-transferase-like
3101	 70.01	+1	3328925..3329791	+	288	87201127	-	Saro_3115	-	MltA-interacting MipA
3102	 64.81	0	3329801..3330448	-	215	87201128	-	Saro_3116	-	hypothetical protein
3103	 68.66	+1	3330666..3331166	+	166	87201129	-	Saro_3117	-	hypothetical protein
3104	 70.29	+1	3331159..3332481	+	440	87201130	-	Saro_3118	-	hypothetical protein
3105	 68.80	+1	3332560..3333729	+	389	87201131	-	Saro_3119	-	Phage portal protein, HK97
3106	 69.58	+1	3333726..3334034	+	102	87201132	-	Saro_3120	-	hypothetical protein
3107	 69.54	+1	3334031..3334483	+	150	87201133	-	Saro_3121	-	prohead peptidase
3108	 66.84	0	3334561..3335703	+	380	87201134	-	Saro_3122	-	phage major capsid protein, HK97
3109	 69.93	+1	3335824..3336375	+	183	87201135	-	Saro_3123	-	phiE125 gp8 hypothetical protein
3110	 70.20	+1	3336535..3336930	+	131	87201136	-	Saro_3124	-	hypothetical protein
3111	 64.46	0	3336959..3337366	+	135	87201137	-	Saro_3125	-	Phage major tail protein, TP901-1
3112	 71.11	+1	3337366..3337680	+	104	87201138	-	Saro_3126	-	hypothetical protein
3113	 70.63	+1	3337626..3337877	+	83	87201139	-	Saro_3127	-	hypothetical protein
3114	 68.90	+1	3337867..3338448	+	193	87201140	-	Saro_3128	-	hypothetical protein
3115	 66.28	0	3338468..3340807	+	779	87201141	-	Saro_3129	-	hypothetical protein
3116	 68.00	0	3340804..3341625	+	273	87201142	-	Saro_3130	-	phage protein
3117	 66.41	0	3341622..3342017	+	131	87201143	-	Saro_3131	-	hypothetical protein
3118	 67.44	0	3342011..3344215	+	734	87201144	-	Saro_3132	-	hypothetical protein
3119	 63.83	0	3344239..3344697	+	152	87201145	-	Saro_3133	-	hypothetical protein
3120	 64.43	0	3344891..3345964	+	357	87201146	-	Saro_3134	-	OmpA/MotB
3121	 66.32	0	3346022..3346597	+	191	87201147	-	Saro_3135	-	superoxide dismutase, copper/zinc binding
3122	 65.35	0	3346614..3348206	-	530	87201148	-	Saro_3136	-	major facilitator transporter
3123	 65.67	0	3348178..3348879	-	233	87201149	-	Saro_3137	-	ExsB
3124	 67.92	0	3348941..3349420	-	159	87201150	-	Saro_3138	-	hypothetical protein
3125	 64.59	0	3349503..3350417	-	304	87201151	-	Saro_3139	-	Hsp33 protein
3126	 66.35	0	3350414..3351349	-	311	87201152	-	Saro_3140	-	ornithine carbamoyltransferase
3127	 64.57	0	3351346..3352539	-	397	87201153	-	Saro_3141	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
3128	 68.78	+1	3352715..3353518	-	267	87201154	-	Saro_3142	-	cold-shock DNA-binding protein family protein
3129	 67.59	0	3353813..3354247	+	144	87201155	-	Saro_3143	-	hypothetical protein
3130	 70.60	+1	3354272..3354703	+	143	87201156	-	Saro_3144	-	hypothetical protein
3131	 66.11	0	3354700..3355593	+	297	87201157	-	Saro_3145	-	hypothetical protein
3132	 67.65	0	3355580..3356191	-	203	87201158	-	Saro_3146	-	TetR family transcriptional regulator
3133	 66.41	0	3356399..3358726	+	775	87201159	-	Saro_3147	-	TonB-dependent receptor
3134	 67.05	0	3359153..3360457	-	434	87201160	-	Saro_3148	-	UDP-glucose/GDP-mannose dehydrogenase
3135	 67.29	0	3360447..3361565	-	372	87201161	-	Saro_3149	-	UDP-N-acetylglucosamine 2-epimerase
3136	 67.35	0	3361673..3362998	+	441	87201162	-	Saro_3150	-	UDP-glucose/GDP-mannose dehydrogenase
3137	 65.97	0	3363104..3364102	+	332	87201163	-	Saro_3151	-	NAD-dependent epimerase/dehydratase
3138	 65.14	0	3364131..3364523	-	130	87201164	-	Saro_3152	-	hypothetical protein
3139	 68.38	0	3364643..3365635	-	330	87201165	-	Saro_3153	-	peptidyl-arginine deiminase
3140	 69.07	+1	3365728..3368436	+	902	87201166	-	Saro_3154	-	glutamate-ammonia-ligase adenylyltransferase
3141	 62.03	-1	3368433..3368906	+	157	87201167	-	Saro_3155	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
3142	 67.30	0	3368961..3369755	+	264	87201168	-	Saro_3156	-	hypothetical protein
3143	 66.11	0	3369948..3370664	+	238	87201169	-	Saro_3157	-	peptidase M23B
3144	 66.52	0	3370779..3371468	-	229	87201170	-	Saro_3158	-	hypothetical protein
3145	 68.77	+1	3371606..3372700	+	364	87201171	-	Saro_3159	-	hypothetical protein
3146	 67.19	0	3372723..3373298	+	191	87201172	-	Saro_3160	-	beta-Ig-H3/fasciclin
3147	 66.15	0	3373450..3375000	+	516	87201173	-	Saro_3161	-	acyl-CoA synthetase
3148	 67.05	0	3375020..3376312	+	430	87201174	-	Saro_3162	-	cytochrome P450
3149	 66.88	0	3376371..3377777	-	468	87201175	-	Saro_3163	-	sugar transporter
3150	 65.25	0	3378071..3379762	-	563	87201176	-	Saro_3164	-	glucose-methanol-choline oxidoreductase
3151	 66.85	0	3379785..3380327	-	180	87201177	-	Saro_3165	-	twin-arginine translocation pathway signal
3152	 65.03	0	3380417..3381637	+	406	87201178	-	Saro_3166	-	nucleoside:H+ symporter
3153	 66.06	0	3381637..3382617	+	326	87201179	-	Saro_3167	-	twin-arginine translocation pathway signal
3154	 68.38	0	3383015..3383947	-	310	87201180	-	Saro_3168	-	electron transfer flavoprotein, alpha subunit
3155	 65.07	0	3383947..3384699	-	250	87201181	-	Saro_3169	-	electron transfer flavoprotein beta-subunit
3156	 63.25	0	3384930..3386129	-	399	87201182	-	Saro_3170	-	succinyl-CoA synthetase (ADP-forming) beta subunit
65.30	MEAN

3.21	STD DEV
