IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

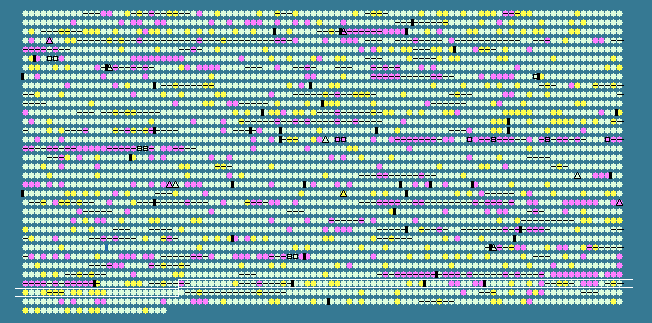

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3027	 59.67	-1	3255584..3255883	+	99	87201053	-	Saro_3041	-	hypothetical protein
3028	 64.57	0	3255880..3258405	+	841	87201054	-	Saro_3042	-	TonB-dependent receptor
3029	 64.04	0	3258473..3259195	-	240	87201055	-	Saro_3043	-	monofunctional biosynthetic peptidoglycan transglycosylase
3030	 63.36	0	3259345..3260040	+	231	87201056	-	Saro_3044	-	hypothetical protein
3031	 62.56	0	3260186..3261085	-	299	87201057	-	Saro_3045	-	RNA polymerase factor sigma-32
3032	 67.07	0	3261197..3262195	-	332	87201058	-	Saro_3046	-	ribosomal large subunit pseudouridine synthase D
3033	 67.52	0	3262218..3263393	-	391	87201059	-	Saro_3047	-	carbohydrate-selective porin OprB
3034	 67.77	0	3263390..3265195	-	601	87201060	-	Saro_3048	-	methyl-accepting chemotaxis sensory transducer
3035	 68.58	+1	3265252..3265722	+	156	87201061	-	Saro_3049	-	PAD1/JAB1 superfamily metal-dependent protease
3036	 69.00	+1	3265879..3266520	+	213	87201062	-	Saro_3050	-	hypothetical protein
3037	 66.95	0	3266537..3267241	+	234	87201063	-	Saro_3051	-	negative regulator of AmpC, AmpD
3038	 67.82	0	3267702..3268658	+	318	87201064	-	Saro_3052	-	cation diffusion facilitator family transporter
3039	 64.58	0	3269011..3269586	+	191	87201065	-	Saro_3053	-	beta-Ig-H3/fasciclin
3040	 61.58	-1	3269818..3271074	-	418	87201066	clpX	Saro_3054	-	ATP-dependent protease ATP-binding subunit
3041	 64.83	0	3271222..3271929	-	235	87201067	-	Saro_3055	-	ATP-dependent Clp protease proteolytic subunit ClpP
3042	 66.67	0	3272069..3272734	-	221	87201068	-	Saro_3056	-	hypothetical protein
3043	 67.51	0	3272946..3274487	+	513	87201069	-	Saro_3057	-	amidase
3044	 72.43	+2	3274468..3275265	-	265	87201070	-	Saro_3058	-	hypothetical protein
3045	 64.72	0	3275439..3276980	-	513	87201071	tig	Saro_3059	-	trigger factor
3046	 67.20	0	3277719..3279596	-	625	87201072	-	Saro_3060	-	signal peptide peptidase SppA, 67K type
3047	 65.69	0	3279684..3280709	+	341	87201073	pyrB	Saro_3061	-	aspartate carbamoyltransferase catalytic subunit
3048	 71.38	+1	3280706..3281935	+	409	87201074	-	Saro_3062	-	dihydroorotase
3049	 71.50	+1	3282003..3283325	-	440	87201075	-	Saro_3063	-	tetratricopeptide TPR_4
3050	 68.02	0	3283348..3283863	-	171	87201076	-	Saro_3064	-	hypothetical protein
3051	 67.36	0	3283877..3284602	-	241	87201077	-	Saro_3065	-	cobyrinic acid a,c-diamide synthase
3052	 70.05	+1	3284809..3286107	+	432	87201078	-	Saro_3066	-	Sel1 repeat-containing protein
3053	 69.05	+1	3286112..3287326	+	404	87201079	-	Saro_3067	-	hypothetical protein
3054	 65.91	0	3287258..3288442	-	394	87201080	-	Saro_3068	-	phospholipase D/transphosphatidylase
3055	 67.58	0	3288488..3289687	+	399	87201081	-	Saro_3069	-	glycosyl transferase, group 1
3056	 64.21	0	3289801..3290493	+	230	87201082	-	Saro_3070	-	ErfK/YbiS/YcfS/YnhG
3057	 66.16	0	3290531..3291325	-	264	87201083	-	Saro_3071	-	short chain dehydrogenase
3058	 67.18	0	3291337..3292119	-	260	87201084	-	Saro_3072	-	short-chain dehydrogenase/reductase SDR
3059	 65.45	0	3292116..3293099	-	327	87201085	-	Saro_3073	-	2-nitropropane dioxygenase, NPD
3060	 66.94	0	3293161..3293895	-	244	87201086	-	Saro_3074	-	sigma 28 (flagella/sporulation)
3061	 67.28	0	3294076..3296196	+	706	87201087	-	Saro_3075	-	TonB-dependent receptor
3062	 65.37	0	3296225..3296455	-	76	87201088	-	Saro_3076	-	hypothetical protein
3063	 63.02	0	3296634..3296825	-	63	87201089	-	Saro_3077	-	hypothetical protein
3064	 67.19	0	3296966..3297730	-	254	87201090	-	Saro_3078	-	hypothetical protein
3065	 72.06	+2	3297734..3298048	-	104	87201091	-	Saro_3079	-	hypothetical protein
3066	 64.58	0	3298573..3299244	+	223	87201092	-	Saro_3080	-	glutathione S-transferase-like
3067	 69.35	+1	3299458..3300390	-	310	87201093	-	Saro_3081	-	NAD-dependent epimerase/dehydratase
3068	 68.36	0	3301191..3302078	-	295	87201094	-	Saro_3082	-	protein tyrosine/serine phosphatase
3069	 68.59	+1	3302081..3302860	-	259	87201095	-	Saro_3083	-	short-chain dehydrogenase/reductase SDR
3070	 64.75	0	3302873..3305065	-	730	87201096	-	Saro_3084	-	TonB-dependent receptor
3071	 68.36	0	3305260..3305907	+	215	87201097	-	Saro_3085	-	TetR family transcriptional regulator
3072	 53.91	-2	3306108..3306593	-	161	87201098	-	Saro_3086	-	hypothetical protein
3073	 61.42	-1	3307181..3308095	+	304	87201099	-	Saro_3087	-	taurine catabolism dioxygenase TauD/TfdA
3074	 63.81	0	3308092..3309804	+	570	87201100	-	Saro_3088	-	dihydroorotase
3075	 63.15	0	3309817..3311067	-	416	87201101	-	Saro_3089	-	LuxR family transcriptional regulator
3076	 60.98	-1	3311225..3311611	+	128	87201102	-	Saro_3090	-	endoribonuclease L-PSP
3077	 53.77	-2	3311811..3312593	-	260	87201103	-	Saro_3091	-	hypothetical protein
3078	 68.65	+1	3312771..3313274	-	167	87201104	-	Saro_3092	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
3079	 65.72	0	3313271..3314119	-	282	87201105	-	Saro_3093	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
3080	 67.25	0	3314172..3315026	-	284	87201106	-	Saro_3094	-	hypothetical protein
3081	 64.25	0	3315106..3315642	+	178	87201107	-	Saro_3095	-	peptide methionine sulfoxide reductase
3082	 73.02	+2	3315639..3316898	-	419	87201108	-	Saro_3096	-	Fmu (Sun)
3083	 65.86	0	3316897..3317145	+	82	87201109	-	Saro_3097	-	hypothetical protein
3084	 67.91	0	3317166..3317648	-	160	87201110	-	Saro_3098	-	hypothetical protein
3085	 68.90	+1	3317633..3319111	-	492	87201111	-	Saro_3099	-	extracellular solute-binding protein
3086	 65.36	0	3319158..3319541	-	127	87201112	-	Saro_3100	-	hypothetical protein
3087	 61.00	-1	3319699..3320157	-	152	87201113	-	Saro_3101	-	TraR/DksA family transcriptional regulator
3088	 67.54	0	3320452..3320796	+	114	87201114	-	Saro_3102	-	Sel1 repeat-containing protein
3089	 66.49	0	3320807..3321937	-	376	87201115	-	Saro_3103	-	hypothetical protein
3090	 69.92	+1	3321945..3322712	-	255	87201116	-	Saro_3104	-	glycerophosphoryl diester phosphodiesterase
3091	 68.80	+1	3322693..3323160	-	155	87201117	-	Saro_3105	-	endoribonuclease L-PSP
3092	 63.33	0	3323157..3323786	-	209	87201118	-	Saro_3106	-	hypothetical protein
3093	 65.70	0	3323783..3323989	-	68	87201119	-	Saro_3107	-	hypothetical protein
3094	 60.43	-1	3324128..3324496	+	122	87201120	-	Saro_3108	-	response regulator receiver protein
3095	 59.66	-1	3324517..3325101	-	194	87201121	-	Saro_3109	-	hypothetical protein
3096	 60.42	-1	3325240..3325479	+	79	87201122	-	Saro_3110	-	hypothetical protein
3097	 64.17	0	3325484..3326683	+	399	87201123	-	Saro_3111	-	serine palmitoyltransferase
3098	 67.94	0	3326683..3327546	+	287	87201124	-	Saro_3112	-	lipolytic enzyme, G-D-S-L
3099	 69.03	+1	3327559..3328107	-	182	87201125	-	Saro_3113	-	ribosomal large subunit pseudouridine synthase E
3100	 65.30	0	3328116..3328772	-	218	87201126	-	Saro_3114	-	glutathione S-transferase-like
3101	 70.01	+1	3328925..3329791	+	288	87201127	-	Saro_3115	-	MltA-interacting MipA
3102	 64.81	0	3329801..3330448	-	215	87201128	-	Saro_3116	-	hypothetical protein
3103	 68.66	+1	3330666..3331166	+	166	87201129	-	Saro_3117	-	hypothetical protein
3104	 70.29	+1	3331159..3332481	+	440	87201130	-	Saro_3118	-	hypothetical protein
3105	 68.80	+1	3332560..3333729	+	389	87201131	-	Saro_3119	-	Phage portal protein, HK97
3106	 69.58	+1	3333726..3334034	+	102	87201132	-	Saro_3120	-	hypothetical protein
3107	 69.54	+1	3334031..3334483	+	150	87201133	-	Saro_3121	-	prohead peptidase
3108	 66.84	0	3334561..3335703	+	380	87201134	-	Saro_3122	-	phage major capsid protein, HK97
3109	 69.93	+1	3335824..3336375	+	183	87201135	-	Saro_3123	-	phiE125 gp8 hypothetical protein
3110	 70.20	+1	3336535..3336930	+	131	87201136	-	Saro_3124	-	hypothetical protein
3111	 64.46	0	3336959..3337366	+	135	87201137	-	Saro_3125	-	Phage major tail protein, TP901-1
3112	 71.11	+1	3337366..3337680	+	104	87201138	-	Saro_3126	-	hypothetical protein
3113	 70.63	+1	3337626..3337877	+	83	87201139	-	Saro_3127	-	hypothetical protein
3114	 68.90	+1	3337867..3338448	+	193	87201140	-	Saro_3128	-	hypothetical protein
3115	 66.28	0	3338468..3340807	+	779	87201141	-	Saro_3129	-	hypothetical protein
3116	 68.00	0	3340804..3341625	+	273	87201142	-	Saro_3130	-	phage protein
3117	 66.41	0	3341622..3342017	+	131	87201143	-	Saro_3131	-	hypothetical protein
3118	 67.44	0	3342011..3344215	+	734	87201144	-	Saro_3132	-	hypothetical protein
3119	 63.83	0	3344239..3344697	+	152	87201145	-	Saro_3133	-	hypothetical protein
3120	 64.43	0	3344891..3345964	+	357	87201146	-	Saro_3134	-	OmpA/MotB
3121	 66.32	0	3346022..3346597	+	191	87201147	-	Saro_3135	-	superoxide dismutase, copper/zinc binding
3122	 65.35	0	3346614..3348206	-	530	87201148	-	Saro_3136	-	major facilitator transporter
3123	 65.67	0	3348178..3348879	-	233	87201149	-	Saro_3137	-	ExsB
3124	 67.92	0	3348941..3349420	-	159	87201150	-	Saro_3138	-	hypothetical protein
3125	 64.59	0	3349503..3350417	-	304	87201151	-	Saro_3139	-	Hsp33 protein
3126	 66.35	0	3350414..3351349	-	311	87201152	-	Saro_3140	-	ornithine carbamoyltransferase
65.30	MEAN

3.21	STD DEV
