IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

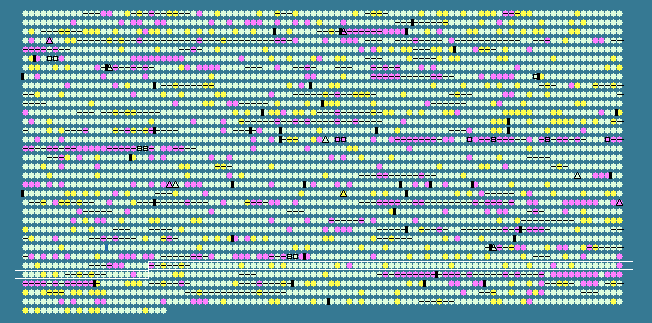

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2822	 60.39	-1	3062508..3062714	-	68	87200848	rpsU	Saro_2835	-	30S ribosomal protein S21
2823	 67.67	0	3062901..3063299	+	132	87200849	-	Saro_2836	-	camphor resistance protein CrcB
2824	 70.94	+1	3063296..3064606	+	436	87200850	-	Saro_2837	-	ribosomal large subunit pseudouridine synthase C
2825	 68.49	0	3064606..3065208	+	200	87200851	-	Saro_2838	-	negative transcriptional regulator
2826	 67.73	0	3065219..3065875	+	218	87200852	-	Saro_2839	-	HAD family hydrolase
2827	 68.91	+1	3065872..3066138	+	88	87200853	-	Saro_2840	-	hypothetical protein
2828	 67.82	0	3066140..3066832	+	230	87200854	-	Saro_2841	-	ATP12 ATPase
2829	 68.41	0	3066845..3067417	-	190	87200855	-	Saro_2842	-	hypothetical protein
2830	 65.52	0	3067432..3068391	-	319	87200856	-	Saro_2843	-	hypothetical protein
2831	 67.11	0	3068402..3069304	-	300	87200857	-	Saro_2844	-	ABC transporter related
2832	 65.59	0	3069304..3070422	-	372	87200858	-	Saro_2845	-	hypothetical protein
2833	 65.23	0	3070572..3073286	+	904	87200859	-	Saro_2846	-	valyl-tRNA synthetase
2834	 68.01	0	3073305..3074048	+	247	87200860	-	Saro_2847	-	radical SAM family protein
2835	 67.57	0	3074150..3074701	-	183	87200861	-	Saro_2848	-	single-strand binding protein
2836	 67.69	0	3074799..3076655	-	618	87200862	-	Saro_2849	-	ferrous iron transport protein B
2837	 70.16	+1	3076652..3076909	-	85	87200863	-	Saro_2850	-	hypothetical protein
2838	 68.04	0	3076998..3077651	-	217	87200864	-	Saro_2851	-	RpsU-divergently transcribed
2839	 67.15	0	3077665..3078282	-	205	87200865	-	Saro_2852	-	ankyrin
2840	 66.83	0	3078375..3078989	+	204	87200866	-	Saro_2853	-	electron transport protein SCO1/SenC
2841	 68.14	0	3078997..3079470	+	157	87200867	-	Saro_2854	-	hypothetical protein
2842	 72.07	+2	3079463..3080221	+	252	87200868	-	Saro_2855	-	hypothetical protein
2843	 66.06	0	3080262..3080753	+	163	87200869	-	Saro_2856	-	hypothetical protein
2844	 72.12	+2	3080750..3081721	+	323	87200870	-	Saro_2857	-	diaminohydroxyphosphoribosylaminopyrimidine deaminase / 5-amino-6-(5-phosphoribosylamino)uracil reductase
2845	 64.58	0	3081734..3082357	+	207	87200871	-	Saro_2858	-	riboflavin synthase subunit alpha
2846	 66.37	0	3082415..3083083	-	222	87200872	-	Saro_2859	-	hypothetical protein
2847	 67.23	0	3083086..3083970	-	294	87200873	-	Saro_2860	-	methylenetetrahydrofolate reductase
2848	 62.88	0	3084044..3085444	-	466	87200874	-	Saro_2861	-	aminomethyltransferase
2849	 63.04	0	3085570..3086424	+	284	87200875	purU	Saro_2862	-	formyltetrahydrofolate deformylase
2850	 63.43	0	3086505..3086906	+	133	87200876	-	Saro_2863	-	glyoxalase/bleomycin resistance protein/dioxygenase
2851	 66.40	0	3087013..3087750	-	245	87200877	-	Saro_2864	-	alpha/beta hydrolase
2852	 62.81	0	3087750..3088526	-	258	87200878	-	Saro_2865	-	glutathione S-transferase-like
2853	 68.93	+1	3088531..3089280	-	249	87200879	-	Saro_2866	-	short-chain dehydrogenase/reductase SDR
2854	 66.23	0	3089277..3089738	-	153	87200880	-	Saro_2867	-	hypothetical protein
2855	 61.51	-1	3089774..3090646	-	290	87200881	-	Saro_2868	-	amidohydrolase 2
2856	 66.14	0	3090707..3092221	-	504	87200882	-	Saro_2869	-	aldehyde dehydrogenase (acceptor)
2857	 66.38	0	3092342..3094459	-	705	87200883	-	Saro_2870	-	Pyrrolo-quinoline quinone
2858	 64.62	0	3094493..3096058	-	521	87200884	-	Saro_2871	-	AMP-dependent synthetase and ligase
2859	 67.68	0	3096062..3096847	-	261	87200885	-	Saro_2872	-	glutathione S-transferase-like
2860	 62.00	-1	3096844..3097614	-	256	87200886	-	Saro_2873	-	glutathione S-transferase-like
2861	 71.82	+2	3097877..3098245	-	122	87200887	-	Saro_2874	-	twin-arginine translocation pathway signal
2862	 66.67	0	3098245..3098649	-	134	87200888	-	Saro_2875	-	hypothetical protein
2863	 65.66	0	3098651..3100237	-	528	87200889	-	Saro_2876	-	FAD linked oxidase-like
2864	 65.06	0	3100344..3100841	-	165	87200890	-	Saro_2877	-	hypothetical protein
2865	 67.49	0	3100898..3103081	-	727	87200891	-	Saro_2878	-	Pyrrolo-quinoline quinone
2866	 63.29	0	3103078..3103935	-	285	87200892	-	Saro_2879	-	hypothetical protein
2867	 62.82	0	3104026..3104415	+	129	87200893	-	Saro_2880	-	hypothetical protein
2868	 62.47	0	3104429..3104881	+	150	87200894	-	Saro_2881	-	hypothetical protein
2869	 66.13	0	3104889..3105629	+	246	87200895	-	Saro_2882	-	short-chain dehydrogenase/reductase SDR
2870	 68.10	0	3105644..3105853	-	69	87200896	-	Saro_2883	-	hypothetical protein
2871	 64.81	0	3105921..3106835	-	304	87200897	-	Saro_2884	-	hypothetical protein
2872	 70.08	+1	3106835..3107800	-	321	87200898	-	Saro_2885	-	cyclic nucleotide-binding domain-containing protein
2873	 66.21	0	3107867..3108307	-	146	87200899	-	Saro_2886	-	hypothetical protein
2874	 65.64	0	3108322..3109002	-	226	87200900	-	Saro_2887	-	glutathione S-transferase-like
2875	 65.06	0	3109004..3109501	-	165	87200901	-	Saro_2888	-	3-demethylubiquinone-9 3-methyltransferase
2876	 65.40	0	3109498..3110127	-	209	87200902	-	Saro_2889	-	glutathione S-transferase-like
2877	 66.51	0	3110200..3110847	-	215	87200903	-	Saro_2890	-	glutathione S-transferase-like
2878	 63.91	0	3110927..3111907	+	326	87200904	-	Saro_2891	-	hydrogenobyrinic acid a,c-diamide cobaltochelatase
2879	 66.67	0	3111968..3113083	-	371	87200905	-	Saro_2892	-	putative NADH oxidoreductase
2880	 66.54	0	3113088..3113852	-	254	87200906	truA	Saro_2893	-	tRNA pseudouridine synthase A
2881	 69.87	+1	3113845..3114750	-	301	87200907	-	Saro_2894	-	methionyl-tRNA formyltransferase
2882	 68.17	0	3114802..3115398	+	198	87200908	-	Saro_2895	-	recombination protein RecR
2883	 64.02	0	3115464..3116030	+	188	87200909	-	Saro_2896	-	peptide deformylase
2884	 65.15	0	3116607..3118121	+	504	87200910	-	Saro_2898	-	hypothetical protein
2885	 69.62	+1	3118118..3118897	+	259	87200911	-	Saro_2899	-	hypothetical protein
2886	 68.41	0	3118903..3119304	-	133	87200912	-	Saro_2900	-	protein of unknown function DUF306, Meta and HslJ
2887	 66.29	0	3119359..3120162	-	267	87200913	-	Saro_2901	-	tRNA/rRNA methyltransferase
2888	 66.02	0	3120214..3120522	-	102	87200914	-	Saro_2902	-	HPrNtr
2889	 60.49	-1	3120524..3120928	-	134	87200915	-	Saro_2903	-	PTS system fructose subfamily IIA component
2890	 64.60	0	3121064..3121981	-	305	87200916	-	Saro_2904	-	hypothetical protein
2891	 68.08	0	3122043..3122468	-	141	87200917	-	Saro_2905	-	HPr kinase
2892	 68.82	+1	3122465..3124042	-	525	87200918	-	Saro_2906	-	periplasmic sensor signal transduction histidine kinase
2893	 65.60	0	3124029..3124781	-	250	87200919	-	Saro_2907	-	two component transcriptional regulator
2894	 65.67	0	3125015..3126619	+	534	87200920	-	Saro_2908	-	phosphoenolpyruvate carboxykinase
2895	 66.31	0	3126810..3129053	+	747	87200921	-	Saro_2909	-	catalase/peroxidase HPI
2896	 68.36	0	3129100..3129690	-	196	87200922	-	Saro_2910	-	heat shock protein DnaJ-like
2897	 67.03	0	3129731..3130003	+	90	87200923	-	Saro_2911	-	transcriptional regulator BolA
2898	 65.56	0	3130142..3130591	+	149	87200924	-	Saro_2912	-	NUDIX hydrolase
2899	 67.12	0	3130588..3131478	+	296	87200925	-	Saro_2913	-	Pirin-like
2900	 61.37	-1	3131492..3133135	-	547	87200926	-	Saro_2914	-	glycoside hydrolase family protein
2901	 65.58	0	3133388..3134218	-	276	87200927	-	Saro_2915	-	hypothetical protein
2902	 66.54	0	3134479..3135297	+	272	87200928	-	Saro_2916	-	short-chain dehydrogenase/reductase SDR
2903	 67.12	0	3135294..3136181	+	295	87200929	-	Saro_2917	-	alpha/beta hydrolase
2904	 70.24	+1	3136178..3137239	-	353	87200930	-	Saro_2918	-	hypothetical protein
2905	 68.30	0	3137282..3137953	+	223	87200931	hisG	Saro_2919	-	ATP phosphoribosyltransferase catalytic subunit
2906	 68.91	+1	3137953..3139242	+	429	87200932	-	Saro_2920	-	histidinol dehydrogenase
2907	 68.01	0	3139239..3139685	+	148	87200933	-	Saro_2921	-	NusB antitermination factor
2908	 67.72	0	3139911..3140768	-	285	87200934	-	Saro_2922	-	carboxylesterase
2909	 67.20	0	3140768..3141139	-	123	87200935	-	Saro_2923	-	glyoxalase/bleomycin resistance protein/dioxygenase
2910	 70.06	+1	3141239..3142093	-	284	87200936	-	Saro_2924	-	copper resistance D
2911	 68.78	+1	3142113..3142490	-	125	87200937	-	Saro_2925	-	copper resistance protein CopC
2912	 73.26	+2	3142610..3142897	+	95	87200938	-	Saro_2926	-	hypothetical protein
2913	 65.07	0	3142897..3143334	+	145	87200939	-	Saro_2927	-	hypothetical protein
2914	 66.13	0	3143341..3143904	+	187	87200940	-	Saro_2928	-	sigma-24 (FecI-like)
2915	 67.11	0	3143931..3145715	+	594	87200941	-	Saro_2929	-	copper-resistance protein CopA
2916	 67.91	0	3145712..3146755	+	347	87200942	-	Saro_2930	-	copper resistance B precursor
2917	 65.24	0	3146835..3147533	+	232	87200943	-	Saro_2931	-	hypothetical protein
2918	 68.49	0	3147585..3148733	-	382	87200944	-	Saro_2932	-	peptidase M20D, amidohydrolase
2919	 60.04	-1	3148778..3149275	-	165	87200945	-	Saro_2933	-	AsnC family transcriptional regulator
2920	 67.45	0	3149299..3150699	-	466	87200946	-	Saro_2934	-	hypothetical protein
2921	 65.00	0	3150843..3151922	-	359	87200947	-	Saro_2935	-	tartrate dehydrogenase
65.30	MEAN

3.21	STD DEV
