IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

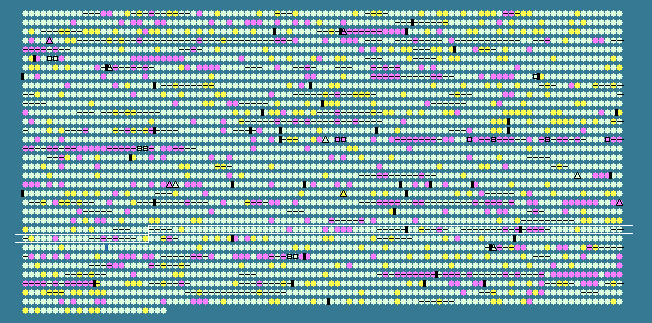

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2422	 66.31	0	2618189..2619034	-	281	87200448	-	Saro_2435	-	AraC family transcriptional regulator
2423	 66.75	0	2619147..2620316	+	389	87200449	-	Saro_2436	-	4-hydroxybenzoate 3-monooxygenase
2424	 68.30	0	2620391..2621065	+	224	87200450	-	Saro_2437	-	two component transcriptional regulator
2425	 64.54	0	2621275..2623953	-	892	87200451	-	Saro_2438	-	TonB-dependent receptor
2426	 64.65	0	2624046..2625635	-	529	87200452	-	Saro_2439	-	hypothetical protein
2427	 71.58	+1	2625899..2626285	+	128	87200453	-	Saro_2440	-	TPR repeat-containing protein
2428	 68.24	0	2626298..2627761	-	487	87200454	-	Saro_2441	-	carbohydrate kinase, FGGY
2429	 66.80	0	2627754..2629262	-	502	87200455	glpD	Saro_2442	-	glycerol-3-phosphate dehydrogenase
2430	 65.75	0	2629276..2630364	-	362	87200456	-	Saro_2443	-	alkanesulfonate monooxygenase
2431	 66.78	0	2630492..2631406	-	304	87200457	-	Saro_2444	-	aldo/keto reductase
2432	 64.99	0	2631403..2632416	-	337	87200458	-	Saro_2445	-	LacI family transcription regulator
2433	 65.47	0	2632413..2634422	-	669	87200459	-	Saro_2446	-	alpha-glucosidase
2434	 64.67	0	2634603..2636954	+	783	87200460	-	Saro_2447	-	TonB-dependent receptor
2435	 64.96	0	2637286..2638515	-	409	87200461	-	Saro_2448	-	major facilitator transporter
2436	 65.46	0	2638634..2639713	+	359	87200462	-	Saro_2449	-	hypothetical protein
2437	 66.77	0	2639757..2640728	-	323	87200463	-	Saro_2450	-	alcohol dehydrogenase
2438	 63.94	0	2640725..2641969	-	414	87200464	-	Saro_2451	-	cytochrome P450
2439	 65.03	0	2642004..2643956	-	650	87200465	-	Saro_2452	-	cyclohexanone monooxygenase
2440	 63.55	0	2644059..2645693	-	544	87200466	-	Saro_2453	-	AMP-dependent synthetase and ligase
2441	 62.98	0	2645737..2646387	-	216	87200467	-	Saro_2454	-	TetR family transcriptional regulator
2442	 64.89	0	2646384..2647562	-	392	87200468	-	Saro_2455	-	iron-containing alcohol dehydrogenase
2443	 67.32	0	2647738..2648964	+	408	87200469	-	Saro_2456	-	L-carnitine dehydratase/bile acid-inducible protein F
2444	 63.13	0	2648961..2649866	-	301	87200470	-	Saro_2457	-	beta-lactamase-like
2445	 60.87	-1	2649885..2652161	-	758	87200471	-	Saro_2458	-	TonB-dependent receptor
2446	 65.08	0	2652414..2653736	-	440	87200472	-	Saro_2459	-	hypothetical protein
2447	 64.38	0	2653733..2656573	-	946	87200473	-	Saro_2460	-	hypothetical protein
2448	 62.75	0	2656664..2657428	-	254	87200474	-	Saro_2461	-	phosphoesterase, PA-phosphatase related
2449	 65.08	0	2657679..2658371	+	230	87200475	-	Saro_2462	-	hypothetical protein
2450	 63.66	0	2658391..2659686	-	431	87200476	-	Saro_2463	-	fumarylacetoacetate hydrolase
2451	 61.02	-1	2659717..2660265	-	182	87200477	-	Saro_2464	-	glyoxalase/bleomycin resistance protein/dioxygenase
2452	 64.10	0	2660381..2661277	+	298	87200478	-	Saro_2465	-	LysR family transcriptional regulator
2453	 55.97	-2	2661639..2662601	+	320	87200479	-	Saro_2466	-	phosphoesterase, PA-phosphatase related
2454	 59.32	-1	2662662..2663654	+	330	87200480	-	Saro_2467	-	homocysteine S-methyltransferase
2455	 58.85	-2	2663813..2664580	-	255	87200481	-	Saro_2468	-	TetR family transcriptional regulator
2456	 62.48	0	2664741..2667272	+	843	87200482	-	Saro_2469	-	TonB-dependent receptor
2457	 63.41	0	2667360..2669720	+	786	87200483	-	Saro_2470	-	sulfatase
2458	 61.96	-1	2669717..2671183	+	488	87200484	-	Saro_2471	-	hypothetical protein
2459	 63.97	0	2671180..2672589	+	469	87200485	-	Saro_2472	-	hypothetical protein
2460	 62.26	0	2672670..2673440	+	256	87200486	-	Saro_2473	-	short-chain dehydrogenase/reductase SDR
2461	 62.49	0	2673478..2674410	+	310	87200487	-	Saro_2474	-	hypothetical protein
2462	 67.80	0	2674487..2677045	-	852	87200488	-	Saro_2475	-	hypothetical protein
2463	 67.17	0	2677081..2678460	-	459	87200489	-	Saro_2476	-	NADH/ubiquinone/plastoquinone (complex I)
2464	 65.98	0	2678583..2679455	+	290	87200490	-	Saro_2477	-	LysR family transcriptional regulator
2465	 63.25	0	2679961..2680341	+	126	87200491	-	Saro_2478	-	hemimethylated DNA-binding region protein
2466	 61.89	-1	2680366..2681244	-	292	87200492	-	Saro_2479	-	hypothetical protein
2467	 72.88	+2	2681359..2682066	+	235	87200493	-	Saro_2480	-	GcrA cell cycle regulator
2468	 64.36	0	2682188..2683312	+	374	87200494	-	Saro_2481	-	diguanylate cyclase
2469	 63.56	0	2683433..2685751	-	772	87200495	-	Saro_2482	-	polynucleotide phosphorylase/polyadenylase
2470	 57.78	-2	2685914..2686183	-	89	87200496	-	Saro_2483	-	SSU ribosomal protein S15P
2471	 64.70	0	2686189..2687103	-	304	87200497	-	Saro_2484	-	tRNA pseudouridine synthase B
2472	 64.83	0	2687106..2687813	-	235	87200498	-	Saro_2485	-	peptidase M50
2473	 67.75	0	2687810..2688364	-	184	87200499	-	Saro_2486	-	GCN5-related N-acetyltransferase
2474	 65.80	0	2688361..2688939	-	192	87200500	-	Saro_2487	-	thymidine kinase
2475	 64.46	0	2688951..2689358	-	135	87200501	rbfA	Saro_2488	-	ribosome-binding factor A
2476	 62.94	0	2689361..2689897	-	178	87200502	-	Saro_2489	-	hypothetical protein
2477	 67.35	0	2690002..2692629	-	875	87200503	infB	Saro_2490	-	translation initiation factor IF-2
2478	 67.07	0	2692635..2693369	-	244	87200504	-	Saro_2491	-	hypothetical protein
2479	 65.50	0	2693350..2694984	-	544	87200505	nusA	Saro_2492	-	transcription elongation factor NusA
2480	 62.21	0	2694988..2695548	-	186	87200506	-	Saro_2493	-	hypothetical protein
2481	 56.99	-2	2695545..2695916	-	123	87200507	-	Saro_2494	-	hypothetical protein
2482	 65.33	0	2696022..2696246	+	74	87200508	-	Saro_2495	-	phage shock protein C, PspC
2483	 61.71	-1	2696315..2697040	-	241	87200509	-	Saro_2496	-	hypothetical protein
2484	 62.46	0	2697274..2697939	-	221	87200510	-	Saro_2497	-	TadE-like
2485	 61.51	-1	2697939..2698520	-	193	87200511	-	Saro_2498	-	TadE-like
2486	 58.23	-2	2698517..2700412	-	631	87200512	-	Saro_2499	-	hypothetical protein
2487	 60.76	-1	2700925..2702313	+	462	87200513	-	Saro_2500	-	hypothetical protein
2488	 64.54	0	2702379..2703551	-	390	87200514	-	Saro_2501	-	L-carnitine dehydratase/bile acid-inducible protein F
2489	 66.99	0	2703561..2705093	-	510	87200515	-	Saro_2502	-	acetyl-CoA acetyltransferase
2490	 63.46	0	2705109..2706542	-	477	87200516	-	Saro_2503	-	aldehyde dehydrogenase
2491	 65.59	0	2706568..2707683	-	371	87200517	-	Saro_2504	-	alcohol dehydrogenase, zinc-containing
2492	 67.49	0	2707680..2709611	-	643	87200518	-	Saro_2505	-	hypothetical protein
2493	 70.27	+1	2709608..2709940	-	110	87200519	-	Saro_2506	-	hypothetical protein
2494	 65.09	0	2710035..2710988	+	317	87200520	-	Saro_2507	-	LysR family transcriptional regulator
2495	 66.76	0	2710971..2712032	-	353	87200521	-	Saro_2508	-	AraC family transcriptional regulator
2496	 64.78	0	2712217..2714607	+	796	87200522	-	Saro_2509	-	TonB-dependent receptor
2497	 67.07	0	2714727..2715464	+	245	87200523	-	Saro_2510	-	short-chain dehydrogenase/reductase SDR
2498	 64.30	0	2715476..2716702	+	408	87200524	-	Saro_2511	-	acyl-CoA dehydrogenase-like
2499	 67.53	0	2716714..2717754	+	346	87200525	-	Saro_2512	-	alcohol dehydrogenase
2500	 66.15	0	2717729..2718886	-	385	87200526	-	Saro_2513	-	aminotransferase
2501	 65.08	0	2718951..2719328	+	125	87200527	-	Saro_2514	-	ModE family transcriptional regulator
2502	 69.24	+1	2719619..2720899	-	426	87200528	-	Saro_2515	-	amidohydrolase
2503	 67.09	0	2720987..2721454	-	155	87200529	-	Saro_2516	-	hypothetical protein
2504	 66.67	0	2721511..2721837	-	108	87200530	-	Saro_2517	-	hypothetical protein
2505	 65.78	0	2721893..2722678	-	261	87200531	-	Saro_2518	-	NUDIX hydrolase
2506	 58.18	-2	2722991..2723320	-	109	87200532	-	Saro_2519	-	glutaredoxin-like protein
2507	 67.52	0	2723345..2723578	-	77	87200533	-	Saro_2520	-	BolA-like protein
2508	 65.43	0	2723578..2723901	-	107	87200534	-	Saro_2521	-	hypothetical protein
2509	 67.20	0	2724014..2724580	-	188	87200535	-	Saro_2522	-	hypothetical protein
2510	 66.84	0	2724740..2725330	-	196	87200536	-	Saro_2523	-	hypothetical protein
2511	 68.07	0	2725475..2727619	-	714	87200537	-	Saro_2524	-	prolyl oligopeptidase
2512	 67.51	0	2727747..2729882	-	711	87200538	-	Saro_2525	-	prolyl oligopeptidase
2513	 65.49	0	2730199..2730624	-	141	87200539	rplQ	Saro_2526	-	50S ribosomal protein L17
2514	 61.21	-1	2730746..2731807	-	353	87200540	-	Saro_2527	-	DNA-directed RNA polymerase subunit alpha
2515	 65.90	0	2731923..2732312	-	129	87200541	-	Saro_2528	-	30S ribosomal protein S11
2516	 60.98	-1	2732361..2732729	-	122	87200542	rpsM	Saro_2529	-	30S ribosomal protein S13
2517	 68.42	0	2733048..2733446	-	132	87200543	-	Saro_2530	-	hexapaptide repeat-containing transferase
2518	 66.67	0	2733515..2734054	+	179	87200544	-	Saro_2531	-	hexapaptide repeat-containing transferase
2519	 67.62	0	2734123..2734542	+	139	87200545	-	Saro_2532	-	hypothetical protein
2520	 65.52	0	2734524..2736611	-	695	87200546	-	Saro_2533	-	(p)ppGpp synthetase I (GTP pyrophosphokinase), SpoT/RelA
2521	 70.54	+1	2736748..2737959	+	403	87200547	-	Saro_2534	-	hypothetical protein
65.30	MEAN

3.21	STD DEV
