IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

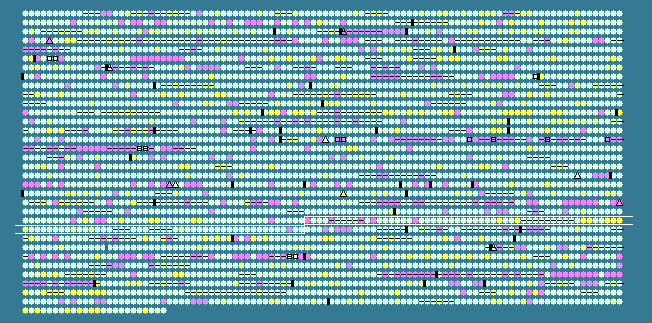

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2348	 61.08	-1	2508639..2509622	-	327	87200374	-	Saro_2361	-	flagellin-like
2349	 68.14	0	2509800..2512523	+	907	87200375	-	Saro_2362	-	helicase c2
2350	 63.00	0	2512520..2513065	+	181	87200376	-	Saro_2363	-	putative phosphohistidine phosphatase, SixA
2351	 62.94	0	2513062..2513517	-	151	87200377	-	Saro_2364	-	MerR family transcriptional regulator
2352	 60.61	-1	2513528..2513824	-	98	87200378	-	Saro_2365	-	integration host factor, alpha subunit
2353	 64.83	0	2513945..2514922	-	325	87200379	-	Saro_2366	-	3-oxoacyl-[acyl-carrier-protein] synthase III
2354	 66.39	0	2514919..2516013	-	364	87200380	-	Saro_2367	-	putative glycerol-3-phosphate acyltransferase PlsX
2355	 63.33	0	2516040..2516219	-	59	87200381	rpmF	Saro_2368	-	50S ribosomal protein L32
2356	 64.89	0	2516463..2516855	+	130	87200382	-	Saro_2369	-	membrane-associated proteins in eicosanoid and glutathione metabolism (MAPEG)
2357	 61.11	-1	2516920..2517657	-	245	87200383	-	Saro_2370	-	beta-lactamase-like
2358	 66.52	0	2517870..2518571	-	233	87200384	-	Saro_2371	-	putative phage repressor
2359	 60.85	-1	2518688..2518876	+	62	87200385	-	Saro_2372	-	hypothetical protein
2360	 66.40	0	2518866..2519243	+	125	87200386	-	Saro_2373	-	hypothetical protein
2361	 63.99	0	2519335..2523933	-	1532	87200387	-	Saro_2374	-	multihaem cytochrome
2362	 63.89	0	2523933..2525951	-	672	87200388	-	Saro_2375	-	hypothetical protein
2363	 64.66	0	2525951..2527939	-	662	87200389	-	Saro_2376	-	hypothetical protein
2364	 66.53	0	2527939..2529354	-	471	87200390	-	Saro_2377	-	hypothetical protein
2365	 63.05	0	2529536..2530972	-	478	87200391	-	Saro_2378	-	aldehyde dehydrogenase
2366	 61.23	-1	2531046..2532737	-	563	87200392	-	Saro_2379	-	acetolactate synthase
2367	 65.26	0	2532877..2533800	-	307	87200393	-	Saro_2380	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
2368	 65.05	0	2533879..2535360	-	493	87200394	-	Saro_2381	-	cysteinyl-tRNA synthetase
2369	 66.17	0	2535399..2544608	-	3069	87200395	-	Saro_2382	-	hypothetical protein
2370	 66.99	0	2544608..2546482	-	624	87200396	-	Saro_2383	-	hemolysin activation/secretion protein-like
2371	 68.09	0	2546598..2547368	-	256	87200397	-	Saro_2384	-	hypothetical protein
2372	 68.20	0	2547384..2548166	-	260	87200398	-	Saro_2385	-	hypothetical protein
2373	 65.84	0	2548153..2550198	-	681	87200399	-	Saro_2386	-	adenylate/guanylate cyclase
2374	 67.36	0	2550202..2553357	-	1051	87200400	-	Saro_2387	-	hypothetical protein
2375	 67.11	0	2553517..2554197	-	226	87200401	-	Saro_2388	-	nitroreductase
2376	 66.83	0	2554241..2556055	-	604	87200402	-	Saro_2389	-	cobalt chelatase, pCobT subunit
2377	 63.00	0	2556130..2556783	-	217	87200403	-	Saro_2390	-	putative translaldolase
2378	 67.54	0	2556909..2557592	-	227	87200404	-	Saro_2391	-	hypothetical protein
2379	 66.96	0	2557710..2558402	-	230	87200405	-	Saro_2392	-	hypothetical protein
2380	 69.94	+1	2558451..2560652	+	733	87200406	-	Saro_2393	-	primosome assembly protein PriA
2381	 67.37	0	2560701..2562269	+	522	87200407	-	Saro_2394	-	deoxyribodipyrimidine photolyase-related protein
2382	 67.47	0	2562266..2563135	-	289	87200408	-	Saro_2395	-	abortive infection protein
2383	 69.86	+1	2563138..2564169	-	343	87200409	-	Saro_2396	-	transcriptional regulator Ada / DNA-O6-methylguanine--protein-cysteine S-methyltransferase
2384	 65.63	0	2564166..2564648	-	160	87200410	-	Saro_2397	-	hypothetical protein
2385	 68.30	0	2564711..2566306	+	531	87200411	-	Saro_2398	-	peptidase S1 and S6, chymotrypsin/Hap
2386	 64.40	0	2566457..2567029	+	190	87200412	-	Saro_2399	-	F0F1 ATP synthase subunit delta
2387	 64.51	0	2567075..2568604	+	509	87200413	-	Saro_2400	-	F0F1 ATP synthase subunit alpha
2388	 63.34	0	2568929..2569801	+	290	87200414	-	Saro_2401	-	F0F1 ATP synthase subunit gamma
2389	 65.77	0	2569866..2571311	+	481	87200415	-	Saro_2402	-	F0F1 ATP synthase subunit beta
2390	 64.34	0	2571460..2571717	+	85	87200416	-	Saro_2403	-	F0F1 ATP synthase subunit epsilon
2391	 63.35	0	2571954..2573342	+	462	87200417	-	Saro_2404	-	glycine cleavage T protein (aminomethyl transferase)
2392	 64.52	0	2573603..2574442	+	279	87200418	-	Saro_2405	-	glutathione S-transferase-like
2393	 66.27	0	2574470..2575483	-	337	87200419	-	Saro_2406	-	twin-arginine translocation pathway signal
2394	 70.37	+1	2575480..2576235	-	251	87200420	-	Saro_2407	-	IclR family transcriptional regulator
2395	 69.72	+1	2576232..2576624	-	130	87200421	-	Saro_2408	-	hypothetical protein
2396	 66.14	0	2576621..2577754	-	377	87200422	-	Saro_2409	-	methionine synthase, vitamin-B12 independent
2397	 63.43	0	2578324..2581104	+	926	87200423	-	Saro_2410	-	TonB-dependent receptor
2398	 70.02	+1	2581270..2583744	-	824	87200424	-	Saro_2411	-	twin-arginine translocation pathway signal
2399	 69.63	+1	2583756..2585444	-	562	87200425	-	Saro_2412	-	PTS system, N-acetylglucosamine-specific IIBC component
2400	 69.10	+1	2585441..2587951	-	836	87200426	-	Saro_2413	-	phosphoenolpyruvate--protein phosphotransferase
2401	 69.03	+1	2588004..2589146	-	380	87200427	-	Saro_2414	-	N-acetylglucosamine 6-phosphate deacetylase
2402	 67.05	0	2589143..2590183	-	346	87200428	-	Saro_2415	-	glutamine-fructose-6-phosphate transaminase (isomerizing)
2403	 65.32	0	2590210..2590950	-	246	87200429	-	Saro_2416	-	GntR family transcriptional regulator
2404	 67.27	0	2591327..2593792	+	821	87200430	-	Saro_2417	-	Beta-N-acetylhexosaminidase
2405	 68.34	0	2593789..2596416	+	875	87200431	-	Saro_2418	-	beta-mannosidase
2406	 68.78	+1	2596413..2598962	+	849	87200432	-	Saro_2419	-	Beta-glucosidase
2407	 67.43	0	2598959..2600401	+	480	87200433	-	Saro_2420	-	twin-arginine translocation pathway signal
2408	 68.14	0	2600398..2602707	+	769	87200434	-	Saro_2421	-	alpha-1,2-mannosidase, putative
2409	 70.67	+1	2602704..2604977	+	757	87200435	-	Saro_2422	-	hypothetical protein
2410	 68.60	+1	2604974..2606890	+	638	87200436	-	Saro_2423	-	twin-arginine translocation pathway signal
2411	 67.70	0	2606887..2609781	-	964	87200437	-	Saro_2424	-	beta-galactosidase
2412	 70.47	+1	2609778..2610539	-	253	87200438	-	Saro_2425	-	CutC
2413	 66.78	0	2610554..2611399	-	281	87200439	-	Saro_2426	-	5-carboxymethyl-2-hydroxymuconate delta-isomerase
2414	 66.38	0	2611396..2611743	-	115	87200440	-	Saro_2427	-	hypothetical protein
2415	 66.05	0	2611746..2613047	-	433	87200441	-	Saro_2428	-	L-fucose permease
2416	 66.53	0	2613078..2613818	-	246	87200442	-	Saro_2429	-	short-chain dehydrogenase/reductase SDR
2417	 67.91	0	2613829..2615037	-	402	87200443	-	Saro_2430	-	Altronate dehydratase
2418	 68.48	0	2615034..2615363	-	109	87200444	-	Saro_2431	-	D-galactarate dehydratase/Altronate hydrolase-like
2419	 68.11	0	2615344..2616177	-	277	87200445	-	Saro_2432	-	amidohydrolase 2
2420	 67.58	0	2616174..2617163	-	329	87200446	-	Saro_2433	-	aldo/keto reductase
2421	 65.57	0	2617282..2618100	-	272	87200447	-	Saro_2434	-	IclR family transcriptional regulator
2422	 66.31	0	2618189..2619034	-	281	87200448	-	Saro_2435	-	AraC family transcriptional regulator
2423	 66.75	0	2619147..2620316	+	389	87200449	-	Saro_2436	-	4-hydroxybenzoate 3-monooxygenase
2424	 68.30	0	2620391..2621065	+	224	87200450	-	Saro_2437	-	two component transcriptional regulator
2425	 64.54	0	2621275..2623953	-	892	87200451	-	Saro_2438	-	TonB-dependent receptor
2426	 64.65	0	2624046..2625635	-	529	87200452	-	Saro_2439	-	hypothetical protein
2427	 71.58	+1	2625899..2626285	+	128	87200453	-	Saro_2440	-	TPR repeat-containing protein
2428	 68.24	0	2626298..2627761	-	487	87200454	-	Saro_2441	-	carbohydrate kinase, FGGY
2429	 66.80	0	2627754..2629262	-	502	87200455	glpD	Saro_2442	-	glycerol-3-phosphate dehydrogenase
2430	 65.75	0	2629276..2630364	-	362	87200456	-	Saro_2443	-	alkanesulfonate monooxygenase
2431	 66.78	0	2630492..2631406	-	304	87200457	-	Saro_2444	-	aldo/keto reductase
2432	 64.99	0	2631403..2632416	-	337	87200458	-	Saro_2445	-	LacI family transcription regulator
2433	 65.47	0	2632413..2634422	-	669	87200459	-	Saro_2446	-	alpha-glucosidase
2434	 64.67	0	2634603..2636954	+	783	87200460	-	Saro_2447	-	TonB-dependent receptor
2435	 64.96	0	2637286..2638515	-	409	87200461	-	Saro_2448	-	major facilitator transporter
2436	 65.46	0	2638634..2639713	+	359	87200462	-	Saro_2449	-	hypothetical protein
2437	 66.77	0	2639757..2640728	-	323	87200463	-	Saro_2450	-	alcohol dehydrogenase
2438	 63.94	0	2640725..2641969	-	414	87200464	-	Saro_2451	-	cytochrome P450
2439	 65.03	0	2642004..2643956	-	650	87200465	-	Saro_2452	-	cyclohexanone monooxygenase
2440	 63.55	0	2644059..2645693	-	544	87200466	-	Saro_2453	-	AMP-dependent synthetase and ligase
2441	 62.98	0	2645737..2646387	-	216	87200467	-	Saro_2454	-	TetR family transcriptional regulator
2442	 64.89	0	2646384..2647562	-	392	87200468	-	Saro_2455	-	iron-containing alcohol dehydrogenase
2443	 67.32	0	2647738..2648964	+	408	87200469	-	Saro_2456	-	L-carnitine dehydratase/bile acid-inducible protein F
2444	 63.13	0	2648961..2649866	-	301	87200470	-	Saro_2457	-	beta-lactamase-like
2445	 60.87	-1	2649885..2652161	-	758	87200471	-	Saro_2458	-	TonB-dependent receptor
2446	 65.08	0	2652414..2653736	-	440	87200472	-	Saro_2459	-	hypothetical protein
2447	 64.38	0	2653733..2656573	-	946	87200473	-	Saro_2460	-	hypothetical protein
65.30	MEAN

3.21	STD DEV
