IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

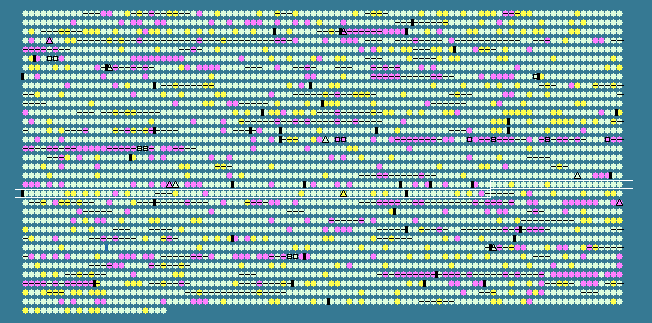

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1979	 66.92	0	2109582..2117429	-	2615	87200005	-	Saro_1988	-	hypothetical protein
1980	 65.82	0	2117429..2119192	-	587	87200006	-	Saro_1989	-	hemolysin activation/secretion protein-like
1981	 63.08	0	2119388..2122123	-	911	87200007	-	Saro_1990	-	preprotein translocase subunit SecA
1982	 70.10	+1	2122230..2122520	-	96	87200008	-	Saro_1991	-	hypothetical protein
1983	 66.67	0	2123244..2124470	+	408	87200009	argJ	Saro_1993	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1984	 63.70	0	2124484..2125089	+	201	87200010	-	Saro_1994	-	glutathione S-transferase-like
1985	 66.91	0	2125098..2125907	+	269	87200011	-	Saro_1995	-	inositol monophosphatase
1986	 63.86	0	2125964..2126284	-	106	87200012	-	Saro_1996	-	thioredoxin
1987	 67.47	0	2126345..2129830	-	1161	87200013	-	Saro_1997	-	UvrD/REP helicase
1988	 70.22	+1	2129827..2132808	-	993	87200014	-	Saro_1998	-	helicase
1989	 66.25	0	2132808..2133530	-	240	87200015	-	Saro_1999	-	nucleotidyl transferase
1990	 66.87	0	2133527..2134510	-	327	87200016	-	Saro_2000	-	aminoglycoside phosphotransferase
1991	 68.67	+1	2134501..2134950	-	149	87200017	-	Saro_2001	-	hypothetical protein
1992	 68.71	+1	2134947..2137295	-	782	87200018	-	Saro_2002	-	PAS/PAC sensor signal transduction histidine kinase
1993	 62.69	0	2137479..2138885	-	468	87200019	-	Saro_2003	-	S-adenosyl-L-homocysteine hydrolase
1994	 64.38	0	2139107..2139586	+	159	87200020	-	Saro_2004	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
1995	 67.06	0	2139629..2140384	-	251	87200021	-	Saro_2005	-	hypothetical protein
1996	 67.32	0	2140389..2140850	-	153	87200022	-	Saro_2006	-	hypothetical protein
1997	 65.85	0	2140974..2141588	-	204	87200023	-	Saro_2007	-	GTP cyclohydrolase
1998	 64.82	0	2141605..2143119	-	504	87200024	-	Saro_2008	-	phospholipase D/transphosphatidylase
1999	 64.45	0	2143262..2144029	+	255	87200025	-	Saro_2009	-	hypothetical protein
2000	 66.02	0	2144010..2144318	-	102	87200026	-	Saro_2010	-	septum formation initiator
2001	 66.04	0	2144540..2145019	-	159	87200027	-	Saro_2011	-	hypothetical protein
2002	 67.26	0	2145016..2145861	-	281	87200028	-	Saro_2012	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
2003	 62.17	0	2145858..2146124	-	88	87200029	-	Saro_2013	-	glutaredoxin GrxC
2004	 65.15	0	2146285..2146746	+	153	87200030	-	Saro_2014	-	heat shock protein Hsp20
2005	 68.44	0	2146923..2148500	+	525	87200031	-	Saro_2015	-	ABC transporter related
2006	 67.10	0	2148509..2149198	-	229	87200032	-	Saro_2016	-	Crp/FNR family transcriptional regulator
2007	 65.38	0	2149283..2150914	-	543	87200033	-	Saro_2017	-	CTP synthetase
2008	 68.94	+1	2151067..2151462	-	131	87200034	-	Saro_2018	-	protein translocase subunit secG
2009	 69.26	+1	2151568..2152338	-	256	87200035	-	Saro_2019	-	triosephosphate isomerase
2010	 68.42	0	2152601..2154541	+	646	87200036	-	Saro_2020	-	hypothetical protein
2011	 68.82	+1	2154555..2156090	+	511	87200037	-	Saro_2021	-	anthranilate synthase, component I
2012	 65.48	0	2156087..2156674	+	195	87200038	-	Saro_2022	-	anthranilate synthase, component II
2013	 69.49	+1	2156671..2157663	+	330	87200039	-	Saro_2023	-	anthranilate phosphoribosyltransferase
2014	 66.03	0	2157759..2158547	+	262	87200040	-	Saro_2024	-	indole-3-glycerol-phosphate synthase
2015	 66.58	0	2158544..2159749	-	401	87200041	-	Saro_2025	-	beta-lactamase
2016	 58.67	-2	2159925..2160737	-	270	87200042	-	Saro_2026	-	hypothetical protein
2017	 67.72	0	2160981..2161454	+	157	87200043	-	Saro_2027	-	GTP cyclohydrolase subunit MoaC
2018	 70.40	+1	2161451..2162656	+	401	87200044	-	Saro_2028	-	molybdopterin molybdochelatase
2019	 65.82	0	2162774..2163478	+	234	87200045	-	Saro_2029	-	LexA repressor
2020	 67.28	0	2163622..2165904	-	760	87200046	-	Saro_2030	-	ComEC/Rec2-related protein
2021	 65.30	0	2165934..2167397	+	487	87200047	-	Saro_2031	-	glutamyl-tRNA synthetase
2022	 62.86	0	2167442..2168728	+	428	87200048	-	Saro_2032	-	citrate synthase
2023	 67.74	0	2168860..2169045	+	61	87200049	-	Saro_2033	-	hypothetical protein
2024	 68.70	+1	2169049..2170425	-	458	87200050	-	Saro_2034	-	histidine kinase
2025	 66.67	0	2170427..2171383	-	318	87200051	-	Saro_2035	-	hypothetical protein
2026	 68.84	+1	2171393..2172637	-	414	87200052	-	Saro_2036	-	hypothetical protein
2027	 64.00	0	2172713..2173012	-	99	87200053	-	Saro_2037	-	hypothetical protein
2028	 66.32	0	2173084..2175678	+	864	87200054	-	Saro_2038	-	hypothetical protein
2029	 64.64	0	2175675..2177105	-	476	87200055	-	Saro_2039	-	uracil-DNA glycosylase superfamily protein
2030	 64.53	0	2177102..2178367	-	421	87200056	-	Saro_2040	-	radical SAM family protein
2031	 61.59	-1	2178644..2179135	+	163	87200057	-	Saro_2041	-	general stress protein
2032	 64.20	0	2179236..2180813	-	525	87200058	-	Saro_2042	-	phospholipid binding protein
2033	 65.98	0	2181011..2181880	+	289	87200059	-	Saro_2043	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
2034	 62.36	0	2181960..2183027	+	355	87200060	-	Saro_2044	-	hypothetical protein
2035	 67.32	0	2183030..2184097	-	355	87200061	-	Saro_2045	-	L-carnitine dehydratase/bile acid-inducible protein F
2036	 67.50	0	2184172..2185611	-	479	87200062	-	Saro_2046	-	TPR repeat-containing protein
2037	 64.20	0	2185739..2187115	-	458	87200063	-	Saro_2047	-	two component, sigma54 specific, Fis family transcriptional regulator
2038	 65.54	0	2187115..2189250	-	711	87200064	-	Saro_2048	-	multi-sensor signal transduction histidine kinase
2039	 63.46	0	2189261..2190664	-	467	87200065	-	Saro_2049	-	sugar transferase
2040	 66.67	0	2190847..2191128	-	93	87200066	-	Saro_2050	-	hypothetical protein
2041	 66.58	0	2191236..2193557	+	773	87200067	-	Saro_2051	-	hypothetical protein
2042	 66.84	0	2193628..2194191	+	187	87200068	-	Saro_2052	-	cytochrome B561
2043	 66.31	0	2194213..2195349	-	378	87200069	-	Saro_2053	-	chaperone DnaJ
2044	 63.78	0	2195435..2197342	-	635	87200070	-	Saro_2054	-	chaperone DnaK
2045	 64.10	0	2197510..2198055	+	181	87200071	-	Saro_2055	-	hypothetical protein
2046	 66.86	0	2198052..2198576	+	174	87200072	-	Saro_2056	-	hypothetical protein
2047	 70.16	+1	2198561..2198818	-	85	87200073	-	Saro_2057	-	hypothetical protein
2048	 66.67	0	2198985..2199662	+	225	87200074	-	Saro_2058	-	isochorismatase hydrolase
2049	 65.60	0	2199768..2200328	-	186	87200075	-	Saro_2059	-	GrpE protein
2050	 67.70	0	2200325..2201389	-	354	87200076	hrcA	Saro_2060	-	heat-inducible transcription repressor
2051	 66.67	0	2201499..2202182	+	227	87200077	-	Saro_2061	-	ribonuclease PH
2052	 66.67	0	2202182..2202811	+	209	87200078	-	Saro_2062	-	putative deoxyribonucleotide triphosphate pyrophosphatase
2053	 65.19	0	2202886..2204040	+	384	87200079	-	Saro_2063	-	coproporphyrinogen III oxidase
2054	 72.60	+2	2204037..2204930	+	297	87200080	-	Saro_2064	-	phage integrase
2055	 67.31	0	2204941..2206344	-	467	87200081	-	Saro_2065	-	periplasmic sensor signal transduction histidine kinase
2056	 62.68	0	2206348..2207025	-	225	87200082	-	Saro_2066	-	two component transcriptional regulator
2057	 67.00	0	2207142..2207441	-	99	87200083	-	Saro_2067	-	hypothetical protein
2058	 66.78	0	2207602..2209398	+	598	87200084	-	Saro_2068	-	ABC transporter related
2059	 70.89	+1	2209399..2209872	-	157	87200085	-	Saro_2069	-	hypothetical protein
2060	 68.06	0	2209989..2210561	+	190	87200086	-	Saro_2070	-	XRE family transcriptional regulator
2061	 70.07	+1	2210563..2211738	+	391	87200087	-	Saro_2071	-	glycosyl transferase, group 1
2062	 62.99	0	2211779..2212756	-	325	87200088	-	Saro_2072	-	protein translocase subunit secF
2063	 65.61	0	2212771..2214378	-	535	87200089	secD	Saro_2073	-	preprotein translocase subunit SecD
2064	 64.55	0	2214406..2214735	-	109	87200090	-	Saro_2074	-	protein translocase subunit yajC
2065	 64.25	0	2215158..2215571	+	137	87200091	-	Saro_2075	-	hypothetical protein
2066	 66.67	0	2215628..2216014	+	128	87200092	-	Saro_2076	-	hypothetical protein
2067	 64.90	0	2216103..2216555	+	150	87200093	-	Saro_2077	-	3-dehydroquinate dehydratase
2068	 67.48	0	2216655..2217143	+	162	87200094	-	Saro_2078	-	biotin carboxyl carrier protein
2069	 64.51	0	2217156..2218502	+	448	87200095	-	Saro_2079	-	biotin carboxylase / acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha
2070	 64.00	0	2218570..2219169	-	199	87200096	-	Saro_2080	-	hypothetical protein
2071	 64.66	0	2219246..2220193	-	315	87200097	-	Saro_2081	-	glutathione synthetase
2072	 64.25	0	2220307..2220513	+	68	87200098	-	Saro_2082	-	hypothetical protein
2073	 72.38	+2	2220539..2220853	-	104	87200099	-	Saro_2083	-	hypothetical protein
2074	 68.22	0	2220892..2221728	-	278	87200100	-	Saro_2084	-	hypothetical protein
2075	 69.19	+1	2221892..2222962	+	356	87200101	-	Saro_2085	-	extracellular ligand-binding receptor
2076	 66.02	0	2223045..2225045	+	666	87200102	-	Saro_2086	-	DNA topoisomerase IV subunit B
2077	 53.95	-2	2225196..2225486	-	96	87200103	-	Saro_2087	-	plasmid stabilization system protein
2078	 62.40	0	2225476..2225733	-	85	87200104	-	Saro_2088	-	transcriptional regulator
65.30	MEAN

3.21	STD DEV
