IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

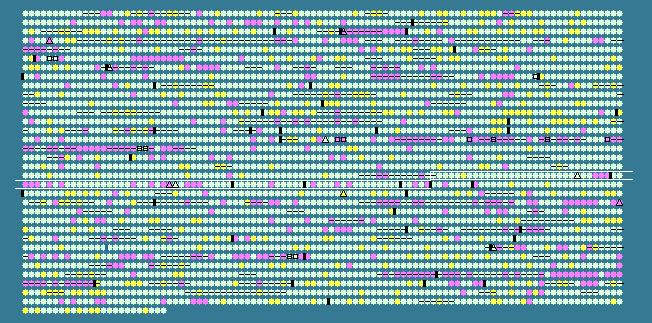

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1869	 68.48	0	1979797..1981896	+	699	87199895	-	Saro_1878	-	glycoside hydrolase, clan GH-D
1870	 65.52	0	1981934..1983067	+	377	87199896	-	Saro_1879	-	levansucrase
1871	 66.09	0	1983088..1984122	-	344	87199897	-	Saro_1880	-	LacI family transcription regulator
1872	 62.85	0	1984386..1986902	+	838	87199898	-	Saro_1881	-	TonB-dependent receptor
1873	 64.14	0	1987056..1988561	+	501	87199899	-	Saro_1882	-	tryptophan halogenase
1874	 69.07	+1	1988558..1989931	+	457	87199900	-	Saro_1883	-	TPR repeat-containing protein
1875	 66.89	0	1989933..1991255	+	440	87199901	-	Saro_1884	-	glycoside hydrolase family protein
1876	 67.11	0	1991234..1992139	-	301	87199902	-	Saro_1885	-	fructokinase
1877	 66.00	0	1992136..1993641	-	501	87199903	-	Saro_1886	-	major facilitator transporter
1878	 66.09	0	1993798..1994832	-	344	87199904	-	Saro_1887	-	LacI family transcription regulator
1879	 64.13	0	1995165..1997885	+	906	87199905	-	Saro_1888	-	TonB-dependent receptor
1880	 63.89	0	1998001..1999515	+	504	87199906	-	Saro_1889	-	tryptophan halogenase
1881	 63.93	0	1999508..2001337	+	609	87199907	-	Saro_1890	-	alpha amylase, catalytic region
1882	 63.85	0	2001334..2002968	+	544	87199908	-	Saro_1891	-	alpha amylase, catalytic region
1883	 63.88	0	2002968..2005016	+	682	87199909	-	Saro_1892	-	alpha-glucosidase
1884	 64.39	0	2005196..2006644	+	482	87199910	-	Saro_1893	-	glucose-6-phosphate 1-dehydrogenase
1885	 64.91	0	2006637..2007263	+	208	87199911	-	Saro_1894	-	6-phosphogluconolactonase
1886	 65.62	0	2007263..2009083	+	606	87199912	-	Saro_1895	-	phosphogluconate dehydratase
1887	 66.15	0	2009128..2010096	+	322	87199913	-	Saro_1896	-	glucokinase
1888	 65.52	0	2010219..2011001	+	260	87199914	-	Saro_1897	-	enoyl-CoA hydratase
1889	 65.78	0	2011040..2011489	+	149	87199915	-	Saro_1898	-	hypothetical protein
1890	 66.31	0	2011490..2012599	-	369	87199916	-	Saro_1899	-	3-dehydroquinate synthase
1891	 63.29	0	2012590..2013240	-	216	87199917	-	Saro_1900	-	shikimate kinase
1892	 65.61	0	2013392..2015284	+	630	87199918	-	Saro_1901	-	hypothetical protein
1893	 66.44	0	2015288..2016169	+	293	87199919	-	Saro_1902	-	phage integrase
1894	 63.30	0	2016196..2017146	+	316	87199920	-	Saro_1903	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
1895	 64.30	0	2017265..2018746	+	493	87199921	-	Saro_1904	-	peptidase M48, Ste24p
1896	 60.00	-1	2018861..2019040	-	59	87199922	-	Saro_1905	-	Flp/Fap pilin component
1897	 50.79	-2	2019139..2019327	-	62	87199923	-	Saro_1906	-	hypothetical protein
1898	 59.78	-1	2019395..2019844	+	149	87199924	-	Saro_1907	-	NUDIX hydrolase
1899	 62.22	0	2020312..2021457	+	381	87199925	-	Saro_1908	-	pyruvate dehydrogenase (lipoamide)
1900	 62.19	0	2021459..2022844	+	461	87199926	-	Saro_1909	-	pyruvate dehydrogenase subunit beta
1901	 59.81	-1	2023108..2023530	-	140	87199927	-	Saro_1910	-	TadE-like
1902	 59.96	-1	2023527..2023988	-	153	87199928	-	Saro_1911	-	TadE-like
1903	 59.63	-1	2023985..2025292	-	435	87199929	-	Saro_1912	-	hypothetical protein
1904	 65.82	0	2025430..2026017	+	195	87199930	-	Saro_1913	-	hypothetical protein
1905	 61.78	-1	2026101..2026571	+	156	87199931	-	Saro_1914	-	hypothetical protein
1906	 63.75	0	2026593..2027963	-	456	87199932	-	Saro_1915	-	tRNA (uracil-5-)-methyltransferase Gid
1907	 61.82	-1	2028031..2028711	+	226	87199933	-	Saro_1916	-	YhhN-like
1908	 62.71	0	2028689..2029042	-	117	87199934	-	Saro_1917	-	hypothetical protein
1909	 65.20	0	2029039..2031765	-	908	87199935	-	Saro_1918	-	DNA gyrase subunit A
1910	 64.59	0	2032081..2033382	+	433	87199936	-	Saro_1919	-	hypothetical protein
1911	 64.59	0	2033469..2034143	-	224	87199937	-	Saro_1920	-	carbonate dehydratase
1912	 63.99	0	2034189..2035121	+	310	87199938	-	Saro_1921	-	lipoyl synthase
1913	 64.50	0	2035124..2035585	+	153	87199939	-	Saro_1922	-	cyclase/dehydrase
1914	 63.89	0	2035546..2036049	-	167	87199940	-	Saro_1923	-	CinA-like
1915	 64.39	0	2036054..2036623	-	189	87199941	-	Saro_1924	-	hypothetical protein
1916	 64.60	0	2036643..2037803	-	386	87199942	ispDF	Saro_1925	-	bifunctional 2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase/2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase protein
1917	 63.83	0	2037905..2038960	+	351	87199943	-	Saro_1926	-	dihydrouridine synthase TIM-barrel protein nifR3
1918	 63.81	0	2038957..2040078	+	373	87199944	-	Saro_1927	-	signal transduction histidine kinase, nitrogen specific, NtrB
1919	 60.95	-1	2040075..2041508	+	477	87199945	-	Saro_1928	-	two component, sigma54 specific, Fis family transcriptional regulator
1920	 63.17	0	2041595..2043823	+	742	87199946	-	Saro_1929	-	periplasmic sensor signal transduction histidine kinase
1921	 63.85	0	2043837..2045222	+	461	87199947	-	Saro_1930	-	two component, sigma54 specific, Fis family transcriptional regulator
1922	 60.31	-1	2045402..2045983	+	193	87199948	hfq	Saro_1931	-	RNA-binding protein Hfq
1923	 63.39	0	2046049..2047329	+	426	87199949	-	Saro_1932	-	small GTP-binding protein domain-containing protein
1924	 61.70	-1	2047316..2048140	-	274	87199950	-	Saro_1933	-	MazG family protein
1925	 61.78	-1	2048323..2049489	+	388	87199951	-	Saro_1934	-	phage integrase
1926	 62.87	0	2049480..2051612	+	710	87199952	-	Saro_1935	-	phage integrase
1927	 63.54	0	2051609..2052088	+	159	87199953	-	Saro_1936	-	hypothetical protein
1928	 61.46	-1	2052456..2053223	-	255	87199954	-	Saro_1937	-	beta-lactamase-like
1929	 61.03	-1	2053220..2053999	-	259	87199955	-	Saro_1938	-	TatD-related deoxyribonuclease
1930	 58.75	-2	2053996..2055561	-	521	87199956	-	Saro_1939	-	methionyl-tRNA synthetase
1931	 66.46	0	2055596..2056552	-	318	87199957	-	Saro_1940	-	DNA polymerase III, delta prime subunit
1932	 67.14	0	2056549..2057178	-	209	87199958	-	Saro_1941	-	thymidylate kinase
1933	 63.10	0	2057175..2058350	-	391	87199959	-	Saro_1942	-	Serine-type D-Ala-D-Ala carboxypeptidase
1934	 66.01	0	2058390..2059301	-	303	87199960	-	Saro_1943	-	sporulation related protein
1935	 63.33	0	2059285..2060304	-	339	87199961	-	Saro_1944	-	lytic murein transglycosylase
1936	 62.35	0	2060883..2062295	-	470	87199962	-	Saro_1945	-	dihydrolipoamide dehydrogenase
1937	 64.80	0	2062376..2063659	-	427	87199963	-	Saro_1946	-	dihydrolipoamide acetyltransferase, long form
1938	 65.58	0	2063832..2064290	+	152	87199964	-	Saro_1947	-	hypothetical protein
1939	 64.91	0	2064303..2066582	-	759	87199965	-	Saro_1948	-	ribonuclease R
1940	 65.00	0	2066623..2067942	-	439	87199966	-	Saro_1949	-	peptidase M28
1941	 63.50	0	2068026..2069573	-	515	87199967	-	Saro_1950	-	prolyl-tRNA synthetase
1942	 59.65	-1	2069644..2070213	-	189	87199968	-	Saro_1951	-	polyhydroxyalkanoate synthesis repressor PhaR
1943	 64.80	0	2070281..2071351	-	356	87199969	-	Saro_1952	-	alanine racemase
1944	 62.63	0	2071344..2072978	-	544	87199970	-	Saro_1953	-	general substrate transporter
1945	 66.90	0	2073050..2073481	-	143	87199971	-	Saro_1954	-	hypothetical protein
1946	 63.06	0	2073483..2074037	-	184	87199972	-	Saro_1955	-	colicin V production protein
1947	 65.06	0	2074050..2075417	-	455	87199973	-	Saro_1956	-	DNA repair protein RadA
1948	 65.94	0	2075694..2076518	-	274	87199974	-	Saro_1957	-	inositol-1(or 4)-monophosphatase
1949	 60.46	-1	2076522..2077085	-	187	87199975	-	Saro_1958	-	elongation factor P
1950	 63.85	0	2077196..2077585	+	129	87199976	-	Saro_1959	-	hypothetical protein
1951	 63.59	0	2077582..2079534	-	650	87199977	-	Saro_1960	-	oligopeptide transporter OPT
1952	 63.95	0	2079602..2080741	-	379	87199978	-	Saro_1961	-	ErfK/YbiS/YcfS/YnhG
1953	 61.53	-1	2080800..2081441	-	213	87199979	-	Saro_1962	-	thiamine-phosphate pyrophosphorylase
1954	 62.30	0	2081521..2081886	+	121	87199980	-	Saro_1963	-	hypothetical protein
1955	 61.70	-1	2081972..2082877	-	301	87199981	-	Saro_1964	-	fructose-1,6-bisphosphate aldolase
1956	 64.14	0	2083063..2084250	-	395	87199982	pgk	Saro_1965	-	phosphoglycerate kinase
1957	 65.39	0	2084247..2084717	-	156	87199983	-	Saro_1966	-	hypothetical protein
1958	 62.50	0	2084730..2085737	-	335	87199984	-	Saro_1967	-	glyceraldehyde-3-phosphate dehydrogenase
1959	 63.97	0	2085758..2087725	-	655	87199985	-	Saro_1968	-	transketolase
1960	 62.62	0	2087722..2088042	-	106	87199986	-	Saro_1969	-	hypothetical protein
1961	 63.42	0	2088167..2088505	+	112	87199987	-	Saro_1970	-	hypothetical protein
1962	 66.16	0	2088711..2089298	+	195	87199988	-	Saro_1971	-	5-formyltetrahydrofolate cyclo-ligase
1963	 64.38	0	2089295..2089513	+	72	87199989	-	Saro_1972	-	hypothetical protein
1964	 63.35	0	2090151..2090723	-	190	87199990	-	Saro_1973	-	hypothetical protein
1965	 65.18	0	2090753..2092093	-	446	87199991	-	Saro_1974	-	branched-chain alpha-keto acid dehydrogenase subunit E2
1966	 61.36	-1	2092097..2093152	-	351	87199992	-	Saro_1975	-	branched-chain alpha-keto acid dehydrogenase E1 component
1967	 64.08	0	2093149..2094423	-	424	87199993	-	Saro_1976	-	branched-chain alpha-keto acid dehydrogenase E1 component
1968	 61.72	-1	2094575..2095525	-	316	87199994	-	Saro_1977	-	thymidylate synthase
65.30	MEAN

3.21	STD DEV
