IslandPathversion 1.0

IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

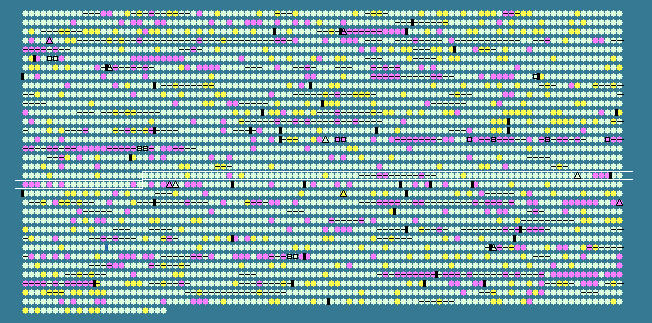

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1821	 62.75	0	1930793..1931098	-	101	87199847	-	Saro_1830	-	PhnA protein
1822	 66.53	0	1931151..1931903	-	250	87199848	-	Saro_1831	-	hypothetical protein
1823	 66.67	0	1931908..1932312	-	134	87199849	-	Saro_1832	-	hypothetical protein
1824	 65.75	0	1932309..1932746	-	145	87199850	-	Saro_1833	-	hypothetical protein
1825	 65.15	0	1932781..1933176	-	131	87199851	-	Saro_1834	-	hypothetical protein
1826	 67.62	0	1933469..1934308	-	279	87199852	dapD	Saro_1835	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
1827	 62.61	0	1934355..1935044	-	229	87199853	-	Saro_1836	-	pyrimidine 5-nucleotidase
1828	 70.00	+1	1935151..1937463	+	770	87199854	-	Saro_1837	-	peptidase S8 and S53, subtilisin, kexin, sedolisin
1829	 67.46	0	1937510..1938643	-	377	87199855	-	Saro_1838	-	glucose sorbosone dehydrogenase
1830	 68.36	0	1938693..1939283	+	196	87199856	-	Saro_1839	-	ribonuclease H
1831	 63.08	0	1939534..1940676	+	380	87199857	-	Saro_1840	-	DNA methylase N-4/N-6
1832	 67.84	0	1940747..1941853	+	368	87199858	-	Saro_1841	-	dihydropteroate synthase
1833	 67.86	0	1941856..1943274	-	472	87199859	-	Saro_1842	-	two component, sigma54 specific, Fis family transcriptional regulator
1834	 65.07	0	1943572..1944699	+	375	87199860	-	Saro_1843	-	alanine dehydrogenase/PNT-like
1835	 60.35	-1	1944711..1944995	+	94	87199861	-	Saro_1844	-	putative NAD(P) transhydrogenase subunit alpha PART 2 transmembrane protein
1836	 64.54	0	1944995..1946407	+	470	87199862	-	Saro_1845	-	NAD(P) transhydrogenase, beta subunit
1837	 68.79	+1	1946407..1946736	+	109	87199863	-	Saro_1846	-	hypothetical protein
1838	 64.21	0	1946888..1947580	+	230	87199864	-	Saro_1847	-	aspartate racemase
1839	 66.92	0	1947716..1948885	+	389	87199865	-	Saro_1848	-	deoxyguanosinetriphosphate triphosphohydrolase
1840	 68.55	+1	1948878..1949567	+	229	87199866	-	Saro_1849	-	NAD-dependent epimerase/dehydratase
1841	 67.44	0	1949880..1951046	+	388	87199867	-	Saro_1850	-	glycine cleavage system aminomethyltransferase T
1842	 64.52	0	1951046..1951417	+	123	87199868	-	Saro_1851	-	glycine cleavage system protein H
1843	 67.03	0	1951422..1952780	+	452	87199869	-	Saro_1852	-	glycine dehydrogenase subunit 1
1844	 67.44	0	1952777..1954336	+	519	87199870	-	Saro_1853	-	glycine dehydrogenase subunit 2
1845	 65.25	0	1954635..1955552	-	305	87199871	-	Saro_1854	-	hypothetical protein
1846	 65.10	0	1955559..1955813	+	84	87199872	-	Saro_1855	-	hypothetical protein
1847	 64.24	0	1955826..1957391	-	521	87199873	-	Saro_1856	-	type II secretion system protein E
1848	 65.56	0	1957674..1958576	+	300	87199874	-	Saro_1857	-	hypothetical protein
1849	 67.26	0	1958674..1959516	-	280	87199875	-	Saro_1858	-	haloacid dehalogenase-like hydrolase
1850	 66.67	0	1959513..1960985	-	490	87199876	-	Saro_1859	-	pyruvate carboxyltransferase
1851	 68.99	+1	1960982..1962316	-	444	87199877	-	Saro_1860	-	carbamoyl-phosphate synthase L chain, ATP-binding
1852	 66.67	0	1962318..1962761	-	147	87199878	-	Saro_1861	-	biotin carboxyl carrier protein
1853	 66.91	0	1962769..1963989	-	406	87199879	-	Saro_1862	-	hypothetical protein
1854	 67.42	0	1964115..1964915	+	266	87199880	-	Saro_1863	-	IclR family transcriptional regulator
1855	 66.96	0	1964998..1966011	+	337	87199881	-	Saro_1864	-	alcohol dehydrogenase
1856	 66.12	0	1966070..1966615	+	181	87199882	-	Saro_1865	-	hypothetical protein
1857	 66.43	0	1966737..1968014	+	425	87199883	-	Saro_1866	-	major facilitator transporter
1858	 65.92	0	1968031..1968969	+	312	87199884	-	Saro_1867	-	AraC family transcriptional regulator
1859	 64.48	0	1969087..1971690	+	867	87199885	-	Saro_1868	-	TonB-dependent receptor
1860	 61.80	-1	1971767..1972300	+	177	87199886	-	Saro_1869	-	2,4'-dihydroxyacetophenone dioxygenase
1861	 61.64	-1	1972326..1972862	+	178	87199887	-	Saro_1870	-	2,4'-dihydroxyacetophenone dioxygenase
1862	 64.04	0	1972870..1973403	+	177	87199888	-	Saro_1871	-	hypothetical protein
1863	 66.85	0	1973414..1974484	+	356	87199889	-	Saro_1872	-	Rieske (2Fe-2S) protein
1864	 65.24	0	1974514..1975353	+	279	87199890	-	Saro_1873	-	short-chain dehydrogenase/reductase SDR
1865	 66.47	0	1975363..1976370	+	335	87199891	-	Saro_1874	-	GroES-related
1866	 64.65	0	1976401..1977243	+	280	87199892	-	Saro_1875	-	short-chain dehydrogenase/reductase SDR
1867	 61.57	-1	1977248..1978189	-	313	87199893	-	Saro_1876	-	intradiol ring-cleavage dioxygenase
1868	 63.11	0	1978421..1979797	+	458	87199894	-	Saro_1877	-	major facilitator transporter
1869	 68.48	0	1979797..1981896	+	699	87199895	-	Saro_1878	-	glycoside hydrolase, clan GH-D
1870	 65.52	0	1981934..1983067	+	377	87199896	-	Saro_1879	-	levansucrase
1871	 66.09	0	1983088..1984122	-	344	87199897	-	Saro_1880	-	LacI family transcription regulator
1872	 62.85	0	1984386..1986902	+	838	87199898	-	Saro_1881	-	TonB-dependent receptor
1873	 64.14	0	1987056..1988561	+	501	87199899	-	Saro_1882	-	tryptophan halogenase
1874	 69.07	+1	1988558..1989931	+	457	87199900	-	Saro_1883	-	TPR repeat-containing protein
1875	 66.89	0	1989933..1991255	+	440	87199901	-	Saro_1884	-	glycoside hydrolase family protein
1876	 67.11	0	1991234..1992139	-	301	87199902	-	Saro_1885	-	fructokinase
1877	 66.00	0	1992136..1993641	-	501	87199903	-	Saro_1886	-	major facilitator transporter
1878	 66.09	0	1993798..1994832	-	344	87199904	-	Saro_1887	-	LacI family transcription regulator
1879	 64.13	0	1995165..1997885	+	906	87199905	-	Saro_1888	-	TonB-dependent receptor
1880	 63.89	0	1998001..1999515	+	504	87199906	-	Saro_1889	-	tryptophan halogenase
1881	 63.93	0	1999508..2001337	+	609	87199907	-	Saro_1890	-	alpha amylase, catalytic region
1882	 63.85	0	2001334..2002968	+	544	87199908	-	Saro_1891	-	alpha amylase, catalytic region
1883	 63.88	0	2002968..2005016	+	682	87199909	-	Saro_1892	-	alpha-glucosidase
1884	 64.39	0	2005196..2006644	+	482	87199910	-	Saro_1893	-	glucose-6-phosphate 1-dehydrogenase
1885	 64.91	0	2006637..2007263	+	208	87199911	-	Saro_1894	-	6-phosphogluconolactonase
1886	 65.62	0	2007263..2009083	+	606	87199912	-	Saro_1895	-	phosphogluconate dehydratase
1887	 66.15	0	2009128..2010096	+	322	87199913	-	Saro_1896	-	glucokinase
1888	 65.52	0	2010219..2011001	+	260	87199914	-	Saro_1897	-	enoyl-CoA hydratase
1889	 65.78	0	2011040..2011489	+	149	87199915	-	Saro_1898	-	hypothetical protein
1890	 66.31	0	2011490..2012599	-	369	87199916	-	Saro_1899	-	3-dehydroquinate synthase
1891	 63.29	0	2012590..2013240	-	216	87199917	-	Saro_1900	-	shikimate kinase
1892	 65.61	0	2013392..2015284	+	630	87199918	-	Saro_1901	-	hypothetical protein
1893	 66.44	0	2015288..2016169	+	293	87199919	-	Saro_1902	-	phage integrase
1894	 63.30	0	2016196..2017146	+	316	87199920	-	Saro_1903	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
1895	 64.30	0	2017265..2018746	+	493	87199921	-	Saro_1904	-	peptidase M48, Ste24p
1896	 60.00	-1	2018861..2019040	-	59	87199922	-	Saro_1905	-	Flp/Fap pilin component
1897	 50.79	-2	2019139..2019327	-	62	87199923	-	Saro_1906	-	hypothetical protein
1898	 59.78	-1	2019395..2019844	+	149	87199924	-	Saro_1907	-	NUDIX hydrolase
1899	 62.22	0	2020312..2021457	+	381	87199925	-	Saro_1908	-	pyruvate dehydrogenase (lipoamide)
1900	 62.19	0	2021459..2022844	+	461	87199926	-	Saro_1909	-	pyruvate dehydrogenase subunit beta
1901	 59.81	-1	2023108..2023530	-	140	87199927	-	Saro_1910	-	TadE-like
1902	 59.96	-1	2023527..2023988	-	153	87199928	-	Saro_1911	-	TadE-like
1903	 59.63	-1	2023985..2025292	-	435	87199929	-	Saro_1912	-	hypothetical protein
1904	 65.82	0	2025430..2026017	+	195	87199930	-	Saro_1913	-	hypothetical protein
1905	 61.78	-1	2026101..2026571	+	156	87199931	-	Saro_1914	-	hypothetical protein
1906	 63.75	0	2026593..2027963	-	456	87199932	-	Saro_1915	-	tRNA (uracil-5-)-methyltransferase Gid
1907	 61.82	-1	2028031..2028711	+	226	87199933	-	Saro_1916	-	YhhN-like
1908	 62.71	0	2028689..2029042	-	117	87199934	-	Saro_1917	-	hypothetical protein
1909	 65.20	0	2029039..2031765	-	908	87199935	-	Saro_1918	-	DNA gyrase subunit A
1910	 64.59	0	2032081..2033382	+	433	87199936	-	Saro_1919	-	hypothetical protein
1911	 64.59	0	2033469..2034143	-	224	87199937	-	Saro_1920	-	carbonate dehydratase
1912	 63.99	0	2034189..2035121	+	310	87199938	-	Saro_1921	-	lipoyl synthase
1913	 64.50	0	2035124..2035585	+	153	87199939	-	Saro_1922	-	cyclase/dehydrase
1914	 63.89	0	2035546..2036049	-	167	87199940	-	Saro_1923	-	CinA-like
1915	 64.39	0	2036054..2036623	-	189	87199941	-	Saro_1924	-	hypothetical protein
1916	 64.60	0	2036643..2037803	-	386	87199942	ispDF	Saro_1925	-	bifunctional 2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase/2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase protein
1917	 63.83	0	2037905..2038960	+	351	87199943	-	Saro_1926	-	dihydrouridine synthase TIM-barrel protein nifR3
1918	 63.81	0	2038957..2040078	+	373	87199944	-	Saro_1927	-	signal transduction histidine kinase, nitrogen specific, NtrB
1919	 60.95	-1	2040075..2041508	+	477	87199945	-	Saro_1928	-	two component, sigma54 specific, Fis family transcriptional regulator
1920	 63.17	0	2041595..2043823	+	742	87199946	-	Saro_1929	-	periplasmic sensor signal transduction histidine kinase
65.30	MEAN

3.21	STD DEV
