IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

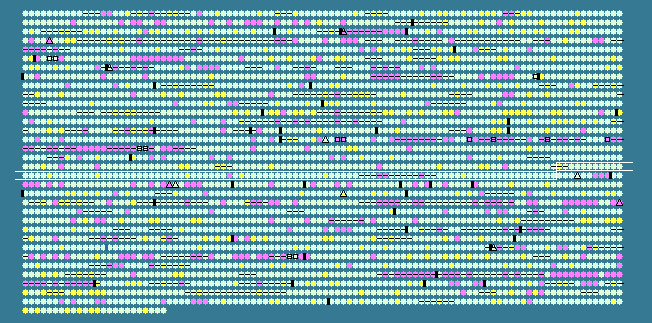

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1790	 70.14	+1	1896831..1897664	-	277	87199816	-	Saro_1799	-	glutamate racemase
1791	 67.85	0	1897735..1898328	+	197	87199817	-	Saro_1800	-	acyl-phosphate glycerol-3-phosphate acyltransferase
1792	 68.44	0	1898325..1899452	+	375	87199818	-	Saro_1801	-	DNA processing protein DprA, putative
1793	 68.04	0	1899458..1899820	+	120	87199819	-	Saro_1802	-	hypothetical protein
1794	 65.00	0	1899884..1902463	+	859	87199820	-	Saro_1803	-	DNA topoisomerase I
1795	 65.36	0	1902515..1904047	-	510	87199821	-	Saro_1804	-	hypothetical protein
1796	 68.20	0	1904223..1905068	-	281	87199822	-	Saro_1805	-	hypothetical protein
1797	 63.53	0	1905065..1905958	-	297	87199823	era	Saro_1806	-	GTP-binding protein Era
1798	 68.12	0	1906007..1906765	-	252	87199824	-	Saro_1807	-	ribonuclease III
1799	 63.43	0	1906678..1907541	-	287	87199825	-	Saro_1808	-	signal peptidase I
1800	 66.73	0	1907699..1909222	+	507	87199826	-	Saro_1809	-	glucose-6-phosphate isomerase
1801	 64.54	0	1909311..1910672	+	453	87199827	-	Saro_1810	-	NADPH-glutathione reductase
1802	 65.56	0	1910740..1911462	+	240	87199828	-	Saro_1811	-	short-chain dehydrogenase/reductase SDR
1803	 63.20	0	1911497..1912246	-	249	87199829	-	Saro_1812	-	oxidoreductase, molybdopterin binding
1804	 62.89	0	1912243..1913142	-	299	87199830	-	Saro_1813	-	cytochrome B561
1805	 68.83	+1	1913169..1914140	-	323	87199831	-	Saro_1814	-	farnesyl-diphosphate farnesyltransferase
1806	 66.49	0	1914145..1914726	-	193	87199832	-	Saro_1815	-	hypothetical protein
1807	 63.35	0	1914723..1916201	-	492	87199833	-	Saro_1816	-	amine oxidase
1808	 68.09	0	1916198..1917394	-	398	87199834	-	Saro_1817	-	lycopene cyclase
1809	 63.99	0	1917490..1918086	+	198	87199835	-	Saro_1818	-	hypothetical protein
1810	 63.18	0	1918216..1919733	+	505	87199836	-	Saro_1819	-	flavin-containing monooxygenase FMO
1811	 63.59	0	1919909..1921273	-	454	87199837	-	Saro_1820	-	dimethylaniline monooxygenase (N-oxide forming)
1812	 66.02	0	1921284..1922516	-	410	87199838	-	Saro_1821	-	cytochrome P450
1813	 68.93	+1	1922605..1923888	-	427	87199839	-	Saro_1822	-	hypothetical protein
1814	 65.66	0	1923888..1925978	-	696	87199840	-	Saro_1823	-	TonB-dependent siderophore receptor
1815	 63.85	0	1926312..1928192	+	626	87199841	-	Saro_1824	-	thiamine biosynthesis protein ThiC
1816	 63.73	0	1928289..1928696	+	135	87199842	-	Saro_1825	-	glutathione-dependent formaldehyde-activating, GFA
1817	 65.40	0	1928742..1929137	+	131	87199843	-	Saro_1826	-	hypothetical protein
1818	 62.88	0	1929205..1929600	+	131	87199844	-	Saro_1827	-	hypothetical protein
1819	 64.40	0	1929593..1930033	-	146	87199845	-	Saro_1828	-	hypothetical protein
1820	 65.00	0	1930221..1930520	-	99	87199846	-	Saro_1829	-	hypothetical protein
1821	 62.75	0	1930793..1931098	-	101	87199847	-	Saro_1830	-	PhnA protein
1822	 66.53	0	1931151..1931903	-	250	87199848	-	Saro_1831	-	hypothetical protein
1823	 66.67	0	1931908..1932312	-	134	87199849	-	Saro_1832	-	hypothetical protein
1824	 65.75	0	1932309..1932746	-	145	87199850	-	Saro_1833	-	hypothetical protein
1825	 65.15	0	1932781..1933176	-	131	87199851	-	Saro_1834	-	hypothetical protein
1826	 67.62	0	1933469..1934308	-	279	87199852	dapD	Saro_1835	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
1827	 62.61	0	1934355..1935044	-	229	87199853	-	Saro_1836	-	pyrimidine 5-nucleotidase
1828	 70.00	+1	1935151..1937463	+	770	87199854	-	Saro_1837	-	peptidase S8 and S53, subtilisin, kexin, sedolisin
1829	 67.46	0	1937510..1938643	-	377	87199855	-	Saro_1838	-	glucose sorbosone dehydrogenase
1830	 68.36	0	1938693..1939283	+	196	87199856	-	Saro_1839	-	ribonuclease H
1831	 63.08	0	1939534..1940676	+	380	87199857	-	Saro_1840	-	DNA methylase N-4/N-6
1832	 67.84	0	1940747..1941853	+	368	87199858	-	Saro_1841	-	dihydropteroate synthase
1833	 67.86	0	1941856..1943274	-	472	87199859	-	Saro_1842	-	two component, sigma54 specific, Fis family transcriptional regulator
1834	 65.07	0	1943572..1944699	+	375	87199860	-	Saro_1843	-	alanine dehydrogenase/PNT-like
1835	 60.35	-1	1944711..1944995	+	94	87199861	-	Saro_1844	-	putative NAD(P) transhydrogenase subunit alpha PART 2 transmembrane protein
1836	 64.54	0	1944995..1946407	+	470	87199862	-	Saro_1845	-	NAD(P) transhydrogenase, beta subunit
1837	 68.79	+1	1946407..1946736	+	109	87199863	-	Saro_1846	-	hypothetical protein
1838	 64.21	0	1946888..1947580	+	230	87199864	-	Saro_1847	-	aspartate racemase
1839	 66.92	0	1947716..1948885	+	389	87199865	-	Saro_1848	-	deoxyguanosinetriphosphate triphosphohydrolase
1840	 68.55	+1	1948878..1949567	+	229	87199866	-	Saro_1849	-	NAD-dependent epimerase/dehydratase
1841	 67.44	0	1949880..1951046	+	388	87199867	-	Saro_1850	-	glycine cleavage system aminomethyltransferase T
1842	 64.52	0	1951046..1951417	+	123	87199868	-	Saro_1851	-	glycine cleavage system protein H
1843	 67.03	0	1951422..1952780	+	452	87199869	-	Saro_1852	-	glycine dehydrogenase subunit 1
1844	 67.44	0	1952777..1954336	+	519	87199870	-	Saro_1853	-	glycine dehydrogenase subunit 2
1845	 65.25	0	1954635..1955552	-	305	87199871	-	Saro_1854	-	hypothetical protein
1846	 65.10	0	1955559..1955813	+	84	87199872	-	Saro_1855	-	hypothetical protein
1847	 64.24	0	1955826..1957391	-	521	87199873	-	Saro_1856	-	type II secretion system protein E
1848	 65.56	0	1957674..1958576	+	300	87199874	-	Saro_1857	-	hypothetical protein
1849	 67.26	0	1958674..1959516	-	280	87199875	-	Saro_1858	-	haloacid dehalogenase-like hydrolase
1850	 66.67	0	1959513..1960985	-	490	87199876	-	Saro_1859	-	pyruvate carboxyltransferase
1851	 68.99	+1	1960982..1962316	-	444	87199877	-	Saro_1860	-	carbamoyl-phosphate synthase L chain, ATP-binding
1852	 66.67	0	1962318..1962761	-	147	87199878	-	Saro_1861	-	biotin carboxyl carrier protein
1853	 66.91	0	1962769..1963989	-	406	87199879	-	Saro_1862	-	hypothetical protein
1854	 67.42	0	1964115..1964915	+	266	87199880	-	Saro_1863	-	IclR family transcriptional regulator
1855	 66.96	0	1964998..1966011	+	337	87199881	-	Saro_1864	-	alcohol dehydrogenase
1856	 66.12	0	1966070..1966615	+	181	87199882	-	Saro_1865	-	hypothetical protein
1857	 66.43	0	1966737..1968014	+	425	87199883	-	Saro_1866	-	major facilitator transporter
1858	 65.92	0	1968031..1968969	+	312	87199884	-	Saro_1867	-	AraC family transcriptional regulator
1859	 64.48	0	1969087..1971690	+	867	87199885	-	Saro_1868	-	TonB-dependent receptor
1860	 61.80	-1	1971767..1972300	+	177	87199886	-	Saro_1869	-	2,4'-dihydroxyacetophenone dioxygenase
1861	 61.64	-1	1972326..1972862	+	178	87199887	-	Saro_1870	-	2,4'-dihydroxyacetophenone dioxygenase
1862	 64.04	0	1972870..1973403	+	177	87199888	-	Saro_1871	-	hypothetical protein
1863	 66.85	0	1973414..1974484	+	356	87199889	-	Saro_1872	-	Rieske (2Fe-2S) protein
1864	 65.24	0	1974514..1975353	+	279	87199890	-	Saro_1873	-	short-chain dehydrogenase/reductase SDR
1865	 66.47	0	1975363..1976370	+	335	87199891	-	Saro_1874	-	GroES-related
1866	 64.65	0	1976401..1977243	+	280	87199892	-	Saro_1875	-	short-chain dehydrogenase/reductase SDR
1867	 61.57	-1	1977248..1978189	-	313	87199893	-	Saro_1876	-	intradiol ring-cleavage dioxygenase
1868	 63.11	0	1978421..1979797	+	458	87199894	-	Saro_1877	-	major facilitator transporter
1869	 68.48	0	1979797..1981896	+	699	87199895	-	Saro_1878	-	glycoside hydrolase, clan GH-D
1870	 65.52	0	1981934..1983067	+	377	87199896	-	Saro_1879	-	levansucrase
1871	 66.09	0	1983088..1984122	-	344	87199897	-	Saro_1880	-	LacI family transcription regulator
1872	 62.85	0	1984386..1986902	+	838	87199898	-	Saro_1881	-	TonB-dependent receptor
1873	 64.14	0	1987056..1988561	+	501	87199899	-	Saro_1882	-	tryptophan halogenase
1874	 69.07	+1	1988558..1989931	+	457	87199900	-	Saro_1883	-	TPR repeat-containing protein
1875	 66.89	0	1989933..1991255	+	440	87199901	-	Saro_1884	-	glycoside hydrolase family protein
1876	 67.11	0	1991234..1992139	-	301	87199902	-	Saro_1885	-	fructokinase
1877	 66.00	0	1992136..1993641	-	501	87199903	-	Saro_1886	-	major facilitator transporter
1878	 66.09	0	1993798..1994832	-	344	87199904	-	Saro_1887	-	LacI family transcription regulator
1879	 64.13	0	1995165..1997885	+	906	87199905	-	Saro_1888	-	TonB-dependent receptor
1880	 63.89	0	1998001..1999515	+	504	87199906	-	Saro_1889	-	tryptophan halogenase
1881	 63.93	0	1999508..2001337	+	609	87199907	-	Saro_1890	-	alpha amylase, catalytic region
1882	 63.85	0	2001334..2002968	+	544	87199908	-	Saro_1891	-	alpha amylase, catalytic region
1883	 63.88	0	2002968..2005016	+	682	87199909	-	Saro_1892	-	alpha-glucosidase
1884	 64.39	0	2005196..2006644	+	482	87199910	-	Saro_1893	-	glucose-6-phosphate 1-dehydrogenase
1885	 64.91	0	2006637..2007263	+	208	87199911	-	Saro_1894	-	6-phosphogluconolactonase
1886	 65.62	0	2007263..2009083	+	606	87199912	-	Saro_1895	-	phosphogluconate dehydratase
1887	 66.15	0	2009128..2010096	+	322	87199913	-	Saro_1896	-	glucokinase
1888	 65.52	0	2010219..2011001	+	260	87199914	-	Saro_1897	-	enoyl-CoA hydratase
1889	 65.78	0	2011040..2011489	+	149	87199915	-	Saro_1898	-	hypothetical protein
65.30	MEAN

3.21	STD DEV
