IslandPathversion 1.0

IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

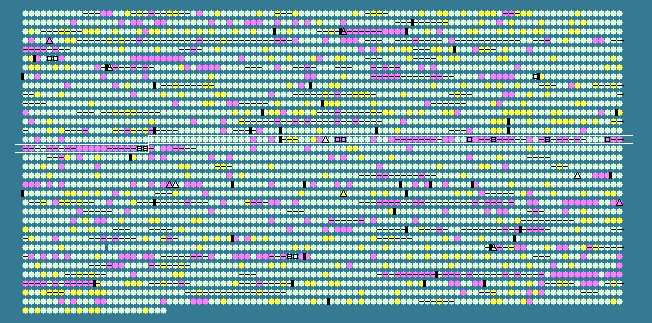

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1422	 65.71	0	1468791..1469726	+	311	87199448	-	Saro_1427	-	[Acyl-carrier-protein] S-malonyltransferase
1423	 65.62	0	1469732..1470496	+	254	87199449	-	Saro_1428	-	3-oxoacyl-[acyl-carrier-protein] reductase
1424	 62.77	0	1470682..1471809	+	375	87199450	-	Saro_1429	-	DNA polymerase III subunit beta
1425	 63.55	0	1471981..1473426	+	481	87199451	-	Saro_1430	-	methyl-accepting chemotaxis sensory transducer
1426	 64.69	0	1473435..1474448	-	337	87199452	-	Saro_1431	-	alcohol dehydrogenase
1427	 63.87	0	1474448..1476196	-	582	87199453	-	Saro_1432	-	hypothetical protein
1428	 64.60	0	1476300..1477604	-	434	87199454	-	Saro_1433	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1429	 63.74	0	1477676..1478461	-	261	87199455	-	Saro_1434	-	alpha/beta hydrolase
1430	 63.58	0	1478581..1481271	+	896	87199456	-	Saro_1435	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
1431	 62.87	0	1481281..1482570	-	429	87199457	-	Saro_1436	-	hypothetical protein
1432	 62.05	-1	1482804..1483475	+	223	87199458	-	Saro_1437	-	hypothetical protein
1433	 66.27	0	1483542..1484039	-	165	87199459	-	Saro_1438	-	hypothetical protein
1434	 62.05	-1	1484036..1484230	-	64	87199460	-	Saro_1439	-	hypothetical protein
1435	 63.49	0	1484230..1484859	-	209	87199461	-	Saro_1440	-	phosphoglycerate/bisphosphoglycerate mutase
1436	 64.48	0	1484877..1485425	-	182	87199462	-	Saro_1441	-	GreA/GreB family elongation factor
1437	 65.92	0	1485464..1487482	-	672	87199463	-	Saro_1442	-	lytic transglycosylase, catalytic
1438	 63.97	0	1487581..1488471	+	296	87199464	-	Saro_1443	-	dihydrodipicolinate synthase
1439	 58.18	-2	1488542..1489024	+	160	87199465	smpB	Saro_1444	-	SsrA-binding protein
1440	 65.95	0	1489133..1489693	+	186	87199466	-	Saro_1445	-	hypothetical protein
1441	 63.42	0	1489693..1492128	+	811	87199467	-	Saro_1446	-	multi-sensor hybrid histidine kinase
1442	 61.11	-1	1492505..1492810	-	101	87199468	-	Saro_1447	-	hypothetical protein
1443	 62.34	0	1492815..1493807	-	330	87199469	-	Saro_1448	-	peptidyl-prolyl cis-trans isomerase
1444	 67.50	0	1494442..1496010	-	522	87199470	-	Saro_1449	-	resolvase-like protein
1445	 68.80	+1	1496007..1496474	-	155	87199471	-	Saro_1450	-	hypothetical protein
1446	 70.07	+1	1496474..1496884	-	136	87199472	-	Saro_1451	-	hypothetical protein
1447	 66.82	0	1497036..1498343	+	435	87199473	-	Saro_1452	-	DNA methylase N-4/N-6
1448	 64.78	0	1498340..1498870	+	176	87199474	-	Saro_1453	-	hypothetical protein
1449	 69.71	+1	1498867..1499457	+	196	87199475	-	Saro_1454	-	hypothetical protein
1450	 56.50	-2	1499809..1500054	+	81	87199476	-	Saro_1456	-	hypothetical protein
1451	 64.72	0	1500172..1501404	+	410	87199477	-	Saro_1457	-	integrase
1452	 64.57	0	1501401..1502258	+	285	87199478	-	Saro_1458	-	IstB-like ATP-binding protein
1453	 60.33	-1	1502365..1502853	+	162	87199479	-	Saro_1459	-	IS6 family transposase
1454	 60.68	-1	1502832..1503332	+	166	87199480	-	Saro_1460	-	transposase
1455	 64.69	0	1503407..1503913	-	168	87199481	-	Saro_1461	-	hypothetical protein
1456	 67.63	0	1503934..1504452	-	172	87199482	-	Saro_1462	-	flavin reductase-like, FMN-binding
1457	 66.41	0	1504449..1505219	-	256	87199483	-	Saro_1463	-	short chain enoyl-CoA hydratase
1458	 66.90	0	1505223..1506062	-	279	87199484	-	Saro_1464	-	enoyl-CoA hydratase/isomerase
1459	 58.89	-1	1506059..1506508	-	149	87199485	-	Saro_1465	-	hypothetical protein
1460	 62.27	0	1506540..1506812	+	90	87199486	-	Saro_1466	-	hypothetical protein
1461	 65.44	0	1506861..1507511	+	216	87199487	-	Saro_1467	-	hypothetical protein
1462	 60.76	-1	1507606..1508706	-	366	87199488	-	Saro_1468	-	luciferase-like
1463	 59.83	-1	1508743..1509897	-	384	87199489	-	Saro_1469	-	luciferase-like
1464	 61.08	-1	1510080..1511672	+	530	87199490	-	Saro_1470	-	AMP-dependent synthetase and ligase
1465	 57.88	-2	1511678..1512337	-	219	87199491	-	Saro_1471	-	TetR family transcriptional regulator
1466	 60.89	-1	1512739..1513257	+	172	87199492	-	Saro_1472	-	hypothetical protein
1467	 59.84	-1	1513254..1514396	+	380	87199493	-	Saro_1473	-	GTP cyclohydrolase II / 3,4-dihydroxy-2-butanone 4-phosphate synthase
1468	 57.05	-2	1514632..1517085	+	817	87199494	-	Saro_1474	-	TonB-dependent receptor
1469	 54.31	-2	1517212..1518012	+	266	87199495	-	Saro_1475	-	short-chain dehydrogenase/reductase SDR
1470	 62.51	0	1518089..1519171	-	360	87199496	-	Saro_1476	-	alcohol dehydrogenase, zinc-containing
1471	 61.71	-1	1519205..1519567	-	120	87199497	-	Saro_1477	-	ferredoxin
1472	 60.93	-1	1519557..1520810	-	417	87199498	-	Saro_1478	-	cytochrome P450
1473	 61.90	-1	1520981..1521694	+	237	87199499	-	Saro_1479	-	MerR family transcriptional regulator
1474	 64.61	0	1521727..1523376	-	549	87199500	-	Saro_1480	-	cyclohexanone monooxygenase
1475	 59.41	-1	1523603..1524319	+	238	87199501	-	Saro_1481	-	transposase
1476	 56.22	-2	1524528..1525274	-	248	87199502	-	Saro_1482	-	XRE family transcriptional regulator
1477	 58.40	-2	1525404..1526213	+	269	87199503	-	Saro_1483	-	phytanoyl-CoA dioxygenase
1478	 56.18	-2	1526248..1526724	+	158	87199504	-	Saro_1484	-	hypothetical protein
1479	 59.27	-1	1526794..1527510	+	238	87199505	-	Saro_1485	-	transposase
1480	 55.37	-2	1527910..1528980	-	356	87199506	-	Saro_1487	-	Rieske (2Fe-2S) protein
1481	 58.71	-2	1529171..1530226	-	351	87199507	-	Saro_1488	-	Rieske (2Fe-2S) protein
1482	 57.64	-2	1530312..1532891	-	859	87199508	-	Saro_1489	-	TonB-dependent receptor
1483	 62.59	0	1532918..1534144	-	408	87199509	-	Saro_1490	-	FAD linked oxidase-like
1484	 62.42	0	1534155..1534484	-	109	87199510	-	Saro_1491	-	cytochrome c, class I
1485	 60.51	-1	1534481..1536040	-	519	87199511	-	Saro_1492	-	vanillyl-alcohol oxidase
1486	 62.14	0	1536037..1536588	-	183	87199512	-	Saro_1493	-	twin-arginine translocation pathway signal
1487	 58.43	-2	1536757..1538481	-	574	87199513	-	Saro_1494	-	Fis family transcriptional regulator
1488	 59.27	-1	1538674..1539390	+	238	87199514	-	Saro_1495	-	transposase
1489	 64.38	0	1539881..1540711	-	276	87199515	-	Saro_1497	-	hypothetical protein
1490	 61.57	-1	1540830..1542164	+	444	87199516	-	Saro_1498	-	di- and tricarboxylate transporters-like
1491	 60.84	-1	1542170..1543456	-	428	87199517	-	Saro_1499	-	osmosensitive K+ channel histidine kinase-like
1492	 62.52	0	1543701..1545002	+	433	87199518	-	Saro_1500	-	Cl- channel, voltage gated
1493	 59.40	-1	1545008..1545943	-	311	87199519	-	Saro_1501	-	LysR family transcriptional regulator
1494	 63.72	0	1546358..1546900	+	180	87199520	-	Saro_1502	-	hypothetical protein
1495	 64.14	0	1547027..1547737	+	236	87199521	-	Saro_1503	-	HAD family hydrolase
1496	 65.15	0	1547734..1549518	+	594	87199522	-	Saro_1504	-	glycoside hydrolase 15-related
1497	 62.01	-1	1549515..1550909	+	464	87199523	-	Saro_1505	-	Alpha,alpha-trehalose-phosphate synthase (UDP-forming)
1498	 60.67	-1	1551018..1551734	+	238	87199524	-	Saro_1506	-	transposase
1499	 59.00	-1	1552191..1552529	+	112	87199525	-	Saro_1507	-	hypothetical protein
1500	 58.45	-2	1552530..1552967	-	145	87199526	-	Saro_1508	-	hypothetical protein
1501	 57.95	-2	1553048..1553437	-	129	87199527	-	Saro_1509	-	hypothetical protein
1502	 60.59	-1	1553514..1554188	-	224	87199528	-	Saro_1510	-	two component transcriptional regulator
1503	 64.93	0	1554185..1555621	-	478	87199529	-	Saro_1511	-	periplasmic sensor signal transduction histidine kinase
1504	 61.89	-1	1555630..1557534	-	634	87199530	-	Saro_1512	-	K+ potassium transporter
1505	 59.10	-1	1557945..1558790	-	281	87199531	-	Saro_1513	-	hypothetical protein
1506	 57.14	-2	1559005..1559424	-	139	87199532	-	Saro_1514	-	hypothetical protein
1507	 62.20	0	1559822..1560604	+	260	87199533	-	Saro_1515	-	Flp pilus assembly CpaB
1508	 60.55	-1	1560594..1562147	+	517	87199534	-	Saro_1516	-	type II and III secretion system protein
1509	 61.46	-1	1562137..1562424	+	95	87199535	-	Saro_1517	-	hypothetical protein
1510	 59.95	-1	1562441..1564003	+	520	87199536	-	Saro_1518	-	hypothetical protein
1511	 61.42	-1	1564000..1564533	+	177	87199537	-	Saro_1519	-	TadE-like
1512	 56.67	-2	1564530..1565159	+	209	87199538	-	Saro_1520	-	TadE-like
1513	 59.40	-1	1565208..1566404	+	398	87199539	-	Saro_1521	-	Flp pilus assembly protein ATPase CpaE-like
1514	 59.33	-1	1566401..1567804	+	467	87199540	-	Saro_1522	-	type II secretion system protein E
1515	 59.37	-1	1567809..1568795	+	328	87199541	-	Saro_1523	-	type II secretion system protein
1516	 58.93	-1	1568798..1569766	+	322	87199542	-	Saro_1524	-	type II secretion system protein
1517	 59.70	-1	1569771..1570430	+	219	87199543	-	Saro_1525	-	TPR repeat-containing protein
1518	 58.23	-2	1570451..1570924	+	157	87199544	-	Saro_1526	-	peptidase A24A, prepilin type IV
1519	 47.80	-2	1570927..1571700	-	257	87199545	-	Saro_1527	-	regulatory proteins, IclR
1520	 62.31	0	1571775..1572164	-	129	87199546	-	Saro_1528	-	IS4 family transposase
1521	 62.93	0	1572185..1572532	-	115	87199547	-	Saro_1529	-	IS5 family transposase
65.30	MEAN

3.21	STD DEV
