IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

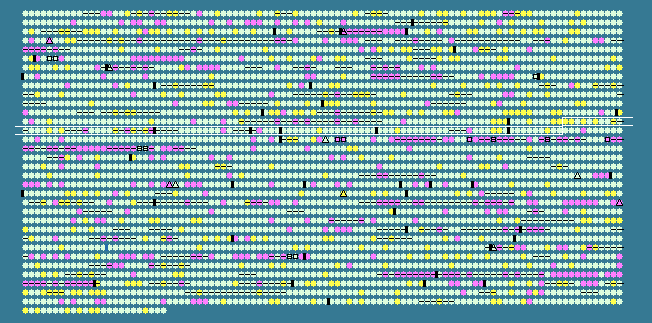

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1291	 71.82	+2	1341179..1341721	-	180	87199317	-	Saro_1296	-	hypothetical protein
1292	 69.50	+1	1341718..1342530	-	270	87199318	-	Saro_1297	-	pseudouridine synthase, Rsu
1293	 66.37	0	1342714..1344042	+	442	87199319	-	Saro_1298	-	major facilitator transporter
1294	 68.96	+1	1344074..1345381	-	435	87199320	-	Saro_1299	-	FolC bifunctional protein
1295	 65.49	0	1345413..1346264	-	283	87199321	-	Saro_1300	-	acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha
1296	 69.41	+1	1346261..1347061	-	266	87199322	trpA	Saro_1301	-	tryptophan synthase subunit alpha
1297	 67.82	0	1347061..1348275	-	404	87199323	-	Saro_1302	-	tryptophan synthase subunit beta
1298	 65.41	0	1348647..1349204	+	185	87199324	-	Saro_1303	-	hypothetical protein
1299	 71.74	+2	1349308..1349997	-	229	87199325	-	Saro_1304	-	phosphoribosylanthranilate isomerase
1300	 68.39	0	1350010..1350765	-	251	87199326	-	Saro_1305	-	hypothetical protein
1301	 67.46	0	1350835..1351338	-	167	87199327	-	Saro_1306	-	GCN5-related N-acetyltransferase
1302	 68.74	+1	1351343..1352017	-	224	87199328	-	Saro_1307	-	orotidine-5'-phosphate decarboxylase
1303	 66.67	0	1352014..1352343	-	109	87199329	-	Saro_1308	-	hypothetical protein
1304	 66.59	0	1352436..1353752	-	438	87199330	-	Saro_1309	-	adenylosuccinate lyase
1305	 69.88	+1	1353867..1355732	-	621	87199331	-	Saro_1310	-	acyltransferase 3
1306	 65.99	0	1356054..1356791	-	245	87199332	-	Saro_1311	-	DNA repair protein RadC
1307	 69.17	+1	1356877..1360107	+	1076	87199333	-	Saro_1312	-	hypothetical protein
1308	 61.84	-1	1360155..1360361	+	68	87199334	-	Saro_1313	-	hypothetical protein
1309	 68.63	+1	1360382..1360789	+	135	87199335	-	Saro_1314	-	hypothetical protein
1310	 62.62	0	1360997..1361317	+	106	87199336	-	Saro_1315	-	putative ATP synthase protein I
1311	 60.54	-1	1361358..1362140	+	260	87199337	-	Saro_1316	-	F0F1 ATP synthase subunit A
1312	 66.67	0	1362189..1362416	+	75	87199338	-	Saro_1317	-	H+-transporting two-sector ATPase, C subunit
1313	 67.88	0	1362491..1362985	+	164	87199339	-	Saro_1318	-	H+-transporting two-sector ATPase, B/B' subunit
1314	 66.67	0	1362978..1363532	+	184	87199340	-	Saro_1319	-	H+-transporting two-sector ATPase, B/B' subunit
1315	 67.64	0	1363722..1364750	-	342	87199341	-	Saro_1320	-	LacI family transcription regulator
1316	 68.89	+1	1364792..1365556	-	254	87199342	-	Saro_1321	-	hydroxyacylglutathione hydrolase
1317	 65.43	0	1365649..1367349	-	566	87199343	rpsA	Saro_1322	-	30S ribosomal protein S1
1318	 48.58	-2	1367634..1368020	-	128	87199344	-	Saro_1323	-	hypothetical protein
1319	 69.22	+1	1368133..1368759	-	208	87199345	-	Saro_1324	-	cytidylate kinase
1320	 62.75	0	1368756..1369010	-	84	87199346	-	Saro_1325	-	putative permease
1321	 70.14	+1	1369010..1370335	-	441	87199347	-	Saro_1326	-	3-phosphoshikimate 1-carboxyvinyltransferase
1322	 61.01	-1	1370546..1370863	+	105	87199348	-	Saro_1327	-	hypothetical protein
1323	 68.32	0	1371271..1371876	+	201	87199349	-	Saro_1328	-	hypothetical protein
1324	 64.54	0	1371876..1372580	+	234	87199350	-	Saro_1329	-	hypothetical protein
1325	 66.03	0	1372662..1373597	-	311	87199351	-	Saro_1330	-	2OG-Fe(II) oxygenase
1326	 63.51	0	1373662..1374105	+	147	87199352	-	Saro_1331	-	hypothetical protein
1327	 66.12	0	1374166..1374348	+	60	87199353	-	Saro_1332	-	CsbD-like
1328	 63.48	0	1374493..1374774	+	93	87199354	-	Saro_1333	-	hypothetical protein
1329	 62.59	0	1374764..1376086	-	440	87199355	-	Saro_1334	-	major facilitator transporter
1330	 62.96	0	1376224..1376817	+	197	87199356	-	Saro_1335	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1331	 68.23	0	1376843..1377739	-	298	87199357	-	Saro_1336	-	LysR family transcriptional regulator
1332	 63.88	0	1377746..1378963	-	405	87199358	-	Saro_1337	-	ribonuclease D
1333	 65.88	0	1379139..1380920	+	593	87199359	aspS	Saro_1338	-	aspartyl-tRNA synthetase
1334	 57.38	-2	1381048..1381284	+	78	87199360	-	Saro_1339	-	acyl carrier protein
1335	 65.16	0	1381416..1382678	+	420	87199361	-	Saro_1340	-	3-oxoacyl-[acyl-carrier-protein] synthase II
1336	 66.67	0	1382689..1383666	+	325	87199362	-	Saro_1341	-	aminodeoxychorismate lyase
1337	 67.90	0	1383792..1384439	+	215	87199363	-	Saro_1342	-	hypothetical protein
1338	 66.28	0	1384468..1385775	+	435	87199364	-	Saro_1343	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
1339	 62.31	0	1386230..1388293	+	687	87199365	-	Saro_1344	-	hypothetical protein
1340	 60.94	-1	1388322..1389089	-	255	87199366	-	Saro_1345	-	abortive infection protein
1341	 67.80	0	1389434..1389961	+	175	87199367	-	Saro_1346	-	(2Fe-2S)-binding protein
1342	 67.27	0	1389958..1392267	+	769	87199368	-	Saro_1347	-	twin-arginine translocation pathway signal
1343	 68.58	+1	1392290..1394167	-	625	87199369	-	Saro_1348	-	ABC transporter related
1344	 64.19	0	1394446..1395456	-	336	87199370	-	Saro_1349	-	hypothetical protein
1345	 68.77	+1	1395459..1397264	-	601	87199371	-	Saro_1350	-	histidine kinase A-like
1346	 61.97	-1	1397513..1397980	+	155	87199372	-	Saro_1351	-	AsnC family transcriptional regulator
1347	 64.26	0	1398014..1398304	-	96	87199373	-	Saro_1352	-	chorismate mutase
1348	 65.58	0	1398395..1399408	+	337	87199374	-	Saro_1353	-	farnesyltranstransferase
1349	 63.13	0	1399440..1400456	+	338	87199375	-	Saro_1354	-	aldo/keto reductase
1350	 70.74	+1	1400714..1403167	+	817	87199376	-	Saro_1355	-	ATP-dependent helicase HrpB
1351	 64.52	0	1403216..1403494	+	92	87199377	-	Saro_1356	-	ETC complex I subunit region
1352	 65.68	0	1403928..1405649	+	573	87199378	-	Saro_1357	-	DNA polymerase III subunits gamma and tau
1353	 63.99	0	1405646..1405981	+	111	87199379	-	Saro_1358	-	hypothetical protein
1354	 64.67	0	1406057..1407109	+	350	87199380	-	Saro_1359	-	VacJ-like lipoprotein
1355	 65.02	0	1407116..1408150	-	344	87199381	-	Saro_1360	-	hypothetical protein
1356	 63.93	0	1408377..1410788	+	803	87199382	-	Saro_1361	-	Lon-A peptidase
1357	 63.74	0	1410990..1411262	+	90	87199383	-	Saro_1362	-	histone-like DNA-binding protein
1358	 65.27	0	1411377..1412237	-	286	87199384	-	Saro_1363	-	hypothetical protein
1359	 68.50	0	1412258..1413073	-	271	87199385	-	Saro_1364	-	RNA methyltransferase TrmH, group 3
1360	 65.64	0	1413395..1414267	+	290	87199386	-	Saro_1365	-	alpha/beta hydrolase
1361	 65.22	0	1414307..1415065	+	252	87199387	-	Saro_1366	-	phosphatidylserine decarboxylase
1362	 66.31	0	1415062..1415904	+	280	87199388	-	Saro_1367	-	CDP-alcohol phosphatidyltransferase
1363	 70.25	+1	1415852..1416130	-	92	87199389	-	Saro_1368	-	hypothetical protein
1364	 65.61	0	1416528..1417283	+	251	87199390	rpsB	Saro_1369	-	30S ribosomal protein S2
1365	 64.62	0	1417409..1418335	+	308	87199391	tsf	Saro_1370	-	elongation factor Ts
1366	 62.99	0	1418481..1419215	+	244	87199392	-	Saro_1371	-	uridylate kinase
1367	 63.08	0	1419217..1419774	+	185	87199393	-	Saro_1372	-	ribosome recycling factor
1368	 64.56	0	1419771..1420481	+	236	87199394	-	Saro_1373	-	undecaprenyl pyrophosphate synthetase
1369	 65.06	0	1420471..1421217	+	248	87199395	-	Saro_1374	-	phosphatidate cytidylyltransferase
1370	 67.53	0	1421222..1422379	+	385	87199396	-	Saro_1375	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1371	 63.01	0	1422393..1423514	+	373	87199397	-	Saro_1376	-	peptidase RseP
1372	 63.39	0	1423743..1426460	+	905	87199398	-	Saro_1377	-	surface antigen (D15)
1373	 65.94	0	1426460..1427143	+	227	87199399	-	Saro_1378	-	hypothetical protein
1374	 64.15	0	1427166..1427642	+	158	87199400	-	Saro_1379	-	3-hydroxyacyl-[acyl-carrier-protein] dehydratase
1375	 61.78	-1	1427743..1427967	+	74	87199401	rpmE	Saro_1380	-	50S ribosomal protein L31
1376	 66.67	0	1428104..1428544	+	146	87199402	-	Saro_1381	-	MarR family transcriptional regulator
1377	 62.89	0	1428555..1429190	-	211	87199403	-	Saro_1382	-	2OG-Fe(II) oxygenase
1378	 68.15	0	1429345..1429749	+	134	87199404	-	Saro_1383	-	general secretion pathway protein H
1379	 70.80	+1	1429739..1430173	+	144	87199405	-	Saro_1384	-	general secretion pathway protein I
1380	 69.51	+1	1430170..1430766	+	198	87199406	-	Saro_1385	-	general secretion pathway protein J
1381	 67.58	0	1430763..1431749	+	328	87199407	-	Saro_1386	-	general secretion pathway protein K
1382	 65.98	0	1432097..1432825	+	242	87199408	-	Saro_1387	-	heme exporter protein CcmC
1383	 65.96	0	1432833..1432973	+	46	87199409	-	Saro_1388	-	hypothetical protein
1384	 64.54	0	1432970..1433440	+	156	87199410	-	Saro_1389	-	cytochrome c-type biogenesis protein CcmE
1385	 66.11	0	1433437..1435404	+	655	87199411	-	Saro_1390	-	cytochrome c assembly protein
1386	 66.67	0	1435401..1435952	+	183	87199412	-	Saro_1391	-	periplasmic protein thiol
1387	 67.35	0	1435949..1436389	+	146	87199413	-	Saro_1392	-	cytochrome C biogenesis protein
1388	 68.81	+1	1436386..1437084	+	232	87199414	-	Saro_1393	-	tetratricopeptide TPR_4
1389	 63.79	0	1437252..1439198	+	648	87199415	-	Saro_1394	-	K+ potassium transporter
1390	 64.92	0	1439353..1440267	+	304	87199416	-	Saro_1395	-	signal transduction histidine kinase
65.30	MEAN

3.21	STD DEV
