IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

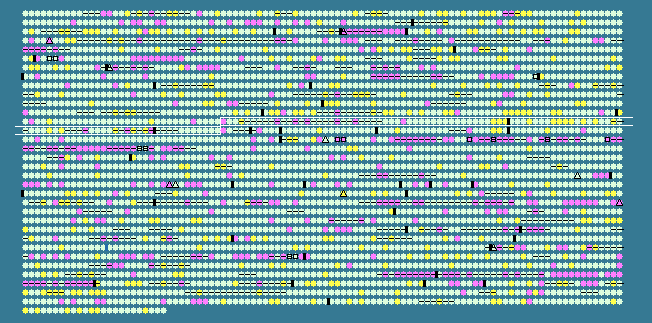

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1234	 60.91	-1	1289802..1290305	+	167	87199260	-	Saro_1238	-	LuxR family transcriptional regulator
1235	 68.07	0	1290408..1290764	+	118	87199261	-	Saro_1239	-	hypothetical protein
1236	 63.09	0	1290802..1291248	+	148	87199262	-	Saro_1240	-	hypothetical protein
1237	 68.98	+1	1291310..1291828	+	172	87199263	-	Saro_1241	-	MarR family transcriptional regulator
1238	 66.67	0	1292770..1293186	+	138	87199264	-	Saro_1243	-	hypothetical protein
1239	 64.78	0	1293513..1293884	+	123	87199265	rpsL	Saro_1244	-	30S ribosomal protein S12
1240	 63.06	0	1293986..1294456	+	156	87199266	-	Saro_1245	-	30S ribosomal protein S7
1241	 62.28	0	1294541..1296613	+	690	87199267	-	Saro_1246	-	elongation factor G
1242	 63.39	0	1296706..1297896	+	396	87199268	-	Saro_1247	-	elongation factor Tu
1243	 61.54	-1	1298066..1298377	+	103	87199269	-	Saro_1248	-	30S ribosomal protein S10
1244	 64.02	0	1298719..1299474	+	251	87199270	rplC	Saro_1249	-	50S ribosomal protein L3
1245	 63.62	0	1299478..1300101	+	207	87199271	rplD	Saro_1250	-	50S ribosomal protein L4
1246	 60.07	-1	1300094..1300396	+	100	87199272	rplW	Saro_1251	-	50S ribosomal protein L23
1247	 64.40	0	1300406..1301242	+	278	87199273	rplB	Saro_1252	-	50S ribosomal protein L2
1248	 61.29	-1	1301249..1301527	+	92	87199274	-	Saro_1253	-	SSU ribosomal protein S19P
1249	 63.76	0	1301527..1301904	+	125	87199275	rplV	Saro_1254	-	50S ribosomal protein L22
1250	 63.65	0	1301907..1302602	+	231	87199276	rpsC	Saro_1255	-	30S ribosomal protein S3
1251	 67.13	0	1302625..1303059	+	144	87199277	rplP	Saro_1256	-	50S ribosomal protein L16
1252	 61.84	-1	1303070..1303276	+	68	87199278	-	Saro_1257	-	50S ribosomal protein L29
1253	 61.48	-1	1303287..1303556	+	89	87199279	-	Saro_1258	-	SSU ribosomal protein S17P
1254	 63.69	0	1303671..1304039	+	122	87199280	rplN	Saro_1259	-	50S ribosomal protein L14
1255	 64.47	0	1304039..1304356	+	105	87199281	rplX	Saro_1260	-	50S ribosomal protein L24
1256	 60.48	-1	1304349..1304930	+	193	87199282	rplE	Saro_1261	-	50S ribosomal protein L5
1257	 62.42	0	1304959..1305264	+	101	87199283	rpsN	Saro_1262	-	30S ribosomal protein S14
1258	 64.90	0	1305275..1305670	+	131	87199284	rpsH	Saro_1263	-	30S ribosomal protein S8
1259	 62.92	0	1305670..1306203	+	177	87199285	rplF	Saro_1264	-	50S ribosomal protein L6
1260	 68.09	0	1306203..1306553	+	116	87199286	rplR	Saro_1265	-	50S ribosomal protein L18
1261	 67.23	0	1306556..1307269	+	237	87199287	rpsE	Saro_1266	-	30S ribosomal protein S5
1262	 63.28	0	1307276..1307452	+	58	87199288	rpmD	Saro_1267	-	50S ribosomal protein L30
1263	 65.31	0	1307618..1308133	+	171	161760695	rplO	Saro_1268	-	50S ribosomal protein L15
1264	 61.77	-1	1308286..1309653	+	455	87199290	secY	Saro_1269	-	preprotein translocase subunit SecY
1265	 67.28	0	1309682..1310332	+	216	87199291	-	Saro_1270	-	adenylate kinase
1266	 65.58	0	1310380..1311117	+	245	87199292	-	Saro_1271	-	hypothetical protein
1267	 62.46	0	1311265..1312620	+	451	87199293	-	Saro_1272	-	glutamate dehydrogenase
1268	 66.67	0	1312675..1313022	-	115	87199294	-	Saro_1273	-	hypothetical protein
1269	 61.85	-1	1313066..1313875	-	269	87199295	-	Saro_1274	-	response regulator receiver domain-containing protein
1270	 63.68	0	1314279..1315349	+	356	87199296	recA	Saro_1275	-	recombinase A
1271	 64.43	0	1315537..1316163	+	208	87199297	-	Saro_1276	-	glutathione S-transferase-like
1272	 67.88	0	1316192..1318252	-	686	87199298	-	Saro_1277	-	elongation factor G
1273	 67.39	0	1318409..1319236	+	275	87199299	-	Saro_1278	-	putative methyltransferase
1274	 66.67	0	1319280..1321925	+	881	87199300	alaS	Saro_1279	-	alanyl-tRNA synthetase
1275	 66.06	0	1321929..1322093	-	54	87199301	-	Saro_1280	-	hypothetical protein
1276	 64.65	0	1322145..1323929	-	594	87199302	-	Saro_1281	-	sodium/hydrogen exchanger
1277	 62.17	0	1324213..1325436	-	407	87199303	-	Saro_1282	-	isocitrate dehydrogenase
1278	 66.41	0	1325623..1326387	+	254	87199304	-	Saro_1283	-	short chain enoyl-CoA hydratase
1279	 69.96	+1	1326432..1327220	-	262	87199305	-	Saro_1284	-	3-deoxy-manno-octulosonate cytidylyltransferase
1280	 70.04	+1	1327217..1328431	-	404	87199306	-	Saro_1285	-	capsule polysaccharide biosynthesis
1281	 69.86	+1	1328422..1329735	-	437	87199307	-	Saro_1286	-	capsule polysaccharide biosynthesis
1282	 63.80	0	1330047..1330430	-	127	87199308	-	Saro_1287	-	response regulator receiver domain-containing protein
1283	 68.65	+1	1330636..1331544	+	302	87199309	-	Saro_1288	-	N-formylglutamate amidohydrolase
1284	 63.72	0	1331879..1332658	-	259	87199310	-	Saro_1289	-	SapC
1285	 70.19	+1	1332757..1334175	-	472	87199311	-	Saro_1290	-	FAD linked oxidase-like
1286	 66.84	0	1334341..1334913	+	190	87199312	-	Saro_1291	-	hypothetical protein
1287	 66.09	0	1335055..1336449	+	464	87199313	-	Saro_1292	-	DEAD/DEAH box helicase-like
1288	 65.88	0	1336587..1338884	-	765	87199314	-	Saro_1293	-	ATP-dependent DNA helicase Rep
1289	 69.37	+1	1339056..1339685	+	209	87199315	-	Saro_1294	-	hypothetical protein
1290	 68.95	+1	1339901..1341172	+	423	87199316	-	Saro_1295	-	general substrate transporter
1291	 71.82	+2	1341179..1341721	-	180	87199317	-	Saro_1296	-	hypothetical protein
1292	 69.50	+1	1341718..1342530	-	270	87199318	-	Saro_1297	-	pseudouridine synthase, Rsu
1293	 66.37	0	1342714..1344042	+	442	87199319	-	Saro_1298	-	major facilitator transporter
1294	 68.96	+1	1344074..1345381	-	435	87199320	-	Saro_1299	-	FolC bifunctional protein
1295	 65.49	0	1345413..1346264	-	283	87199321	-	Saro_1300	-	acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha
1296	 69.41	+1	1346261..1347061	-	266	87199322	trpA	Saro_1301	-	tryptophan synthase subunit alpha
1297	 67.82	0	1347061..1348275	-	404	87199323	-	Saro_1302	-	tryptophan synthase subunit beta
1298	 65.41	0	1348647..1349204	+	185	87199324	-	Saro_1303	-	hypothetical protein
1299	 71.74	+2	1349308..1349997	-	229	87199325	-	Saro_1304	-	phosphoribosylanthranilate isomerase
1300	 68.39	0	1350010..1350765	-	251	87199326	-	Saro_1305	-	hypothetical protein
1301	 67.46	0	1350835..1351338	-	167	87199327	-	Saro_1306	-	GCN5-related N-acetyltransferase
1302	 68.74	+1	1351343..1352017	-	224	87199328	-	Saro_1307	-	orotidine-5'-phosphate decarboxylase
1303	 66.67	0	1352014..1352343	-	109	87199329	-	Saro_1308	-	hypothetical protein
1304	 66.59	0	1352436..1353752	-	438	87199330	-	Saro_1309	-	adenylosuccinate lyase
1305	 69.88	+1	1353867..1355732	-	621	87199331	-	Saro_1310	-	acyltransferase 3
1306	 65.99	0	1356054..1356791	-	245	87199332	-	Saro_1311	-	DNA repair protein RadC
1307	 69.17	+1	1356877..1360107	+	1076	87199333	-	Saro_1312	-	hypothetical protein
1308	 61.84	-1	1360155..1360361	+	68	87199334	-	Saro_1313	-	hypothetical protein
1309	 68.63	+1	1360382..1360789	+	135	87199335	-	Saro_1314	-	hypothetical protein
1310	 62.62	0	1360997..1361317	+	106	87199336	-	Saro_1315	-	putative ATP synthase protein I
1311	 60.54	-1	1361358..1362140	+	260	87199337	-	Saro_1316	-	F0F1 ATP synthase subunit A
1312	 66.67	0	1362189..1362416	+	75	87199338	-	Saro_1317	-	H+-transporting two-sector ATPase, C subunit
1313	 67.88	0	1362491..1362985	+	164	87199339	-	Saro_1318	-	H+-transporting two-sector ATPase, B/B' subunit
1314	 66.67	0	1362978..1363532	+	184	87199340	-	Saro_1319	-	H+-transporting two-sector ATPase, B/B' subunit
1315	 67.64	0	1363722..1364750	-	342	87199341	-	Saro_1320	-	LacI family transcription regulator
1316	 68.89	+1	1364792..1365556	-	254	87199342	-	Saro_1321	-	hydroxyacylglutathione hydrolase
1317	 65.43	0	1365649..1367349	-	566	87199343	rpsA	Saro_1322	-	30S ribosomal protein S1
1318	 48.58	-2	1367634..1368020	-	128	87199344	-	Saro_1323	-	hypothetical protein
1319	 69.22	+1	1368133..1368759	-	208	87199345	-	Saro_1324	-	cytidylate kinase
1320	 62.75	0	1368756..1369010	-	84	87199346	-	Saro_1325	-	putative permease
1321	 70.14	+1	1369010..1370335	-	441	87199347	-	Saro_1326	-	3-phosphoshikimate 1-carboxyvinyltransferase
1322	 61.01	-1	1370546..1370863	+	105	87199348	-	Saro_1327	-	hypothetical protein
1323	 68.32	0	1371271..1371876	+	201	87199349	-	Saro_1328	-	hypothetical protein
1324	 64.54	0	1371876..1372580	+	234	87199350	-	Saro_1329	-	hypothetical protein
1325	 66.03	0	1372662..1373597	-	311	87199351	-	Saro_1330	-	2OG-Fe(II) oxygenase
1326	 63.51	0	1373662..1374105	+	147	87199352	-	Saro_1331	-	hypothetical protein
1327	 66.12	0	1374166..1374348	+	60	87199353	-	Saro_1332	-	CsbD-like
1328	 63.48	0	1374493..1374774	+	93	87199354	-	Saro_1333	-	hypothetical protein
1329	 62.59	0	1374764..1376086	-	440	87199355	-	Saro_1334	-	major facilitator transporter
1330	 62.96	0	1376224..1376817	+	197	87199356	-	Saro_1335	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1331	 68.23	0	1376843..1377739	-	298	87199357	-	Saro_1336	-	LysR family transcriptional regulator
1332	 63.88	0	1377746..1378963	-	405	87199358	-	Saro_1337	-	ribonuclease D
1333	 65.88	0	1379139..1380920	+	593	87199359	aspS	Saro_1338	-	aspartyl-tRNA synthetase
65.30	MEAN

3.21	STD DEV
