IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

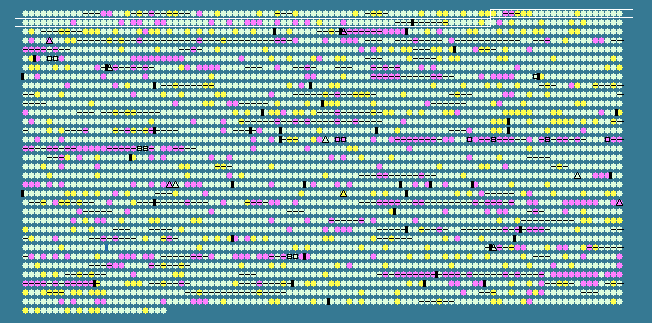

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
79	 69.76	+1	81777..82778	-	333	87198105	-	Saro_0079	-	hypothetical protein
80	 67.28	0	82906..85185	-	759	87198106	-	Saro_0080	-	phosphoenolpyruvate-protein phosphotransferase PtsP
81	 58.49	-2	85389..85547	-	52	87198107	-	Saro_0081	-	hypothetical protein
82	 58.59	-2	85777..85974	+	65	87198108	-	Saro_0082	-	hypothetical protein
83	 69.26	+1	86066..86605	+	179	87198109	-	Saro_0083	-	hypothetical protein
84	 68.91	+1	86610..88079	-	489	87198110	-	Saro_0084	-	glycerol kinase
85	 69.46	+1	88076..89545	-	489	87198111	-	Saro_0085	-	glycerol-3-phosphate dehydrogenase
86	 68.16	0	89584..90519	+	311	87198112	-	Saro_0086	-	beta-lactamase-like
87	 64.86	0	90501..91166	+	221	87198113	-	Saro_0087	-	hypothetical protein
88	 64.75	0	91248..91976	+	242	87198114	-	Saro_0088	-	hypothetical protein
89	 64.06	0	92038..93036	+	332	87198115	-	Saro_0089	-	quinolinate synthetase
90	 67.90	0	93172..94065	-	297	87198116	-	Saro_0090	-	hypothetical protein
91	 66.21	0	94149..95252	+	367	87198117	-	Saro_0091	-	NADH:flavin oxidoreductase/NADH oxidase
92	 67.12	0	95267..96148	+	293	87198118	-	Saro_0092	-	HpcH/HpaI aldolase
93	 70.23	+1	96131..96439	-	102	87198119	-	Saro_0093	-	hypothetical protein
94	 66.82	0	96436..97104	-	222	87198120	-	Saro_0094	-	lipoate-protein ligase B
95	 64.72	0	97182..98003	+	273	87198121	-	Saro_0095	-	hypothetical protein
96	 63.96	0	98012..98638	-	208	87198122	-	Saro_0096	-	generic methyltransferase
97	 67.95	0	98769..100091	+	440	87198123	-	Saro_0097	-	major facilitator transporter
98	 67.98	0	100138..101661	+	507	87198124	-	Saro_0098	-	O-antigen and teichoic acid-like export protein
99	 66.35	0	101654..102610	-	318	87198125	-	Saro_0099	-	CDP-alcohol phosphatidyltransferase
100	 67.40	0	102849..103934	+	361	87198126	-	Saro_0100	-	CDP-alcohol phosphatidyltransferase
101	 63.76	0	104030..105130	+	366	87198127	-	Saro_0101	-	myo-inositol-1-phosphate synthase
102	 66.53	0	105225..105974	+	249	87198128	-	Saro_0102	-	nucleotidyl transferase
103	 64.24	0	106017..106511	-	164	87198129	-	Saro_0103	-	hypothetical protein
104	 64.09	0	106888..107547	+	219	87198130	-	Saro_0104	-	ribulose-5-phosphate 3-epimerase
105	 67.73	0	107549..109435	+	628	87198131	-	Saro_0105	-	heparinase II/III-like
106	 65.79	0	109446..111035	+	529	87198132	purH	Saro_0106	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
107	 67.01	0	111131..112870	+	579	87198133	-	Saro_0107	-	CBS
108	 62.38	0	112945..113574	-	209	87198134	-	Saro_0108	-	cell wall hydrolase, SleB
109	 54.09	-2	113790..114131	-	113	87198135	-	Saro_0109	-	hypothetical protein
110	 66.25	0	114133..114615	-	160	87198136	-	Saro_0110	-	phenylacetic acid degradation-related protein
111	 65.37	0	114602..115063	-	153	87198137	-	Saro_0111	-	PTS IIA-like nitrogen-regulatory protein PtsN
112	 61.86	-1	115237..115818	-	193	87198138	-	Saro_0112	-	SSU ribosomal protein S30P / sigma 54 modulation protein
113	 64.07	0	115877..116569	-	230	87198139	-	Saro_0113	-	DNA polymerase III, epsilon subunit
114	 65.18	0	116615..117220	-	201	87198140	-	Saro_0114	-	dephospho-CoA kinase
115	 64.15	0	117217..118089	-	290	87198141	-	Saro_0115	-	shikimate dehydrogenase
116	 62.07	-1	118086..118673	-	195	87198142	-	Saro_0116	-	Maf-like protein
117	 60.85	-1	118670..119512	-	280	87198143	-	Saro_0117	-	hypothetical protein
118	 63.26	0	119850..120875	+	341	87198144	-	Saro_0118	-	uroporphyrinogen decarboxylase
119	 58.45	-2	120973..121398	+	141	87198145	-	Saro_0119	-	hypothetical protein
120	 60.78	-1	121800..123056	+	418	87198146	rho	Saro_0120	-	transcription termination factor Rho
121	 65.77	0	123162..125729	+	855	87198147	-	Saro_0121	-	helicase-like
122	 64.26	0	125747..126037	+	96	87198148	-	Saro_0122	-	RNA-binding S4
123	 60.47	-1	126051..126389	+	112	87198149	-	Saro_0123	-	4Fe-4S ferredoxin, iron-sulfur binding
124	 60.38	-1	126726..127250	+	174	87198150	-	Saro_0124	-	CarD family transcriptional regulator
125	 63.74	0	127423..128208	+	261	87198151	-	Saro_0125	-	hypothetical protein
126	 66.67	0	128212..129159	-	315	87198152	-	Saro_0126	-	translation factor SUA5
127	 64.81	0	129220..130938	+	572	87198153	-	Saro_0127	-	acyl-CoA dehydrogenase-like
128	 66.30	0	130935..131750	+	271	87198154	-	Saro_0128	-	hypothetical protein
129	 63.21	0	131784..133289	-	501	87198155	-	Saro_0129	-	L-sorbosone dehydrogenase
130	 64.18	0	133354..133836	+	160	87198156	-	Saro_0130	-	putative GAF sensor protein
131	 65.52	0	133981..134679	+	232	87198157	-	Saro_0131	-	17 kDa surface antigen
132	 61.30	-1	134788..135942	-	384	87198158	-	Saro_0132	-	long-chain acyl-CoA dehydrogenase
133	 66.67	0	136094..137041	-	315	87198159	-	Saro_0133	-	chromosome segregation DNA-binding protein
134	 61.90	-1	137038..137814	-	258	87198160	-	Saro_0134	-	chromosome segregation ATPase
135	 60.75	-1	137811..138503	-	230	87198161	-	Saro_0135	-	methyltransferase GidB
136	 65.81	0	138500..140359	-	619	87198162	-	Saro_0136	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
137	 68.34	0	140445..141758	-	437	87198163	trmE	Saro_0137	-	tRNA modification GTPase TrmE
138	 60.92	-1	141791..142051	-	86	87198164	-	Saro_0138	-	hypothetical protein
139	 61.66	-1	142162..142860	+	232	87198165	-	Saro_0139	-	carboxymethylenebutenolidase
140	 60.72	-1	142956..143342	+	128	87198166	-	Saro_0140	-	hypothetical protein
141	 66.38	0	143400..143744	-	114	87198167	-	Saro_0141	-	DNA-directed RNA polymerase subunit omega
142	 65.21	0	143844..145358	-	504	87198168	-	Saro_0142	-	replicative DNA helicase
143	 60.61	-1	145505..145999	+	164	87198169	-	Saro_0143	-	hypothetical protein
144	 66.81	0	146028..146723	+	231	87198170	-	Saro_0144	-	glycoside hydrolase family protein
145	 67.81	0	146720..147157	+	145	87198171	-	Saro_0145	-	cytidine deaminase
146	 60.72	-1	147206..147760	+	184	87198172	dcd	Saro_0146	-	deoxycytidine triphosphate deaminase
147	 67.35	0	147894..149066	+	390	87198173	-	Saro_0147	-	saccharopine dehydrogenase
148	 61.30	-1	149157..149603	-	148	87198174	-	Saro_0148	-	globin
149	 64.88	0	149630..150133	+	167	87198175	-	Saro_0149	-	BadM/Rrf2 family transcriptional regulator
150	 70.65	+1	150130..150531	-	133	87198176	-	Saro_0150	-	hypothetical protein
151	 66.87	0	150718..151713	+	331	87198177	-	Saro_0151	-	PfkB
152	 67.35	0	151725..153050	-	441	87198178	-	Saro_0152	-	aminopeptidase P
153	 64.34	0	153225..153653	-	142	87198179	-	Saro_0153	-	signal-transduction protein
154	 61.22	-1	153797..154090	+	97	87198180	-	Saro_0154	-	hypothetical protein
155	 67.68	0	154071..154466	+	131	87198181	-	Saro_0155	-	HesB/YadR/YfhF
156	 62.69	0	154525..155304	+	259	87198182	-	Saro_0156	-	exodeoxyribonuclease III
157	 65.90	0	155351..155611	+	86	87198183	-	Saro_0157	-	hypothetical protein
158	 64.90	0	155613..156290	+	225	87198184	-	Saro_0158	-	methionine sulfoxide reductase A
159	 63.69	0	156327..156797	+	156	87198185	-	Saro_0159	-	transcriptional regulator
160	 66.20	0	156827..158104	+	425	87198186	-	Saro_0160	-	general substrate transporter
161	 65.16	0	158147..160069	+	640	87198187	-	Saro_0161	-	1-deoxy-D-xylulose-5-phosphate synthase
162	 62.70	0	160099..160779	-	226	87198188	-	Saro_0162	-	NnrU
163	 62.85	0	160892..163015	-	707	87198189	-	Saro_0163	-	amino acid/peptide transporter
164	 64.36	0	163049..163438	+	129	87198190	-	Saro_0164	-	GntR family transcriptional regulator
165	 63.48	0	163591..163872	+	93	87198191	-	Saro_0165	-	histone-like DNA-binding protein
166	 63.62	0	164436..165092	+	218	87198192	-	Saro_0166	-	hypothetical protein
167	 64.49	0	165119..166585	-	488	87198193	-	Saro_0167	-	sulfotransferase
168	 62.23	0	166719..169919	-	1066	87198194	-	Saro_0168	-	TonB-dependent receptor
169	 68.07	0	170278..171132	-	284	87198195	-	Saro_0169	-	peptidase M23B
170	 63.73	0	171151..171354	-	67	87198196	-	Saro_0170	-	hypothetical protein
171	 70.19	+1	171381..172742	-	453	87198197	-	Saro_0171	-	exodeoxyribonuclease VII large subunit
172	 65.50	0	172861..174150	+	429	87198198	-	Saro_0172	-	phosphoribosylamine--glycine ligase
173	 65.08	0	174140..174769	-	209	87198199	-	Saro_0173	-	isochorismatase hydrolase
174	 65.75	0	174769..175971	-	400	87198200	-	Saro_0174	-	succinyl-CoA:(R)-citramalate CoA-transferase
175	 63.91	0	175968..177854	-	628	87198201	-	Saro_0175	-	5-oxoprolinase (ATP-hydrolyzing)
176	 66.18	0	177868..179916	-	682	87198202	-	Saro_0176	-	5-oxoprolinase (ATP-hydrolyzing)
177	 68.85	+1	179921..180835	-	304	87198203	-	Saro_0177	-	hydroxymethylglutaryl-CoA lyase
178	 63.58	0	181101..183626	+	841	87198204	-	Saro_0178	-	TonB-dependent receptor
65.30	MEAN

3.21	STD DEV
