IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

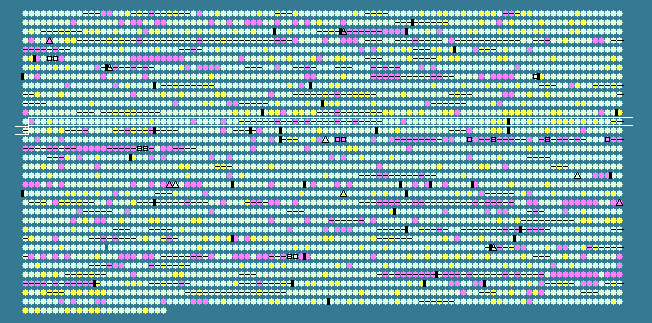

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1202	 60.63	-1	1253875..1254222	+	115	87199228	-	Saro_1206	-	ArsR family transcriptional regulator
1203	 67.13	0	1254345..1254989	+	214	87199229	-	Saro_1207	-	twin-arginine translocation pathway signal
1204	 65.77	0	1255008..1256687	+	559	87199230	-	Saro_1208	-	glucose-methanol-choline oxidoreductase
1205	 69.06	+1	1256692..1258152	+	486	87199231	-	Saro_1209	-	major facilitator transporter
1206	 63.95	0	1258216..1258803	+	195	87199232	-	Saro_1210	-	metal-dependent phosphohydrolase
1207	 65.40	0	1258874..1260457	+	527	87199233	-	Saro_1211	-	acyl-CoA synthetase
1208	 66.16	0	1260614..1261603	-	329	87199234	-	Saro_1212	-	hypothetical protein
1209	 67.77	0	1261600..1264326	-	908	87199235	-	Saro_1213	-	hypothetical protein
1210	 68.02	0	1264328..1265212	-	294	87199236	-	Saro_1214	-	hypothetical protein
1211	 67.53	0	1265224..1265685	-	153	87199237	-	Saro_1215	-	hypothetical protein
1212	 67.05	0	1265710..1266237	-	175	87199238	-	Saro_1216	-	hypothetical protein
1213	 64.86	0	1266836..1267111	-	91	87199239	-	Saro_1217	-	histone-like DNA-binding protein
1214	 67.74	0	1267442..1268650	+	402	87199240	-	Saro_1218	-	secretion protein HlyD
1215	 64.18	0	1268657..1271791	+	1044	87199241	-	Saro_1219	-	hydrophobe/amphiphile efflux-1 HAE1
1216	 67.95	0	1271788..1273191	+	467	87199242	-	Saro_1220	-	RND efflux system, outer membrane lipoprotein, NodT
1217	 64.96	0	1273185..1274354	-	389	87199243	-	Saro_1221	-	acyl-CoA dehydrogenase-like
1218	 67.57	0	1274354..1275568	-	404	87199244	-	Saro_1222	-	acetyl-CoA acetyltransferase
1219	 66.02	0	1275620..1276849	-	409	87199245	-	Saro_1223	-	L-carnitine dehydratase/bile acid-inducible protein F
1220	 63.88	0	1276877..1278061	-	394	87199246	-	Saro_1224	-	acyl-CoA dehydrogenase-like
1221	 65.14	0	1278073..1278990	-	305	87199247	-	Saro_1225	-	short-chain dehydrogenase/reductase SDR
1222	 69.07	+1	1279093..1279842	+	249	87199248	-	Saro_1226	-	IclR family transcriptional regulator
1223	 66.12	0	1279961..1280869	+	302	87199249	-	Saro_1227	-	LysR family transcriptional regulator
1224	 63.85	0	1280878..1281339	-	153	87199250	-	Saro_1228	-	thioesterase superfamily protein
1225	 68.72	+1	1281400..1282374	-	324	87199251	-	Saro_1229	-	putative deoxyribodipyrimidine photolyase
1226	 67.30	0	1282400..1283035	-	211	87199252	-	Saro_1230	-	GTP cyclohydrolase
1227	 62.05	-1	1283080..1283751	+	223	87199253	-	Saro_1231	-	LuxR family transcriptional regulator
1228	 64.02	0	1283767..1284747	-	326	87199254	-	Saro_1232	-	signal transduction histidine kinase
1229	 61.04	-1	1285156..1285884	+	242	87199255	-	Saro_1233	-	extradiol ring-cleavage dioxygenase LigAB, LigA subunit
1230	 62.40	0	1285884..1286726	+	280	87199256	-	Saro_1234	-	protocatechuate 4,5-dioxygenase subunit beta
1231	 64.93	0	1286812..1287213	-	133	87199257	-	Saro_1235	-	hypothetical protein
1232	 63.96	0	1287299..1287925	-	208	87199258	-	Saro_1236	-	two component LuxR family transcriptional regulator
1233	 67.03	0	1287922..1289565	-	547	87199259	-	Saro_1237	-	putative signal transduction histidine kinase
1234	 60.91	-1	1289802..1290305	+	167	87199260	-	Saro_1238	-	LuxR family transcriptional regulator
1235	 68.07	0	1290408..1290764	+	118	87199261	-	Saro_1239	-	hypothetical protein
1236	 63.09	0	1290802..1291248	+	148	87199262	-	Saro_1240	-	hypothetical protein
1237	 68.98	+1	1291310..1291828	+	172	87199263	-	Saro_1241	-	MarR family transcriptional regulator
1238	 66.67	0	1292770..1293186	+	138	87199264	-	Saro_1243	-	hypothetical protein
1239	 64.78	0	1293513..1293884	+	123	87199265	rpsL	Saro_1244	-	30S ribosomal protein S12
1240	 63.06	0	1293986..1294456	+	156	87199266	-	Saro_1245	-	30S ribosomal protein S7
1241	 62.28	0	1294541..1296613	+	690	87199267	-	Saro_1246	-	elongation factor G
1242	 63.39	0	1296706..1297896	+	396	87199268	-	Saro_1247	-	elongation factor Tu
1243	 61.54	-1	1298066..1298377	+	103	87199269	-	Saro_1248	-	30S ribosomal protein S10
1244	 64.02	0	1298719..1299474	+	251	87199270	rplC	Saro_1249	-	50S ribosomal protein L3
1245	 63.62	0	1299478..1300101	+	207	87199271	rplD	Saro_1250	-	50S ribosomal protein L4
1246	 60.07	-1	1300094..1300396	+	100	87199272	rplW	Saro_1251	-	50S ribosomal protein L23
1247	 64.40	0	1300406..1301242	+	278	87199273	rplB	Saro_1252	-	50S ribosomal protein L2
1248	 61.29	-1	1301249..1301527	+	92	87199274	-	Saro_1253	-	SSU ribosomal protein S19P
1249	 63.76	0	1301527..1301904	+	125	87199275	rplV	Saro_1254	-	50S ribosomal protein L22
1250	 63.65	0	1301907..1302602	+	231	87199276	rpsC	Saro_1255	-	30S ribosomal protein S3
1251	 67.13	0	1302625..1303059	+	144	87199277	rplP	Saro_1256	-	50S ribosomal protein L16
1252	 61.84	-1	1303070..1303276	+	68	87199278	-	Saro_1257	-	50S ribosomal protein L29
1253	 61.48	-1	1303287..1303556	+	89	87199279	-	Saro_1258	-	SSU ribosomal protein S17P
1254	 63.69	0	1303671..1304039	+	122	87199280	rplN	Saro_1259	-	50S ribosomal protein L14
1255	 64.47	0	1304039..1304356	+	105	87199281	rplX	Saro_1260	-	50S ribosomal protein L24
1256	 60.48	-1	1304349..1304930	+	193	87199282	rplE	Saro_1261	-	50S ribosomal protein L5
1257	 62.42	0	1304959..1305264	+	101	87199283	rpsN	Saro_1262	-	30S ribosomal protein S14
1258	 64.90	0	1305275..1305670	+	131	87199284	rpsH	Saro_1263	-	30S ribosomal protein S8
1259	 62.92	0	1305670..1306203	+	177	87199285	rplF	Saro_1264	-	50S ribosomal protein L6
1260	 68.09	0	1306203..1306553	+	116	87199286	rplR	Saro_1265	-	50S ribosomal protein L18
1261	 67.23	0	1306556..1307269	+	237	87199287	rpsE	Saro_1266	-	30S ribosomal protein S5
1262	 63.28	0	1307276..1307452	+	58	87199288	rpmD	Saro_1267	-	50S ribosomal protein L30
1263	 65.31	0	1307618..1308133	+	171	161760695	rplO	Saro_1268	-	50S ribosomal protein L15
1264	 61.77	-1	1308286..1309653	+	455	87199290	secY	Saro_1269	-	preprotein translocase subunit SecY
1265	 67.28	0	1309682..1310332	+	216	87199291	-	Saro_1270	-	adenylate kinase
1266	 65.58	0	1310380..1311117	+	245	87199292	-	Saro_1271	-	hypothetical protein
1267	 62.46	0	1311265..1312620	+	451	87199293	-	Saro_1272	-	glutamate dehydrogenase
1268	 66.67	0	1312675..1313022	-	115	87199294	-	Saro_1273	-	hypothetical protein
1269	 61.85	-1	1313066..1313875	-	269	87199295	-	Saro_1274	-	response regulator receiver domain-containing protein
1270	 63.68	0	1314279..1315349	+	356	87199296	recA	Saro_1275	-	recombinase A
1271	 64.43	0	1315537..1316163	+	208	87199297	-	Saro_1276	-	glutathione S-transferase-like
1272	 67.88	0	1316192..1318252	-	686	87199298	-	Saro_1277	-	elongation factor G
1273	 67.39	0	1318409..1319236	+	275	87199299	-	Saro_1278	-	putative methyltransferase
1274	 66.67	0	1319280..1321925	+	881	87199300	alaS	Saro_1279	-	alanyl-tRNA synthetase
1275	 66.06	0	1321929..1322093	-	54	87199301	-	Saro_1280	-	hypothetical protein
1276	 64.65	0	1322145..1323929	-	594	87199302	-	Saro_1281	-	sodium/hydrogen exchanger
1277	 62.17	0	1324213..1325436	-	407	87199303	-	Saro_1282	-	isocitrate dehydrogenase
1278	 66.41	0	1325623..1326387	+	254	87199304	-	Saro_1283	-	short chain enoyl-CoA hydratase
1279	 69.96	+1	1326432..1327220	-	262	87199305	-	Saro_1284	-	3-deoxy-manno-octulosonate cytidylyltransferase
1280	 70.04	+1	1327217..1328431	-	404	87199306	-	Saro_1285	-	capsule polysaccharide biosynthesis
1281	 69.86	+1	1328422..1329735	-	437	87199307	-	Saro_1286	-	capsule polysaccharide biosynthesis
1282	 63.80	0	1330047..1330430	-	127	87199308	-	Saro_1287	-	response regulator receiver domain-containing protein
1283	 68.65	+1	1330636..1331544	+	302	87199309	-	Saro_1288	-	N-formylglutamate amidohydrolase
1284	 63.72	0	1331879..1332658	-	259	87199310	-	Saro_1289	-	SapC
1285	 70.19	+1	1332757..1334175	-	472	87199311	-	Saro_1290	-	FAD linked oxidase-like
1286	 66.84	0	1334341..1334913	+	190	87199312	-	Saro_1291	-	hypothetical protein
1287	 66.09	0	1335055..1336449	+	464	87199313	-	Saro_1292	-	DEAD/DEAH box helicase-like
1288	 65.88	0	1336587..1338884	-	765	87199314	-	Saro_1293	-	ATP-dependent DNA helicase Rep
1289	 69.37	+1	1339056..1339685	+	209	87199315	-	Saro_1294	-	hypothetical protein
1290	 68.95	+1	1339901..1341172	+	423	87199316	-	Saro_1295	-	general substrate transporter
1291	 71.82	+2	1341179..1341721	-	180	87199317	-	Saro_1296	-	hypothetical protein
1292	 69.50	+1	1341718..1342530	-	270	87199318	-	Saro_1297	-	pseudouridine synthase, Rsu
1293	 66.37	0	1342714..1344042	+	442	87199319	-	Saro_1298	-	major facilitator transporter
1294	 68.96	+1	1344074..1345381	-	435	87199320	-	Saro_1299	-	FolC bifunctional protein
1295	 65.49	0	1345413..1346264	-	283	87199321	-	Saro_1300	-	acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha
1296	 69.41	+1	1346261..1347061	-	266	87199322	trpA	Saro_1301	-	tryptophan synthase subunit alpha
1297	 67.82	0	1347061..1348275	-	404	87199323	-	Saro_1302	-	tryptophan synthase subunit beta
1298	 65.41	0	1348647..1349204	+	185	87199324	-	Saro_1303	-	hypothetical protein
1299	 71.74	+2	1349308..1349997	-	229	87199325	-	Saro_1304	-	phosphoribosylanthranilate isomerase
1300	 68.39	0	1350010..1350765	-	251	87199326	-	Saro_1305	-	hypothetical protein
1301	 67.46	0	1350835..1351338	-	167	87199327	-	Saro_1306	-	GCN5-related N-acetyltransferase
65.30	MEAN

3.21	STD DEV
