IslandPathversion 1.0

IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

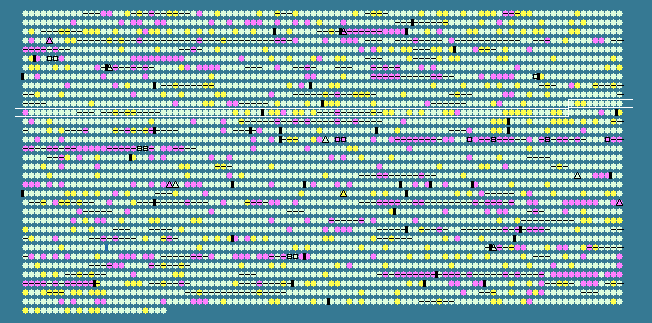

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1092	 62.14	0	1137726..1138565	+	279	87199118	-	Saro_1096	-	Sec-independent protein translocase TatC
1093	 69.01	+1	1138736..1140442	-	568	87199119	-	Saro_1097	-	amidohydrolase
1094	 69.01	+1	1140439..1141377	-	312	87199120	-	Saro_1098	-	3-hydroxyisobutyrate dehydrogenase
1095	 65.69	0	1141436..1141846	+	136	87199121	-	Saro_1099	-	hypothetical protein
1096	 67.93	0	1141884..1143149	+	421	87199122	-	Saro_1100	-	threonine dehydratase
1097	 63.63	0	1143360..1144214	+	284	87199123	-	Saro_1101	-	arginyl-tRNA-protein transferase
1098	 67.70	0	1144285..1146414	+	709	87199124	-	Saro_1102	-	surface antigen (D15)
1099	 67.64	0	1146414..1150610	+	1398	87199125	-	Saro_1103	-	hypothetical protein
1100	 66.39	0	1150672..1152096	-	474	87199126	-	Saro_1104	-	aldehyde dehydrogenase
1101	 60.48	-1	1152213..1152503	-	96	87199127	-	Saro_1105	-	hypothetical protein
1102	 65.10	0	1152536..1154830	+	764	87199128	-	Saro_1106	-	periplasmic sensor diguanylate cyclase/phosphodiesterase
1103	 66.87	0	1154865..1155350	-	161	87199129	-	Saro_1107	-	CHAP
1104	 63.19	0	1155575..1156984	-	469	87199130	-	Saro_1108	-	L-glutamine synthetase
1105	 62.83	0	1157136..1157474	-	112	87199131	-	Saro_1109	-	nitrogen regulatory protein P-II
1106	 65.85	0	1157759..1158610	-	283	87199132	-	Saro_1110	-	methionine aminopeptidase, type I
1107	 65.43	0	1158645..1159451	-	268	87199133	-	Saro_1111	-	hypothetical protein
1108	 67.68	0	1159505..1160887	+	460	87199134	-	Saro_1112	-	leucyl aminopeptidase
1109	 65.96	0	1160890..1161315	+	141	87199135	-	Saro_1113	-	hypothetical protein
1110	 68.28	0	1161312..1162241	+	309	87199136	-	Saro_1114	-	N-acetyl-gamma-glutamyl-phosphate reductase
1111	 61.95	-1	1162325..1162642	-	105	87199137	-	Saro_1115	-	ferredoxin
1112	 66.34	0	1162772..1163389	+	205	87199138	-	Saro_1116	-	HhH-GPD
1113	 67.54	0	1163430..1164230	+	266	87199139	-	Saro_1117	-	short chain dehydrogenase
1114	 63.92	0	1164233..1164523	-	96	87199140	-	Saro_1118	-	pterin-4-alpha-carbinolamine dehydratase
1115	 68.06	0	1164585..1165160	+	191	87199141	-	Saro_1119	-	heme exporter protein CcmA
1116	 71.19	+1	1165157..1165819	+	220	87199142	-	Saro_1120	-	cytochrome c-type biogenesis protein CcmB
1117	 64.66	0	1165884..1166882	+	332	87199143	-	Saro_1121	-	cysteine synthase A
1118	 69.27	+1	1166897..1167280	+	127	87199144	-	Saro_1122	-	hypothetical protein
1119	 68.83	+1	1167283..1168020	+	245	87199145	-	Saro_1123	-	hypothetical protein
1120	 65.61	0	1168272..1168838	+	188	87199146	-	Saro_1124	-	hypothetical protein
1121	 66.67	0	1168835..1169824	+	329	87199147	-	Saro_1125	-	methyltransferase
1122	 65.27	0	1169821..1170681	+	286	87199148	-	Saro_1126	-	hypothetical protein
1123	 65.29	0	1170678..1172423	+	581	87199149	-	Saro_1127	-	peptidoglycan glycosyltransferase
1124	 67.91	0	1172420..1173868	+	482	87199150	murE	Saro_1128	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1125	 67.82	0	1173865..1175334	+	489	87199151	-	Saro_1129	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
1126	 65.54	0	1175335..1176399	+	354	87199152	-	Saro_1130	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1127	 67.27	0	1176396..1177727	+	443	87199153	-	Saro_1131	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
1128	 63.90	0	1177766..1178959	+	397	87199154	-	Saro_1132	-	cell cycle protein
1129	 68.12	0	1178956..1180122	+	388	87199155	murG	Saro_1133	-	N-acetylglucosaminyl transferase
1130	 65.33	0	1180119..1181543	+	474	87199156	murC	Saro_1134	-	UDP-N-acetylmuramate--L-alanine ligase
1131	 65.66	0	1181540..1182433	+	297	87199157	-	Saro_1135	-	UDP-N-acetylmuramate dehydrogenase
1132	 64.97	0	1182477..1183418	+	313	87199158	-	Saro_1136	-	D-alanine--D-alanine ligase
1133	 67.50	0	1183423..1184385	+	320	87199159	-	Saro_1137	-	cell division protein FtsQ
1134	 65.96	0	1184393..1185673	+	426	87199160	-	Saro_1138	-	cell division protein FtsA
1135	 67.07	0	1185868..1187343	+	491	87199161	-	Saro_1139	-	cell division protein FtsZ
1136	 69.45	+1	1187406..1189598	+	730	87199162	-	Saro_1140	-	hypothetical protein
1137	 65.67	0	1189801..1190304	+	167	87199163	-	Saro_1141	-	hypothetical protein
1138	 69.75	+1	1190387..1191196	+	269	87199164	-	Saro_1142	-	pyrroline-5-carboxylate reductase
1139	 63.31	0	1191311..1192054	+	247	87199165	-	Saro_1143	-	hypothetical protein
1140	 66.12	0	1192227..1192958	+	243	87199166	-	Saro_1144	-	hypothetical protein
1141	 65.25	0	1193278..1194336	+	352	161760696	obgE	Saro_1145	-	GTPase ObgE
1142	 69.40	+1	1194468..1195601	+	377	87199168	-	Saro_1146	-	gamma-glutamyl kinase
1143	 68.95	+1	1195601..1196521	+	306	87199169	-	Saro_1147	-	NAD-dependent epimerase/dehydratase
1144	 60.51	-1	1196568..1197038	+	156	87199170	-	Saro_1148	-	hypothetical protein
1145	 63.31	0	1197056..1197472	+	138	87199171	-	Saro_1149	-	hypothetical protein
1146	 70.68	+1	1197469..1200012	-	847	87199172	-	Saro_1150	-	hypothetical protein
1147	 69.99	+1	1200009..1200701	-	230	87199173	-	Saro_1151	-	ABC transporter related
1148	 67.11	0	1200770..1201453	+	227	87199174	-	Saro_1152	-	lipolytic enzyme, G-D-S-L
1149	 70.39	+1	1201482..1202555	-	357	87199175	recF	Saro_1153	-	recombination protein F
1150	 68.55	+1	1202640..1203701	-	353	87199176	-	Saro_1154	-	Fis family transcriptional regulator
1151	 67.30	0	1203837..1203995	+	52	87199177	-	Saro_1155	-	hypothetical protein
1152	 65.21	0	1203995..1204819	+	274	87199178	-	Saro_1156	-	phage shock protein A, PspA
1153	 61.28	-1	1204823..1205119	+	98	87199179	-	Saro_1157	-	hypothetical protein
1154	 65.07	0	1205116..1205490	+	124	87199180	-	Saro_1158	-	phage shock protein C, PspC
1155	 64.18	0	1205522..1205803	+	93	87199181	-	Saro_1159	-	hypothetical protein
1156	 68.59	+1	1205800..1206111	+	103	87199182	-	Saro_1160	-	hypothetical protein
1157	 63.00	0	1206108..1206380	+	90	87199183	-	Saro_1161	-	hypothetical protein
1158	 65.88	0	1206395..1206649	+	84	87199184	-	Saro_1162	-	hypothetical protein
1159	 69.01	+1	1206672..1206884	+	70	87199185	-	Saro_1163	-	hypothetical protein
1160	 67.15	0	1206957..1207370	+	137	87199186	-	Saro_1164	-	Fe-S metabolism associated SufE
1161	 69.52	+1	1207388..1207738	+	116	87199187	-	Saro_1165	-	hypothetical protein
1162	 68.90	+1	1207735..1208808	+	357	87199188	-	Saro_1166	-	acyltransferase 3
1163	 67.36	0	1208875..1209450	+	191	87199189	-	Saro_1167	-	hypothetical protein
1164	 65.16	0	1209469..1209999	-	176	87199190	-	Saro_1168	-	carotene hydroxylase
1165	 69.03	+1	1210124..1210504	+	126	87199191	-	Saro_1169	-	hypothetical protein
1166	 68.34	0	1210614..1212050	+	478	87199192	-	Saro_1170	-	isopropylmalate isomerase large subunit
1167	 69.11	+1	1212058..1212588	+	176	87199193	-	Saro_1171	-	hypothetical protein
1168	 67.26	0	1212585..1213091	+	168	87199194	-	Saro_1172	-	uracil-DNA glycosylase superfamily protein
1169	 64.86	0	1213375..1213983	+	202	87199195	-	Saro_1173	-	3-isopropylmalate dehydratase, small subunit
1170	 68.56	+1	1214075..1215076	+	333	87199196	-	Saro_1174	-	alcohol dehydrogenase
1171	 70.27	+1	1215126..1215764	-	212	87199197	-	Saro_1175	-	hypothetical protein
1172	 70.77	+1	1215757..1216803	-	348	87199198	-	Saro_1176	-	2-nitropropane dioxygenase, NPD
1173	 61.11	-1	1216809..1217006	-	65	87199199	-	Saro_1177	-	hypothetical protein
1174	 64.60	0	1217118..1218518	-	466	87199200	-	Saro_1178	-	dihydrolipoamide dehydrogenase
1175	 66.99	0	1218600..1219826	-	408	87199201	-	Saro_1179	-	2-oxoglutarate dehydrogenase E2 component
1176	 66.49	0	1219865..1222717	-	950	87199202	kgd	Saro_1180	-	alpha-ketoglutarate decarboxylase
1177	 64.53	0	1222937..1223827	-	296	87199203	-	Saro_1181	-	succinyl-CoA synthetase (ADP-forming) alpha subunit
1178	 65.42	0	1223941..1224903	-	320	87199204	-	Saro_1182	-	malate dehydrogenase (NAD)
1179	 68.59	+1	1225225..1225536	-	103	87199205	-	Saro_1183	-	hypothetical protein
1180	 65.07	0	1225715..1226656	-	313	87199206	-	Saro_1184	-	endo alpha-1,4 polygalactosaminidase, putative
1181	 72.20	+2	1226780..1228009	-	409	87199207	-	Saro_1185	-	cell wall hydrolase, SleB
1182	 69.03	+1	1228490..1230394	+	634	87199208	-	Saro_1186	-	TonB-dependent receptor
1183	 71.07	+1	1230445..1231398	+	317	87199209	-	Saro_1187	-	periplasmic binding protein
1184	 70.82	+1	1231395..1232357	+	320	87199210	-	Saro_1188	-	transport system permease protein
1185	 71.58	+1	1232357..1233088	+	243	87199211	-	Saro_1189	-	ABC transporter related
1186	 68.73	+1	1233486..1234793	+	435	87199212	-	Saro_1190	-	hypothetical protein
1187	 66.67	0	1234807..1235709	+	300	87199213	-	Saro_1191	-	hypothetical protein
1188	 66.39	0	1235856..1238768	+	970	87199214	uvrA	Saro_1192	-	excinuclease ABC subunit A
1189	 69.82	+1	1238854..1239360	-	168	87199215	-	Saro_1193	-	hypothetical protein
1190	 70.93	+1	1239972..1241567	+	531	87199216	-	Saro_1194	-	hypothetical protein
1191	 65.93	0	1242494..1243708	-	404	87199217	-	Saro_1195	-	argininosuccinate synthase
65.30	MEAN

3.21	STD DEV
