IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

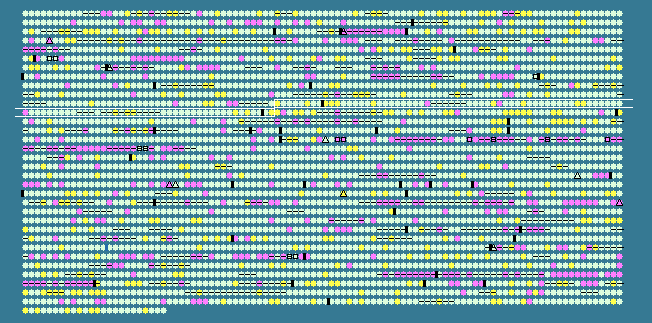

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1043	 70.32	+1	1086525..1086989	+	154	87199069	-	Saro_1047	-	protein tyrosine phosphatase
1044	 67.96	0	1087170..1087943	-	257	87199070	-	Saro_1048	-	DeoR family transcriptional regulator
1045	 66.57	0	1088007..1089080	-	357	87199071	-	Saro_1049	-	rhamnose-proton symporter
1046	 66.06	0	1089104..1090249	-	381	87199072	lldD	Saro_1050	-	L-lactate dehydrogenase
1047	 67.72	0	1090260..1091687	-	475	87199073	-	Saro_1051	-	carbohydrate kinase, FGGY
1048	 68.81	+1	1091834..1092811	-	325	87199074	-	Saro_1052	-	regulatory protein, LuxR
1049	 63.05	0	1093126..1095501	+	791	87199075	-	Saro_1053	-	TonB-dependent receptor
1050	 64.76	0	1095516..1097246	+	576	87199076	-	Saro_1054	-	amidohydrolase-like
1051	 70.11	+1	1097674..1097847	-	57	87199077	-	Saro_1055	-	hypothetical protein
1052	 70.97	+1	1097844..1098842	-	332	87199078	-	Saro_1056	-	ribonuclease
1053	 70.30	+1	1098832..1099437	-	201	87199079	-	Saro_1057	-	maf protein
1054	 62.96	0	1099437..1099733	-	98	87199080	-	Saro_1058	-	translation initiation factor 1
1055	 67.71	0	1100033..1102534	+	833	87199081	-	Saro_1059	-	TonB-dependent receptor
1056	 66.16	0	1102691..1104667	+	658	87199082	uvrC	Saro_1060	-	excinuclease ABC subunit C
1057	 65.63	0	1104677..1105735	+	352	87199083	-	Saro_1061	-	pyridoxal-5'-phosphate-dependent enzyme, beta subunit
1058	 68.69	+1	1105871..1106659	+	262	87199084	-	Saro_1062	-	hypothetical protein
1059	 68.87	+1	1106656..1107108	+	150	87199085	-	Saro_1063	-	hypothetical protein
1060	 67.11	0	1107109..1108011	-	300	87199086	-	Saro_1064	-	palmitoyl-CoA hydrolase
1061	 64.40	0	1108056..1108937	-	293	87199087	-	Saro_1065	-	transcription factor jumonji, jmjC
1062	 65.03	0	1108934..1110097	-	387	87199088	-	Saro_1066	-	hypothetical protein
1063	 64.02	0	1110255..1112408	-	717	87199089	hppA	Saro_1067	-	membrane-bound proton-translocating pyrophosphatase
1064	 68.52	+1	1112500..1113414	-	304	87199090	-	Saro_1068	-	thiamine-monophosphate kinase
1065	 64.96	0	1113487..1114659	+	390	87199091	-	Saro_1069	-	acetyl-CoA acetyltransferase
1066	 66.41	0	1114693..1115478	+	261	87199092	-	Saro_1070	-	short-chain dehydrogenase/reductase SDR
1067	 64.72	0	1115540..1116412	+	290	87199093	-	Saro_1071	-	enoyl-CoA hydratase
1068	 61.03	-1	1116409..1117047	+	212	87199094	-	Saro_1072	-	TetR family transcriptional regulator
1069	 63.40	0	1117252..1117710	+	152	87199095	-	Saro_1073	-	MarR family transcriptional regulator
1070	 66.07	0	1117707..1118714	+	335	87199096	-	Saro_1074	-	fumarylacetoacetate (FAA) hydrolase
1071	 64.38	0	1118771..1119778	-	335	87199097	-	Saro_1075	-	type II secretion system protein
1072	 63.49	0	1119798..1120772	-	324	87199098	-	Saro_1076	-	type II secretion system protein
1073	 65.65	0	1120816..1122090	-	424	87199099	-	Saro_1077	-	response regulator receiver domain-containing protein
1074	 67.41	0	1122095..1122766	-	223	87199100	-	Saro_1078	-	hypothetical protein
1075	 65.99	0	1122781..1124400	-	539	87199101	-	Saro_1079	-	type II and III secretion system protein
1076	 66.96	0	1124402..1125430	-	342	87199102	-	Saro_1080	-	Flp pilus assembly CpaB
1077	 64.67	0	1125506..1126006	-	166	87199103	-	Saro_1081	-	peptidase A24A, prepilin type IV
1078	 66.77	0	1126076..1127068	+	330	87199104	-	Saro_1082	-	lysophospholipase L2
1079	 69.55	+1	1127065..1128174	+	369	87199105	-	Saro_1083	-	FAD dependent oxidoreductase
1080	 56.83	-2	1128266..1128448	+	60	87199106	-	Saro_1084	-	hypothetical protein
1081	 66.20	0	1128544..1128975	-	143	87199107	-	Saro_1085	-	RNase HI
1082	 68.39	0	1128972..1129958	-	328	87199108	-	Saro_1086	-	homoserine kinase
1083	 68.42	0	1129961..1130929	-	322	87199109	-	Saro_1087	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
1084	 69.68	+1	1131056..1131718	+	220	87199110	-	Saro_1088	-	hypothetical protein
1085	 64.78	0	1131811..1133559	+	582	87199111	-	Saro_1089	-	arginyl-tRNA synthetase
1086	 68.13	0	1133585..1134334	+	249	87199112	-	Saro_1090	-	hypothetical protein
1087	 67.70	0	1134430..1135497	+	355	87199113	-	Saro_1091	-	Beta-N-acetylhexosaminidase
1088	 66.42	0	1135497..1136294	+	265	87199114	-	Saro_1092	-	condensin subunit ScpA
1089	 66.51	0	1136291..1136938	+	215	87199115	-	Saro_1093	-	condensin subunit ScpB
1090	 65.08	0	1137023..1137274	+	83	87199116	-	Saro_1094	-	twin arginine-targeting protein translocase
1091	 68.53	+1	1137301..1137729	+	142	87199117	-	Saro_1095	-	twin-arginine translocation protein TatB
1092	 62.14	0	1137726..1138565	+	279	87199118	-	Saro_1096	-	Sec-independent protein translocase TatC
1093	 69.01	+1	1138736..1140442	-	568	87199119	-	Saro_1097	-	amidohydrolase
1094	 69.01	+1	1140439..1141377	-	312	87199120	-	Saro_1098	-	3-hydroxyisobutyrate dehydrogenase
1095	 65.69	0	1141436..1141846	+	136	87199121	-	Saro_1099	-	hypothetical protein
1096	 67.93	0	1141884..1143149	+	421	87199122	-	Saro_1100	-	threonine dehydratase
1097	 63.63	0	1143360..1144214	+	284	87199123	-	Saro_1101	-	arginyl-tRNA-protein transferase
1098	 67.70	0	1144285..1146414	+	709	87199124	-	Saro_1102	-	surface antigen (D15)
1099	 67.64	0	1146414..1150610	+	1398	87199125	-	Saro_1103	-	hypothetical protein
1100	 66.39	0	1150672..1152096	-	474	87199126	-	Saro_1104	-	aldehyde dehydrogenase
1101	 60.48	-1	1152213..1152503	-	96	87199127	-	Saro_1105	-	hypothetical protein
1102	 65.10	0	1152536..1154830	+	764	87199128	-	Saro_1106	-	periplasmic sensor diguanylate cyclase/phosphodiesterase
1103	 66.87	0	1154865..1155350	-	161	87199129	-	Saro_1107	-	CHAP
1104	 63.19	0	1155575..1156984	-	469	87199130	-	Saro_1108	-	L-glutamine synthetase
1105	 62.83	0	1157136..1157474	-	112	87199131	-	Saro_1109	-	nitrogen regulatory protein P-II
1106	 65.85	0	1157759..1158610	-	283	87199132	-	Saro_1110	-	methionine aminopeptidase, type I
1107	 65.43	0	1158645..1159451	-	268	87199133	-	Saro_1111	-	hypothetical protein
1108	 67.68	0	1159505..1160887	+	460	87199134	-	Saro_1112	-	leucyl aminopeptidase
1109	 65.96	0	1160890..1161315	+	141	87199135	-	Saro_1113	-	hypothetical protein
1110	 68.28	0	1161312..1162241	+	309	87199136	-	Saro_1114	-	N-acetyl-gamma-glutamyl-phosphate reductase
1111	 61.95	-1	1162325..1162642	-	105	87199137	-	Saro_1115	-	ferredoxin
1112	 66.34	0	1162772..1163389	+	205	87199138	-	Saro_1116	-	HhH-GPD
1113	 67.54	0	1163430..1164230	+	266	87199139	-	Saro_1117	-	short chain dehydrogenase
1114	 63.92	0	1164233..1164523	-	96	87199140	-	Saro_1118	-	pterin-4-alpha-carbinolamine dehydratase
1115	 68.06	0	1164585..1165160	+	191	87199141	-	Saro_1119	-	heme exporter protein CcmA
1116	 71.19	+1	1165157..1165819	+	220	87199142	-	Saro_1120	-	cytochrome c-type biogenesis protein CcmB
1117	 64.66	0	1165884..1166882	+	332	87199143	-	Saro_1121	-	cysteine synthase A
1118	 69.27	+1	1166897..1167280	+	127	87199144	-	Saro_1122	-	hypothetical protein
1119	 68.83	+1	1167283..1168020	+	245	87199145	-	Saro_1123	-	hypothetical protein
1120	 65.61	0	1168272..1168838	+	188	87199146	-	Saro_1124	-	hypothetical protein
1121	 66.67	0	1168835..1169824	+	329	87199147	-	Saro_1125	-	methyltransferase
1122	 65.27	0	1169821..1170681	+	286	87199148	-	Saro_1126	-	hypothetical protein
1123	 65.29	0	1170678..1172423	+	581	87199149	-	Saro_1127	-	peptidoglycan glycosyltransferase
1124	 67.91	0	1172420..1173868	+	482	87199150	murE	Saro_1128	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1125	 67.82	0	1173865..1175334	+	489	87199151	-	Saro_1129	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
1126	 65.54	0	1175335..1176399	+	354	87199152	-	Saro_1130	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1127	 67.27	0	1176396..1177727	+	443	87199153	-	Saro_1131	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
1128	 63.90	0	1177766..1178959	+	397	87199154	-	Saro_1132	-	cell cycle protein
1129	 68.12	0	1178956..1180122	+	388	87199155	murG	Saro_1133	-	N-acetylglucosaminyl transferase
1130	 65.33	0	1180119..1181543	+	474	87199156	murC	Saro_1134	-	UDP-N-acetylmuramate--L-alanine ligase
1131	 65.66	0	1181540..1182433	+	297	87199157	-	Saro_1135	-	UDP-N-acetylmuramate dehydrogenase
1132	 64.97	0	1182477..1183418	+	313	87199158	-	Saro_1136	-	D-alanine--D-alanine ligase
1133	 67.50	0	1183423..1184385	+	320	87199159	-	Saro_1137	-	cell division protein FtsQ
1134	 65.96	0	1184393..1185673	+	426	87199160	-	Saro_1138	-	cell division protein FtsA
1135	 67.07	0	1185868..1187343	+	491	87199161	-	Saro_1139	-	cell division protein FtsZ
1136	 69.45	+1	1187406..1189598	+	730	87199162	-	Saro_1140	-	hypothetical protein
1137	 65.67	0	1189801..1190304	+	167	87199163	-	Saro_1141	-	hypothetical protein
1138	 69.75	+1	1190387..1191196	+	269	87199164	-	Saro_1142	-	pyrroline-5-carboxylate reductase
1139	 63.31	0	1191311..1192054	+	247	87199165	-	Saro_1143	-	hypothetical protein
1140	 66.12	0	1192227..1192958	+	243	87199166	-	Saro_1144	-	hypothetical protein
1141	 65.25	0	1193278..1194336	+	352	161760696	obgE	Saro_1145	-	GTPase ObgE
1142	 69.40	+1	1194468..1195601	+	377	87199168	-	Saro_1146	-	gamma-glutamyl kinase
65.30	MEAN

3.21	STD DEV
