IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

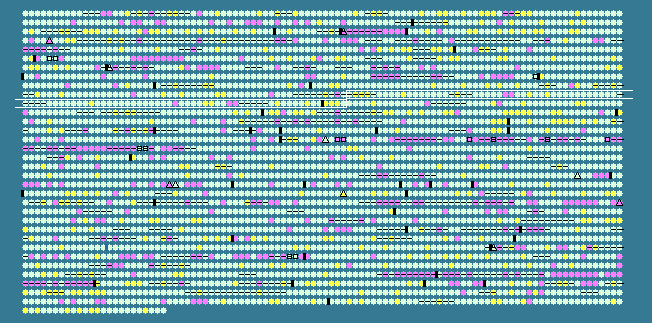

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
955	 66.84	0	1006273..1006842	-	189	87198981	-	Saro_0959	-	hypothetical protein
956	 69.44	+1	1006872..1007951	+	359	87198982	-	Saro_0960	-	A/G-specific DNA-adenine glycosylase
957	 69.14	+1	1007956..1009251	+	431	87198983	-	Saro_0961	-	twin-arginine translocation pathway signal
958	 68.82	+1	1009251..1010132	+	293	87198984	-	Saro_0962	-	NUDIX hydrolase
959	 68.69	+1	1010129..1010821	+	230	87198985	-	Saro_0963	-	DSBA oxidoreductase
960	 64.95	0	1010832..1011239	-	135	87198986	-	Saro_0964	-	hypothetical protein
961	 65.63	0	1011254..1012699	-	481	87198987	-	Saro_0965	-	magnesium transporter
962	 64.47	0	1012810..1013265	+	151	87198988	-	Saro_0966	-	peptidyl-prolyl cis-trans isomerase, cyclophilin type
963	 68.77	+1	1013326..1014654	-	442	87198989	gltX	Saro_0967	-	glutamyl-tRNA synthetase
964	 70.34	+1	1014694..1015128	-	144	87198990	-	Saro_0968	-	hypothetical protein
965	 63.86	0	1015181..1015429	-	82	87198991	-	Saro_0969	-	hypothetical protein
966	 65.33	0	1015433..1017154	-	573	87198992	nadE	Saro_0970	-	NAD synthetase
967	 65.92	0	1017201..1018136	+	311	87198993	-	Saro_0971	-	ribose-phosphate pyrophosphokinase
968	 62.17	0	1018189..1018677	-	162	87198994	-	Saro_0972	-	hypothetical protein
969	 64.04	0	1018702..1019349	+	215	87198995	-	Saro_0973	-	TetR family transcriptional regulator
970	 66.56	0	1019333..1020274	-	313	87198996	-	Saro_0974	-	AraC family transcriptional regulator
971	 67.18	0	1020437..1021216	+	259	87198997	-	Saro_0975	-	inositol monophosphatase
972	 66.22	0	1021224..1021673	+	149	87198998	-	Saro_0976	-	hypothetical protein
973	 68.91	+1	1021670..1022071	-	133	87198999	-	Saro_0977	-	hypothetical protein
974	 64.40	0	1022068..1022949	-	293	87199000	-	Saro_0978	-	LysR family transcriptional regulator
975	 66.24	0	1022952..1023893	-	313	87199001	-	Saro_0979	-	CBS
976	 66.27	0	1023914..1024417	-	167	87199002	-	Saro_0980	-	hypothetical protein
977	 65.62	0	1024414..1025460	-	348	87199003	-	Saro_0981	-	PhoH-like protein
978	 66.44	0	1025606..1026937	-	443	87199004	-	Saro_0982	-	tRNA-i(6)A37 modification enzyme MiaB
979	 65.37	0	1026972..1027745	-	257	87199005	-	Saro_0983	-	lyso-ornithine lipid acyltransferase
980	 65.48	0	1027729..1028151	-	140	87199006	-	Saro_0984	-	ferric uptake regulator family protein
981	 60.50	-1	1028255..1028692	-	145	87199007	-	Saro_0985	-	MucR family transcriptional regulator
982	 56.54	-2	1028861..1029334	-	157	87199008	-	Saro_0986	-	GCN5-related N-acetyltransferase
983	 67.31	0	1029346..1029966	-	206	87199009	-	Saro_0987	-	peptidase M22, glycoprotease
984	 64.63	0	1029983..1030570	-	195	87199010	-	Saro_0988	-	nitrogen-fixing NifU-like
985	 68.79	+1	1030696..1031259	+	187	87199011	-	Saro_0989	-	peptidylprolyl isomerase, FKBP-type
986	 66.32	0	1031323..1034208	+	961	87199012	-	Saro_0990	-	peptidase M16-like
987	 65.43	0	1034325..1035698	+	457	87199013	-	Saro_0991	-	3-deoxy-D-arabinoheptulosonate-7-phosphate synthase
988	 68.86	+1	1035736..1036329	-	197	87199014	-	Saro_0992	-	TetR family transcriptional regulator
989	 67.35	0	1036419..1036859	-	146	87199015	-	Saro_0993	-	hypothetical protein
990	 64.62	0	1036891..1037967	-	358	87199016	-	Saro_0994	-	aminoglycoside phosphotransferase
991	 66.94	0	1037964..1039052	-	362	87199017	-	Saro_0995	-	alcohol dehydrogenase, zinc-containing
992	 66.13	0	1039072..1040364	-	430	87199018	-	Saro_0996	-	acyl-CoA dehydrogenase-like
993	 67.44	0	1040458..1041885	-	475	87199019	-	Saro_0997	-	Na+/melibiose symporter and related transporters-like
994	 66.67	0	1041882..1042730	-	282	87199020	-	Saro_0998	-	short-chain dehydrogenase/reductase SDR
995	 64.60	0	1042925..1044085	+	386	87199021	-	Saro_0999	-	acyl-CoA dehydrogenase-like
996	 65.00	0	1044089..1045228	+	379	87199022	-	Saro_1000	-	acyl-CoA dehydrogenase-like
997	 63.56	0	1045340..1046143	+	267	87199023	-	Saro_1001	-	short-chain dehydrogenase/reductase SDR
998	 68.24	0	1046149..1047036	+	295	87199024	-	Saro_1002	-	gluconolactonase
999	 65.77	0	1047044..1047709	-	221	87199025	-	Saro_1003	-	guanylate kinase
1000	 65.90	0	1047777..1048169	-	130	87199026	-	Saro_1004	-	hypothetical protein
1001	 63.47	0	1048204..1048704	-	166	87199027	-	Saro_1005	-	hypothetical protein
1002	 64.48	0	1048789..1049382	+	197	87199028	-	Saro_1006	-	imidazoleglycerol-phosphate dehydratase
1003	 67.62	0	1049375..1050004	+	209	87199029	hisH	Saro_1007	-	imidazole glycerol phosphate synthase subunit HisH
1004	 64.39	0	1050070..1051209	+	379	87199030	-	Saro_1008	-	hypothetical protein
1005	 65.01	0	1051232..1051957	+	241	87199031	-	Saro_1009	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1006	 68.09	0	1051962..1052735	+	257	87199032	-	Saro_1010	-	imidazole glycerol phosphate synthase subunit HisF
1007	 66.36	0	1053185..1053508	+	107	87199033	-	Saro_1011	-	phosphoribosyl-ATP pyrophosphatase
1008	 64.02	0	1053510..1053887	+	125	87199034	-	Saro_1012	-	histidine triad (HIT) protein
1009	 66.45	0	1053963..1054427	+	154	87199035	-	Saro_1013	-	4-hydroxybenzoyl-CoA thioesterase
1010	 66.10	0	1054424..1055125	+	233	87199036	-	Saro_1014	-	MotA/TolQ/ExbB proton channel
1011	 68.43	0	1055129..1055581	+	150	87199037	-	Saro_1015	-	biopolymer transport protein ExbD/TolR
1012	 70.41	+1	1055592..1056473	+	293	87199038	-	Saro_1016	-	hypothetical protein
1013	 65.95	0	1056470..1057855	+	461	87199039	tolB	Saro_1017	-	translocation protein TolB
1014	 67.64	0	1057969..1058481	+	170	87199040	-	Saro_1018	-	OmpA/MotB
1015	 66.67	0	1058602..1059135	+	177	87199041	-	Saro_1019	-	heat shock protein DnaJ-like
1016	 62.63	0	1059132..1060022	+	296	87199042	-	Saro_1020	-	phytanoyl-CoA dioxygenase
1017	 68.00	0	1059940..1061142	-	400	87199043	-	Saro_1021	-	polynucleotide adenylyltransferase region
1018	 66.67	0	1061135..1061749	-	204	87199044	-	Saro_1022	-	NUDIX hydrolase
1019	 67.54	0	1061746..1062315	-	189	87199045	-	Saro_1023	-	hypothetical protein
1020	 66.48	0	1062338..1062874	-	178	87199046	-	Saro_1024	-	acetyltransferase-like
1021	 65.40	0	1063077..1064498	+	473	87199047	-	Saro_1025	-	cytochrome bd ubiquinol oxidase, subunit I
1022	 66.67	0	1064498..1065496	+	332	87199048	-	Saro_1026	-	cytochrome d ubiquinol oxidase, subunit II
1023	 66.05	0	1065483..1065644	+	53	87199049	-	Saro_1027	-	hypothetical protein
1024	 67.53	0	1065625..1067019	-	464	87199050	-	Saro_1028	-	XRE family transcriptional regulator
1025	 63.35	0	1067166..1068761	+	531	87199051	-	Saro_1029	-	isocitrate lyase
1026	 60.38	-1	1068826..1068984	+	52	87199052	-	Saro_1030	-	hypothetical protein
1027	 65.67	0	1069183..1071492	+	769	87199053	-	Saro_1031	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
1028	 67.99	0	1071489..1072166	-	225	87199054	-	Saro_1032	-	phosphoribosylformylglycinamidine synthase I
1029	 62.82	0	1072181..1072414	-	77	87199055	-	Saro_1033	-	phosphoribosylformylglycinamidine synthetase PurS
1030	 65.85	0	1072837..1073451	+	204	87199056	-	Saro_1034	-	TetR family transcriptional regulator
1031	 70.46	+1	1073448..1074422	+	324	87199057	-	Saro_1035	-	secretion protein HlyD
1032	 69.20	+1	1074419..1075405	+	328	87199058	-	Saro_1036	-	ABC transporter related
1033	 65.97	0	1075402..1076550	+	382	87199059	-	Saro_1037	-	hypothetical protein
1034	 68.67	+1	1076575..1079421	-	948	87199060	-	Saro_1038	-	peptidase M16-like
1035	 60.00	-1	1079480..1079674	-	64	87199061	-	Saro_1039	-	hypothetical protein
1036	 54.79	-2	1079674..1079976	-	100	87199062	-	Saro_1040	-	hypothetical protein
1037	 62.85	0	1080291..1081076	-	261	87199063	-	Saro_1041	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1038	 65.73	0	1081361..1081786	+	141	87199064	-	Saro_1042	-	hypothetical protein
1039	 68.03	0	1081783..1082370	+	195	87199065	-	Saro_1043	-	hypothetical protein
1040	 66.67	0	1082367..1083260	+	297	87199066	-	Saro_1044	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
1041	 66.67	0	1083306..1085522	+	738	87199067	-	Saro_1045	-	branched-chain alpha-keto acid dehydrogenase E1 component
1042	 68.34	0	1085515..1086528	+	337	87199068	-	Saro_1046	-	acyl-carrier domain-containing protein
1043	 70.32	+1	1086525..1086989	+	154	87199069	-	Saro_1047	-	protein tyrosine phosphatase
1044	 67.96	0	1087170..1087943	-	257	87199070	-	Saro_1048	-	DeoR family transcriptional regulator
1045	 66.57	0	1088007..1089080	-	357	87199071	-	Saro_1049	-	rhamnose-proton symporter
1046	 66.06	0	1089104..1090249	-	381	87199072	lldD	Saro_1050	-	L-lactate dehydrogenase
1047	 67.72	0	1090260..1091687	-	475	87199073	-	Saro_1051	-	carbohydrate kinase, FGGY
1048	 68.81	+1	1091834..1092811	-	325	87199074	-	Saro_1052	-	regulatory protein, LuxR
1049	 63.05	0	1093126..1095501	+	791	87199075	-	Saro_1053	-	TonB-dependent receptor
1050	 64.76	0	1095516..1097246	+	576	87199076	-	Saro_1054	-	amidohydrolase-like
1051	 70.11	+1	1097674..1097847	-	57	87199077	-	Saro_1055	-	hypothetical protein
1052	 70.97	+1	1097844..1098842	-	332	87199078	-	Saro_1056	-	ribonuclease
1053	 70.30	+1	1098832..1099437	-	201	87199079	-	Saro_1057	-	maf protein
1054	 62.96	0	1099437..1099733	-	98	87199080	-	Saro_1058	-	translation initiation factor 1
65.30	MEAN

3.21	STD DEV
