IslandPathversion 1.0

IslandPath Analysis: Nitrobacter winogradskyi Nb-255

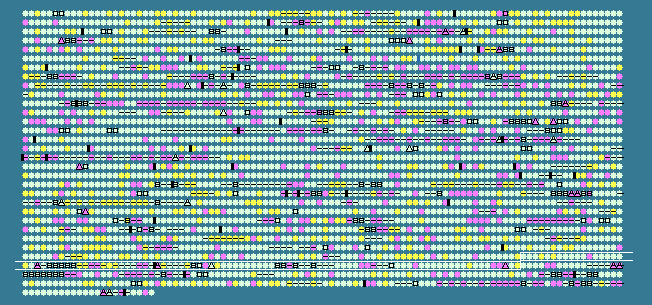

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.44 STD DEV: 3.62
Nitrobacter winogradskyi Nb-255, complete genome - 1..3402093
3122 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2784	 60.54	0	3036014..3036421	+	135	75676983	-	Nwi_2799	-	succinate dehydrogenase, cytochrome b subunit
2785	 64.69	0	3036425..3038248	+	607	75676984	sdhA	Nwi_2800	-	succinate dehydrogenase flavoprotein subunit
2786	 61.43	0	3038472..3039254	+	260	75676985	sdhB	Nwi_2801	-	succinate dehydrogenase iron-sulfur subunit
2787	 68.47	+1	3039920..3041911	+	663	75676986	-	Nwi_2802	-	OmpA/MotB
2788	 62.11	0	3042012..3043241	-	409	75676987	-	Nwi_2803	-	argininosuccinate synthase
2789	 67.43	+1	3043312..3044100	-	262	75676988	-	Nwi_2804	-	phosphoesterase, PA-phosphatase related
2790	 63.94	0	3044272..3044748	-	158	75676989	-	Nwi_2805	-	hypothetical protein
2791	 61.68	0	3044785..3046068	-	427	75676990	-	Nwi_2806	-	hypothetical protein
2792	 61.02	0	3046248..3046796	-	182	75676991	-	Nwi_2807	-	hypothetical protein
2793	 63.25	0	3047161..3047541	-	126	75676992	-	Nwi_2808	-	hypothetical protein
2794	 63.07	0	3047651..3047956	-	101	75676993	phhB	Nwi_2809	-	pterin-4-alpha-carbinolamine dehydratase
2795	 55.75	-1	3048298..3048636	+	112	75676994	-	Nwi_2810	-	4Fe-4S ferredoxin, iron-sulfur binding
2796	 61.59	0	3048702..3049193	+	163	75676995	-	Nwi_2811	-	hypothetical protein
2797	 63.43	0	3049285..3051198	-	637	75676996	-	Nwi_2812	-	heat shock protein 90
2798	 60.81	0	3051635..3052300	+	221	75676997	-	Nwi_2813	-	PepSY-associated TM helix
2799	 60.23	0	3052311..3052823	+	170	75676998	-	Nwi_2814	-	hypothetical protein
2800	 63.10	0	3052984..3053796	+	270	75676999	-	Nwi_2815	-	hypothetical protein
2801	 66.67	+1	3053801..3054817	+	338	75677000	-	Nwi_2816	-	ApbE-like lipoprotein
2802	 60.02	0	3054930..3055952	-	340	75677001	-	Nwi_2817	-	tRNA-dihydrouridine synthase A
2803	 58.57	-1	3056107..3057057	-	316	75677002	-	Nwi_2818	-	integrase, catalytic region
2804	 61.88	0	3057115..3058095	-	326	75677003	-	Nwi_2819	-	helix-turn-helix, Fis-type
2805	 65.07	0	3058092..3058466	-	124	75677004	-	Nwi_2820	-	transposase IS3/IS911
2806	 59.85	0	3058571..3058834	+	87	75677005	-	Nwi_2821	-	ISBm1, transposase orfA
2807	 59.64	0	3058876..3059259	+	127	75677006	-	Nwi_2822	-	transposase, IS4
2808	 61.90	0	3059315..3059713	+	132	75677007	-	Nwi_2823	-	transposase
2809	 64.50	0	3059728..3060096	+	122	75677008	-	Nwi_2824	-	transposase, IS4
2810	 67.40	+1	3060211..3060483	-	90	75677009	-	Nwi_2825	-	hypothetical protein
2811	 67.68	+1	3060486..3061571	-	361	75677010	-	Nwi_2826	-	hypothetical protein
2812	 55.13	-2	3061624..3062334	-	236	75677011	-	Nwi_2827	-	hypothetical protein
2813	 52.25	-2	3062340..3063005	-	221	75677012	-	Nwi_2828	-	hypothetical protein
2814	 69.98	+2	3063138..3063770	-	210	75677013	-	Nwi_2829	-	hypothetical protein
2815	 66.03	0	3063767..3064078	-	103	75677014	-	Nwi_2830	-	hypothetical protein
2816	 67.86	+1	3064078..3064413	-	111	75677015	-	Nwi_2831	-	hypothetical protein
2817	 62.37	0	3064879..3065343	+	154	75677016	-	Nwi_2833	-	prophage LambdaMc01, site-specific recombinase resolvase family protein
2818	 61.20	0	3065475..3065858	+	127	75677017	-	Nwi_2834	-	hypothetical protein
2819	 65.11	0	3065862..3066695	-	277	75677018	-	Nwi_2835	-	hypothetical protein
2820	 57.85	-1	3066705..3067226	-	173	75677019	-	Nwi_2836	-	hypothetical protein
2821	 51.55	-2	3067306..3067887	-	193	75677020	-	Nwi_2837	-	hypothetical protein
2822	 59.51	0	3067887..3068654	-	255	75677021	-	Nwi_2838	-	Phage Gp37Gp68
2823	 55.84	-1	3069234..3069695	-	153	75677022	-	Nwi_2839	-	integrase, catalytic region
2824	 65.95	0	3069897..3070175	+	92	75677023	-	Nwi_2840	-	hypothetical protein
2825	 64.89	0	3070201..3071211	+	336	75677024	-	Nwi_2841	-	resolvase
2826	 64.30	0	3071202..3071708	+	168	75677025	-	Nwi_2842	-	IstB-like ATP-binding protein
2827	 62.12	0	3074650..3076608	-	652	75677026	-	Nwi_2845	-	outer membrane autotransporter barrel
2828	 67.14	+1	3077297..3079423	+	708	75677027	-	Nwi_2846	-	peptidase C14, caspase catalytic subunit p20
2829	 59.50	0	3079878..3080519	-	213	75677028	-	Nwi_2847	-	ISRm2011-2 transposase protein
2830	 60.68	0	3080471..3080821	-	116	75677029	-	Nwi_2848	-	transposase
2831	 55.64	-1	3081298..3081678	-	126	75677030	-	Nwi_2849	-	hypothetical protein
2832	 60.81	0	3081743..3082732	-	329	75677031	-	Nwi_2850	-	integrase, catalytic region
2833	 67.38	+1	3083032..3084996	+	654	75677032	-	Nwi_2851	-	hypothetical protein
2834	 65.62	0	3085190..3086434	-	414	75677033	-	Nwi_2852	-	glycosyl transferase family protein
2835	 63.96	0	3086450..3087817	-	455	75677034	-	Nwi_2853	-	Na+/H+ antiporter NhaA
2836	 60.23	0	3087931..3088629	+	232	75677035	-	Nwi_2854	-	hypothetical protein
2837	 61.49	0	3088669..3088977	+	102	75677036	-	Nwi_2855	-	hypothetical protein
2838	 59.65	0	3088981..3089493	+	170	75677037	-	Nwi_2856	-	GCN5-related N-acetyltransferase
2839	 64.13	0	3089533..3089808	+	91	75677038	-	Nwi_2857	-	hypothetical protein
2840	 62.76	0	3090054..3090386	+	110	75677039	-	Nwi_2858	-	hypothetical protein
2841	 64.14	0	3090452..3092632	+	726	75677040	-	Nwi_2859	-	ParB-like nuclease
2842	 65.45	0	3092687..3093916	+	409	75677041	-	Nwi_2860	-	nucleic acid binding, OB-fold, tRNA/helicase-type
2843	 64.50	0	3094057..3094425	-	122	75677042	-	Nwi_2861	-	transposase, IS4
2844	 61.90	0	3094440..3094838	-	132	75677043	-	Nwi_2862	-	transposase
2845	 56.80	-1	3095047..3097812	+	921	75677044	-	Nwi_2863	-	hypothetical protein
2846	 60.53	0	3097875..3098249	+	124	75677045	-	Nwi_2864	-	transposase IS3/IS911
2847	 59.73	0	3098246..3099226	+	326	75677046	-	Nwi_2865	-	helix-turn-helix, Fis-type
2848	 61.88	0	3099378..3100358	-	326	75677047	-	Nwi_2866	-	helix-turn-helix, Fis-type
2849	 65.07	0	3100355..3100729	-	124	75677048	-	Nwi_2867	-	transposase IS3/IS911
2850	 62.18	0	3101193..3102485	-	430	75677049	-	Nwi_2868	-	hypothetical protein
2851	 63.74	0	3102475..3102816	-	113	75677050	-	Nwi_2869	-	hypothetical protein
2852	 59.34	0	3103163..3103435	+	90	75677051	-	Nwi_2870	-	hypothetical protein
2853	 62.57	0	3103444..3104322	+	292	75677052	-	Nwi_2871	-	hypothetical protein
2854	 61.90	0	3104297..3104968	+	223	75677053	-	Nwi_2872	-	hypothetical protein
2855	 61.16	0	3104952..3105659	+	235	75677054	-	Nwi_2873	-	hypothetical protein
2856	 62.98	0	3105391..3106449	+	352	75677055	-	Nwi_2874	-	hypothetical protein
2857	 57.19	-1	3106724..3107272	+	182	75677056	-	Nwi_2875	-	hypothetical protein
2858	 51.89	-2	3107347..3108009	-	220	75677057	-	Nwi_2876	-	hypothetical protein
2859	 55.52	-1	3108006..3108965	-	319	75677058	-	Nwi_2877	-	hypothetical protein
2860	 59.34	0	3109234..3109506	+	90	75677059	-	Nwi_2878	-	hypothetical protein
2861	 59.73	0	3109684..3110664	-	326	75677060	-	Nwi_2879	-	helix-turn-helix, Fis-type
2862	 60.53	0	3110661..3111035	-	124	75677061	-	Nwi_2880	-	transposase IS3/IS911
2863	 61.27	0	3111299..3113764	-	821	75677062	-	Nwi_2881	-	TonB-dependent siderophore receptor
2864	 64.88	0	3113977..3114981	-	334	75677063	-	Nwi_2882	-	FecR protein
2865	 63.78	0	3115272..3115790	-	172	75677064	-	Nwi_2883	-	fec I like protein
2866	 58.46	-1	3116136..3116744	-	202	75677065	-	Nwi_2884	-	hypothetical protein
2867	 63.91	0	3116844..3117314	-	156	75677066	-	Nwi_2885	-	MarR family transcriptional regulator
2868	 61.30	0	3117599..3118045	+	148	75677067	-	Nwi_2886	-	glyoxalase/bleomycin resistance protein/dioxygenase
2869	 60.80	0	3118159..3119334	-	391	75677068	-	Nwi_2887	-	ribonucleotide-diphosphate reductase subunit beta
2870	 64.57	0	3119427..3122336	-	969	75677069	-	Nwi_2888	-	ribonucleotide-diphosphate reductase subunit alpha
2871	 60.20	0	3122721..3123539	+	272	75677070	-	Nwi_2889	-	hypothetical protein
2872	 64.85	0	3123918..3126233	+	771	75677071	-	Nwi_2890	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
2873	 62.94	0	3126624..3127214	+	196	75677072	-	Nwi_2891	-	ErfK/YbiS/YcfS/YnhG
2874	 60.21	0	3127270..3128307	+	345	75677073	-	Nwi_2892	-	extracellular solute-binding protein
2875	 66.07	+1	3128362..3129033	-	223	75677074	-	Nwi_2893	-	hypothetical protein
2876	 59.24	0	3129380..3129850	+	156	75677075	-	Nwi_2894	-	hypothetical protein
2877	 63.88	0	3130143..3131183	+	346	75677076	-	Nwi_2895	-	beta-lactamase-like protein
2878	 62.27	0	3131312..3132493	-	393	75677077	-	Nwi_2896	-	diguanylate cyclase
2879	 58.16	-1	3133137..3133559	-	140	75677078	-	Nwi_2897	-	hypothetical protein
2880	 57.64	-1	3133769..3134167	-	132	75677079	-	Nwi_2898	-	hypothetical protein
2881	 58.13	-1	3134284..3135267	+	327	75677080	-	Nwi_2899	-	integrase, catalytic region
2882	 61.90	0	3135254..3135694	+	146	75677081	-	Nwi_2900	-	hypothetical protein
2883	 66.94	+1	3136007..3136378	+	123	75677082	-	Nwi_2901	-	hypothetical protein
62.44	MEAN

3.62	STD DEV
