IslandPath Analysis: Nitrobacter winogradskyi Nb-255

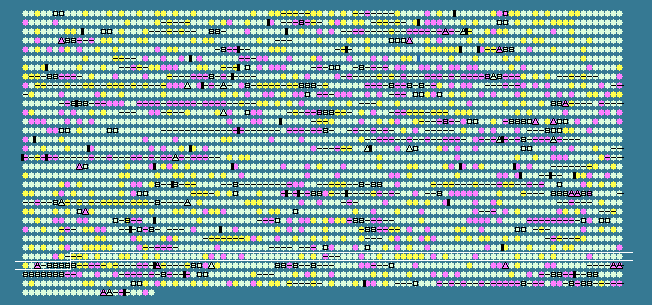

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.44 STD DEV: 3.62
Nitrobacter winogradskyi Nb-255, complete genome - 1..3402093
3122 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2709	 68.29	+1	2959231..2960277	-	348	75676908	ruvB	Nwi_2724	-	Holliday junction DNA helicase B
2710	 66.67	+1	2960274..2960891	-	205	75676909	ruvA	Nwi_2725	-	Holliday junction DNA helicase motor protein
2711	 66.28	+1	2960917..2961435	-	172	75676910	ruvC	Nwi_2726	-	Holliday junction resolvase
2712	 64.20	0	2961764..2962372	+	202	75676911	-	Nwi_2727	-	hypothetical protein
2713	 66.16	+1	2962436..2963806	-	456	75676912	-	Nwi_2728	-	divalent cation transporter
2714	 61.98	0	2964112..2964858	-	248	75676913	-	Nwi_2729	-	hypothetical protein
2715	 64.60	0	2965032..2965853	-	273	75676914	-	Nwi_2730	-	hypothetical protein
2716	 65.82	0	2965857..2966444	-	195	75676915	-	Nwi_2731	-	5-formyltetrahydrofolate cyclo-ligase
2717	 66.41	+1	2966934..2967317	-	127	75676916	-	Nwi_2732	-	hypothetical protein
2718	 68.45	+1	2967314..2967649	-	111	75676917	-	Nwi_2733	-	hypothetical protein
2719	 64.30	0	2967933..2969918	+	661	75676918	-	Nwi_2734	-	transketolase
2720	 61.21	0	2970244..2971251	+	335	75676919	-	Nwi_2735	-	glyceraldehyde-3-phosphate dehydrogenase
2721	 66.42	+1	2971394..2972590	+	398	75676920	pgk	Nwi_2736	-	phosphoglycerate kinase
2722	 65.21	0	2972714..2973745	+	343	75676921	-	Nwi_2737	-	fructose-bisphosphate aldolase, class-I
2723	 68.66	+1	2973912..2974613	+	233	75676922	-	Nwi_2738	-	thiamine monophosphate synthase
2724	 65.71	0	2974610..2975650	+	346	75676923	-	Nwi_2739	-	Sel1 repeat-containing protein
2725	 64.27	0	2975712..2976503	+	263	75676924	-	Nwi_2740	-	inositol monophosphatase
2726	 63.76	0	2976673..2979834	-	1053	75676925	-	Nwi_2741	-	hydrophobe/amphiphile efflux-1 HAE1
2727	 64.34	0	2979841..2981046	-	401	75676926	-	Nwi_2742	-	secretion protein HlyD
2728	 62.58	0	2981511..2982587	+	358	75676927	-	Nwi_2743	-	hypothetical protein
2729	 64.04	0	2982598..2983626	+	342	75676928	-	Nwi_2744	-	hypothetical protein
2730	 64.22	0	2983846..2984295	+	149	75676929	-	Nwi_2745	-	GCN5-related N-acetyltransferase
2731	 67.78	+1	2984357..2986240	-	627	75676930	-	Nwi_2746	-	ABC transporter, ATP-binding/permease protein
2732	 57.89	-1	2986389..2986616	+	75	75676931	rpmE	Nwi_2747	-	50S ribosomal protein L31
2733	 62.84	0	2986724..2987272	-	182	75676932	-	Nwi_2748	-	hypothetical protein
2734	 58.20	-1	2987862..2988050	-	62	75676933	-	Nwi_2749	-	hypothetical protein
2735	 65.67	0	2988257..2989255	+	332	75676934	-	Nwi_2750	-	zinc-containing alcohol dehydrogenase superfamily protein
2736	 64.62	0	2989347..2992229	+	960	75676935	-	Nwi_2751	-	multi-sensor diguanylate cyclase/phophodiesterase
2737	 58.26	-1	2992273..2992938	-	221	75676936	-	Nwi_2752	-	hypothetical protein
2738	 65.72	0	2993099..2993941	+	280	75676937	-	Nwi_2753	-	hypothetical protein
2739	 63.92	0	2994159..2995541	+	460	75676938	-	Nwi_2754	-	polysaccharide biosynthesis protein
2740	 63.62	0	2995670..2996458	-	262	75676939	-	Nwi_2755	-	3-hydroxybutyrate dehydrogenase
2741	 61.96	0	2996594..2997103	-	169	75676940	-	Nwi_2756	-	hypothetical protein
2742	 64.48	0	2997390..2998439	-	349	75676941	-	Nwi_2757	-	sulphate transport system permease protein 1
2743	 60.57	0	2998429..2999298	-	289	75676942	-	Nwi_2758	-	Sulfate ABC transporter, permease protein CysW
2744	 61.17	0	2999310..3000146	-	278	75676943	-	Nwi_2759	-	Sulfate ABC transporter, permease protein CysT
2745	 59.09	0	3000177..3001166	-	329	75676944	-	Nwi_2760	-	thiosulphate-binding protein
2746	 65.49	0	3001296..3002060	-	254	75676945	-	Nwi_2761	-	phosphoadenosine phosphosulfate reductase
2747	 68.41	+1	3002057..3003487	-	476	75676946	-	Nwi_2762	-	uroporphyrin-III C-methyltransferase
2748	 63.32	0	3003752..3004558	+	268	75676947	-	Nwi_2763	-	sulfate adenylyltransferase subunit 2
2749	 66.36	+1	3004593..3006518	+	641	75676948	-	Nwi_2764	-	adenylylsulfate kinase
2750	 62.76	0	3006796..3009021	+	741	75676949	-	Nwi_2765	-	malate synthase G
2751	 53.85	-2	3009136..3009291	-	51	75676950	-	Nwi_2766	-	hypothetical protein
2752	 63.69	0	3009640..3010008	+	122	75676951	-	Nwi_2767	-	hypothetical protein
2753	 60.05	0	3010259..3010681	+	140	75676952	-	Nwi_2768	-	hypothetical protein
2754	 64.06	0	3010700..3011083	-	127	75676953	-	Nwi_2769	-	hypothetical protein
2755	 65.45	0	3011103..3011348	-	81	75676954	-	Nwi_2770	-	hypothetical protein
2756	 62.08	0	3011323..3012129	-	268	75676955	-	Nwi_2771	-	two-component response regulator
2757	 56.62	-1	3012368..3012586	+	72	75676956	-	Nwi_2772	-	hypothetical protein
2758	 60.41	0	3012586..3013128	+	180	75676957	-	Nwi_2773	-	RNA polymerase sigma factor
2759	 60.34	0	3013306..3014964	-	552	75676958	-	Nwi_2774	-	HWE histidine kinase
2760	 66.59	+1	3015393..3016661	-	422	75676959	-	Nwi_2775	-	2-methylthioadenine synthetase
2761	 63.31	0	3016661..3017554	-	297	75676960	dapF	Nwi_2776	-	diaminopimelate epimerase
2762	 63.10	0	3017811..3018539	+	242	75676961	-	Nwi_2777	-	transcription activator, effector binding
2763	 67.22	+1	3018536..3019258	+	240	75676962	-	Nwi_2778	-	hypothetical protein
2764	 66.09	+1	3019454..3021004	+	516	75676963	-	Nwi_2779	-	Signal recognition particle protein
2765	 67.87	+1	3021083..3021415	+	110	75676964	rpsP	Nwi_2780	-	30S ribosomal protein S16
2766	 68.20	+1	3021428..3021949	+	173	75676965	-	Nwi_2781	-	16S rRNA processing protein RimM
2767	 67.64	+1	3022113..3022832	+	239	75676966	-	Nwi_2782	-	tRNA (guanine-N1-)-methyltransferase
2768	 62.73	0	3023053..3023433	+	126	75676967	rplS	Nwi_2783	-	50S ribosomal protein L19
2769	 58.43	-1	3023540..3023794	+	84	75676968	-	Nwi_2784	-	hypothetical protein
2770	 64.82	0	3023869..3025275	+	468	75676969	-	Nwi_2785	-	isopropylmalate isomerase large subunit
2771	 66.50	+1	3025506..3026111	+	201	75676970	-	Nwi_2786	-	hypothetical protein
2772	 63.07	0	3026228..3026533	-	101	75676971	-	Nwi_2787	-	hypothetical protein
2773	 61.05	0	3026779..3027063	-	94	75676972	-	Nwi_2788	-	hypothetical protein
2774	 64.90	0	3027261..3027599	-	112	75676973	-	Nwi_2789	-	hypothetical protein
2775	 60.70	0	3027726..3028127	+	133	75676974	-	Nwi_2790	-	hypothetical protein
2776	 58.91	0	3028211..3028816	+	201	75676975	leuD	Nwi_2791	-	isopropylmalate isomerase small subunit
2777	 61.90	0	3028966..3029616	+	216	75676976	-	Nwi_2792	-	carbonic anhydrase
2778	 60.39	0	3029712..3030746	-	344	75676977	-	Nwi_2793	-	aspartate-semialdehyde dehydrogenase
2779	 65.14	0	3031143..3031535	+	130	75676978	-	Nwi_2794	-	hypothetical protein
2780	 64.24	0	3031658..3032770	-	370	75676979	-	Nwi_2795	-	3-isopropylmalate dehydrogenase
2781	 62.16	0	3033072..3033581	-	169	75676980	-	Nwi_2796	-	copper/Zinc superoxide dismutase
2782	 61.59	0	3033915..3035471	+	518	75676981	-	Nwi_2797	-	malonyl-CoA synthase
2783	 65.96	0	3035592..3036017	+	141	75676982	-	Nwi_2798	-	succinate dehydrogenase, cytochrome b subunit
2784	 60.54	0	3036014..3036421	+	135	75676983	-	Nwi_2799	-	succinate dehydrogenase, cytochrome b subunit
2785	 64.69	0	3036425..3038248	+	607	75676984	sdhA	Nwi_2800	-	succinate dehydrogenase flavoprotein subunit
2786	 61.43	0	3038472..3039254	+	260	75676985	sdhB	Nwi_2801	-	succinate dehydrogenase iron-sulfur subunit
2787	 68.47	+1	3039920..3041911	+	663	75676986	-	Nwi_2802	-	OmpA/MotB
2788	 62.11	0	3042012..3043241	-	409	75676987	-	Nwi_2803	-	argininosuccinate synthase
2789	 67.43	+1	3043312..3044100	-	262	75676988	-	Nwi_2804	-	phosphoesterase, PA-phosphatase related
2790	 63.94	0	3044272..3044748	-	158	75676989	-	Nwi_2805	-	hypothetical protein
2791	 61.68	0	3044785..3046068	-	427	75676990	-	Nwi_2806	-	hypothetical protein
2792	 61.02	0	3046248..3046796	-	182	75676991	-	Nwi_2807	-	hypothetical protein
2793	 63.25	0	3047161..3047541	-	126	75676992	-	Nwi_2808	-	hypothetical protein
2794	 63.07	0	3047651..3047956	-	101	75676993	phhB	Nwi_2809	-	pterin-4-alpha-carbinolamine dehydratase
2795	 55.75	-1	3048298..3048636	+	112	75676994	-	Nwi_2810	-	4Fe-4S ferredoxin, iron-sulfur binding
2796	 61.59	0	3048702..3049193	+	163	75676995	-	Nwi_2811	-	hypothetical protein
2797	 63.43	0	3049285..3051198	-	637	75676996	-	Nwi_2812	-	heat shock protein 90
2798	 60.81	0	3051635..3052300	+	221	75676997	-	Nwi_2813	-	PepSY-associated TM helix
2799	 60.23	0	3052311..3052823	+	170	75676998	-	Nwi_2814	-	hypothetical protein
2800	 63.10	0	3052984..3053796	+	270	75676999	-	Nwi_2815	-	hypothetical protein
2801	 66.67	+1	3053801..3054817	+	338	75677000	-	Nwi_2816	-	ApbE-like lipoprotein
2802	 60.02	0	3054930..3055952	-	340	75677001	-	Nwi_2817	-	tRNA-dihydrouridine synthase A
2803	 58.57	-1	3056107..3057057	-	316	75677002	-	Nwi_2818	-	integrase, catalytic region
2804	 61.88	0	3057115..3058095	-	326	75677003	-	Nwi_2819	-	helix-turn-helix, Fis-type
2805	 65.07	0	3058092..3058466	-	124	75677004	-	Nwi_2820	-	transposase IS3/IS911
2806	 59.85	0	3058571..3058834	+	87	75677005	-	Nwi_2821	-	ISBm1, transposase orfA
2807	 59.64	0	3058876..3059259	+	127	75677006	-	Nwi_2822	-	transposase, IS4
2808	 61.90	0	3059315..3059713	+	132	75677007	-	Nwi_2823	-	transposase
62.44	MEAN

3.62	STD DEV
