IslandPath Analysis: Nitrobacter winogradskyi Nb-255

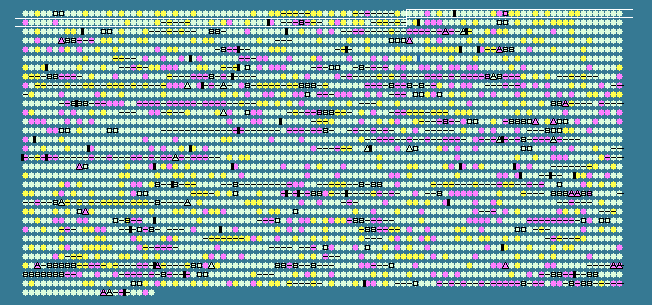

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 62.44   STD DEV: 3.62
Nitrobacter winogradskyi Nb-255, complete genome - 1..3402093
3122 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
65	 65.35	0	76495..78933	-	812	75674264	pheT	Nwi_0065	-	phenylalanyl-tRNA synthetase subunit beta
66	 63.06	0	78930..80039	-	369	75674265	pheS	Nwi_0066	-	phenylalanyl-tRNA synthetase subunit alpha
67	 65.83	0	80156..80515	-	119	75674266	rplT	Nwi_0067	-	50S ribosomal protein L20
68	 58.21	-1	80581..80781	-	66	75674267	rpmI	Nwi_0068	-	50S ribosomal protein L35
69	 59.30	0	81110..81625	-	171	75674268	infC	Nwi_0069	-	translation initiation factor IF-3
70	 68.86	+1	81853..82626	+	257	75674269	-	Nwi_0070	-	hypothetical protein
71	 64.52	0	82679..85012	-	777	75674270	-	Nwi_0071	-	hypothetical protein
72	 59.74	0	85217..86920	-	567	75674271	-	Nwi_0072	-	PAS sensor protein
73	 64.79	0	87836..88846	+	336	75674272	-	Nwi_0073	-	thioredoxin-related
74	 62.96	0	88990..89664	+	224	75674273	-	Nwi_0074	-	peptidase S16
75	 59.70	0	89704..89904	+	66	75674274	-	Nwi_0075	-	hypothetical protein
76	 63.13	0	89965..90303	-	112	75674275	-	Nwi_0076	-	nitrogen regulatory protein P-II
77	 63.95	0	90530..91414	+	294	75674276	-	Nwi_0077	-	hypothetical protein
78	 64.89	0	91510..92412	-	300	75674277	-	Nwi_0078	-	acyl-CoA thioesterase
79	 68.22	+1	92582..93802	+	406	75674278	-	Nwi_0079	-	2-octaprenyl-6-methoxyphenyl hydroxylase
80	 51.75	-2	94175..94603	-	142	75674279	-	Nwi_0080	-	hypothetical protein
81	 54.01	-2	96113..97084	-	323	75674280	-	Nwi_0081	-	ISSpo8, transposase
82	 69.89	+2	97354..98625	+	423	75674281	-	Nwi_0082	-	aminotransferase, class I and II
83	 66.55	+1	98638..101139	+	833	75674282	-	Nwi_0083	-	cell division protein FtsK/SpoIIIE
84	 63.58	0	101475..102251	+	258	75674283	-	Nwi_0084	-	Outer membrane lipoprotein carrier protein LolA
85	 63.40	0	102283..103170	+	295	75674284	-	Nwi_0085	-	exodeoxyribonuclease III xth
86	 66.05	0	103274..103756	-	160	75674285	-	Nwi_0086	-	cyclic nucleotide-binding protein
87	 63.90	0	103980..104666	-	228	75674286	-	Nwi_0087	-	transcriptional regulatory protein
88	 68.95	+1	104886..105455	+	189	75674287	-	Nwi_0088	-	hypothetical protein
89	 64.59	0	105622..106296	-	224	75674288	-	Nwi_0089	-	hypothetical protein
90	 64.68	0	106293..106997	-	234	75674289	-	Nwi_0090	-	glutathione S-transferase
91	 64.89	0	107151..109802	+	883	75674290	leuS	Nwi_0091	-	leucyl-tRNA synthetase
92	 68.55	+1	109789..110373	+	194	75674291	-	Nwi_0092	-	hypothetical protein
93	 68.03	+1	110384..111412	+	342	75674292	holA	Nwi_0093	-	DNA polymerase III subunit delta
94	 65.76	0	111481..112362	-	293	75674293	-	Nwi_0094	-	ParB-like partition protein
95	 63.79	0	112660..113529	-	289	75674294	-	Nwi_0095	-	cobyrinic acid a,c-diamide synthase
96	 61.03	0	113514..114347	-	277	75674295	-	Nwi_0096	-	glucose inhibited division protein
97	 65.54	0	114370..116241	-	623	75674296	-	Nwi_0097	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
98	 63.82	0	116402..117772	-	456	75674297	trmE	Nwi_0098	-	tRNA modification GTPase TrmE
99	 63.37	0	118015..120045	+	676	75674298	-	Nwi_0099	-	hypothetical protein
100	 59.24	0	120114..121379	-	421	75674299	rho	Nwi_0100	-	transcription termination factor Rho
101	 54.85	-2	121775..122197	-	140	75674300	-	Nwi_0101	-	hypothetical protein
102	 60.62	0	122627..123469	+	280	75674301	-	Nwi_0102	-	hypothetical protein
103	 62.07	0	123476..124084	+	202	75674302	-	Nwi_0103	-	Maf-like protein
104	 60.67	0	124101..124700	+	199	75674303	coaE	Nwi_0104	-	dephospho-CoA kinase
105	 60.00	0	124822..125541	+	239	75674304	-	Nwi_0105	-	DNA polymerase III, epsilon subunit
106	 57.50	-1	125554..126033	-	159	75674305	-	Nwi_0106	-	preprotein translocase subunit SecB
107	 60.85	0	126485..127189	+	234	75674306	-	Nwi_0107	-	hypothetical protein
108	 61.70	0	127167..128675	+	502	75674307	-	Nwi_0108	-	membrane-bound lytic murein transglycosylase
109	 65.11	0	128672..129250	+	192	75674308	-	Nwi_0109	-	Smr protein/MutS2
110	 62.19	0	129419..130759	+	446	75674309	-	Nwi_0110	-	histidine kinase
111	 64.68	0	130852..131406	+	184	75674310	-	Nwi_0111	-	helix-turn-helix, Fis-type
112	 63.41	0	131536..132027	-	163	75674311	-	Nwi_0112	-	hypothetical protein
113	 61.48	0	132223..132897	+	224	75674312	-	Nwi_0113	-	beta-lactamase-like
114	 64.40	0	133009..135828	-	939	75674313	-	Nwi_0114	-	Signal transduction histidine kinase
115	 64.78	0	135988..136941	+	317	75674314	-	Nwi_0115	-	hypothetical protein
116	 63.03	0	136979..137335	+	118	75674315	-	Nwi_0116	-	hypothetical protein
117	 63.73	0	137378..138331	+	317	75674316	-	Nwi_0117	-	glutathione synthetase
118	 66.73	+1	138414..139952	+	512	75674317	-	Nwi_0118	-	Mg chelatase-related protein
119	 63.84	0	140139..142403	+	754	75674318	-	Nwi_0119	-	Signal transduction histidine kinase
120	 61.13	0	142490..143446	-	318	75674319	-	Nwi_0120	-	pantothenate kinase
121	 60.19	0	143665..143988	-	107	162139853	hisE	Nwi_0121	-	phosphoribosyl-ATP pyrophosphatase
122	 64.35	0	144067..144843	-	258	75674321	-	Nwi_0122	-	imidazole glycerol phosphate synthase subunit HisF
123	 67.48	+1	144859..145599	-	246	162139852	-	Nwi_0123	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
124	 64.67	0	145596..146246	-	216	75674323	hisH	Nwi_0124	-	imidazole glycerol phosphate synthase subunit HisH
125	 68.31	+1	146243..146791	-	182	75674324	-	Nwi_0125	-	hypothetical protein
126	 62.63	0	146794..147387	-	197	75674325	-	Nwi_0126	-	imidazoleglycerol-phosphate dehydratase
127	 62.88	0	147685..148239	+	184	75674326	-	Nwi_0127	-	ATP-dependent protease peptidase subunit
128	 66.04	0	148243..148722	+	159	75674327	-	Nwi_0128	-	GCN5-related N-acetyltransferase
129	 61.75	0	148795..150096	+	433	75674328	hslU	Nwi_0129	-	ATP-dependent protease ATP-binding subunit
130	 61.12	0	150408..151742	+	444	75674329	-	Nwi_0130	-	polyhydroxyalkanoate depolymerase
131	 62.72	0	151952..152788	+	278	75674330	-	Nwi_0131	-	hypothetical protein
132	 66.53	+1	152996..155200	-	734	75674331	-	Nwi_0132	-	penicillin-binding protein 1A
133	 64.18	0	155426..158203	-	925	75674332	-	Nwi_0133	-	PII uridylyl-transferase
134	 67.06	+1	158519..159523	+	334	75674333	hslO	Nwi_0134	-	Hsp33-like chaperonin
135	 57.56	-1	159648..160361	-	237	75674334	apaG	Nwi_0135	-	ApaG
136	 61.94	0	160453..161700	+	415	75674335	-	Nwi_0136	-	acyltransferase 3
137	 62.47	0	161697..162458	+	253	75674336	-	Nwi_0137	-	hypothetical protein
138	 66.36	+1	162455..163438	+	327	75674337	-	Nwi_0138	-	lysophospholipase L1 and related esterase
139	 65.16	0	163474..164667	-	397	75674338	-	Nwi_0139	-	O-succinylhomoserine sulfhydrylase
140	 65.67	0	164942..166048	+	368	75674339	-	Nwi_0140	-	2'-deoxycytidine 5'-triphosphate deaminase
141	 60.89	0	166460..166840	+	126	75674340	-	Nwi_0141	-	camphor resistance CrcB protein
142	 57.54	-1	167204..167488	+	94	75674341	-	Nwi_0142	-	hypothetical protein
143	 62.05	0	167648..168124	+	158	75674342	-	Nwi_0143	-	hypothetical protein
144	 60.27	0	168478..169071	+	197	75674343	-	Nwi_0144	-	electron transport protein SCO1/SenC
145	 64.52	0	169062..169712	-	216	75674344	-	Nwi_0145	-	glycosyl transferase
146	 57.79	-1	169807..170268	+	153	75674345	-	Nwi_0146	-	hypothetical protein
147	 56.94	-1	171280..172266	-	328	75674346	-	Nwi_0147	-	transposase
148	 54.76	-2	172784..173245	-	153	75674347	-	Nwi_0148	-	hypothetical protein
149	 66.96	+1	173398..174750	-	450	75674348	-	Nwi_0149	-	glycosyl transferase family protein
150	 63.52	0	174846..175766	+	306	75674349	-	Nwi_0150	-	extracellular solute-binding protein
151	 63.05	0	175870..177501	+	543	75674350	lysK	Nwi_0151	-	lysyl-tRNA synthetase
152	 67.44	+1	177645..178163	+	172	75674351	-	Nwi_0152	-	ErfK/YbiS/YcfS/YnhG
153	 57.27	-1	178339..178902	+	187	75674352	pyrE	Nwi_0153	-	orotate phosphoribosyltransferase
154	 68.24	+1	178934..179506	-	190	75674353	-	Nwi_0154	-	nuclease
155	 65.92	0	179739..180005	-	88	75674354	-	Nwi_0155	-	hypothetical protein
156	 68.44	+1	180146..181498	+	450	75674355	-	Nwi_0156	-	tRNA and rRNA cytosine-C5-methylase
157	 67.81	+1	181625..183379	+	584	75674356	-	Nwi_0157	-	heparinase II/III-like
158	 65.85	0	183485..185077	+	530	75674357	purH	Nwi_0158	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
159	 63.16	0	185184..185954	+	256	75674358	-	Nwi_0159	-	cytochrome c, class I
160	 66.38	+1	186074..187462	-	462	75674359	-	Nwi_0160	-	major facilitator transporter
161	 66.67	+1	187584..189338	+	584	75674360	-	Nwi_0161	-	gamma-glutamyltranspeptidase
162	 65.41	0	189383..190732	+	449	75674361	-	Nwi_0162	-	multi anti extrusion protein MatE
163	 66.78	+1	190817..191737	+	306	75674362	-	Nwi_0163	-	2-dehydropantoate 2-reductase
164	 64.50	0	191782..192474	-	230	75674363	-	Nwi_0164	-	glutathione S-transferase
62.44	MEAN

3.62	STD DEV
