IslandPath Analysis: Nitratiruptor sp. SB155-2

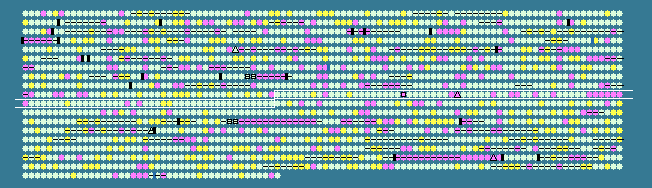

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.50 STD DEV: 3.88
Nitratiruptor sp. SB155-2, complete genome - 1..1877931
1843 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
943	 39.06	0	970769..972793	-	674	152990696	-	NIS_0951	-	TonB-dependent receptor
944	 39.14	0	972894..974459	+	521	152990697	-	NIS_0952	-	ferredoxin--nitrite reductase
945	 38.24	0	974435..975799	-	454	152990698	-	NIS_0953	-	hypothetical protein
946	 37.25	0	975934..977745	+	603	152990699	htpG	NIS_0954	-	heat shock protein 90
947	 41.89	0	977845..978744	+	299	152990700	cbpA	NIS_0955	-	co-chaperone-curved DNA binding protein A
948	 38.32	0	978737..979117	+	126	152990701	-	NIS_0956	-	MerR family transcriptional regulator
949	 43.31	0	979125..980387	-	420	152990702	murA	NIS_0957	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
950	 36.57	0	980458..980859	+	133	152990703	-	NIS_0958	-	hypothetical protein
951	 31.74	-1	980856..981356	+	166	152990704	-	NIS_0959	-	tellurite resistance protein TehB
952	 36.35	0	981365..981961	+	198	152990705	-	NIS_0960	-	TetR family transcriptional regulator
953	 39.95	0	981951..982811	+	286	152990706	-	NIS_0961	-	Ni-Fe hydrogenase, small subunit HupS
954	 37.71	0	982801..984012	+	403	152990707	-	NIS_0962	-	Ni-Fe hydrogenase, large subunit HupV
955	 45.23	+1	984122..985348	+	408	152990708	-	NIS_0963	-	Ni-Fe hydrogenase, small subunit
956	 42.49	0	985348..987072	+	574	152990709	-	NIS_0964	-	Ni-Fe hydrogenase, large subunit
957	 38.60	0	987083..987784	+	233	152990710	-	NIS_0965	-	Ni-Fe hydrogenase, cytochrome b subunit
958	 40.04	0	987786..988337	+	183	152990711	-	NIS_0966	-	hydrogenase expression/formation protease
959	 36.29	0	988321..989334	+	337	152990712	-	NIS_0967	-	hypothetical protein
960	 38.21	0	989343..990080	+	245	152990713	-	NIS_0968	-	hypothetical protein
961	 37.69	0	990077..992188	+	703	152990714	-	NIS_0969	-	hydrogenase maturation protein HypF
962	 36.35	0	992193..992888	-	231	152990715	-	NIS_0970	-	hypothetical protein
963	 38.22	0	992885..994072	-	395	152990716	-	NIS_0971	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
964	 32.08	-1	994069..994704	-	211	152990717	-	NIS_0972	-	transposase
965	 38.16	0	994803..995444	+	213	152990718	-	NIS_0973	-	hypothetical protein
966	 38.11	0	995454..996185	+	243	152990719	-	NIS_0974	-	hydrogenase accessory protein HypB
967	 39.46	0	996185..996478	+	97	152990720	-	NIS_0975	-	hydrogenase expression/formation protein HupF/HypC
968	 41.38	0	996468..997610	+	380	152990721	-	NIS_0976	-	hydrogenase expression/formation protein HypD
969	 42.20	0	997607..998599	+	330	152990722	-	NIS_0977	-	hydrogenase expression/formation protein HypE
970	 37.68	0	998593..1000272	+	559	152990723	-	NIS_0978	-	hydrogenase maturation protein HoxX
971	 36.78	0	1000265..1000612	+	115	152990724	-	NIS_0979	-	hydrogenase expression/synthesis protein HypA
972	 35.26	-1	1000620..1001243	-	207	152990725	-	NIS_0980	-	TetR family transcriptional regulator
973	 35.03	-1	1001451..1002512	+	353	152990726	-	NIS_0981	-	phage integrase family site specific recombinase
974	 36.67	0	1002512..1002811	+	99	152990727	-	NIS_0982	-	chorismate mutase
975	 36.73	0	1002817..1003494	-	225	152990728	-	NIS_0983	-	hypothetical protein
976	 39.72	0	1003504..1004208	-	234	152990729	-	NIS_0984	-	flagellar motor protein MotB
977	 39.00	0	1004212..1004970	-	252	152990730	-	NIS_0985	-	flagellar motor protein MotA
978	 36.08	0	1005023..1005277	-	84	152990731	-	NIS_0986	-	hypothetical protein
979	 35.94	0	1005274..1005618	-	114	152990732	-	NIS_0987	-	dnaK suppressor protein DksA
980	 38.29	0	1005732..1006175	+	147	152990733	-	NIS_0988	-	GatB/Yqey domain-containing protein
981	 40.30	0	1006167..1006955	-	262	152990734	-	NIS_0989	-	indole-3-glycerol phosphate synthase
982	 34.29	-1	1006952..1008208	-	418	152990735	-	NIS_0990	-	hypothetical protein
983	 35.14	-1	1008181..1008567	-	128	152990736	-	NIS_0991	-	hypothetical protein
984	 37.32	0	1008552..1009253	-	233	152990737	-	NIS_0992	-	hypothetical protein
985	 39.33	0	1009298..1010014	+	238	152990738	kdsB	NIS_0993	-	3-deoxy-D-manno-octulosonate cytidylyltransferase
986	 34.16	-1	1009992..1010354	-	120	152990739	-	NIS_0994	-	hypothetical protein
987	 40.08	0	1010363..1010599	-	78	152990740	-	NIS_0995	-	hypothetical protein
988	 38.66	0	1010596..1011402	-	268	152990741	oppC	NIS_0996	-	oligopeptide ABC transporter, permease
989	 35.40	-1	1011399..1011980	-	193	152990742	-	NIS_0997	-	DNA methylase
990	 41.71	0	1012056..1013273	+	405	152990743	argG	NIS_0998	-	argininosuccinate synthase
991	 36.71	0	1013270..1013713	+	147	152990744	rplI	NIS_0999	-	50S ribosomal protein L9
992	 42.27	0	1013713..1014249	+	178	152990745	hslV	NIS_1000	-	ATP-dependent protease peptidase subunit
993	 40.84	0	1014249..1015580	+	443	152990746	hslU	NIS_1001	-	ATP-dependent protease ATP-binding subunit
994	 37.07	0	1015589..1016470	+	293	152990747	era	NIS_1002	-	GTP-binding protein Era
995	 33.27	-1	1016559..1018076	+	505	152990748	-	NIS_1003	-	hypothetical protein
996	 33.33	-1	1018073..1018708	+	211	152990749	-	NIS_1004	-	hypothetical protein
997	 30.28	-2	1018690..1019115	+	141	152990750	-	NIS_1005	-	hypothetical protein
998	 35.43	-1	1019112..1020635	+	507	152990751	-	NIS_1006	-	general secretory pathway protein D
999	 30.22	-2	1020616..1021419	+	267	152990752	-	NIS_1007	-	hypothetical protein
1000	 30.35	-2	1021412..1022215	+	267	152990753	-	NIS_1008	-	hypothetical protein
1001	 31.90	-1	1022208..1022765	+	185	152990754	-	NIS_1009	-	hypothetical protein
1002	 39.63	0	1022778..1024508	+	576	152990755	-	NIS_1010	-	general secretory pathway protein E
1003	 37.93	0	1024505..1025743	+	412	152990756	-	NIS_1011	-	general secretory pathway protein F
1004	 39.68	0	1025746..1027761	-	671	152990757	-	NIS_1012	-	ATP-dependent DNA helicase UvrD
1005	 41.28	0	1027832..1030447	+	871	152990758	valS	NIS_1013	-	valyl-tRNA synthetase
1006	 42.19	0	1030494..1031972	+	492	152990759	-	NIS_1014	-	sulfate transporter
1007	 39.97	0	1031982..1032659	+	225	152990760	-	NIS_1015	-	dUTP diphosphatase
1008	 43.79	+1	1032774..1034207	+	477	152990761	sufB	NIS_1016	-	Fe-S cluster assembly protein SufB
1009	 38.27	0	1034204..1034953	+	249	152990762	sufC	NIS_1017	-	Fe-S cluster assembly ATPase SufC
1010	 37.89	0	1034953..1036092	+	379	152990763	sufD	NIS_1018	-	Fe-S cluster assembly protein SufD
1011	 38.64	0	1036089..1036484	+	131	152990764	-	NIS_1019	-	metal-sulfur cluster biosynthetic enzyme
1012	 41.69	0	1036730..1037662	-	310	152990765	hemC	NIS_1020	-	porphobilinogen deaminase
1013	 37.00	0	1037662..1038507	-	281	152990766	-	NIS_1021	-	hypothetical protein
1014	 37.24	0	1038476..1038859	-	127	152990767	-	NIS_1022	-	hypothetical protein
1015	 40.76	0	1038859..1040568	-	569	152990768	proS	NIS_1023	-	prolyl-tRNA synthetase
1016	 41.88	0	1040570..1041868	-	432	152990769	hemA	NIS_1024	-	glutamyl-tRNA reductase
1017	 41.30	0	1041868..1042758	-	296	152990770	-	NIS_1025	-	polyprenyl synthetase
1018	 35.13	-1	1042768..1043046	-	92	152990771	-	NIS_1026	-	hypothetical protein
1019	 38.91	0	1043077..1046160	-	1027	152990772	-	NIS_1027	-	cation:multidrug efflux pump
1020	 32.63	-1	1046168..1046452	-	94	152990773	-	NIS_1028	-	hypothetical protein
1021	 42.13	0	1046454..1047362	-	302	152990774	-	NIS_1029	-	S-adenosyl-methyltransferase MraW
1022	 42.18	0	1047346..1048656	-	436	152990775	bioA	NIS_1030	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
1023	 36.73	0	1048727..1050199	+	490	152990776	-	NIS_1031	-	hypothetical protein
1024	 43.31	0	1050200..1051552	+	450	152990777	ftsA	NIS_1032	-	cell division protein FtsA
1025	 46.33	+1	1051573..1052688	+	371	152990778	ftsZ	NIS_1033	-	cell division protein FtsZ
1026	 40.78	0	1052708..1053472	-	254	152990779	-	NIS_1034	-	ABC transporter, ATP-binding protein
1027	 38.61	0	1053475..1053948	-	157	152990780	-	NIS_1035	-	hypothetical protein
1028	 40.48	0	1053932..1054756	-	274	152990781	hemK	NIS_1036	-	protoporphyrinogen oxidase
1029	 38.90	0	1054743..1055999	-	418	152990782	-	NIS_1037	-	zinc-metallo protease
1030	 39.51	0	1056105..1058048	+	647	152990783	-	NIS_1038	-	ABC transport system ATP-binding protein
1031	 37.35	0	1058045..1058815	+	256	152990784	-	NIS_1039	-	divalent cation transporter
1032	 39.44	0	1058816..1060288	-	490	152990785	thrC	NIS_1040	-	threonine synthase
1033	 38.56	0	1060311..1060616	-	101	152990786	cutA	NIS_1041	-	divalent cation tolerance protein
1034	 42.11	0	1060617..1061471	-	284	152990787	argB	NIS_1042	-	acetylglutamate kinase
1035	 38.99	0	1061434..1062246	-	270	152990788	-	NIS_1043	-	tetraacyldisaccharide 4'-kinase
1036	 39.36	0	1062363..1063490	-	375	152990789	-	NIS_1044	-	aminotransferase
1037	 39.27	0	1063605..1064429	-	274	152990790	-	NIS_1045	-	hypothetical protein
1038	 41.58	0	1064453..1065046	+	197	152990791	-	NIS_1046	-	hypothetical protein
1039	 42.05	0	1065048..1065437	-	129	152990792	-	NIS_1047	-	hypothetical protein
1040	 37.61	0	1065427..1065777	-	116	152990793	-	NIS_1048	-	hypothetical protein
1041	 37.48	0	1065774..1066520	-	248	152990794	-	NIS_1049	-	HAD family hydrolase
1042	 41.56	0	1066517..1067416	-	299	152990795	-	NIS_1050	-	hypothetical protein
39.50	MEAN

3.88	STD DEV
