IslandPath Analysis: Nitratiruptor sp. SB155-2

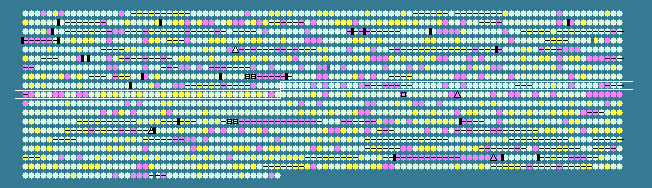

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.50 STD DEV: 3.88
Nitratiruptor sp. SB155-2, complete genome - 1..1877931
1843 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
844	 36.09	0	855481..855879	+	132	152990597	-	NIS_0850	-	hypothetical protein
845	 40.94	0	855867..856589	+	240	152990598	-	NIS_0851	-	ABC transporter, ATP-binding protein
846	 39.30	0	856586..857323	+	245	152990599	-	NIS_0852	-	hypothetical protein
847	 38.91	0	857368..858048	+	226	152990600	atpB	NIS_0853	-	F0F1 ATP synthase subunit A
848	 37.21	0	858278..858844	+	188	152990601	-	NIS_0854	-	thiamine-phosphate pyrophosphorylase
849	 33.60	-1	858841..859218	+	125	152990602	-	NIS_0855	-	hypothetical protein
850	 40.32	0	859273..860703	+	476	152990603	-	NIS_0856	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
851	 34.54	-1	860700..862280	+	526	152990604	-	NIS_0857	-	potassium channel protein
852	 36.83	0	862273..862986	+	237	152990605	-	NIS_0858	-	potassium channel protein
853	 40.78	0	862983..863882	+	299	152990606	gpsA	NIS_0859	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
854	 35.37	-1	863875..864612	+	245	152990607	-	NIS_0860	-	hypothetical protein
855	 39.63	0	864622..865860	+	412	152990608	proA	NIS_0861	-	glutamate-5-semialdehyde dehydrogenase
856	 41.03	0	865857..866441	+	194	152990609	-	NIS_0862	-	hypothetical protein
857	 30.98	-2	866441..866950	+	169	152990610	-	NIS_0863	-	hypothetical protein
858	 33.46	-1	866934..867749	+	271	152990611	-	NIS_0864	-	chemotaxis protein methyltransferase
859	 39.45	0	867760..868086	+	108	152990612	phnA	NIS_0865	-	alkylphosphonate uptake protein PhnA
860	 36.67	0	868070..868669	+	199	152990613	-	NIS_0866	-	oligopeptide ABC transporter, ATP-binding protein
861	 28.99	-2	868672..870627	-	651	152990614	-	NIS_0867	-	signal transduction response regulator
862	 28.24	-2	870631..871101	-	156	152990615	-	NIS_0868	-	hypothetical protein
863	 30.60	-2	871098..872966	-	622	152990616	-	NIS_0869	-	hypothetical protein
864	 37.83	0	873030..873719	-	229	152990617	plsC	NIS_0870	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
865	 37.18	0	873703..874716	-	337	152990618	-	NIS_0871	-	hypothetical protein
866	 39.43	0	874733..875404	-	223	152990619	-	NIS_0872	-	phosphoribosylformylglycinamidine synthase, large subunit
867	 41.46	0	875401..875646	-	81	152990620	-	NIS_0873	-	phosphoribosylformylglycinamidine synthase, small subunit
868	 38.33	0	875643..876362	-	239	152990621	purC	NIS_0874	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
869	 40.86	0	876359..877660	-	433	152990622	-	NIS_0875	-	protease
870	 41.17	0	877893..880481	+	862	152990623	clpB	NIS_0876	-	ATP-dependent Clp protease, ATP-binding subunit ClpB
871	 32.10	-1	880478..881779	-	433	152990624	-	NIS_0877	-	hypothetical protein
872	 39.26	0	881919..882053	+	44	152990625	rpmH	NIS_0878	-	50S ribosomal protein L34
873	 36.67	0	882050..882379	+	109	152990626	rnpA	NIS_0879	-	ribonuclease P protein component
874	 33.33	-1	882373..882690	+	105	152990627	-	NIS_0880	-	hypothetical protein
875	 38.06	0	882694..884280	+	528	152990628	-	NIS_0881	-	putative inner membrane protein translocase component YidC
876	 39.27	0	884277..885017	+	246	152990629	-	NIS_0882	-	hypothetical protein
877	 41.50	0	885001..886347	+	448	152990630	trmE	NIS_0883	-	tRNA modification GTPase TrmE
878	 41.48	0	886337..886729	+	130	152990631	-	NIS_0884	-	Holliday junction resolvase-like protein
879	 39.05	0	886719..887138	+	139	152990632	-	NIS_0885	-	hypothetical protein
880	 41.57	0	887104..889362	+	752	152990633	metE	NIS_0886	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
881	 37.50	0	889400..890215	+	271	152990634	-	NIS_0887	-	aspartoacylase
882	 41.87	0	890354..891232	+	292	152990635	htpX	NIS_0888	-	heat shock protein HtpX
883	 36.59	0	891245..891643	+	132	152990636	-	NIS_0889	-	hypothetical protein
884	 41.23	0	891646..892734	-	362	152990637	-	NIS_0890	-	carboxypeptidase G2
885	 37.22	0	892794..893693	+	299	152990638	-	NIS_0891	-	hypothetical protein
886	 39.23	0	893686..895110	+	474	152990639	-	NIS_0892	-	hypothetical protein
887	 39.09	0	895100..897670	+	856	152990640	-	NIS_0893	-	hypothetical protein
888	 36.48	0	897687..898511	+	274	152990641	-	NIS_0894	-	hypothetical protein
889	 43.52	+1	898572..900779	+	735	152990642	-	NIS_0895	-	phosphoribosylformylglycinamidine synthase II
890	 36.53	0	900807..902621	-	604	152990643	-	NIS_0896	-	hypothetical protein
891	 39.62	0	902661..903614	+	317	152990644	pfkA	NIS_0897	-	6-phosphofructokinase
892	 33.51	-1	903599..904747	-	382	152990645	-	NIS_0898	-	two-component sensor histidine kinase
893	 39.69	0	904728..905372	-	214	152990646	-	NIS_0899	-	two-component response regulator
894	 36.41	0	907304..907498	-	64	152990647	-	NIS_0901	-	hypothetical protein
895	 39.61	0	907569..910643	-	1024	152990648	-	NIS_0902	-	CzcA family heavy metal efflux protein
896	 36.22	0	910636..911604	-	322	152990649	-	NIS_0903	-	CzcB family heavy metal efflux protein
897	 34.87	-1	911601..912773	-	390	152990650	-	NIS_0904	-	hypothetical protein
898	 35.28	-1	912773..913132	-	119	152990651	-	NIS_0905	-	hypothetical protein
899	 42.29	0	913253..914335	-	360	152990652	-	NIS_0906	-	hypothetical protein
900	 39.95	0	914335..914727	-	130	152990653	-	NIS_0907	-	cytochrome c, class I
901	 35.62	0	914804..915109	+	101	152990654	-	NIS_0908	-	AsrR family transcriptional regulator
902	 32.32	-1	915438..915734	+	98	152990655	-	NIS_0909	-	hypothetical protein
903	 37.25	0	915731..916879	+	382	152990656	-	NIS_0910	-	hypothetical protein
904	 38.86	0	916872..917885	+	337	152990657	-	NIS_0911	-	CzcB family heavy metal efflux protein
905	 42.47	0	917895..920927	+	1010	152990658	-	NIS_0912	-	CzcA family heavy metal efflux protein
906	 32.01	-1	920952..921782	-	276	152990659	-	NIS_0913	-	two-component sensor histidine kinase
907	 32.29	-1	921772..922440	-	222	152990660	-	NIS_0914	-	two-component response regulator
908	 36.97	0	922523..924637	+	704	152990661	-	NIS_0915	-	signal transduction response regulator
909	 37.59	0	924651..926600	+	649	152990662	-	NIS_0916	-	hypothetical protein
910	 35.40	-1	926615..927196	+	193	152990663	-	NIS_0917	-	protein-glutamate methylesterase
911	 30.86	-2	927190..928038	+	282	152990664	-	NIS_0918	-	chemotaxis protein methyltransferase
912	 40.45	0	928069..929346	-	425	152990665	-	NIS_0919	-	hypothetical protein
913	 40.12	0	929397..930089	-	230	152990666	gpmA	NIS_0920	-	phosphoglycerate mutase
914	 43.00	0	930090..931103	-	337	152990667	-	NIS_0921	-	glyceraldehyde 3-phosphate dehydrogenase
915	 40.96	0	931155..932543	-	462	152990668	-	NIS_0922	-	RNA-metabolising metallo-beta-lactamase
916	 43.62	+1	932533..934932	-	799	152990669	ppsA	NIS_0923	-	phosphoenolpyruvate synthase
917	 41.65	0	934942..936852	-	636	152990670	-	NIS_0924	-	hypothetical protein
918	 41.70	0	936865..937689	-	274	152990671	lipA	NIS_0925	-	lipoyl synthase
919	 40.39	0	937673..938239	-	188	152990672	lipB	NIS_0926	-	lipoate-protein ligase B
920	 43.23	0	938239..939147	-	302	152990673	-	NIS_0927	-	aldolase
921	 39.63	0	939144..940064	-	306	152990674	-	NIS_0928	-	decarboxylase family protein
922	 37.36	0	940067..941308	-	413	152990675	-	NIS_0929	-	hypothetical protein
923	 42.37	0	941305..943992	-	895	152990676	-	NIS_0930	-	H+-transporting P-type ATPase
924	 44.32	+1	943992..945311	-	439	152990677	-	NIS_0931	-	pyruvate/2-oxoglutarate dehydrogenase complex, E3 component, dihydrolipoamide dehydrogenase
925	 41.40	0	945308..946534	-	408	152990678	-	NIS_0932	-	pyruvate/2-oxoglutarate dehydrogenase complex, E2 component, dihydrolipoamide acetyltransferase
926	 44.89	+1	946524..947501	-	325	152990679	-	NIS_0933	-	pyruvate/2-oxoglutarate dehydrogenase complex, E1 component, beta subunit
927	 44.86	+1	947488..948459	-	323	152990680	-	NIS_0934	-	pyruvate/2-oxoglutarate dehydrogenase complex, E1 component, alpha subunit
928	 46.49	+1	948452..948793	-	113	152990681	-	NIS_0935	-	hypothetical protein
929	 42.23	0	948837..950735	-	632	152990682	glgB	NIS_0936	-	1,4-alpha-glucan branching enzyme
930	 43.02	0	950732..952186	-	484	152990683	-	NIS_0937	-	glycogen synthase
931	 40.37	0	952263..952958	-	231	152990684	-	NIS_0938	-	hypothetical protein
932	 39.58	0	952942..953949	-	335	152990685	galT	NIS_0939	-	galactose-1-phosphate uridylyltransferase
933	 38.82	0	953937..955886	-	649	152990686	-	NIS_0940	-	4-alpha-glucanotransferase
934	 39.12	0	955896..957797	-	633	152990687	-	NIS_0941	-	glycoside hydrolase
935	 43.18	0	960316..960579	-	87	152990688	-	NIS_0943	-	hypothetical protein
936	 42.30	0	960583..962232	-	549	152990689	-	NIS_0944	-	glycogen/starch/alpha-glucan phosphorylase
937	 40.98	0	962229..963470	-	413	152990690	-	NIS_0945	-	glucose-6-phosphate isomerase
938	 43.77	+1	963467..965056	-	529	152990691	pgm	NIS_0946	-	phosphoglucomutase
939	 40.72	0	965053..967149	-	698	152990692	-	NIS_0947	-	glycogen/starch/alpha-glucan phosphorylase
940	 44.12	+1	967278..968798	+	506	152990693	purH	NIS_0948	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
941	 39.75	0	968798..969529	+	243	152990694	-	NIS_0949	-	hypothetical protein
942	 35.54	-1	969462..970775	-	437	152990695	-	NIS_0950	-	hypothetical protein
943	 39.06	0	970769..972793	-	674	152990696	-	NIS_0951	-	TonB-dependent receptor
39.50	MEAN

3.88	STD DEV
