IslandPath Analysis: Nitratiruptor sp. SB155-2

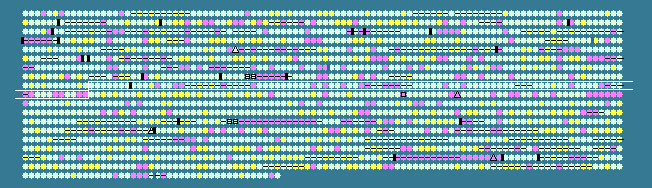

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.50 STD DEV: 3.88
Nitratiruptor sp. SB155-2, complete genome - 1..1877931
1843 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
812	 42.01	0	822575..823795	-	406	152990565	hisS	NIS_0818	-	histidyl-tRNA synthetase
813	 38.54	0	823797..824372	-	191	152990566	tmk	NIS_0819	-	thymidylate kinase
814	 40.34	0	824373..824843	-	156	152990567	coaD	NIS_0820	-	phosphopantetheine adenylyltransferase
815	 41.71	0	824836..825360	-	174	152990568	ubiX	NIS_0821	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
816	 37.69	0	825422..825949	+	175	152990569	-	NIS_0822	-	septum formation inhibitor
817	 39.09	0	825951..826766	+	271	152990570	minD	NIS_0823	-	cell division inhibitor MinD
818	 37.50	0	826763..827002	+	79	152990571	minE	NIS_0824	-	cell division topological specificity factor MinE
819	 38.41	0	827323..827598	-	91	152990572	hup	NIS_0825	-	DNA-binding protein HU
820	 38.79	0	827798..829906	+	702	152990573	-	NIS_0826	-	cell division protein FtsK
821	 36.49	0	830015..830521	+	168	152990574	-	NIS_0827	-	hypothetical protein
822	 43.37	0	830531..833110	+	859	152990575	acnB	NIS_0828	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
823	 31.38	-2	833138..833650	-	170	152990576	-	NIS_0829	-	hypothetical protein
824	 41.32	0	833716..836307	+	863	152990577	secA	NIS_0830	-	preprotein translocase subunit SecA
825	 38.33	0	836300..837499	+	399	152990578	-	NIS_0831	-	hypothetical protein
826	 33.57	-1	837500..840034	-	844	152990579	-	NIS_0832	-	hypothetical protein
827	 35.42	-1	839976..840935	+	319	152990580	-	NIS_0833	-	hypothetical protein
828	 40.60	0	841032..843248	+	738	152990581	-	NIS_0834	-	isocitrate dehydrogenase, NADP-dependent
829	 41.69	0	843287..844243	+	318	152990582	mdh	NIS_0835	-	malate dehydrogenase, NAD-dependent
830	 44.10	+1	844243..845106	+	287	152990583	-	NIS_0836	-	fumarate/tartrate hydratase, alpha subunit
831	 42.34	0	845117..845671	+	184	152990584	-	NIS_0837	-	fumarate/tartrate hydratase, beta subunit
832	 43.65	+1	845687..846859	+	390	152990585	sucC	NIS_0838	-	succinyl-CoA synthase, beta subunit
833	 42.15	0	846859..847731	+	290	152990586	sucD	NIS_0839	-	succinyl-CoA synthase, alpha subunit
834	 35.37	-1	847731..848024	+	97	152990587	-	NIS_0840	-	hypothetical protein
835	 40.71	0	848026..848364	+	112	152990588	-	NIS_0841	-	2-oxoglutarate-acceptor oxidoreductase subunit OorD
836	 42.21	0	848374..849522	+	382	152990589	-	NIS_0842	-	2-oxoglutarate-acceptor oxidoreductase subunit OorA
837	 39.65	0	849533..850387	+	284	152990590	-	NIS_0843	-	2-oxoglutarate-acceptor oxidoreductase subunit OorB
838	 41.79	0	850471..851085	+	204	152990591	-	NIS_0844	-	2-oxoglutarate-acceptor oxidoreductase subunit OorC
839	 32.88	-1	851111..851554	-	147	152990592	-	NIS_0845	-	hypothetical protein
840	 37.78	0	852046..853845	+	599	152990593	ubiD	NIS_0846	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase UbiD
841	 38.27	0	853811..854296	+	161	152990594	-	NIS_0847	-	methylated-DNA-[protein]-cysteine S-methyltransferase
842	 37.40	0	854275..854520	+	81	152990595	-	NIS_0848	-	RNA-binding S4 protein
843	 40.64	0	854520..855491	+	323	152990596	trpD	NIS_0849	-	anthranilate phosphoribosyltransferase
844	 36.09	0	855481..855879	+	132	152990597	-	NIS_0850	-	hypothetical protein
845	 40.94	0	855867..856589	+	240	152990598	-	NIS_0851	-	ABC transporter, ATP-binding protein
846	 39.30	0	856586..857323	+	245	152990599	-	NIS_0852	-	hypothetical protein
847	 38.91	0	857368..858048	+	226	152990600	atpB	NIS_0853	-	F0F1 ATP synthase subunit A
848	 37.21	0	858278..858844	+	188	152990601	-	NIS_0854	-	thiamine-phosphate pyrophosphorylase
849	 33.60	-1	858841..859218	+	125	152990602	-	NIS_0855	-	hypothetical protein
850	 40.32	0	859273..860703	+	476	152990603	-	NIS_0856	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
851	 34.54	-1	860700..862280	+	526	152990604	-	NIS_0857	-	potassium channel protein
852	 36.83	0	862273..862986	+	237	152990605	-	NIS_0858	-	potassium channel protein
853	 40.78	0	862983..863882	+	299	152990606	gpsA	NIS_0859	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
854	 35.37	-1	863875..864612	+	245	152990607	-	NIS_0860	-	hypothetical protein
855	 39.63	0	864622..865860	+	412	152990608	proA	NIS_0861	-	glutamate-5-semialdehyde dehydrogenase
856	 41.03	0	865857..866441	+	194	152990609	-	NIS_0862	-	hypothetical protein
857	 30.98	-2	866441..866950	+	169	152990610	-	NIS_0863	-	hypothetical protein
858	 33.46	-1	866934..867749	+	271	152990611	-	NIS_0864	-	chemotaxis protein methyltransferase
859	 39.45	0	867760..868086	+	108	152990612	phnA	NIS_0865	-	alkylphosphonate uptake protein PhnA
860	 36.67	0	868070..868669	+	199	152990613	-	NIS_0866	-	oligopeptide ABC transporter, ATP-binding protein
861	 28.99	-2	868672..870627	-	651	152990614	-	NIS_0867	-	signal transduction response regulator
862	 28.24	-2	870631..871101	-	156	152990615	-	NIS_0868	-	hypothetical protein
863	 30.60	-2	871098..872966	-	622	152990616	-	NIS_0869	-	hypothetical protein
864	 37.83	0	873030..873719	-	229	152990617	plsC	NIS_0870	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
865	 37.18	0	873703..874716	-	337	152990618	-	NIS_0871	-	hypothetical protein
866	 39.43	0	874733..875404	-	223	152990619	-	NIS_0872	-	phosphoribosylformylglycinamidine synthase, large subunit
867	 41.46	0	875401..875646	-	81	152990620	-	NIS_0873	-	phosphoribosylformylglycinamidine synthase, small subunit
868	 38.33	0	875643..876362	-	239	152990621	purC	NIS_0874	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
869	 40.86	0	876359..877660	-	433	152990622	-	NIS_0875	-	protease
870	 41.17	0	877893..880481	+	862	152990623	clpB	NIS_0876	-	ATP-dependent Clp protease, ATP-binding subunit ClpB
871	 32.10	-1	880478..881779	-	433	152990624	-	NIS_0877	-	hypothetical protein
872	 39.26	0	881919..882053	+	44	152990625	rpmH	NIS_0878	-	50S ribosomal protein L34
873	 36.67	0	882050..882379	+	109	152990626	rnpA	NIS_0879	-	ribonuclease P protein component
874	 33.33	-1	882373..882690	+	105	152990627	-	NIS_0880	-	hypothetical protein
875	 38.06	0	882694..884280	+	528	152990628	-	NIS_0881	-	putative inner membrane protein translocase component YidC
876	 39.27	0	884277..885017	+	246	152990629	-	NIS_0882	-	hypothetical protein
877	 41.50	0	885001..886347	+	448	152990630	trmE	NIS_0883	-	tRNA modification GTPase TrmE
878	 41.48	0	886337..886729	+	130	152990631	-	NIS_0884	-	Holliday junction resolvase-like protein
879	 39.05	0	886719..887138	+	139	152990632	-	NIS_0885	-	hypothetical protein
880	 41.57	0	887104..889362	+	752	152990633	metE	NIS_0886	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
881	 37.50	0	889400..890215	+	271	152990634	-	NIS_0887	-	aspartoacylase
882	 41.87	0	890354..891232	+	292	152990635	htpX	NIS_0888	-	heat shock protein HtpX
883	 36.59	0	891245..891643	+	132	152990636	-	NIS_0889	-	hypothetical protein
884	 41.23	0	891646..892734	-	362	152990637	-	NIS_0890	-	carboxypeptidase G2
885	 37.22	0	892794..893693	+	299	152990638	-	NIS_0891	-	hypothetical protein
886	 39.23	0	893686..895110	+	474	152990639	-	NIS_0892	-	hypothetical protein
887	 39.09	0	895100..897670	+	856	152990640	-	NIS_0893	-	hypothetical protein
888	 36.48	0	897687..898511	+	274	152990641	-	NIS_0894	-	hypothetical protein
889	 43.52	+1	898572..900779	+	735	152990642	-	NIS_0895	-	phosphoribosylformylglycinamidine synthase II
890	 36.53	0	900807..902621	-	604	152990643	-	NIS_0896	-	hypothetical protein
891	 39.62	0	902661..903614	+	317	152990644	pfkA	NIS_0897	-	6-phosphofructokinase
892	 33.51	-1	903599..904747	-	382	152990645	-	NIS_0898	-	two-component sensor histidine kinase
893	 39.69	0	904728..905372	-	214	152990646	-	NIS_0899	-	two-component response regulator
894	 36.41	0	907304..907498	-	64	152990647	-	NIS_0901	-	hypothetical protein
895	 39.61	0	907569..910643	-	1024	152990648	-	NIS_0902	-	CzcA family heavy metal efflux protein
896	 36.22	0	910636..911604	-	322	152990649	-	NIS_0903	-	CzcB family heavy metal efflux protein
897	 34.87	-1	911601..912773	-	390	152990650	-	NIS_0904	-	hypothetical protein
898	 35.28	-1	912773..913132	-	119	152990651	-	NIS_0905	-	hypothetical protein
899	 42.29	0	913253..914335	-	360	152990652	-	NIS_0906	-	hypothetical protein
900	 39.95	0	914335..914727	-	130	152990653	-	NIS_0907	-	cytochrome c, class I
901	 35.62	0	914804..915109	+	101	152990654	-	NIS_0908	-	AsrR family transcriptional regulator
902	 32.32	-1	915438..915734	+	98	152990655	-	NIS_0909	-	hypothetical protein
903	 37.25	0	915731..916879	+	382	152990656	-	NIS_0910	-	hypothetical protein
904	 38.86	0	916872..917885	+	337	152990657	-	NIS_0911	-	CzcB family heavy metal efflux protein
905	 42.47	0	917895..920927	+	1010	152990658	-	NIS_0912	-	CzcA family heavy metal efflux protein
906	 32.01	-1	920952..921782	-	276	152990659	-	NIS_0913	-	two-component sensor histidine kinase
907	 32.29	-1	921772..922440	-	222	152990660	-	NIS_0914	-	two-component response regulator
908	 36.97	0	922523..924637	+	704	152990661	-	NIS_0915	-	signal transduction response regulator
909	 37.59	0	924651..926600	+	649	152990662	-	NIS_0916	-	hypothetical protein
910	 35.40	-1	926615..927196	+	193	152990663	-	NIS_0917	-	protein-glutamate methylesterase
911	 30.86	-2	927190..928038	+	282	152990664	-	NIS_0918	-	chemotaxis protein methyltransferase
39.50	MEAN

3.88	STD DEV
