IslandPath Analysis: Nitratiruptor sp. SB155-2

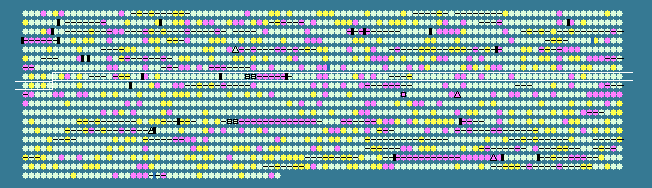

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.50 STD DEV: 3.88
Nitratiruptor sp. SB155-2, complete genome - 1..1877931
1843 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
706	 42.43	0	716255..717100	-	281	152990459	lepB	NIS_0710	-	signal peptidase I
707	 43.93	+1	717097..717945	-	282	152990460	folD	NIS_0711	-	5,10-methylene-tetrahydrofolate dehydrogenase/5,10-methylene-tetrahydrofolate cyclohydrolase
708	 33.62	-1	718023..718367	+	114	152990461	-	NIS_0712	-	hypothetical protein
709	 41.43	0	718364..719302	+	312	152990462	citE	NIS_0713	-	citrate lyase beta chain
710	 44.64	+1	719279..719782	-	167	152990463	-	NIS_0714	-	Ni-Fe hydrogenase, small subunit HycG
711	 39.63	0	719779..721143	-	454	152990464	-	NIS_0715	-	Ni-Fe hydrogenase, large subunit HycE
712	 39.03	0	721153..722556	-	467	152990465	-	NIS_0716	-	Ni-Fe hydrogenase, membrane subunit HyfF
713	 37.93	0	722549..723136	-	195	152990466	-	NIS_0717	-	Ni-Fe hydrogenase, membrane subunit HyfE
714	 40.50	0	723138..724058	-	306	152990467	-	NIS_0718	-	Ni-Fe hydrogenase, membrane subunit HycD/HyfD
715	 39.23	0	724055..725935	-	626	152990468	-	NIS_0719	-	Ni-Fe hydrogenase, membrane subunit HycC/HyfB
716	 34.65	-1	726079..726915	-	278	152990469	-	NIS_0720	-	hypothetical protein
717	 44.63	+1	726975..728258	+	427	152990470	hemL	NIS_0721	-	glutamate-1-semialdehyde aminotransferase
718	 43.10	0	728255..728551	+	98	152990471	-	NIS_0722	-	hypothetical protein
719	 36.95	0	728548..729045	+	165	152990472	-	NIS_0723	-	hypothetical protein
720	 40.18	0	729047..730873	-	608	152990473	rpoD	NIS_0724	-	RNA polymerase sigma factor RpoD
721	 35.60	-1	731188..732246	-	352	152990474	-	NIS_0725	-	hypothetical protein
722	 41.99	0	732374..732835	+	153	152990475	leuD	NIS_0726	-	3-isopropylmalate dehydratase, small subunit
723	 43.98	+1	732873..733943	+	356	152990476	leuB	NIS_0727	-	3-isopropylmalate dehydrogenase
724	 38.00	0	733927..735105	+	392	152990477	-	NIS_0728	-	RNA nucleotidyltransferase
725	 38.47	0	735102..735938	+	278	152990478	purU	NIS_0729	-	formyltetrahydrofolate deformylase
726	 42.46	0	735938..736408	+	156	152990479	-	NIS_0730	-	tRNA/rRNA methyltransferase
727	 38.34	0	736389..736907	-	172	152990480	-	NIS_0731	-	hypothetical protein
728	 39.81	0	737072..739108	+	678	152990481	glyS	NIS_0732	-	glycyl-tRNA synthetase subunit beta
729	 42.76	0	739108..740136	+	342	152990482	-	NIS_0733	-	FAD dependent oxidoreductase
730	 38.28	0	740133..741062	+	309	152990483	hemH	NIS_0734	-	ferrochelatase
731	 41.03	0	741066..741974	+	302	152990484	-	NIS_0735	-	acetoin utilization protein
732	 37.96	0	741971..743722	+	583	152990485	-	NIS_0736	-	multidrug ABC transporter, ATP-binding protein
733	 36.98	0	743745..744155	+	136	152990486	-	NIS_0737	-	hypothetical protein
734	 36.04	0	744295..745773	+	492	152990487	-	NIS_0738	-	hypothetical protein
735	 36.85	0	745785..746324	+	179	152990488	-	NIS_0739	-	hypothetical protein
736	 36.91	0	746324..746770	+	148	152990489	-	NIS_0740	-	hypothetical protein
737	 39.47	0	746781..748148	+	455	152990490	-	NIS_0741	-	UDP-glucose 6-dehydrogenase
738	 38.63	0	750936..751256	+	106	152990491	-	NIS_0743	-	transposase
739	 40.56	0	751256..752071	+	271	152990492	-	NIS_0744	-	transposase
740	 20.04	-2	752145..752633	+	162	152990493	-	NIS_0745	-	hypothetical protein
741	 25.62	-2	754459..754821	+	120	152990494	-	NIS_0747	-	hypothetical protein
742	 27.51	-2	754757..755185	+	142	152990495	-	NIS_0748	-	hypothetical protein
743	 30.14	-2	755185..757596	+	803	152990496	-	NIS_0749	-	hypothetical protein
744	 32.89	-1	757605..759626	+	673	152990497	-	NIS_0750	-	ATP-dependent Lon-type protease
745	 37.59	0	759762..760865	-	367	152990498	-	NIS_0751	-	cell shape-determining protein RodA
746	 39.27	0	760910..761869	+	319	152990499	-	NIS_0752	-	ribosomal large subunit pseudouridine synthase D
747	 41.08	0	761820..763058	+	412	152990500	-	NIS_0753	-	fibronectin, type III
748	 37.49	0	763059..764237	+	392	152990501	-	NIS_0754	-	tRNA (guanine-N(7))-methyltransferase
749	 42.07	0	764230..764904	+	224	152990502	ftsE	NIS_0755	-	cell division ATP-binding protein FtsE
750	 34.93	-1	764891..765706	+	271	152990503	ftsX	NIS_0756	-	cell division protein FtsX
751	 35.30	-1	765703..766872	+	389	152990504	-	NIS_0757	-	M24/M37 family peptidase
752	 41.43	0	766946..767674	+	242	152990505	pyrH	NIS_0758	-	uridylate kinase
753	 37.56	0	767671..767883	+	70	152990506	-	NIS_0759	-	DNA-directed RNA polymerase, omega subunit
754	 39.59	0	767887..770028	+	713	152990507	-	NIS_0760	-	guanosine-3',5'-bis(diphosphate) 3'-diphosphatase
755	 40.42	0	770037..771236	+	399	152990508	tyrS	NIS_0761	-	tyrosyl-tRNA synthetase
756	 43.01	0	771236..772330	+	364	152990509	-	NIS_0762	-	2-nitropropane dioxygenase
757	 35.86	0	772357..773703	+	448	152990510	-	NIS_0763	-	N-acetylmuramoyl-L-alanine amidase
758	 38.37	0	773704..774120	-	138	152990511	-	NIS_0764	-	transcriptional regulator
759	 35.21	-1	774120..774545	-	141	152990512	-	NIS_0765	-	hypothetical protein
760	 40.08	0	774642..775160	-	172	152990513	ppa	NIS_0766	-	inorganic pyrophosphatase
761	 39.49	0	775211..775486	-	91	152990514	-	NIS_0767	-	hypothetical protein
762	 39.60	0	775477..776226	-	249	152990515	-	NIS_0768	-	molybdenum cofactor biosynthesis protein
763	 40.17	0	776213..776797	-	194	152990516	-	NIS_0769	-	adenylate kinase
764	 41.78	0	776811..777035	-	74	152990517	-	NIS_0770	-	ferrous iron transport protein A
765	 43.84	+1	777022..778791	-	589	152990518	aspS	NIS_0771	-	aspartyl-tRNA synthetase
766	 42.11	0	778885..779727	+	280	152990519	-	NIS_0772	-	NAD+ kinase
767	 39.70	0	779728..781251	+	507	152990520	recN	NIS_0773	-	DNA repair protein RecN
768	 38.39	0	781248..782018	+	256	152990521	-	NIS_0774	-	TatD family hydrolase
769	 37.13	0	782038..783249	+	403	152990522	-	NIS_0775	-	membrane-bound lytic murein transglycosylase D
770	 42.40	0	783233..784015	+	260	152990523	-	NIS_0776	-	hypothetical protein
771	 41.19	0	784008..784580	+	190	152990524	-	NIS_0777	-	imidazoleglycerol-phosphate dehydratase
772	 40.12	0	784577..785077	+	166	152990525	-	NIS_0778	-	YrbI family phosphatase
773	 33.13	-1	785078..785578	+	166	152990526	-	NIS_0779	-	hypothetical protein
774	 32.03	-1	785575..786033	+	152	152990527	-	NIS_0780	-	hypothetical protein
775	 38.26	0	786030..786638	+	202	152990528	-	NIS_0781	-	GTP-binding protein
776	 37.76	0	786610..787083	+	157	152990529	-	NIS_0782	-	acetyltransferase
777	 33.55	-1	787029..787499	+	156	152990530	-	NIS_0783	-	hypothetical protein
778	 39.43	0	787489..789276	+	595	152990531	-	NIS_0784	-	peptidoglycan glycosyltransferase
779	 42.07	0	789254..790180	-	308	152990532	-	NIS_0785	-	calcium/cation antiporter
780	 38.16	0	790191..790625	-	144	152990533	-	NIS_0786	-	hypothetical protein
781	 36.44	0	790708..792705	+	665	152990534	-	NIS_0787	-	methyl-accepting chemotaxis protein
782	 33.07	-1	792707..793465	+	252	152990535	-	NIS_0788	-	chemotaxis protein methyltransferase
783	 42.38	0	793465..794127	+	220	152990536	-	NIS_0789	-	ExsB family transcriptional regulator
784	 38.68	0	794120..795691	-	523	152990537	-	NIS_0790	-	amino acid transporter
785	 42.33	0	795684..796772	-	362	152990538	-	NIS_0791	-	C4-dicarboxylate transporter, substrate-binding protein
786	 42.65	0	796783..797931	-	382	152990539	-	NIS_0792	-	calcium/cation antiporter
787	 36.67	0	797943..798902	-	319	152990540	-	NIS_0793	-	hypothetical protein
788	 41.55	0	798899..800797	-	632	152990541	metG	NIS_0794	-	methionyl-tRNA synthetase
789	 37.88	0	800807..801004	-	65	152990542	-	NIS_0795	-	hypothetical protein
790	 42.98	0	800994..801833	-	279	152990543	fbp	NIS_0796	-	fructose-1,6-bisphosphatase
791	 39.92	0	801835..802320	-	161	152990544	-	NIS_0797	-	molybdopterin-guanine dinucleotide biosynthesis protein B
792	 35.96	0	802399..802893	+	164	152990545	-	NIS_0798	-	hypothetical protein
793	 37.93	0	802832..804418	-	528	152990546	-	NIS_0799	-	soluble lytic murein transglycosylase
794	 43.89	+1	804415..804717	-	100	152990547	-	NIS_0800	-	hypothetical protein
795	 40.12	0	804714..806009	-	431	152990548	-	NIS_0801	-	glutamyl-tRNA synthetase
796	 38.31	0	806084..806887	+	267	152990549	-	NIS_0802	-	phosphatidylserine decarboxylase
797	 41.67	0	806887..807174	+	95	152990550	-	NIS_0803	-	hypothetical protein
798	 39.21	0	807283..808422	+	379	152990551	-	NIS_0804	-	hypothetical protein
799	 38.22	0	808424..808648	+	74	152990552	-	NIS_0805	-	ferrous iron transport protein A
800	 39.53	0	808641..810737	+	698	152990553	-	NIS_0806	-	ferrous iron transport protein B
801	 40.51	0	810808..811239	+	143	152990554	-	NIS_0807	-	hypothetical protein
802	 44.03	+1	811243..812448	+	401	152990555	tdcB	NIS_0808	-	threonine dehydratase
803	 41.20	0	812448..813350	+	300	152990556	-	NIS_0809	-	Ppx/GppA family phosphatase
804	 46.25	+1	813390..815084	+	564	152990557	ilvI	NIS_0810	-	acetolactate synthase 3 catalytic subunit
805	 40.81	0	815087..815554	+	155	152990558	ilvH	NIS_0811	-	acetolactate synthase 3 regulatory subunit
39.50	MEAN

3.88	STD DEV
