IslandPath Analysis: Nitratiruptor sp. SB155-2

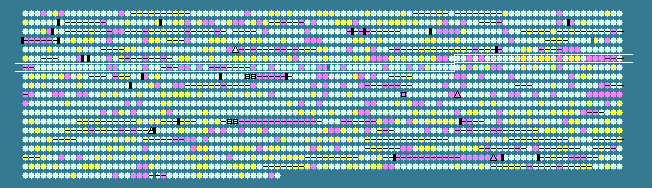

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.50 STD DEV: 3.88
Nitratiruptor sp. SB155-2, complete genome - 1..1877931
1843 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
573	 37.75	0	577866..578477	+	203	152990326	-	NIS_0577	-	hypothetical protein
574	 40.28	0	578471..579535	+	354	152990327	-	NIS_0578	-	ferredoxin-like protein
575	 34.16	-1	579532..579894	+	120	152990328	-	NIS_0579	-	hypothetical protein
576	 39.49	0	580068..580538	+	156	152990329	-	NIS_0580	-	hypothetical protein
577	 34.08	-1	580535..581203	-	222	152990330	-	NIS_0581	-	phosphate transport system regulator
578	 42.48	0	581333..582349	+	338	152990331	pstS	NIS_0582	-	phosphate ABC transporter, substrate-binding protein
579	 38.65	0	582372..583763	+	463	152990332	-	NIS_0583	-	hypothetical protein
580	 42.97	0	583853..584713	+	286	152990333	pstC	NIS_0584	-	phosphate ABC transporter, permease
581	 40.58	0	584710..585537	+	275	152990334	pstA	NIS_0585	-	phosphate ABC transporter, permease
582	 41.98	0	585537..586322	+	261	152990335	pstB	NIS_0586	-	phosphate ABC transporter, ATP-binding protein
583	 36.84	0	586650..587447	-	265	152990336	-	NIS_0587	-	hypothetical protein
584	 43.50	+1	587444..588358	-	304	152990337	-	NIS_0588	-	AAA family ATPase
585	 38.25	0	588355..589431	-	358	152990338	-	NIS_0589	-	hypothetical protein
586	 38.76	0	589412..590905	-	497	152990339	-	NIS_0590	-	von Willebrand factor type A domain-containing protein
587	 42.99	0	590902..591771	-	289	152990340	-	NIS_0591	-	von Willebrand factor type A domain-containing protein
588	 43.42	+1	591768..592223	-	151	152990341	pgpA	NIS_0592	-	phosphatidylglycerophosphatase A
589	 40.47	0	592231..593421	-	396	152990342	-	NIS_0593	-	sulfate adenylyltransferase
590	 35.35	-1	593399..594289	-	296	152990343	-	NIS_0594	-	two-component response regulator
591	 41.80	0	594286..595407	-	373	152990344	-	NIS_0595	-	bifunctional 2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase/2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase protein
592	 44.19	+1	595524..596858	+	444	152990345	thiC	NIS_0596	-	thiamine biosynthesis protein ThiC
593	 45.79	+1	597130..598293	+	387	152990346	mrp	NIS_0597	-	ATP-binding protein Mrp
594	 37.05	0	598345..599151	+	268	152990347	-	NIS_0598	-	hypothetical protein
595	 29.14	-2	599148..600578	-	476	152990348	-	NIS_0599	-	hypothetical protein
596	 31.69	-2	600617..601954	-	445	152990349	-	NIS_0600	-	hypothetical protein
597	 31.83	-1	601964..602362	-	132	152990350	cheY	NIS_0601	-	chemotactic response regulator CheY
598	 33.96	-1	602371..603330	-	319	152990351	-	NIS_0602	-	chemotactic response regulator CheV
599	 31.03	-2	603340..603861	-	173	152990352	cheW	NIS_0603	-	purine-binding chemotaxis protein CheW
600	 37.98	0	603861..605882	-	673	152990353	cheA	NIS_0604	-	chemotaxis sensor histidine kinase CheA
601	 34.49	-1	605887..606231	-	114	152990354	-	NIS_0605	-	hypothetical protein
602	 34.99	-1	606401..607426	+	341	152990355	fliG	NIS_0606	-	flagellar motor switch protein FliG
603	 40.37	0	607537..608517	+	326	152990356	fliM	NIS_0607	-	flagellar motor switch protein FliM
604	 40.05	0	608510..608911	+	133	152990357	-	NIS_0608	-	flagellar motor switch protein FliN
605	 37.80	0	608915..609631	+	238	152990358	-	NIS_0609	-	flagellar basal-body rod protein FlgF
606	 42.95	0	609642..610442	+	266	152990359	flgG	NIS_0610	-	flagellar basal-body rod protein FlgG
607	 36.40	0	610630..611346	+	238	152990360	-	NIS_0611	-	flagellar protein FlgA
608	 42.35	0	611364..611984	+	206	152990361	-	NIS_0612	-	flagellar L-ring protein FlgH
609	 42.95	0	612014..613105	+	363	152990362	flgI	NIS_0613	-	flagellar P-ring protein FlgI
610	 38.65	0	613114..613395	+	93	152990363	-	NIS_0614	-	hypothetical protein
611	 42.34	0	613392..615479	+	695	152990364	flhA	NIS_0615	-	flagellar biosynthesis protein FlhA
612	 37.84	0	615466..616641	+	391	152990365	-	NIS_0616	-	flagellar biosynthesis protein FlhF
613	 36.14	0	616638..617492	+	284	152990366	-	NIS_0617	-	flagellar biosynthesis switch protein FlhG
614	 36.79	0	617489..618124	+	211	152990367	fliA	NIS_0618	-	RNA polymerase sigma factor for flagellar operon
615	 33.28	-1	618124..620094	+	656	152990368	-	NIS_0619	-	hypothetical protein
616	 32.98	-1	620081..622063	+	660	152990369	-	NIS_0620	-	hypothetical protein
617	 36.34	0	622063..622428	+	121	152990370	-	NIS_0621	-	flagellar basal-body rod protein FlgB
618	 37.23	0	622431..622841	+	136	152990371	flgC	NIS_0622	-	flagellar basal-body rod protein FlgC
619	 39.00	0	622853..623152	+	99	152990372	-	NIS_0623	-	flagellar hook-basal body complex protein FliE
620	 40.02	0	623163..624791	+	542	152990373	fliF	NIS_0624	-	flagellar M-ring protein FliF
621	 32.46	-1	624788..625471	+	227	152990374	-	NIS_0625	-	hypothetical protein
622	 39.35	0	625443..626738	+	431	152990375	fliI	NIS_0626	-	flagellar-specific ATP synthase FliI
623	 38.76	0	626798..627460	+	220	152990376	-	NIS_0627	-	flagellar hook capping protein FlgD
624	 37.33	0	627462..629063	+	533	152990377	-	NIS_0628	-	flagellar basal body and hook protein FlgE
625	 34.88	-1	629160..629675	+	171	152990378	-	NIS_0629	-	flagellar basal body-associated protein FliL
626	 37.70	0	629684..629935	+	83	152990379	-	NIS_0630	-	flagellar motor switch protein FliN/FliY
627	 29.84	-2	629928..630185	+	85	152990380	-	NIS_0631	-	flagellar biosynthesis protein FliZ
628	 34.18	-1	630182..630892	+	236	152990381	fliP	NIS_0632	-	flagellar transport protein FliP
629	 38.15	0	630889..631158	+	89	152990382	fliQ	NIS_0633	-	flagellar biosynthetic protein FliQ
630	 33.72	-1	631155..631922	+	255	152990383	fliR	NIS_0634	-	flagellar biosynthetic protein FliR
631	 37.31	0	631926..632981	+	351	152990384	flhB	NIS_0635	-	flagellar biosynthetic protein FlhB
632	 32.72	-1	632976..634436	-	486	152990385	-	NIS_0636	-	hypothetical protein
633	 30.24	-2	634423..634875	-	150	152990386	-	NIS_0637	-	hypothetical protein
634	 34.77	-1	634823..635239	-	138	152990387	-	NIS_0638	-	hypothetical protein
635	 37.75	0	635236..636276	-	346	152990388	-	NIS_0639	-	hypothetical protein
636	 40.55	0	636452..637990	+	512	152990389	-	NIS_0640	-	flagellin
637	 37.34	0	638088..638486	+	132	152990390	-	NIS_0641	-	flagellar protein FlaG
638	 42.16	0	638497..639855	+	452	152990391	-	NIS_0642	-	flagellar hook-associated protein 2 FliD
639	 35.17	-1	639868..640248	+	126	152990392	fliS	NIS_0643	-	flagellar protein FliS
640	 39.53	0	640499..641740	-	413	152990393	-	NIS_0644	-	flagellar hook-associated protein 3 FliC
641	 38.92	0	641796..643586	-	596	152990394	flgK	NIS_0645	-	flagellar hook-associated protein 1 FliK
642	 33.61	-1	643631..643990	-	119	152990395	-	NIS_0646	-	hypothetical protein
643	 41.00	0	643993..645858	-	621	152990396	glmS	NIS_0647	-	D-fructose-6-phosphate amidotransferase
644	 40.77	0	645871..646932	+	353	152990397	-	NIS_0648	-	hypothetical protein
645	 36.20	0	646932..647384	+	150	152990398	-	NIS_0649	-	nucleotide phosphoribosyltransferase
646	 38.07	0	647365..647934	+	189	152990399	pabA	NIS_0650	-	anthranilate synthase component II
647	 33.25	-1	647934..649097	+	387	152990400	-	NIS_0651	-	hypothetical protein
648	 38.81	0	649217..650548	+	443	152990401	-	NIS_0652	-	ATP citrate synthase, subunit 1
649	 41.03	0	650560..652404	+	614	152990402	-	NIS_0653	-	ATP citrate synthase, subunit 2
650	 35.80	0	652437..653126	+	229	152990403	-	NIS_0654	-	hypothetical protein
651	 35.98	0	653184..654242	+	352	152990404	-	NIS_0655	-	hypothetical protein
652	 37.96	0	659958..660281	+	107	152990405	-	NIS_0656	-	hypothetical protein
653	 38.37	0	660318..661706	+	462	152990406	argH	NIS_0657	-	argininosuccinate lyase
654	 35.56	-1	661715..662074	-	119	152990407	-	NIS_0658	-	histidine triad family protein
655	 39.35	0	662160..663140	+	326	152990408	pheS	NIS_0659	-	phenylalanyl-tRNA synthetase subunit alpha
656	 36.25	0	663137..665467	+	776	152990409	pheT	NIS_0660	-	phenylalanyl-tRNA synthetase subunit beta
657	 42.47	0	665464..666765	+	433	152990410	aroA	NIS_0661	-	3-phosphoshikimate 1-carboxyvinyltransferase
658	 38.65	0	666755..667582	+	275	152990411	ispH	NIS_0662	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
659	 37.63	0	667614..669290	+	558	152990412	rpsA	NIS_0663	-	30S ribosomal protein S1
660	 40.50	0	669299..670888	+	529	152990413	-	NIS_0664	-	D-3-phosphoglycerate dehydrogenase
661	 35.10	-1	670983..672401	+	472	152990414	-	NIS_0665	-	outer membrane efflux protein
662	 36.63	0	672398..673186	+	262	152990415	-	NIS_0666	-	acriflavin resistance AcrA/AcrE family protein
663	 38.56	0	673196..674821	+	541	152990416	-	NIS_0667	-	acriflavin resistance AcrB/AcrD/AcrF family protein
664	 40.26	0	674818..676521	+	567	152990417	-	NIS_0668	-	acriflavin resistance AcrB/AcrD/AcrF family protein
665	 33.33	-1	676521..676721	+	66	152990418	-	NIS_0669	-	hypothetical protein
666	 40.74	0	676749..677315	+	188	152990419	efp	NIS_0670	-	elongation factor P
667	 32.65	-1	677317..677757	+	146	152990420	-	NIS_0671	-	hypothetical protein
668	 44.09	+1	677874..678431	+	185	152990421	thiJ	NIS_0672	-	4-methyl-5(beta-hydroxyethyl)-thiazole monophosphate synthesis protein
669	 37.21	0	678428..678943	-	171	152990422	-	NIS_0673	-	hypothetical protein
670	 37.73	0	678940..679758	-	272	152990423	-	NIS_0674	-	glycosyl transferase
671	 38.93	0	679727..680530	-	267	152990424	-	NIS_0675	-	HAD-superfamily hydrolase
672	 40.13	0	680574..681470	+	298	152990425	-	NIS_0676	-	tRNA/rRNA cytosine-C5-methylase
39.50	MEAN

3.88	STD DEV
