IslandPath Analysis: Nitratiruptor sp. SB155-2

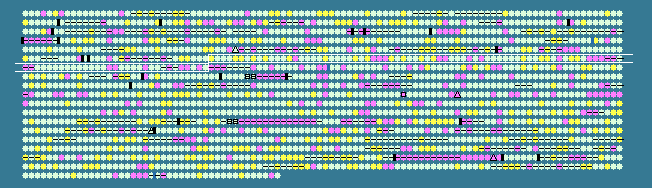

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.50 STD DEV: 3.88
Nitratiruptor sp. SB155-2, complete genome - 1..1877931
1843 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
532	 44.22	+1	530162..531373	-	403	152990285	-	NIS_0536	-	long-chain fatty acid transport protein
533	 42.35	0	531484..531993	+	169	152990286	-	NIS_0537	-	peptidyl-prolyl cis-trans isomerase
534	 42.21	0	531994..533874	+	626	152990287	-	NIS_0538	-	glutamine-dependent NAD+ synthetase
535	 40.07	0	533868..534950	+	360	152990288	-	NIS_0539	-	hypothetical protein
536	 44.74	+1	534952..535398	+	148	152990289	fabZ	NIS_0540	-	(3R)-hydroxymyristoyl-ACP dehydratase
537	 43.01	0	535398..536162	+	254	152990290	lpxA	NIS_0541	-	acyl-[acyl-carrier-protein]--UDP-N- acetylglucosam O-acyltransferase
538	 41.30	0	536171..537400	+	409	152990291	clpX	NIS_0542	-	ATP-dependent protease ATP-binding subunit
539	 45.99	+1	537410..538444	+	344	152990292	mreB	NIS_0543	-	cell shape-determining protein MreB
540	 36.80	0	538437..539186	+	249	152990293	-	NIS_0544	-	cell shape-determining protein MreC
541	 43.69	+1	539230..542484	+	1084	152990294	carB	NIS_0545	-	carbamoyl phosphate synthase large subunit
542	 37.97	0	542477..542929	+	150	152990295	-	NIS_0546	-	hypothetical protein
543	 38.48	0	542926..544053	-	375	152990296	-	NIS_0547	-	cytochrome c peroxidase
544	 41.61	0	544581..545039	-	152	152990297	-	NIS_0548	-	signal transduction sensor histidine kinase
545	 44.68	+1	545156..548602	+	1148	152990298	metH	NIS_0549	-	5-methyltetrahydrofolate--homocysteine methyltransferase
546	 35.63	0	548613..550223	+	536	152990299	-	NIS_0550	-	hypothetical protein
547	 38.41	0	550220..550849	+	209	152990300	-	NIS_0551	-	hypothetical protein
548	 40.52	0	550846..551346	+	166	152990301	btuR	NIS_0552	-	cob(I)alamin adenosyltransferase
549	 41.17	0	551383..553233	+	616	152990302	-	NIS_0553	-	TonB-dependent receptor
550	 38.77	0	553230..553781	+	183	152990303	-	NIS_0554	-	hypothetical protein
551	 43.39	+1	553778..554602	+	274	152990304	-	NIS_0555	-	UTP--glucose-1-phosphate uridylyltransferase
552	 39.52	0	554631..555131	+	166	152990305	-	NIS_0556	-	hypothetical protein
553	 42.86	0	555160..556398	+	412	152990306	pepD	NIS_0557	-	aminoacyl-histidine dipeptidase
554	 39.71	0	556395..556802	+	135	152990307	-	NIS_0558	-	hypothetical protein
555	 40.52	0	556789..557442	-	217	152990308	nth	NIS_0559	-	endonuclease III
556	 43.56	+1	557499..558212	+	237	152990309	-	NIS_0560	-	hypothetical protein
557	 39.68	0	558270..559088	+	272	152990310	-	NIS_0561	-	peptidyl-prolyl cis-trans isomerase
558	 44.48	+1	559100..560176	+	358	152990311	fbaA	NIS_0562	-	fructose-bisphosphate aldolase
559	 35.90	0	560196..561248	-	350	152990312	-	NIS_0563	-	hypothetical protein
560	 33.52	-1	561218..562279	-	353	152990313	-	NIS_0564	-	hypothetical protein
561	 35.43	-1	562344..563297	+	317	152990314	-	NIS_0565	-	hypothetical protein
562	 43.54	+1	563317..564609	+	430	152990315	hisD	NIS_0566	-	histidinol dehydrogenase
563	 36.52	0	564610..567939	+	1109	152990316	-	NIS_0567	-	hypothetical protein
564	 43.81	+1	567929..569560	+	543	152990317	-	NIS_0568	-	inorganic phosphate transporter
565	 39.05	0	569560..570801	+	413	152990318	-	NIS_0569	-	hypothetical protein
566	 41.43	0	570782..571534	+	250	152990319	-	NIS_0570	-	hypothetical protein
567	 43.10	0	571821..572465	+	214	152990320	-	NIS_0571	-	4Fe-4S ferredoxin
568	 40.04	0	572465..573388	+	307	152990321	-	NIS_0572	-	hypothetical protein
569	 43.64	+1	573400..576687	+	1095	152990322	-	NIS_0573	-	molybdopterin oxidoreductase
570	 25.77	-2	576751..577041	+	96	152990323	-	NIS_0574	-	hypothetical protein
571	 26.77	-2	577034..577414	+	126	152990324	-	NIS_0575	-	hypothetical protein
572	 38.13	0	577415..577789	-	124	152990325	-	NIS_0576	-	cytochrome c, class I
573	 37.75	0	577866..578477	+	203	152990326	-	NIS_0577	-	hypothetical protein
574	 40.28	0	578471..579535	+	354	152990327	-	NIS_0578	-	ferredoxin-like protein
575	 34.16	-1	579532..579894	+	120	152990328	-	NIS_0579	-	hypothetical protein
576	 39.49	0	580068..580538	+	156	152990329	-	NIS_0580	-	hypothetical protein
577	 34.08	-1	580535..581203	-	222	152990330	-	NIS_0581	-	phosphate transport system regulator
578	 42.48	0	581333..582349	+	338	152990331	pstS	NIS_0582	-	phosphate ABC transporter, substrate-binding protein
579	 38.65	0	582372..583763	+	463	152990332	-	NIS_0583	-	hypothetical protein
580	 42.97	0	583853..584713	+	286	152990333	pstC	NIS_0584	-	phosphate ABC transporter, permease
581	 40.58	0	584710..585537	+	275	152990334	pstA	NIS_0585	-	phosphate ABC transporter, permease
582	 41.98	0	585537..586322	+	261	152990335	pstB	NIS_0586	-	phosphate ABC transporter, ATP-binding protein
583	 36.84	0	586650..587447	-	265	152990336	-	NIS_0587	-	hypothetical protein
584	 43.50	+1	587444..588358	-	304	152990337	-	NIS_0588	-	AAA family ATPase
585	 38.25	0	588355..589431	-	358	152990338	-	NIS_0589	-	hypothetical protein
586	 38.76	0	589412..590905	-	497	152990339	-	NIS_0590	-	von Willebrand factor type A domain-containing protein
587	 42.99	0	590902..591771	-	289	152990340	-	NIS_0591	-	von Willebrand factor type A domain-containing protein
588	 43.42	+1	591768..592223	-	151	152990341	pgpA	NIS_0592	-	phosphatidylglycerophosphatase A
589	 40.47	0	592231..593421	-	396	152990342	-	NIS_0593	-	sulfate adenylyltransferase
590	 35.35	-1	593399..594289	-	296	152990343	-	NIS_0594	-	two-component response regulator
591	 41.80	0	594286..595407	-	373	152990344	-	NIS_0595	-	bifunctional 2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase/2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase protein
592	 44.19	+1	595524..596858	+	444	152990345	thiC	NIS_0596	-	thiamine biosynthesis protein ThiC
593	 45.79	+1	597130..598293	+	387	152990346	mrp	NIS_0597	-	ATP-binding protein Mrp
594	 37.05	0	598345..599151	+	268	152990347	-	NIS_0598	-	hypothetical protein
595	 29.14	-2	599148..600578	-	476	152990348	-	NIS_0599	-	hypothetical protein
596	 31.69	-2	600617..601954	-	445	152990349	-	NIS_0600	-	hypothetical protein
597	 31.83	-1	601964..602362	-	132	152990350	cheY	NIS_0601	-	chemotactic response regulator CheY
598	 33.96	-1	602371..603330	-	319	152990351	-	NIS_0602	-	chemotactic response regulator CheV
599	 31.03	-2	603340..603861	-	173	152990352	cheW	NIS_0603	-	purine-binding chemotaxis protein CheW
600	 37.98	0	603861..605882	-	673	152990353	cheA	NIS_0604	-	chemotaxis sensor histidine kinase CheA
601	 34.49	-1	605887..606231	-	114	152990354	-	NIS_0605	-	hypothetical protein
602	 34.99	-1	606401..607426	+	341	152990355	fliG	NIS_0606	-	flagellar motor switch protein FliG
603	 40.37	0	607537..608517	+	326	152990356	fliM	NIS_0607	-	flagellar motor switch protein FliM
604	 40.05	0	608510..608911	+	133	152990357	-	NIS_0608	-	flagellar motor switch protein FliN
605	 37.80	0	608915..609631	+	238	152990358	-	NIS_0609	-	flagellar basal-body rod protein FlgF
606	 42.95	0	609642..610442	+	266	152990359	flgG	NIS_0610	-	flagellar basal-body rod protein FlgG
607	 36.40	0	610630..611346	+	238	152990360	-	NIS_0611	-	flagellar protein FlgA
608	 42.35	0	611364..611984	+	206	152990361	-	NIS_0612	-	flagellar L-ring protein FlgH
609	 42.95	0	612014..613105	+	363	152990362	flgI	NIS_0613	-	flagellar P-ring protein FlgI
610	 38.65	0	613114..613395	+	93	152990363	-	NIS_0614	-	hypothetical protein
611	 42.34	0	613392..615479	+	695	152990364	flhA	NIS_0615	-	flagellar biosynthesis protein FlhA
612	 37.84	0	615466..616641	+	391	152990365	-	NIS_0616	-	flagellar biosynthesis protein FlhF
613	 36.14	0	616638..617492	+	284	152990366	-	NIS_0617	-	flagellar biosynthesis switch protein FlhG
614	 36.79	0	617489..618124	+	211	152990367	fliA	NIS_0618	-	RNA polymerase sigma factor for flagellar operon
615	 33.28	-1	618124..620094	+	656	152990368	-	NIS_0619	-	hypothetical protein
616	 32.98	-1	620081..622063	+	660	152990369	-	NIS_0620	-	hypothetical protein
617	 36.34	0	622063..622428	+	121	152990370	-	NIS_0621	-	flagellar basal-body rod protein FlgB
618	 37.23	0	622431..622841	+	136	152990371	flgC	NIS_0622	-	flagellar basal-body rod protein FlgC
619	 39.00	0	622853..623152	+	99	152990372	-	NIS_0623	-	flagellar hook-basal body complex protein FliE
620	 40.02	0	623163..624791	+	542	152990373	fliF	NIS_0624	-	flagellar M-ring protein FliF
621	 32.46	-1	624788..625471	+	227	152990374	-	NIS_0625	-	hypothetical protein
622	 39.35	0	625443..626738	+	431	152990375	fliI	NIS_0626	-	flagellar-specific ATP synthase FliI
623	 38.76	0	626798..627460	+	220	152990376	-	NIS_0627	-	flagellar hook capping protein FlgD
624	 37.33	0	627462..629063	+	533	152990377	-	NIS_0628	-	flagellar basal body and hook protein FlgE
625	 34.88	-1	629160..629675	+	171	152990378	-	NIS_0629	-	flagellar basal body-associated protein FliL
626	 37.70	0	629684..629935	+	83	152990379	-	NIS_0630	-	flagellar motor switch protein FliN/FliY
627	 29.84	-2	629928..630185	+	85	152990380	-	NIS_0631	-	flagellar biosynthesis protein FliZ
628	 34.18	-1	630182..630892	+	236	152990381	fliP	NIS_0632	-	flagellar transport protein FliP
629	 38.15	0	630889..631158	+	89	152990382	fliQ	NIS_0633	-	flagellar biosynthetic protein FliQ
630	 33.72	-1	631155..631922	+	255	152990383	fliR	NIS_0634	-	flagellar biosynthetic protein FliR
631	 37.31	0	631926..632981	+	351	152990384	flhB	NIS_0635	-	flagellar biosynthetic protein FlhB
39.50	MEAN

3.88	STD DEV
