IslandPath Analysis: Nitratiruptor sp. SB155-2

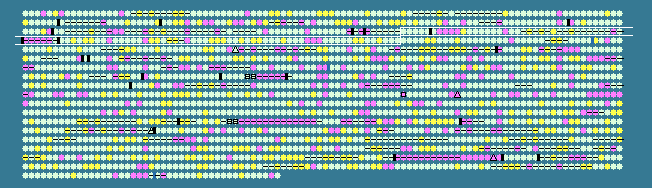

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.50 STD DEV: 3.88
Nitratiruptor sp. SB155-2, complete genome - 1..1877931
1843 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
264	 40.57	0	253012..257172	+	1386	152990017	rpoB	NIS_0268	-	DNA-directed RNA polymerase subunit beta
265	 42.00	0	257150..261673	+	1507	152990018	rpoC	NIS_0269	-	DNA-directed RNA polymerase, beta' subunit
266	 40.80	0	261763..262137	+	124	152990019	rpsL	NIS_0270	-	30S ribosomal protein S12
267	 39.49	0	262246..262716	+	156	152990020	rpsG	NIS_0271	-	30S ribosomal protein S7
268	 42.14	0	262818..264896	+	692	152990021	fusA	NIS_0272	-	elongation factor G
269	 38.77	0	265347..266432	+	361	152990022	cheB	NIS_0273	-	protein-glutamate methylesterase CheB
270	 29.90	-2	266407..266931	+	174	152990023	-	NIS_0274	-	hypothetical protein
271	 31.51	-2	266924..267745	+	273	152990024	-	NIS_0275	-	chemotaxis protein methyltransferase
272	 31.19	-2	267742..269046	-	434	152990025	-	NIS_0276	-	hypothetical protein
273	 35.97	0	269049..270941	-	630	152990026	-	NIS_0277	-	methyl-accepting chemotaxis protein
274	 43.70	+1	271181..271450	+	89	152990027	-	NIS_0278	-	RNA-binding protein RNP-1
275	 38.19	0	271480..272736	-	418	152990028	-	NIS_0279	-	DNA polymerase IV
276	 41.36	0	272853..273512	+	219	152990029	-	NIS_0280	-	phage repressor protein
277	 41.10	0	273509..274255	+	248	152990030	-	NIS_0281	-	hypothetical protein
278	 37.94	0	274234..274689	+	151	152990031	-	NIS_0282	-	hypothetical protein
279	 40.77	0	274686..275936	-	416	152990032	-	NIS_0283	-	UDP-glucose/GDP-mannose dehydrogenase
280	 38.83	0	275933..276241	-	102	152990033	-	NIS_0284	-	hypothetical protein
281	 35.43	-1	276287..276763	+	158	152990034	-	NIS_0285	-	hypothetical protein
282	 41.73	0	276756..277601	+	281	152990035	nfo	NIS_0286	-	endonuclease IV
283	 39.34	0	277604..279334	+	576	152990036	-	NIS_0287	-	AAA family ATPase
284	 40.46	0	279469..279861	+	130	152990037	nuoA	NIS_0288	-	NADH dehydrogenase subunit A
285	 44.90	+1	279843..280352	+	169	152990038	nuoB	NIS_0289	-	NADH dehydrogenase subunit B
286	 42.05	0	280352..281143	+	263	152990039	nuoC	NIS_0290	-	NADH dehydrogenase subunit C
287	 45.01	+1	281153..282385	+	410	152990040	nuoD	NIS_0291	-	NADH dehydrogenase subunit D
288	 38.68	0	282399..282641	+	80	152990041	-	NIS_0292	-	hypothetical protein
289	 44.98	+1	282654..284696	+	680	152990042	-	NIS_0293	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
290	 42.38	0	284706..286982	+	758	152990043	-	NIS_0294	-	NADH-quinone oxidoreductase, chain G
291	 42.27	0	286975..289458	+	827	152990044	nuoG	NIS_0295	-	NADH dehydrogenase subunit G
292	 43.81	+1	289460..290452	+	330	152990045	nuoH	NIS_0296	-	NADH dehydrogenase subunit H
293	 38.89	0	290462..291073	+	203	152990046	nuoI	NIS_0297	-	NADH dehydrogenase subunit I
294	 39.82	0	291085..291639	+	184	152990047	nuoJ	NIS_0298	-	NADH dehydrogenase subunit J
295	 37.62	0	291636..291938	+	100	152990048	nuoK	NIS_0299	-	NADH dehydrogenase subunit K
296	 40.45	0	291942..293837	+	631	152990049	nuoL	NIS_0300	-	NADH dehydrogenase subunit L
297	 38.18	0	293849..295375	+	508	152990050	nuoM	NIS_0301	-	NADH dehydrogenase subunit M
298	 39.80	0	295375..296859	+	494	152990051	nuoN	NIS_0302	-	NADH dehydrogenase subunit N
299	 35.67	0	296856..297755	-	299	152990052	miaA	NIS_0303	-	tRNA delta(2)-isopentenylpyrophosphate transferase
300	 39.61	0	297799..298659	+	286	152990053	ubiA	NIS_0304	-	prenyltransferase
301	 31.05	-2	298767..300650	-	627	152990054	-	NIS_0305	-	signal transduction response regulator
302	 30.24	-2	300647..301066	-	139	152990055	-	NIS_0306	-	hypothetical protein
303	 32.85	-1	301063..302925	-	620	152990056	-	NIS_0307	-	hypothetical protein
304	 27.58	-2	303246..303575	+	109	152990057	-	NIS_0308	-	hypothetical protein
305	 35.63	0	303639..304292	+	217	152990058	-	NIS_0309	-	carbonate dehydratase
306	 37.18	0	304293..305930	+	545	152990059	-	NIS_0310	-	sulfate transporter
307	 38.65	0	306709..307893	-	394	152990060	murD	NIS_0311	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
308	 40.56	0	307893..308957	-	354	152990061	mraY	NIS_0312	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
309	 43.95	+1	309037..309780	+	247	152990062	fabG	NIS_0313	-	3-ketoacyl-(acyl-carrier-protein) reductase
310	 37.55	0	309830..310066	+	78	152990063	acpP	NIS_0314	-	acyl carrier protein ACP
311	 45.75	+1	310141..311364	+	407	152990064	fabF	NIS_0315	-	3-oxoacyl-(acyl carrier protein) synthase II
312	 45.09	+1	311367..312302	+	311	152990065	accA	NIS_0316	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
313	 37.66	0	312332..312562	-	76	152990066	-	NIS_0317	-	hypothetical protein
314	 42.36	0	312595..313779	-	394	152990067	argJ	NIS_0318	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
315	 34.31	-1	313822..314025	-	67	152990068	rpmB	NIS_0319	-	50S ribosomal protein L28
316	 42.88	0	314157..314795	+	212	152990069	rpe	NIS_0320	-	ribulose-phosphate 3-epimerase
317	 42.30	0	314797..315387	+	196	152990070	trpF	NIS_0321	-	phosphoribosylanthranilate isomerase
318	 38.75	0	315380..316210	+	276	152990071	dnaQ	NIS_0322	-	DNA polymerase III subunit epsilon
319	 42.02	0	316146..317342	-	398	152990072	-	NIS_0323	-	Na+/H+:dicarboxylate/amino acid symporter
320	 38.45	0	317315..318115	-	266	152990073	-	NIS_0324	-	hypothetical protein
321	 34.44	-1	318155..318334	-	59	152990074	-	NIS_0325	-	hypothetical protein
322	 45.12	+1	318350..319825	-	491	152990075	-	NIS_0326	-	sulfide-quinone reductase
323	 44.88	+1	319960..320496	-	178	152990076	-	NIS_0327	-	hexapaptide repeat-containing transferase
324	 42.49	0	320496..322592	-	698	152990077	ppk	NIS_0328	-	polyphosphate kinase
325	 43.24	0	322674..323309	+	211	152990078	-	NIS_0329	-	carbonate dehydratase
326	 45.40	+1	323296..325326	-	676	152990079	uvrB	NIS_0330	-	excinuclease ABC subunit B
327	 36.99	0	325395..325613	+	72	152990080	-	NIS_0331	-	hypothetical protein
328	 34.29	-1	325616..325825	+	69	152990081	-	NIS_0332	-	hypothetical protein
329	 40.09	0	325902..326360	+	152	152990082	-	NIS_0333	-	hypothetical protein
330	 41.16	0	326364..326810	+	148	152990083	-	NIS_0334	-	hypothetical protein
331	 38.98	0	326872..327225	+	117	152990084	-	NIS_0335	-	hypothetical protein
332	 43.32	0	327225..329057	+	610	152990085	priA	NIS_0336	-	primosome assembly protein PriA
333	 46.36	+1	329090..330148	+	352	152990086	ispG	NIS_0337	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
334	 44.63	+1	330152..331567	+	471	152990087	dnaB	NIS_0338	-	replicative DNA helicase
335	 37.36	0	331567..332808	+	413	152990088	-	NIS_0339	-	DNA uptake protein
336	 36.41	0	332710..333555	-	281	152990089	rbn	NIS_0340	-	ribonuclease BN
337	 45.34	+1	333815..335197	-	460	152990090	glcD	NIS_0341	-	glycolate oxidase, subunit GlcD
338	 39.42	0	335197..335886	-	229	152990091	-	NIS_0342	-	hypothetical protein
339	 43.22	0	336025..337278	+	417	152990092	-	NIS_0343	-	M24/M37 family peptidase
340	 43.23	0	337241..338584	+	447	152990093	-	NIS_0344	-	magnesium transporter
341	 41.76	0	338586..339131	+	181	152990094	-	NIS_0345	-	hypothetical protein
342	 39.20	0	339118..339594	-	158	152990095	-	NIS_0346	-	globin
343	 42.68	0	339584..340450	-	288	152990096	-	NIS_0347	-	hydrolase
344	 44.32	+1	340447..341238	-	263	152990097	-	NIS_0348	-	Mn2+/Zn2+ ABC transporter, permease
345	 40.08	0	341231..341956	-	241	152990098	-	NIS_0349	-	Mn2+/Zn2+ ABC transporter, ATP-binding protein
346	 38.25	0	341940..342773	-	277	152990099	-	NIS_0350	-	Mn2+/Zn2+ ABC transporter, substrate-binding protein
347	 42.60	0	342798..343736	-	312	152990100	-	NIS_0351	-	peptidyl-arginine deiminase family protein
348	 32.91	-1	343832..344068	+	78	152990101	-	NIS_0352	-	hypothetical protein
349	 29.49	-2	344061..344372	+	103	152990102	-	NIS_0353	-	PemK family transcriptional regulator
350	 31.19	-2	344702..345634	+	310	152990103	-	NIS_0354	-	hypothetical protein
351	 41.54	0	345677..346675	+	332	152990104	-	NIS_0355	-	alanine racemase
352	 38.67	0	346653..347027	-	124	152990105	-	NIS_0356	-	hypothetical protein
353	 37.81	0	347027..347227	-	66	152990106	-	NIS_0357	-	hypothetical protein
354	 39.56	0	347217..347762	-	181	152990107	gidB	NIS_0358	-	glucose-inhibited division protein B
355	 41.49	0	347762..348325	-	187	152990108	ribA	NIS_0359	-	GTP cyclohydrolase II
356	 46.79	+1	348386..349351	+	321	152990109	hemB	NIS_0360	-	delta-aminolevulinic acid dehydratase
357	 44.41	+1	349384..350313	+	309	152990110	-	NIS_0361	-	ornithine carbamoyltransferase
358	 39.78	0	350310..351473	+	387	152990111	-	NIS_0362	-	hypothetical protein
359	 38.55	0	351484..351981	+	165	152990112	-	NIS_0363	-	hypothetical protein
360	 44.01	+1	351978..353345	+	455	152990113	hemN	NIS_0364	-	coproporphyrinogen III oxidase
361	 40.03	0	353342..355537	+	731	152990114	-	NIS_0365	-	hypothetical protein
362	 39.99	0	355534..358101	+	855	152990115	-	NIS_0366	-	ATP-dependent DNA helicase UvrD
363	 41.41	0	358104..359378	+	424	152990116	-	NIS_0367	-	anaerobic glycerol-3-phosphate dehydrogenase subunit C
39.50	MEAN

3.88	STD DEV
