IslandPath Analysis: Nitratiruptor sp. SB155-2

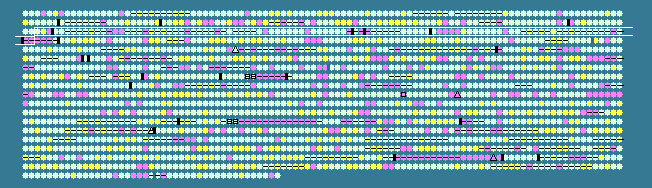

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.50 STD DEV: 3.88
Nitratiruptor sp. SB155-2, complete genome - 1..1877931
1843 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
203	 41.45	0	212340..213164	-	274	152989956	-	NIS_0207	-	hypothetical protein
204	 43.22	0	213212..213646	+	144	152989957	-	NIS_0208	-	hypothetical protein
205	 33.45	-1	213650..216286	-	878	152989958	-	NIS_0209	-	signal transduction response regulator
206	 42.98	0	216513..216875	-	120	152989959	dgkA	NIS_0210	-	diacylglycerol kinase
207	 41.92	0	216872..217861	-	329	152989960	-	NIS_0211	-	hypothetical protein
208	 39.66	0	217854..219512	-	552	152989961	dnaG	NIS_0212	-	DNA primase DnaG
209	 39.09	0	219523..220512	+	329	152989962	-	NIS_0213	-	hypothetical protein
210	 42.02	0	220490..220915	+	141	152989963	rnhA	NIS_0214	-	ribonuclease H
211	 42.58	0	220985..221665	+	226	152989964	rnc	NIS_0215	-	ribonuclease III
212	 46.00	+1	221658..222731	+	357	152989965	aroC	NIS_0216	-	chorismate synthase
213	 42.51	0	222964..224205	-	413	152989966	-	NIS_0217	-	hypothetical protein
214	 40.44	0	224216..224764	-	182	152989967	rnhB	NIS_0218	-	ribonuclease HII
215	 26.22	-2	224820..225044	+	74	152989968	-	NIS_0219	-	prevent-host-death protein
216	 27.99	-2	225044..225436	+	130	152989969	-	NIS_0220	-	hypothetical protein
217	 33.52	-1	225532..226590	-	352	152989970	-	NIS_0221	-	hypothetical protein
218	 42.63	0	226719..227030	+	103	152989971	rpsJ	NIS_0222	-	30S ribosomal protein S10
219	 40.24	0	227040..227618	+	192	152989972	rplC	NIS_0223	-	50S ribosomal protein L3
220	 41.30	0	227615..228229	+	204	152989973	rplD	NIS_0224	-	50S ribosomal protein L4
221	 35.82	0	228231..228512	+	93	152989974	rplW	NIS_0225	-	50S ribosomal protein L23
222	 44.69	+1	228523..229350	+	275	152989975	rplB	NIS_0226	-	50S ribosomal protein L2
223	 38.65	0	229362..229643	+	93	152989976	rpsS	NIS_0227	-	30S ribosomal protein S19
224	 45.87	+1	229653..229979	+	108	152989977	rplV	NIS_0228	-	50S ribosomal protein L22
225	 41.45	0	229979..230668	+	229	152989978	rpsC	NIS_0229	-	30S ribosomal protein S3
226	 41.31	0	230671..231096	+	141	152989979	rplP	NIS_0230	-	50S ribosomal protein L16
227	 41.03	0	231083..231277	+	64	152989980	rpmC	NIS_0231	-	50S ribosomal protein L29
228	 35.71	0	231277..231528	+	83	152989981	rpsQ	NIS_0232	-	30S ribosomal protein S17
229	 39.57	0	231528..231896	+	122	152989982	rplN	NIS_0233	-	50S ribosomal protein L14
230	 38.75	0	231896..232135	+	79	152989983	rplX	NIS_0234	-	50S ribosomal protein L24
231	 40.22	0	232132..232683	+	183	152989984	rplE	NIS_0235	-	50S ribosomal protein L5
232	 38.17	0	232683..232868	+	61	152989985	rpsN	NIS_0236	-	30S ribosomal protein S14
233	 33.33	-1	232927..233331	+	134	152989986	rpsH	NIS_0237	-	30S ribosomal protein S8
234	 39.48	0	233380..233916	+	178	152989987	rplF	NIS_0238	-	50S ribosomal protein L6
235	 38.38	0	233927..234283	+	118	152989988	rplR	NIS_0239	-	50S ribosomal protein L18
236	 38.29	0	234293..234736	+	147	152989989	rpsE	NIS_0240	-	30S ribosomal protein S5
237	 38.56	0	234740..235141	+	133	152989990	rplO	NIS_0241	-	50S ribosomal protein L15
238	 40.14	0	235141..236403	+	420	152989991	secY	NIS_0242	-	preprotein translocase subunit SecY
239	 40.68	0	236403..237164	+	253	152989992	map	NIS_0243	-	methionine aminopeptidase
240	 38.81	0	237165..237383	+	72	152989993	infA	NIS_0244	-	translation initiation factor IF-1
241	 34.21	-1	237542..237655	+	37	152989994	rpmJ	NIS_0245	-	50S ribosomal protein L36
242	 38.02	0	237659..238021	+	120	152989995	rpsM	NIS_0246	-	30S ribosomal protein S13
243	 40.20	0	238033..238425	+	130	152989996	rpsK	NIS_0247	-	30S ribosomal protein S11
244	 40.35	0	238481..239107	+	208	152989997	rpsD	NIS_0248	-	30S ribosomal protein S4
245	 36.47	0	239139..240125	+	328	152989998	rpoA	NIS_0249	-	DNA-directed RNA polymerase subunit alpha
246	 39.03	0	240136..240486	+	116	152989999	rplQ	NIS_0250	-	50S ribosomal protein L17
247	 41.25	0	240586..240888	+	100	152990000	-	NIS_0251	-	hypothetical protein
248	 33.16	-1	240889..241449	+	186	152990001	-	NIS_0252	-	hypothetical protein
249	 37.82	0	241446..242738	+	430	152990002	murE	NIS_0253	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
250	 40.57	0	242838..243224	+	128	152990003	-	NIS_0254	-	2Fe-2S ferredoxin
251	 40.16	0	243227..243592	+	121	152990004	panD	NIS_0255	-	aspartate alpha-decarboxylase
252	 36.22	0	243604..243915	+	103	152990005	-	NIS_0256	-	hypothetical protein
253	 38.95	0	243916..244788	+	290	152990006	ispA	NIS_0257	-	geranyltranstransferase
254	 42.71	0	244792..246732	+	646	152990007	-	NIS_0258	-	transketolase
255	 35.69	0	246831..247889	+	352	152990008	-	NIS_0259	-	hypothetical protein
256	 41.92	0	248459..249658	+	399	152990009	tufA	NIS_0260	-	elongation factor Tu
257	 30.07	-2	249695..249847	+	50	152990010	rpmG	NIS_0261	-	50S ribosomal protein L33
258	 31.67	-2	249970..250149	+	59	152990011	secE	NIS_0262	-	preprotein translocase subunit SecE
259	 36.53	0	250162..250692	+	176	152990012	nusG	NIS_0263	-	transcription antitermination protein NusG
260	 38.03	0	250713..251138	+	141	152990013	rplK	NIS_0264	-	50S ribosomal protein L11
261	 40.68	0	251194..251901	+	235	152990014	rplA	NIS_0265	-	50S ribosomal protein L1
262	 41.52	0	251977..252489	+	170	152990015	rplJ	NIS_0266	-	50S ribosomal protein L10
263	 37.50	0	252510..252893	+	127	152990016	rplL	NIS_0267	-	50S ribosomal protein L7/L12
264	 40.57	0	253012..257172	+	1386	152990017	rpoB	NIS_0268	-	DNA-directed RNA polymerase subunit beta
265	 42.00	0	257150..261673	+	1507	152990018	rpoC	NIS_0269	-	DNA-directed RNA polymerase, beta' subunit
266	 40.80	0	261763..262137	+	124	152990019	rpsL	NIS_0270	-	30S ribosomal protein S12
267	 39.49	0	262246..262716	+	156	152990020	rpsG	NIS_0271	-	30S ribosomal protein S7
268	 42.14	0	262818..264896	+	692	152990021	fusA	NIS_0272	-	elongation factor G
269	 38.77	0	265347..266432	+	361	152990022	cheB	NIS_0273	-	protein-glutamate methylesterase CheB
270	 29.90	-2	266407..266931	+	174	152990023	-	NIS_0274	-	hypothetical protein
271	 31.51	-2	266924..267745	+	273	152990024	-	NIS_0275	-	chemotaxis protein methyltransferase
272	 31.19	-2	267742..269046	-	434	152990025	-	NIS_0276	-	hypothetical protein
273	 35.97	0	269049..270941	-	630	152990026	-	NIS_0277	-	methyl-accepting chemotaxis protein
274	 43.70	+1	271181..271450	+	89	152990027	-	NIS_0278	-	RNA-binding protein RNP-1
275	 38.19	0	271480..272736	-	418	152990028	-	NIS_0279	-	DNA polymerase IV
276	 41.36	0	272853..273512	+	219	152990029	-	NIS_0280	-	phage repressor protein
277	 41.10	0	273509..274255	+	248	152990030	-	NIS_0281	-	hypothetical protein
278	 37.94	0	274234..274689	+	151	152990031	-	NIS_0282	-	hypothetical protein
279	 40.77	0	274686..275936	-	416	152990032	-	NIS_0283	-	UDP-glucose/GDP-mannose dehydrogenase
280	 38.83	0	275933..276241	-	102	152990033	-	NIS_0284	-	hypothetical protein
281	 35.43	-1	276287..276763	+	158	152990034	-	NIS_0285	-	hypothetical protein
282	 41.73	0	276756..277601	+	281	152990035	nfo	NIS_0286	-	endonuclease IV
283	 39.34	0	277604..279334	+	576	152990036	-	NIS_0287	-	AAA family ATPase
284	 40.46	0	279469..279861	+	130	152990037	nuoA	NIS_0288	-	NADH dehydrogenase subunit A
285	 44.90	+1	279843..280352	+	169	152990038	nuoB	NIS_0289	-	NADH dehydrogenase subunit B
286	 42.05	0	280352..281143	+	263	152990039	nuoC	NIS_0290	-	NADH dehydrogenase subunit C
287	 45.01	+1	281153..282385	+	410	152990040	nuoD	NIS_0291	-	NADH dehydrogenase subunit D
288	 38.68	0	282399..282641	+	80	152990041	-	NIS_0292	-	hypothetical protein
289	 44.98	+1	282654..284696	+	680	152990042	-	NIS_0293	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
290	 42.38	0	284706..286982	+	758	152990043	-	NIS_0294	-	NADH-quinone oxidoreductase, chain G
291	 42.27	0	286975..289458	+	827	152990044	nuoG	NIS_0295	-	NADH dehydrogenase subunit G
292	 43.81	+1	289460..290452	+	330	152990045	nuoH	NIS_0296	-	NADH dehydrogenase subunit H
293	 38.89	0	290462..291073	+	203	152990046	nuoI	NIS_0297	-	NADH dehydrogenase subunit I
294	 39.82	0	291085..291639	+	184	152990047	nuoJ	NIS_0298	-	NADH dehydrogenase subunit J
295	 37.62	0	291636..291938	+	100	152990048	nuoK	NIS_0299	-	NADH dehydrogenase subunit K
296	 40.45	0	291942..293837	+	631	152990049	nuoL	NIS_0300	-	NADH dehydrogenase subunit L
297	 38.18	0	293849..295375	+	508	152990050	nuoM	NIS_0301	-	NADH dehydrogenase subunit M
298	 39.80	0	295375..296859	+	494	152990051	nuoN	NIS_0302	-	NADH dehydrogenase subunit N
299	 35.67	0	296856..297755	-	299	152990052	miaA	NIS_0303	-	tRNA delta(2)-isopentenylpyrophosphate transferase
300	 39.61	0	297799..298659	+	286	152990053	ubiA	NIS_0304	-	prenyltransferase
301	 31.05	-2	298767..300650	-	627	152990054	-	NIS_0305	-	signal transduction response regulator
302	 30.24	-2	300647..301066	-	139	152990055	-	NIS_0306	-	hypothetical protein
39.50	MEAN

3.88	STD DEV
