IslandPath Analysis: Nitratiruptor sp. SB155-2

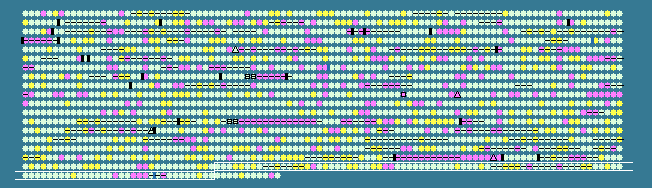

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 39.50   STD DEV: 3.88
Nitratiruptor sp. SB155-2, complete genome - 1..1877931
1843 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1733	 39.53	0	1766544..1767302	+	252	152991486	-	NIS_1746	-	hypothetical protein
1734	 39.62	0	1767316..1767633	+	105	152991487	-	NIS_1747	-	hypothetical protein
1735	 40.31	0	1767630..1768202	+	190	152991488	-	NIS_1748	-	hypothetical protein
1736	 43.21	0	1768267..1769289	+	340	152991489	-	NIS_1749	-	[pyruvate formate-lyase]-activating enzyme
1737	 45.85	+1	1769286..1770308	+	340	152991490	-	NIS_1750	-	[pyruvate formate-lyase]-activating enzyme
1738	 42.30	0	1770299..1771993	+	564	152991491	-	NIS_1751	-	phosphate:Na+ symporter
1739	 43.26	0	1771995..1772639	-	214	152991492	-	NIS_1752	-	hypothetical protein
1740	 37.17	0	1772636..1774018	-	460	152991493	-	NIS_1753	-	two-component sensor histidine kinase
1741	 42.08	0	1774012..1774674	-	220	152991494	-	NIS_1754	-	two-component response regulator
1742	 41.01	0	1774674..1775129	-	151	152991495	-	NIS_1755	-	cytochrome c
1743	 43.48	+1	1775165..1775854	-	229	152991496	-	NIS_1756	-	alcohol dehydrogenase
1744	 42.06	0	1775983..1776933	+	316	152991497	-	NIS_1757	-	nitrate/sulfonate/bicarbonate ABC transporter, substrate-binding protein
1745	 39.67	0	1776930..1779311	+	793	152991498	-	NIS_1758	-	hypothetical protein
1746	 43.46	+1	1779308..1782664	-	1118	152991499	-	NIS_1759	-	reverse gyrase
1747	 45.65	+1	1782661..1783326	-	221	152991500	-	NIS_1760	-	hypothetical protein
1748	 45.12	+1	1783390..1784271	-	293	152991501	-	NIS_1761	-	ATPase
1749	 30.00	-2	1784385..1784624	+	79	152991502	-	NIS_1762	-	hypothetical protein
1750	 37.01	0	1784617..1784970	+	117	152991503	-	NIS_1763	-	PemK family transcriptional regulator
1751	 43.70	+1	1784967..1785593	+	208	152991504	upp	NIS_1764	-	uracil phosphoribosyltransferase
1752	 39.33	0	1785590..1786123	+	177	152991505	-	NIS_1765	-	hypothetical protein
1753	 39.50	0	1786125..1786643	-	172	152991506	-	NIS_1766	-	hypothetical protein
1754	 38.75	0	1786588..1788045	-	485	152991507	-	NIS_1767	-	hypothetical protein
1755	 45.11	+1	1788035..1789240	-	401	152991508	-	NIS_1768	-	N-acetyl-L-amino acid amidohydrolase
1756	 44.44	+1	1789279..1789962	-	227	152991509	-	NIS_1769	-	hypothetical protein
1757	 38.60	0	1789944..1790114	-	56	152991510	-	NIS_1770	-	hypothetical protein
1758	 42.28	0	1790111..1792234	-	707	152991511	nrdD	NIS_1771	-	anaerobic ribonucleoside triphosphate reductase
1759	 44.46	+1	1792309..1795686	-	1125	152991512	-	NIS_1772	-	5-oxoprolinase (ATP-hydrolyzing)
1760	 43.57	+1	1795740..1797116	+	458	152991513	-	NIS_1773	-	pyruvate kinase
1761	 35.94	0	1797241..1797432	-	63	152991514	-	NIS_1774	-	hypothetical protein
1762	 34.73	-1	1797436..1797792	-	118	152991515	-	NIS_1775	-	hypothetical protein
1763	 42.40	0	1797782..1798774	-	330	152991516	-	NIS_1776	-	AsnC/Lrp family transcriptional regulator
1764	 41.84	0	1798882..1799457	+	191	152991517	-	NIS_1777	-	hypothetical protein
1765	 39.73	0	1799457..1799831	+	124	152991518	-	NIS_1778	-	hypothetical protein
1766	 38.82	0	1799834..1800289	-	151	152991519	-	NIS_1779	-	hypothetical protein
1767	 39.98	0	1800301..1801128	-	275	152991520	-	NIS_1780	-	ABC transporter, permease
1768	 40.98	0	1801125..1801595	-	156	152991521	-	NIS_1781	-	hypothetical protein
1769	 40.38	0	1801582..1802220	-	212	152991522	-	NIS_1782	-	ABC transporter, ATP-binding protein
1770	 42.21	0	1802217..1803128	-	303	152991523	-	NIS_1783	-	NapH/MauN family ferredoxin-type protein
1771	 42.17	0	1803139..1803636	-	165	152991524	-	NIS_1784	-	hypothetical protein
1772	 37.13	0	1803633..1804211	-	192	152991525	-	NIS_1785	-	hypothetical protein
1773	 44.70	+1	1804214..1804996	-	260	152991526	-	NIS_1786	-	4Fe-4S ferredoxin
1774	 38.72	0	1804993..1806291	-	432	152991527	-	NIS_1787	-	nitrous oxidase accessory protein NosD
1775	 42.33	0	1806207..1806995	-	262	152991528	-	NIS_1788	-	hypothetical protein
1776	 42.40	0	1807185..1809788	-	867	152991529	-	NIS_1789	-	nitrous-oxide reductase NosZ
1777	 45.49	+1	1810158..1810889	-	243	152991530	-	NIS_1790	-	uroporphyrin-III C-methyltransferase
1778	 37.84	0	1810907..1812037	-	376	152991531	-	NIS_1791	-	heme d1 biosynthesis protein NirF
1779	 41.58	0	1812278..1813381	-	367	152991532	-	NIS_1792	-	heme d1 biosynthesis protein NirJ
1780	 38.81	0	1813381..1815060	-	559	152991533	-	NIS_1793	-	cytochrome c, class I
1781	 43.64	+1	1815165..1816823	-	552	152991534	-	NIS_1794	-	cytochrome cd1 nitrite reductase
1782	 43.94	+1	1817089..1818549	-	486	152991535	-	NIS_1795	-	nitric-oxide reductase, large subunit
1783	 43.07	0	1818512..1819189	-	225	152991536	-	NIS_1796	-	nitric-oxide reductase, small subunit
1784	 42.34	0	1819202..1819534	-	110	152991537	-	NIS_1797	-	hypothetical protein
1785	 35.37	-1	1819690..1820328	+	212	152991538	-	NIS_1798	-	Crp/FNR family transcriptional regulator
1786	 39.71	0	1820352..1820900	+	182	152991539	-	NIS_1799	-	hypothetical protein
1787	 41.49	0	1820970..1822220	-	416	152991540	-	NIS_1800	-	hypothetical protein
1788	 40.34	0	1822310..1822837	-	175	152991541	-	NIS_1801	-	hypothetical protein
1789	 37.93	0	1822847..1823194	-	115	152991542	-	NIS_1802	-	periplasmic nitrate reductase component NapD
1790	 35.86	0	1823191..1824141	-	316	152991543	-	NIS_1803	-	periplasmic nitrate reductase component NapL
1791	 38.89	0	1824143..1824610	-	155	152991544	napF	NIS_1804	-	periplasmic nitrate reductase, ferredoxin-type protein NapF
1792	 41.58	0	1824610..1825191	-	193	152991545	-	NIS_1805	-	periplasmic nitrate reductase, small subunit
1793	 42.00	0	1825193..1826011	-	272	152991546	napH	NIS_1806	-	quinol dehydrogenase membrane component
1794	 44.82	+1	1826004..1826795	-	263	152991547	napG	NIS_1807	-	quinol dehydrogenase periplasmic component
1795	 43.40	+1	1826814..1829624	-	936	152991548	napA	NIS_1808	-	nitrate reductase
1796	 41.29	0	1829824..1830426	+	200	152991549	-	NIS_1809	-	hypothetical protein
1797	 41.37	0	1830423..1830920	-	165	152991550	-	NIS_1810	-	hypothetical protein
1798	 44.34	+1	1831135..1831443	-	102	152991551	-	NIS_1811	-	hypothetical protein
1799	 39.66	0	1831436..1832683	-	415	152991552	-	NIS_1812	-	hypothetical protein
1800	 38.79	0	1832698..1833045	-	115	152991553	-	NIS_1813	-	hypothetical protein
1801	 39.48	0	1833114..1834154	-	346	152991554	-	NIS_1814	-	ferredoxin-like protein
1802	 36.46	0	1834144..1834719	-	191	152991555	-	NIS_1815	-	hypothetical protein
1803	 37.53	0	1834820..1835224	-	134	152991556	-	NIS_1816	-	hypothetical protein
1804	 41.07	0	1835221..1836435	-	404	152991557	-	NIS_1817	-	hypothetical protein
1805	 40.60	0	1836432..1837559	-	375	152991558	-	NIS_1818	-	4Fe-4S ferredoxin
1806	 38.21	0	1840492..1841619	-	375	152991559	-	NIS_1820	-	hypothetical protein
1807	 41.45	0	1841892..1842458	+	188	152991560	-	NIS_1821	-	hypothetical protein
1808	 38.94	0	1842455..1842811	+	118	152991561	-	NIS_1822	-	hypothetical protein
1809	 43.06	0	1842821..1843858	+	345	152991562	-	NIS_1823	-	ATP-binding protein
1810	 36.20	0	1843855..1844760	-	301	152991563	-	NIS_1824	-	hypothetical protein
1811	 40.28	0	1844771..1845202	-	143	152991564	-	NIS_1825	-	hypothetical protein
1812	 37.37	0	1845199..1845942	-	247	152991565	-	NIS_1826	-	hypothetical protein
1813	 40.64	0	1845951..1847456	-	501	152991566	-	NIS_1827	-	hypothetical protein
1814	 42.40	0	1847472..1849235	-	587	152991567	-	NIS_1828	-	sulfur oxidation protein SoxB
1815	 42.80	0	1849239..1850009	-	256	152991568	-	NIS_1829	-	hypothetical protein
1816	 33.93	-1	1850013..1850348	-	111	152991569	-	NIS_1830	-	hypothetical protein
1817	 40.34	0	1850367..1850837	-	156	152991570	-	NIS_1831	-	sulfur oxidation protein SoxY
1818	 41.30	0	1850837..1851388	-	183	152991571	-	NIS_1832	-	sulfur oxidation protein SoxX
1819	 33.25	-1	1851462..1852616	-	384	152991572	-	NIS_1833	-	two-component sensor histidine kinase
1820	 35.92	0	1852606..1853262	-	218	152991573	-	NIS_1834	-	two-component response regulator
1821	 35.22	-1	1853259..1854158	-	299	152991574	-	NIS_1835	-	hypothetical protein
1822	 38.24	0	1854407..1855954	-	515	152991575	-	NIS_1836	-	hypothetical protein
1823	 38.75	0	1861883..1862602	+	239	152991576	-	NIS_1837	-	hypothetical protein
1824	 34.35	-1	1862595..1862987	+	130	152991577	-	NIS_1838	-	hypothetical protein
1825	 38.35	0	1862984..1863322	-	112	152991578	-	NIS_1839	-	hypothetical protein
1826	 37.13	0	1863310..1863993	-	227	152991579	-	NIS_1840	-	methyl transferase
1827	 38.30	0	1864058..1864399	+	113	152991580	-	NIS_1841	-	preprotein translocase subunit G
1828	 37.13	0	1864371..1865345	+	324	152991581	-	NIS_1842	-	polysaccharide deacetylase family protein
1829	 40.29	0	1865332..1865892	+	186	152991582	frr	NIS_1843	-	ribosome recycling factor
1830	 44.50	+1	1866146..1866754	+	202	152991583	-	NIS_1844	-	orotate phosphoribosyltransferase
1831	 40.04	0	1866762..1867238	+	158	152991584	-	NIS_1845	-	hypothetical protein
1832	 36.12	0	1867222..1868334	+	370	152991585	-	NIS_1846	-	nucleoside:H+ symporter
39.50	MEAN

3.88	STD DEV
