IslandPath Analysis: Nitratiruptor sp. SB155-2

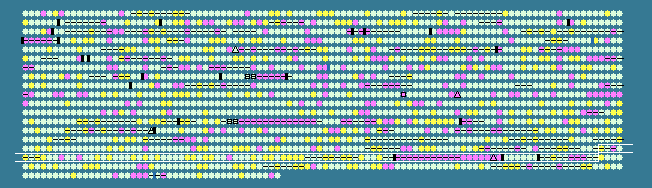

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.50 STD DEV: 3.88
Nitratiruptor sp. SB155-2, complete genome - 1..1877931
1843 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1597	 44.36	+1	1620975..1621364	-	129	152991350	rpsI	NIS_1609	-	30S ribosomal protein S9
1598	 38.81	0	1621366..1621785	-	139	152991351	rplM	NIS_1610	-	50S ribosomal protein L13
1599	 35.71	0	1621855..1622358	-	167	152991352	-	NIS_1611	-	hypothetical protein
1600	 37.59	0	1622355..1622942	-	195	152991353	-	NIS_1612	-	hypothetical protein
1601	 44.40	+1	1623068..1624504	-	478	152991354	-	NIS_1613	-	ferredoxin-like protein
1602	 37.55	0	1624506..1624766	-	86	152991355	-	NIS_1614	-	hypothetical protein
1603	 44.68	+1	1624768..1625613	-	281	152991356	ccoP	NIS_1615	-	cytochrome c oxidase, cbb3-type, subunit III
1604	 44.44	+1	1625613..1625819	-	68	152991357	ccoQ	NIS_1616	-	cytochrome c oxidase, cbb3-type, subunit IV
1605	 42.54	0	1625823..1626506	-	227	152991358	ccoO	NIS_1617	-	cytochrome c oxidase, cbb3-type, subunit II
1606	 41.94	0	1626516..1627979	-	487	152991359	ccoN	NIS_1618	-	cytochrome c oxidase, cbb3-type, subunit I
1607	 35.96	0	1628098..1628781	-	227	152991360	-	NIS_1619	-	two-component response regulator
1608	 37.49	0	1628771..1630333	-	520	152991361	-	NIS_1620	-	two-component sensor histidine kinase
1609	 41.72	0	1630354..1632405	-	683	152991362	-	NIS_1621	-	TonB-dependent copper receptor
1610	 29.87	-2	1632558..1632788	-	76	152991363	-	NIS_1622	-	hypothetical protein
1611	 42.81	0	1632788..1633927	-	379	152991364	carA	NIS_1623	-	carbamoyl phosphate synthase small subunit
1612	 41.35	0	1633924..1634484	-	186	152991365	-	NIS_1624	-	hypothetical protein
1613	 44.28	+1	1634494..1635744	-	416	152991366	purA	NIS_1625	-	adenylosuccinate synthetase
1614	 37.81	0	1635744..1636592	-	282	152991367	-	NIS_1626	-	ATP phosphoribosyltransferase regulatory subunit
1615	 44.44	+1	1636594..1637700	-	368	152991368	-	NIS_1627	-	aminotransferase
1616	 37.21	0	1637811..1638248	-	145	152991369	-	NIS_1628	-	heat shock protein Hsp20
1617	 39.60	0	1638304..1640139	-	611	152991370	-	NIS_1629	-	invasion antigen B
1618	 40.99	0	1640136..1640723	-	195	152991371	-	NIS_1630	-	Ham1 family protein
1619	 43.52	+1	1640792..1642126	+	444	152991372	-	NIS_1631	-	major facilitator superfamily multidrug-efflux transporter
1620	 37.84	0	1642156..1642710	-	184	152991373	-	NIS_1632	-	thioredoxin family protein
1621	 43.92	+1	1642721..1643929	-	402	152991374	-	NIS_1633	-	molybdopterin biosynthesis protein
1622	 39.76	0	1643987..1647007	+	1006	152991375	-	NIS_1634	-	hypothetical protein
1623	 47.07	+1	1646993..1647436	-	147	152991376	-	NIS_1635	-	molybdenum cofactor biosynthesis protein E
1624	 42.79	0	1647438..1647659	-	73	152991377	-	NIS_1636	-	molybdenum cofactor biosynthesis protein D
1625	 38.56	0	1647709..1648359	+	216	152991378	-	NIS_1637	-	hypothetical protein
1626	 41.75	0	1648356..1649270	+	304	152991379	-	NIS_1638	-	cytochrome c peroxidase
1627	 36.06	0	1649267..1651318	+	683	152991380	-	NIS_1639	-	hypothetical protein
1628	 43.86	+1	1651324..1652577	-	417	152991381	-	NIS_1640	-	malate oxidoreductase
1629	 43.41	+1	1652574..1653962	-	462	152991382	gltX	NIS_1641	-	glutamyl-tRNA synthetase
1630	 39.64	0	1654051..1654890	+	279	152991383	-	NIS_1642	-	hypothetical protein
1631	 44.67	+1	1654900..1656081	+	393	152991384	-	NIS_1643	-	tetrahydrodipicolinate N-succinyltransferase
1632	 44.57	+1	1656139..1657482	-	447	152991385	accC	NIS_1644	-	biotin carboxylase
1633	 42.54	0	1657483..1657938	-	151	152991386	accB	NIS_1645	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
1634	 41.58	0	1658016..1658573	+	185	152991387	dcd	NIS_1646	-	deoxycytidine triphosphate deaminase
1635	 27.29	-2	1658591..1660891	-	766	152991388	-	NIS_1647	-	hypothetical protein
1636	 41.32	0	1660966..1662681	-	571	152991389	-	NIS_1648	-	hypothetical protein
1637	 37.71	0	1662893..1663828	-	311	152991390	-	NIS_1649	-	divalent cation transporter
1638	 41.51	0	1663828..1664622	-	264	152991391	-	NIS_1650	-	hypothetical protein
1639	 44.07	+1	1664688..1666886	+	732	152991392	topA	NIS_1651	-	DNA topoisomerase I
1640	 42.97	0	1666883..1667380	+	165	152991393	-	NIS_1652	-	hypothetical protein
1641	 46.07	+1	1667377..1668216	+	279	152991394	bioB	NIS_1653	-	biotin synthase
1642	 44.33	+1	1668209..1669372	+	387	152991395	-	NIS_1654	-	Na+:H+ antiporter
1643	 40.29	0	1669341..1669829	-	162	152991396	-	NIS_1655	-	hypothetical protein
1644	 43.33	0	1669826..1670095	-	89	152991397	-	NIS_1656	-	hypothetical protein
1645	 46.52	+1	1670099..1671364	-	421	152991398	eno	NIS_1657	-	phosphopyruvate hydratase
1646	 47.15	+1	1671375..1672409	-	344	152991399	recA	NIS_1658	-	recombinase A
1647	 43.87	+1	1672488..1673351	+	287	152991400	-	NIS_1659	-	hypothetical protein
1648	 37.68	0	1673363..1674397	+	344	152991401	-	NIS_1660	-	signal transduction response regulator
1649	 41.21	0	1674381..1675154	+	257	152991402	-	NIS_1661	-	UDP-N-acetylenolpyruvoylglucosamine reductase
1650	 40.89	0	1675176..1675691	-	171	152991403	tpx	NIS_1662	-	thiol peroxidase
1651	 43.94	+1	1675816..1676805	-	329	152991404	-	NIS_1663	-	O-sialoglycoprotein endopeptidase
1652	 45.52	+1	1676802..1677359	-	185	152991405	-	NIS_1664	-	hypothetical protein
1653	 39.05	0	1677352..1678068	-	238	152991406	-	NIS_1665	-	hypothetical protein
1654	 43.66	+1	1678052..1679116	-	354	152991407	ispC	NIS_1666	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1655	 43.47	+1	1679113..1679862	-	249	152991408	cdsA	NIS_1667	-	phosphatidate cytidylyltransferase
1656	 39.13	0	1679875..1681185	-	436	152991409	-	NIS_1668	-	fibronectin/fibrinogen binding protein
1657	 47.47	+2	1681239..1682504	+	421	152991410	leuC	NIS_1669	-	3-isopropylmalate dehydratase large subunit
1658	 42.42	0	1682501..1683193	+	230	152991411	sfsA	NIS_1670	-	sugar fermentation stimulation protein
1659	 40.85	0	1683217..1684467	+	416	152991412	-	NIS_1671	-	AcrA/AcrE family protein
1660	 42.99	0	1684457..1685119	+	220	152991413	-	NIS_1672	-	peptide ABC transporter ATP-binding protein
1661	 40.37	0	1685097..1686290	+	397	152991414	-	NIS_1673	-	peptide ABC transporter permease
1662	 41.54	0	1686287..1687480	+	397	152991415	-	NIS_1674	-	peptide ABC transporter permease
1663	 27.13	-2	1688005..1690068	+	687	152991416	-	NIS_1675	-	hypothetical protein
1664	 26.91	-2	1690222..1692276	+	684	152991417	-	NIS_1676	-	hypothetical protein
1665	 26.84	-2	1692276..1692737	+	153	152991418	-	NIS_1677	-	hypothetical protein
1666	 25.51	-2	1692750..1694513	+	587	152991419	-	NIS_1678	-	hypothetical protein
1667	 30.50	-2	1694487..1694909	-	140	152991420	-	NIS_1679	-	hypothetical protein
1668	 24.74	-2	1694906..1696894	-	662	152991421	-	NIS_1680	-	hypothetical protein
1669	 28.86	-2	1696884..1698203	-	439	152991422	-	NIS_1681	-	phosphoadenosine phosphosulfate reductase
1670	 22.51	-2	1698324..1698554	+	76	152991423	-	NIS_1682	-	hypothetical protein
1671	 28.22	-2	1698809..1699336	-	175	152991424	-	NIS_1683	-	hypothetical protein
1672	 26.39	-2	1699347..1700153	-	268	152991425	-	NIS_1684	-	hypothetical protein
1673	 28.73	-2	1700171..1700539	-	122	152991426	-	NIS_1685	-	hypothetical protein
1674	 24.91	-2	1700559..1700843	-	94	152991427	-	NIS_1686	-	hypothetical protein
1675	 33.62	-1	1700865..1702580	-	571	152991428	-	NIS_1687	-	hypothetical protein
1676	 34.48	-1	1702635..1705520	-	961	152991429	-	NIS_1688	-	hypothetical protein
1677	 26.63	-2	1705517..1706053	-	178	152991430	-	NIS_1689	-	hypothetical protein
1678	 28.75	-2	1706090..1706329	-	79	152991431	-	NIS_1690	-	hypothetical protein
1679	 34.06	-1	1706776..1707873	-	365	152991432	-	NIS_1691	-	phage integrase family site specific recombinase
1680	 31.48	-2	1708467..1708844	-	125	152991433	-	NIS_1692	-	hypothetical protein
1681	 40.17	0	1709433..1710821	+	462	152991434	-	NIS_1693	-	hypothetical protein
1682	 38.10	0	1710833..1711210	+	125	152991435	-	NIS_1694	-	hypothetical protein
1683	 42.33	0	1711223..1711867	+	214	152991436	-	NIS_1695	-	hypothetical protein
1684	 39.44	0	1711890..1713200	+	436	152991437	-	NIS_1696	-	hypothetical protein
1685	 39.61	0	1713202..1714428	+	408	152991438	-	NIS_1697	-	hypothetical protein
1686	 37.61	0	1714425..1714985	+	186	152991439	-	NIS_1698	-	molybdopterin-guanine dinucleotide biosynthesis protein A
1687	 37.75	0	1715073..1715525	-	150	152991440	-	NIS_1699	-	hypothetical protein
1688	 36.14	0	1715547..1715831	+	94	152991441	-	NIS_1700	-	hypothetical protein
1689	 46.33	+1	1715821..1716297	+	158	152991442	-	NIS_1701	-	molybdenum cofactor biosynthesis protein C
1690	 39.91	0	1716294..1716977	-	227	152991443	-	NIS_1702	-	hypothetical protein
1691	 37.93	0	1717392..1720568	-	1058	152991444	-	NIS_1703	-	type I restriction-modification system, R subunit
1692	 29.86	-2	1720558..1721679	-	373	152991445	-	NIS_1704	-	type I restriction-modification system, S subunit
1693	 32.05	-1	1721872..1723113	-	413	152991446	-	NIS_1705	-	ATP-dependent DNA helicase
1694	 31.01	-2	1723117..1724106	-	329	152991447	-	NIS_1706	-	death-on-curing family protein
1695	 40.31	0	1724103..1725635	-	510	152991448	-	NIS_1707	-	type I restriction-modification system, M subunit
1696	 36.20	0	1725635..1726297	-	220	152991449	radC	NIS_1708	-	DNA repair protein RadC
39.50	MEAN

3.88	STD DEV
