IslandPath Analysis: Nitratiruptor sp. SB155-2

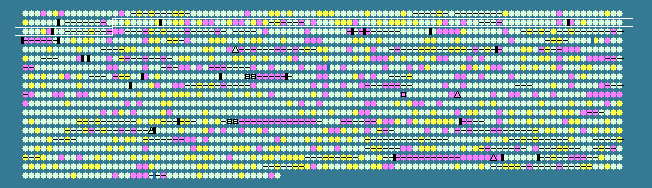

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 39.50   STD DEV: 3.88
Nitratiruptor sp. SB155-2, complete genome - 1..1877931
1843 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
116	 39.24	0	108067..108489	-	140	152989869	sufE	NIS_0119	-	Fe-S cluster assembly protein SufE
117	 38.39	0	108682..110895	+	737	152989870	-	NIS_0120	-	signal transduction response regulator
118	 43.24	0	110905..111126	+	73	152989871	-	NIS_0121	-	hypothetical protein
119	 40.00	0	111390..112094	+	234	152989872	-	NIS_0122	-	Sir2 family transcription regulator
120	 41.96	0	112094..112951	+	285	152989873	-	NIS_0123	-	hypothetical protein
121	 39.88	0	113010..114200	+	396	152989874	-	NIS_0124	-	hypothetical protein
122	 41.72	0	114197..115066	-	289	152989875	-	NIS_0125	-	ribosome-associated GTPase
123	 45.84	+1	115056..116750	-	564	152989876	ilvD	NIS_0126	-	dihydroxy-acid dehydratase
124	 42.46	0	117642..118463	+	273	152989877	-	NIS_0127	-	hypothetical protein
125	 41.61	0	118453..119382	-	309	152989878	-	NIS_0128	-	D-isomer specific 2-hydroxyacid dehydrogenase, catalytic component
126	 45.71	+1	119383..119802	-	139	152989879	-	NIS_0129	-	hypothetical protein
127	 45.93	+1	119799..120965	-	388	152989880	purT	NIS_0130	-	phosphoribosylglycinamide formyltransferase 2
128	 32.70	-1	120943..121419	-	158	152989881	-	NIS_0131	-	hypothetical protein
129	 41.44	0	121410..122063	-	217	152989882	-	NIS_0132	-	hypothetical protein
130	 45.48	+1	122143..124488	+	781	152989883	-	NIS_0133	-	hypothetical protein
131	 34.91	-1	124559..124939	+	126	152989884	-	NIS_0134	-	hypothetical protein
132	 35.53	-1	125081..126949	+	622	152989885	-	NIS_0135	-	hypothetical protein
133	 36.40	0	127042..130206	+	1054	152989886	-	NIS_0136	-	hypothetical protein
134	 40.96	0	130692..131150	+	152	152989887	-	NIS_0137	-	hypothetical protein
135	 45.07	+1	131180..131392	-	70	152989888	rpsU	NIS_0138	-	30S ribosomal protein S21
136	 35.16	-1	131444..131827	-	127	152989889	-	NIS_0139	-	nucleotidyltransferase, substrate-binding protein
137	 30.33	-2	131814..132113	-	99	152989890	-	NIS_0140	-	nucleotidyltransferase
138	 40.35	0	132228..133253	+	341	152989891	-	NIS_0141	-	cytochrome c peroxidase
139	 43.43	+1	133310..134329	+	339	152989892	tas	NIS_0142	-	aldo/keto reductase-family protein
140	 35.74	0	134507..135130	+	207	152989893	-	NIS_0143	-	hypothetical protein
141	 44.35	+1	135134..136567	+	477	152989894	-	NIS_0144	-	ferredoxin-like protein
142	 38.14	0	136607..136960	+	117	152989895	-	NIS_0145	-	hypothetical protein
143	 42.99	0	137198..138367	+	389	152989896	-	NIS_0146	-	sulfide-quinone reductase
144	 32.43	-1	138371..138592	+	73	152989897	-	NIS_0147	-	hypothetical protein
145	 41.62	0	138589..140121	+	510	152989898	-	NIS_0148	-	cytochrome bd oxidase subunit I
146	 39.86	0	140114..141232	+	372	152989899	-	NIS_0149	-	cytochrome bd oxidase subunit II
147	 28.06	-2	141450..143306	+	618	152989900	-	NIS_0150	-	hypothetical protein
148	 40.77	0	143366..143782	+	138	152989901	-	NIS_0151	-	hypothetical protein
149	 34.76	-1	143772..144191	+	139	152989902	-	NIS_0152	-	hypothetical protein
150	 38.10	0	144206..144919	+	237	152989903	-	NIS_0153	-	hypothetical protein
151	 36.86	0	144904..145527	+	207	152989904	-	NIS_0154	-	hypothetical protein
152	 39.51	0	145524..146219	-	231	152989905	-	NIS_0155	-	hypothetical protein
153	 44.12	+1	146306..147928	+	540	152989906	pyrG	NIS_0156	-	CTP synthetase
154	 43.40	+1	147925..149493	+	522	152989907	recJ	NIS_0157	-	single-strand DNA-specific exonuclease
155	 44.31	+1	149581..151074	+	497	152989908	-	NIS_0158	-	hypothetical protein
156	 35.44	-1	151083..151319	+	78	152989909	-	NIS_0159	-	hypothetical protein
157	 42.34	0	151316..152059	-	247	152989910	-	NIS_0160	-	arginyl-tRNA-protein transferase
158	 41.08	0	152078..152374	-	98	152989911	-	NIS_0161	-	hypothetical protein
159	 38.23	0	152500..154767	+	755	152989912	-	NIS_0162	-	signal transduction response regulator
160	 44.91	+1	154739..155317	-	192	152989913	folE	NIS_0163	-	GTP cyclohydrolase I
161	 42.24	0	155416..156729	+	437	152989914	tig	NIS_0164	-	trigger factor
162	 45.18	+1	156726..157316	+	196	152989915	clpP	NIS_0165	-	ATP-dependent Clp protease proteolytic subunit
163	 44.63	+1	157313..157843	+	176	152989916	def	NIS_0166	-	peptide deformylase
164	 44.60	+1	159357..160412	-	351	152989917	-	NIS_0168	-	hypothetical protein
165	 40.20	0	160520..161437	+	305	152989918	-	NIS_0169	-	LysR family transcriptional regulator
166	 44.80	+1	161421..162815	+	464	152989919	-	NIS_0170	-	hypothetical protein
167	 38.39	0	162812..163384	+	190	152989920	purN	NIS_0171	-	phosphoribosylglycinamide formyltransferase
168	 41.31	0	163341..164606	-	421	152989921	-	NIS_0172	-	hypothetical protein
169	 40.19	0	164780..166018	-	412	152989922	-	NIS_0173	-	Na+:H+ antiporter, NapA
170	 44.87	+1	166116..166895	+	259	152989923	thiG	NIS_0174	-	thiazole synthase
171	 34.96	-1	166924..167970	+	348	152989924	-	NIS_0175	-	potassium channel protein
172	 40.65	0	168066..168434	+	122	152989925	-	NIS_0176	-	thioredoxin
173	 41.67	0	168456..169811	-	451	152989926	-	NIS_0177	-	NSS family neurotransmitter:Na(+) symporter
174	 35.92	0	169870..170835	-	321	152989927	-	NIS_0178	-	hypothetical protein
175	 39.86	0	170832..171797	-	321	152989928	-	NIS_0179	-	hypothetical protein
176	 36.30	0	171794..173611	-	605	152989929	-	NIS_0180	-	hypothetical protein
177	 38.27	0	173759..175075	-	438	152989930	-	NIS_0181	-	glucosaminyltransferase
178	 36.05	0	175069..175953	-	294	152989931	-	NIS_0182	-	hypothetical protein
179	 37.88	0	175977..178220	-	747	152989932	-	NIS_0183	-	hypothetical protein
180	 35.43	-1	178213..179550	-	445	152989933	-	NIS_0184	-	hypothetical protein
181	 39.21	0	179560..180291	-	243	152989934	-	NIS_0185	-	hypothetical protein
182	 40.06	0	180279..182567	-	762	152989935	-	NIS_0186	-	hypothetical protein
183	 39.32	0	182536..184806	-	756	152989936	-	NIS_0187	-	hypothetical protein
184	 37.92	0	184796..187453	-	885	152989937	-	NIS_0188	-	hypothetical protein
185	 37.81	0	187462..188556	-	364	152989938	-	NIS_0189	-	hypothetical protein
186	 40.87	0	188553..190118	-	521	152989939	-	NIS_0190	-	alginate biosynthesis protein Alg8
187	 39.44	0	190128..191438	-	436	152989940	-	NIS_0191	-	GDP-mannose 6-dehydrogenase
188	 36.67	0	191435..192184	-	249	152989941	-	NIS_0192	-	protein phosphatase
189	 39.88	0	192194..195217	-	1007	152989942	-	NIS_0193	-	hypothetical protein
190	 35.10	-1	195226..196977	-	583	152989943	-	NIS_0194	-	hypothetical protein
191	 38.05	0	196974..198395	-	473	152989944	-	NIS_0195	-	mannose-1-phosphate guanylyltransferase
192	 34.00	-1	199785..202319	+	844	152989945	-	NIS_0196	-	signal transduction response regulator
193	 38.68	0	202362..202847	+	161	152989946	-	NIS_0197	-	hypothetical protein
194	 43.77	+1	202804..204231	-	475	152989947	-	NIS_0198	-	hypothetical protein
195	 42.01	0	204228..204884	-	218	152989948	gph	NIS_0199	-	HAD-superfamily hydrolase
196	 38.76	0	204923..207520	-	865	152989949	-	NIS_0200	-	hypothetical protein
197	 37.75	0	207517..209193	-	558	152989950	-	NIS_0201	-	hypothetical protein
198	 41.90	0	209211..209630	+	139	152989951	-	NIS_0202	-	hypothetical protein
199	 38.21	0	209602..210093	-	163	152989952	-	NIS_0203	-	hypothetical protein
200	 42.30	0	210128..210562	-	144	152989953	-	NIS_0204	-	hypothetical protein
201	 38.54	0	210621..211427	+	268	152989954	-	NIS_0205	-	hypothetical protein
202	 41.80	0	211402..212334	-	310	152989955	-	NIS_0206	-	A/G-specific adenine glycosylase
203	 41.45	0	212340..213164	-	274	152989956	-	NIS_0207	-	hypothetical protein
204	 43.22	0	213212..213646	+	144	152989957	-	NIS_0208	-	hypothetical protein
205	 33.45	-1	213650..216286	-	878	152989958	-	NIS_0209	-	signal transduction response regulator
206	 42.98	0	216513..216875	-	120	152989959	dgkA	NIS_0210	-	diacylglycerol kinase
207	 41.92	0	216872..217861	-	329	152989960	-	NIS_0211	-	hypothetical protein
208	 39.66	0	217854..219512	-	552	152989961	dnaG	NIS_0212	-	DNA primase DnaG
209	 39.09	0	219523..220512	+	329	152989962	-	NIS_0213	-	hypothetical protein
210	 42.02	0	220490..220915	+	141	152989963	rnhA	NIS_0214	-	ribonuclease H
211	 42.58	0	220985..221665	+	226	152989964	rnc	NIS_0215	-	ribonuclease III
212	 46.00	+1	221658..222731	+	357	152989965	aroC	NIS_0216	-	chorismate synthase
213	 42.51	0	222964..224205	-	413	152989966	-	NIS_0217	-	hypothetical protein
214	 40.44	0	224216..224764	-	182	152989967	rnhB	NIS_0218	-	ribonuclease HII
215	 26.22	-2	224820..225044	+	74	152989968	-	NIS_0219	-	prevent-host-death protein
39.50	MEAN

3.88	STD DEV
