IslandPath Analysis: Nitratiruptor sp. SB155-2

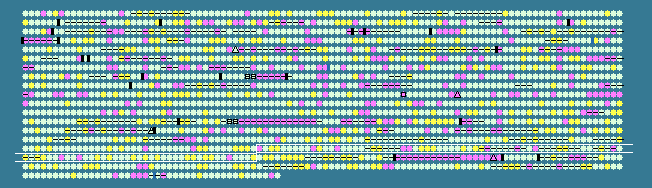

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.50 STD DEV: 3.88
Nitratiruptor sp. SB155-2, complete genome - 1..1877931
1843 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1540	 35.10	-1	1568053..1568391	-	112	152991293	-	NIS_1551	-	hypothetical protein
1541	 42.78	0	1568391..1570433	-	680	152991294	fdhF	NIS_1552	-	formate dehydrogenase, alpha subunit
1542	 45.92	+1	1570521..1571783	-	420	152991295	-	NIS_1553	-	homoserine dehydrogenase
1543	 44.88	+1	1571780..1572991	-	403	152991296	-	NIS_1554	-	aspartate aminotransferase
1544	 36.59	0	1573002..1573799	-	265	152991297	-	NIS_1555	-	hypothetical protein
1545	 36.59	0	1573793..1574620	-	275	152991298	-	NIS_1556	-	hypothetical protein
1546	 40.20	0	1574613..1575296	-	227	152991299	-	NIS_1557	-	RNA methyltransferase
1547	 38.73	0	1575321..1576136	-	271	152991300	-	NIS_1558	-	hypothetical protein
1548	 38.31	0	1576136..1576336	-	66	152991301	rpmE	NIS_1559	-	50S ribosomal protein L31
1549	 35.05	-1	1576604..1577068	+	154	152991302	-	NIS_1560	-	hypothetical protein
1550	 46.46	+1	1577068..1577547	+	159	152991303	-	NIS_1561	-	fimbrial protein
1551	 39.23	0	1577639..1578877	-	412	152991304	-	NIS_1562	-	general secretory pathway protein F
1552	 42.54	0	1578874..1580556	-	560	152991305	-	NIS_1563	-	general secretory pathway protein E
1553	 35.08	-1	1580553..1581410	-	285	152991306	-	NIS_1564	-	hypothetical protein
1554	 40.66	0	1581403..1582194	-	263	152991307	-	NIS_1565	-	hypothetical protein
1555	 38.84	0	1582194..1583681	-	495	152991308	-	NIS_1566	-	general secretory pathway protein D
1556	 37.24	0	1583678..1584010	-	110	152991309	-	NIS_1567	-	hypothetical protein
1557	 37.04	0	1584007..1584627	-	206	152991310	-	NIS_1568	-	hypothetical protein
1558	 39.82	0	1584624..1586087	-	487	152991311	-	NIS_1569	-	hypothetical protein
1559	 45.47	+1	1586556..1587008	-	150	152991312	-	NIS_1570	-	hypothetical protein
1560	 43.19	0	1587005..1587907	-	300	152991313	-	NIS_1571	-	hypothetical protein
1561	 41.86	0	1587907..1588563	-	218	152991314	-	NIS_1572	-	hypothetical protein
1562	 37.74	0	1588560..1592006	-	1148	152991315	-	NIS_1573	-	hypothetical protein
1563	 39.82	0	1592003..1592665	-	220	152991316	-	NIS_1574	-	hypothetical protein
1564	 29.72	-2	1592665..1593051	-	128	152991317	-	NIS_1575	-	hypothetical protein
1565	 33.56	-1	1592996..1593436	-	146	152991318	-	NIS_1576	-	nucleotidyltransferase
1566	 38.65	0	1593433..1593846	-	137	152991319	-	NIS_1577	-	hypothetical protein
1567	 45.73	+1	1593889..1595106	+	405	152991320	-	NIS_1578	-	molybdopterin biosynthesis protein MoeA
1568	 44.95	+1	1595096..1595560	-	154	152991321	-	NIS_1579	-	hypothetical protein
1569	 43.30	0	1595570..1596151	-	193	152991322	-	NIS_1580	-	6-pyruvoyl-tetrahydropterin synthase
1570	 39.92	0	1596148..1596906	-	252	152991323	-	NIS_1581	-	hypothetical protein
1571	 39.73	0	1596906..1597874	-	322	152991324	moaA	NIS_1582	-	molybdenum cofactor biosynthesis protein A
1572	 41.89	0	1597973..1598884	-	303	152991325	-	NIS_1583	-	ubiquinol cytochrome c oxidoreductase, cytochrome c1 subunit
1573	 42.49	0	1598884..1600281	-	465	152991326	-	NIS_1584	-	ubiquinol cytochrome c oxidoreductase, cytochrome b subunit
1574	 45.79	+1	1600291..1600812	-	173	152991327	-	NIS_1585	-	ubiquinol-cytochrome c oxidoreductase, iron-sulfur subunit
1575	 40.05	0	1600889..1601767	-	292	152991328	-	NIS_1586	-	hypothetical protein
1576	 44.68	+1	1601925..1603802	-	625	152991329	gidA	NIS_1587	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
1577	 43.51	+1	1603911..1604519	+	202	152991330	-	NIS_1588	-	riboflavin synthase subunit alpha
1578	 27.66	-2	1604697..1604978	-	93	152991331	-	NIS_1589	-	hypothetical protein
1579	 37.35	0	1606200..1607171	+	323	152991332	-	NIS_1591	-	sulfonate/nitrate ABC transporter, substrate-binding protein
1580	 40.74	0	1607171..1607953	+	260	152991333	-	NIS_1592	-	sulfonate/nitrate ABC transporter, permease
1581	 38.80	0	1607941..1608672	+	243	152991334	-	NIS_1593	-	sulfonate/nitrate ABC transporter, ATP-binding protein
1582	 39.11	0	1608675..1609904	+	409	152991335	-	NIS_1594	-	hypothetical protein
1583	 35.56	-1	1609914..1610408	+	164	152991336	-	NIS_1595	-	2'-5' RNA ligase
1584	 42.72	0	1610392..1610700	-	102	152991337	-	NIS_1596	-	hypothetical protein
1585	 42.39	0	1610697..1611281	-	194	152991338	-	NIS_1597	-	hypothetical protein
1586	 34.97	-1	1611271..1613043	-	590	152991339	-	NIS_1598	-	hypothetical protein
1587	 39.00	0	1613027..1613767	-	246	152991340	-	NIS_1599	-	hypothetical protein
1588	 42.09	0	1613768..1614064	-	98	152991341	-	NIS_1600	-	hypothetical protein
1589	 42.93	0	1614065..1614616	-	183	152991342	-	NIS_1601	-	S-ribosylhomocysteinase
1590	 43.24	0	1615049..1616047	-	332	152991343	-	NIS_1602	-	pyruvate:ferredoxin oxidoreductase, beta subunit
1591	 44.75	+1	1616060..1617277	-	405	152991344	-	NIS_1603	-	pyruvate flavodoxin oxidoreductase subunit alpha
1592	 42.59	0	1617288..1617719	-	143	152991345	-	NIS_1604	-	pyruvate flavodoxin oxidoreductase subunit delta
1593	 42.83	0	1617730..1618287	-	185	152991346	-	NIS_1605	-	pyruvate flavodoxin oxidoreductase subunit gamma
1594	 41.09	0	1618436..1619080	-	214	152991347	-	NIS_1606	-	HAD-superfamily hydrolase
1595	 39.53	0	1619077..1620576	-	499	152991348	-	NIS_1607	-	oligopeptide ABC transporter, substrate-binding protein
1596	 38.38	0	1620573..1620929	-	118	152991349	-	NIS_1608	-	rhodanese family protein
1597	 44.36	+1	1620975..1621364	-	129	152991350	rpsI	NIS_1609	-	30S ribosomal protein S9
1598	 38.81	0	1621366..1621785	-	139	152991351	rplM	NIS_1610	-	50S ribosomal protein L13
1599	 35.71	0	1621855..1622358	-	167	152991352	-	NIS_1611	-	hypothetical protein
1600	 37.59	0	1622355..1622942	-	195	152991353	-	NIS_1612	-	hypothetical protein
1601	 44.40	+1	1623068..1624504	-	478	152991354	-	NIS_1613	-	ferredoxin-like protein
1602	 37.55	0	1624506..1624766	-	86	152991355	-	NIS_1614	-	hypothetical protein
1603	 44.68	+1	1624768..1625613	-	281	152991356	ccoP	NIS_1615	-	cytochrome c oxidase, cbb3-type, subunit III
1604	 44.44	+1	1625613..1625819	-	68	152991357	ccoQ	NIS_1616	-	cytochrome c oxidase, cbb3-type, subunit IV
1605	 42.54	0	1625823..1626506	-	227	152991358	ccoO	NIS_1617	-	cytochrome c oxidase, cbb3-type, subunit II
1606	 41.94	0	1626516..1627979	-	487	152991359	ccoN	NIS_1618	-	cytochrome c oxidase, cbb3-type, subunit I
1607	 35.96	0	1628098..1628781	-	227	152991360	-	NIS_1619	-	two-component response regulator
1608	 37.49	0	1628771..1630333	-	520	152991361	-	NIS_1620	-	two-component sensor histidine kinase
1609	 41.72	0	1630354..1632405	-	683	152991362	-	NIS_1621	-	TonB-dependent copper receptor
1610	 29.87	-2	1632558..1632788	-	76	152991363	-	NIS_1622	-	hypothetical protein
1611	 42.81	0	1632788..1633927	-	379	152991364	carA	NIS_1623	-	carbamoyl phosphate synthase small subunit
1612	 41.35	0	1633924..1634484	-	186	152991365	-	NIS_1624	-	hypothetical protein
1613	 44.28	+1	1634494..1635744	-	416	152991366	purA	NIS_1625	-	adenylosuccinate synthetase
1614	 37.81	0	1635744..1636592	-	282	152991367	-	NIS_1626	-	ATP phosphoribosyltransferase regulatory subunit
1615	 44.44	+1	1636594..1637700	-	368	152991368	-	NIS_1627	-	aminotransferase
1616	 37.21	0	1637811..1638248	-	145	152991369	-	NIS_1628	-	heat shock protein Hsp20
1617	 39.60	0	1638304..1640139	-	611	152991370	-	NIS_1629	-	invasion antigen B
1618	 40.99	0	1640136..1640723	-	195	152991371	-	NIS_1630	-	Ham1 family protein
1619	 43.52	+1	1640792..1642126	+	444	152991372	-	NIS_1631	-	major facilitator superfamily multidrug-efflux transporter
1620	 37.84	0	1642156..1642710	-	184	152991373	-	NIS_1632	-	thioredoxin family protein
1621	 43.92	+1	1642721..1643929	-	402	152991374	-	NIS_1633	-	molybdopterin biosynthesis protein
1622	 39.76	0	1643987..1647007	+	1006	152991375	-	NIS_1634	-	hypothetical protein
1623	 47.07	+1	1646993..1647436	-	147	152991376	-	NIS_1635	-	molybdenum cofactor biosynthesis protein E
1624	 42.79	0	1647438..1647659	-	73	152991377	-	NIS_1636	-	molybdenum cofactor biosynthesis protein D
1625	 38.56	0	1647709..1648359	+	216	152991378	-	NIS_1637	-	hypothetical protein
1626	 41.75	0	1648356..1649270	+	304	152991379	-	NIS_1638	-	cytochrome c peroxidase
1627	 36.06	0	1649267..1651318	+	683	152991380	-	NIS_1639	-	hypothetical protein
1628	 43.86	+1	1651324..1652577	-	417	152991381	-	NIS_1640	-	malate oxidoreductase
1629	 43.41	+1	1652574..1653962	-	462	152991382	gltX	NIS_1641	-	glutamyl-tRNA synthetase
1630	 39.64	0	1654051..1654890	+	279	152991383	-	NIS_1642	-	hypothetical protein
1631	 44.67	+1	1654900..1656081	+	393	152991384	-	NIS_1643	-	tetrahydrodipicolinate N-succinyltransferase
1632	 44.57	+1	1656139..1657482	-	447	152991385	accC	NIS_1644	-	biotin carboxylase
1633	 42.54	0	1657483..1657938	-	151	152991386	accB	NIS_1645	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
1634	 41.58	0	1658016..1658573	+	185	152991387	dcd	NIS_1646	-	deoxycytidine triphosphate deaminase
1635	 27.29	-2	1658591..1660891	-	766	152991388	-	NIS_1647	-	hypothetical protein
1636	 41.32	0	1660966..1662681	-	571	152991389	-	NIS_1648	-	hypothetical protein
1637	 37.71	0	1662893..1663828	-	311	152991390	-	NIS_1649	-	divalent cation transporter
1638	 41.51	0	1663828..1664622	-	264	152991391	-	NIS_1650	-	hypothetical protein
1639	 44.07	+1	1664688..1666886	+	732	152991392	topA	NIS_1651	-	DNA topoisomerase I
39.50	MEAN

3.88	STD DEV
