IslandPath Analysis: Nitratiruptor sp. SB155-2

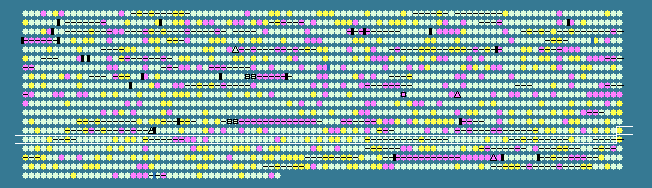

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.50 STD DEV: 3.88
Nitratiruptor sp. SB155-2, complete genome - 1..1877931
1843 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1400	 47.70	+2	1433465..1434181	-	238	152991153	hisA	NIS_1411	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1401	 42.60	0	1434182..1434796	-	204	152991154	hisH	NIS_1412	-	imidazole glycerol phosphate synthase subunit HisH
1402	 39.05	0	1434793..1435701	-	302	152991155	-	NIS_1413	-	general glycosylation pathway protein
1403	 37.53	0	1435688..1436473	-	261	152991156	-	NIS_1414	-	polysaccharide biosynthesis protein
1404	 37.52	0	1436532..1438082	+	516	152991157	-	NIS_1415	-	hypothetical protein
1405	 44.06	+1	1438079..1439131	+	350	152991158	-	NIS_1416	-	NAD-dependent epimerase/dehydratase
1406	 39.66	0	1439100..1439684	+	194	152991159	-	NIS_1417	-	PAP2 family phosphoesterase
1407	 39.95	0	1439674..1441185	+	503	152991160	-	NIS_1418	-	glycosyl transferase
1408	 43.52	+1	1441182..1441613	+	143	152991161	-	NIS_1419	-	hypothetical protein
1409	 41.96	0	1441613..1441867	+	84	152991162	-	NIS_1420	-	hypothetical protein
1410	 41.20	0	1441860..1443092	+	410	152991163	-	NIS_1421	-	hypothetical protein
1411	 39.43	0	1443064..1443867	-	267	152991164	-	NIS_1422	-	periplasmic protein TonB
1412	 37.12	0	1443864..1444259	-	131	152991165	-	NIS_1423	-	biopolymer  ExbD/TolR family transporter
1413	 42.30	0	1444228..1444662	-	144	152991166	-	NIS_1424	-	biopolymer ExbB/TolQ family transporter
1414	 37.08	0	1444659..1445486	-	275	152991167	-	NIS_1425	-	two-component sensor histidine kinase
1415	 38.81	0	1445476..1446132	-	218	152991168	-	NIS_1426	-	two-component response regulator
1416	 44.44	+1	1446122..1447129	-	335	152991169	pyrC	NIS_1427	-	dihydroorotase
1417	 42.65	0	1447120..1448493	-	457	152991170	-	NIS_1428	-	phosphomannomutase
1418	 44.09	+1	1448502..1449719	-	405	152991171	-	NIS_1429	-	ammonium transporter
1419	 44.54	+1	1449728..1450066	-	112	152991172	-	NIS_1430	-	nitrogen regulatory protein P-II
1420	 38.56	0	1450161..1452668	+	835	152991173	-	NIS_1431	-	nucleotidyltransferase
1421	 43.58	+1	1452750..1454027	+	425	152991174	-	NIS_1432	-	NarK/NasA family nitrate transporter
1422	 39.96	0	1454028..1455641	+	537	152991175	-	NIS_1433	-	hypothetical protein
1423	 41.28	0	1455707..1457266	+	519	152991176	-	NIS_1434	-	molybdopterin oxidoreductase, iron sulfur subunit
1424	 42.16	0	1457276..1459552	+	758	152991177	-	NIS_1435	-	nitrate reductase catalytic subunit
1425	 39.13	0	1459549..1461447	+	632	152991178	-	NIS_1436	-	ferredoxin--nitrite reductase
1426	 32.64	-1	1461666..1462097	-	143	152991179	-	NIS_1437	-	hypothetical protein
1427	 32.23	-1	1462329..1463504	-	391	152991180	-	NIS_1438	-	hypothetical protein
1428	 34.02	-1	1463488..1464357	-	289	152991181	-	NIS_1439	-	hypothetical protein
1429	 32.39	-1	1464354..1464986	-	210	152991182	-	NIS_1440	-	hypothetical protein
1430	 38.38	0	1464983..1466686	-	567	152991183	-	NIS_1441	-	asparagine synthase, glutamine-hydrolyzing
1431	 35.66	0	1466679..1467665	-	328	152991184	-	NIS_1442	-	glycosyl transferase
1432	 37.60	0	1467829..1468905	-	358	152991185	-	NIS_1443	-	glycosyl transferase
1433	 39.20	0	1468902..1469771	-	289	152991186	-	NIS_1444	-	hypothetical protein
1434	 36.54	0	1469768..1470577	-	269	152991187	-	NIS_1445	-	hypothetical protein
1435	 37.57	0	1470570..1471490	-	306	152991188	-	NIS_1446	-	lipopolysaccharide heptosyltransferase
1436	 41.84	0	1471490..1472053	-	187	152991189	-	NIS_1447	-	phosphoheptose isomerase
1437	 41.61	0	1472047..1473435	-	462	152991190	-	NIS_1448	-	ADP-heptose synthase
1438	 39.96	0	1473432..1474427	-	331	152991191	-	NIS_1449	-	ADP-L-glycero-D-mannoheptose-6-epimerase
1439	 40.52	0	1474437..1474937	-	166	152991192	-	NIS_1450	-	D-glycero-D-manno-heptose 1,7-bisphosphate phosphatase
1440	 41.45	0	1475068..1475301	-	77	152991193	-	NIS_1451	-	hypothetical protein
1441	 41.65	0	1475304..1477709	-	801	152991194	-	NIS_1452	-	heavy-metal transporting P-type ATPase
1442	 39.75	0	1477697..1478179	-	160	152991195	-	NIS_1453	-	asparaginase
1443	 35.38	-1	1478201..1478590	+	129	152991196	-	NIS_1454	-	hypothetical protein
1444	 45.20	+1	1478697..1480061	+	454	152991197	rho	NIS_1455	-	transcription termination factor Rho
1445	 42.39	0	1480067..1480828	+	253	152991198	-	NIS_1456	-	glutamate racemase
1446	 42.11	0	1480851..1482389	+	512	152991199	-	NIS_1457	-	DNA polymerase III subunits gamma and tau
1447	 38.54	0	1482386..1483057	-	223	152991200	-	NIS_1458	-	endonuclease III
1448	 43.09	0	1483054..1483863	-	269	152991201	-	NIS_1459	-	hypothetical protein
1449	 39.61	0	1483860..1484417	-	185	152991202	-	NIS_1460	-	fumarylacetoacetate hydrolase family protein
1450	 43.88	+1	1484570..1487500	-	976	152991203	-	NIS_1461	-	transcription-repair coupling factor
1451	 40.85	0	1487473..1488603	-	376	152991204	folC	NIS_1462	-	folylpolyglutamate synthase
1452	 43.37	0	1488600..1489097	-	165	152991205	-	NIS_1463	-	hypothetical protein
1453	 43.26	0	1489100..1491547	-	815	152991206	leuS	NIS_1464	-	leucyl-tRNA synthetase
1454	 41.85	0	1491547..1492521	-	324	152991207	secF	NIS_1465	-	preprotein translocase subunit SecF
1455	 43.44	+1	1492523..1494085	-	520	152991208	secD	NIS_1466	-	preprotein translocase subunit D
1456	 38.41	0	1494089..1494364	-	91	152991209	-	NIS_1467	-	preprotein translocase subunit YajC
1457	 39.01	0	1494363..1495631	+	422	152991210	-	NIS_1468	-	apolipoprotein N-acyltransferase
1458	 45.24	+1	1495628..1496509	+	293	152991211	cysK	NIS_1469	-	cysteine synthase A
1459	 39.67	0	1496509..1497108	+	199	152991212	-	NIS_1470	-	hypothetical protein
1460	 39.91	0	1497098..1497538	+	146	152991213	-	NIS_1471	-	hypothetical protein
1461	 38.33	0	1497535..1498434	-	299	152991214	-	NIS_1472	-	LysR family transcriptional regulator
1462	 41.54	0	1498585..1500630	+	681	152991215	-	NIS_1473	-	ATP-dependent DNA helicase UvrD
1463	 40.70	0	1500627..1501454	+	275	152991216	-	NIS_1474	-	tRNA pseudouridine synthase B
1464	 38.98	0	1501451..1502212	+	253	152991217	-	NIS_1475	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
1465	 38.19	0	1502209..1502661	+	150	152991218	smpB	NIS_1476	-	SsrA-binding protein
1466	 38.18	0	1502672..1503724	+	350	152991219	-	NIS_1477	-	signal transduction response regulator
1467	 43.58	+1	1503721..1505028	+	435	152991220	-	NIS_1478	-	tRNA modifying enzyme
1468	 38.69	0	1505009..1505998	+	329	152991221	-	NIS_1479	-	tRNA-lysidine synthase
1469	 36.95	0	1505949..1506473	-	174	152991222	-	NIS_1480	-	hypothetical protein
1470	 40.10	0	1506463..1507497	-	344	152991223	-	NIS_1481	-	hypothetical protein
1471	 39.68	0	1507509..1508138	-	209	152991224	-	NIS_1482	-	hypothetical protein
1472	 41.55	0	1508144..1509445	-	433	152991225	-	NIS_1483	-	tRNA-i(6)A37 thiotransferase enzyme
1473	 37.40	0	1509442..1509687	-	81	152991226	-	NIS_1484	-	hypothetical protein
1474	 42.20	0	1509841..1510956	+	371	152991227	nusA	NIS_1485	-	transcription elongation factor NusA
1475	 40.96	0	1510960..1511916	-	318	152991228	-	NIS_1486	-	oligopeptide ABC transporter, permease
1476	 39.95	0	1512552..1513367	-	271	152991229	-	NIS_1487	-	hypothetical protein
1477	 38.98	0	1513375..1513746	-	123	152991230	-	NIS_1488	-	hypothetical protein
1478	 45.99	+1	1513823..1514644	-	273	152991231	fabI	NIS_1489	-	enoyl-(acyl carrier protein) reductase
1479	 41.63	0	1514644..1515342	-	232	152991232	tpiA	NIS_1490	-	triosephosphate isomerase
1480	 42.83	0	1515339..1516538	-	399	152991233	pgk	NIS_1491	-	phosphoglycerate kinase
1481	 44.67	+1	1516519..1517532	-	337	152991234	-	NIS_1492	-	glyceraldehyde 3-phosphate dehydrogenase
1482	 38.58	0	1517608..1518141	+	177	152991235	nadD	NIS_1493	-	nicotinate-nucleotide adenylyltransferase
1483	 41.96	0	1518119..1518454	-	111	152991236	-	NIS_1494	-	hypothetical protein
1484	 43.24	0	1518456..1520039	-	527	152991237	argS	NIS_1495	-	arginyl-tRNA synthetase
1485	 39.24	0	1520073..1520309	-	78	152991238	-	NIS_1496	-	twin arginine-targeting protein translocase
1486	 43.11	0	1520378..1521001	-	207	152991239	gmk	NIS_1497	-	guanylate kinase
1487	 41.80	0	1521004..1521960	-	318	152991240	-	NIS_1498	-	hypothetical protein
1488	 37.40	0	1522038..1522553	+	171	152991241	-	NIS_1499	-	membrane bound endonuclease
1489	 40.96	0	1522556..1522909	-	117	152991242	rplS	NIS_1500	-	50S ribosomal protein L19
1490	 40.09	0	1522899..1523579	-	226	152991243	trmD	NIS_1501	-	tRNA (guanine-N(1)-)-methyltransferase
1491	 39.27	0	1523576..1524097	-	173	152991244	-	NIS_1502	-	16S rRNA processing protein RimM
1492	 43.62	+1	1524100..1524342	-	80	152991245	-	NIS_1503	-	hypothetical protein
1493	 40.79	0	1524344..1524571	-	75	152991246	rpsP	NIS_1504	-	30S ribosomal protein S16
1494	 42.53	0	1524642..1526000	-	452	152991247	ffh	NIS_1505	-	signal recognition particle protein
1495	 41.56	0	1526075..1526803	-	242	152991248	-	NIS_1506	-	ribosomal large subunit pseudouridine synthase D
1496	 36.46	0	1526837..1527124	-	95	152991249	-	NIS_1507	-	hypothetical protein
1497	 40.14	0	1527114..1528259	-	381	152991250	kdtA	NIS_1508	-	3-deoxy-D-manno-octulosonic-acid transferase
1498	 40.06	0	1528287..1529000	-	237	152991251	-	NIS_1509	-	hypothetical protein
1499	 39.33	0	1529002..1529718	-	238	152991252	-	NIS_1510	-	hypothetical protein
39.50	MEAN

3.88	STD DEV
